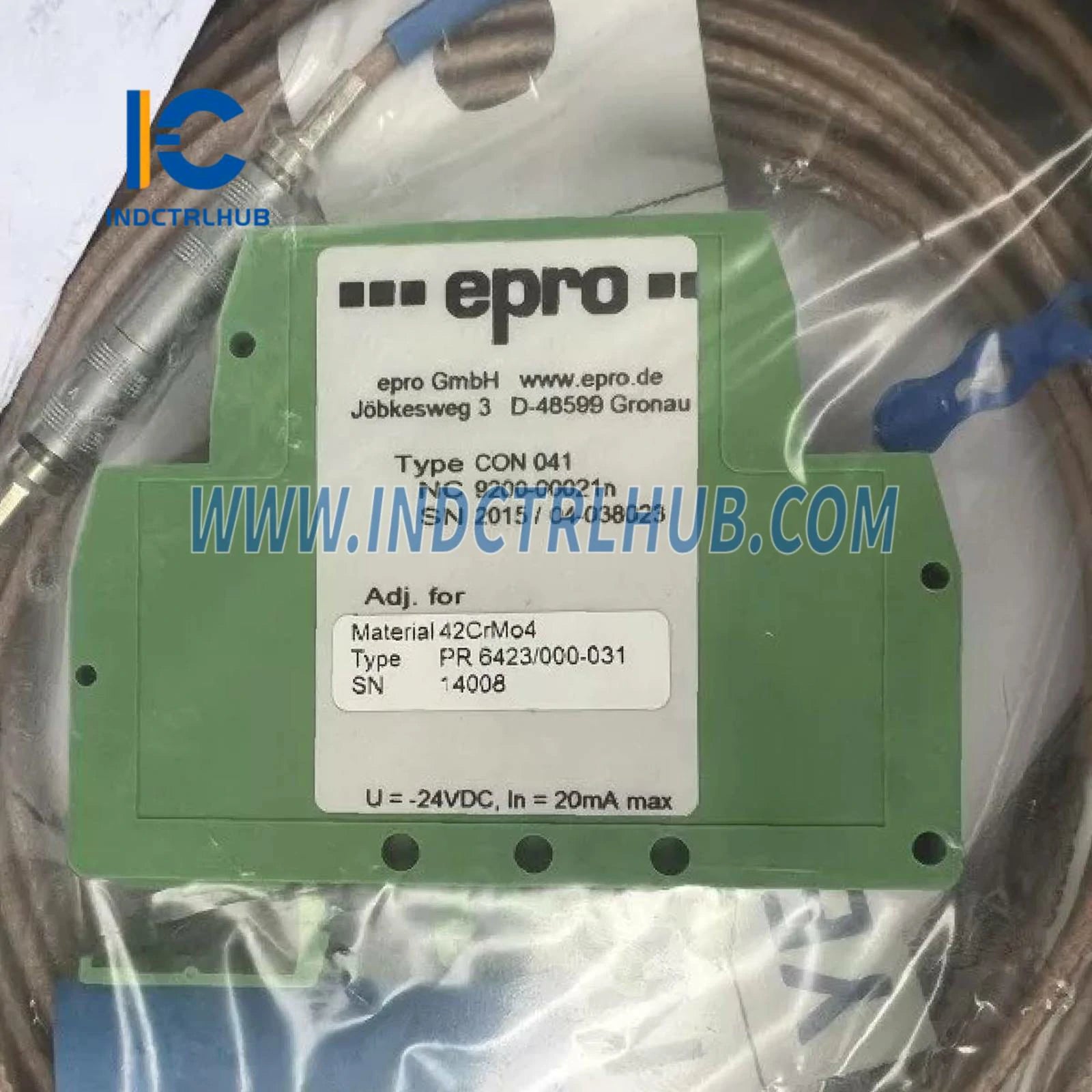

Emerson EPRO CON041+PR6423/000-031 Eddy Current Converter System

Emerson EPRO CON041+PR6423/000-031 Eddy Current Signal Converter System

The Emerson EPRO CON041 signal converter integrated with PR6423/000-031 proximity sensor provides advanced vibration analysis and radial displacement monitoring for industrial rotating machinery. This precision-engineered system delivers real-time condition monitoring for turbines, compressors, motors, and critical process equipment, enabling proactive maintenance strategies and enhanced operational reliability.

Technical Specifications

• Model: CON041 Signal Converter + PR6423/000-031 Proximity Sensor
• Measurement Range: 0-3.1mm (PR6423/000-031)
• Sensing Technology: Non-contact eddy current principle
• Output Configuration: Dual-channel 4-20mA or ±10V DC
• Frequency Response: 0 Hz to 10 kHz (-3dB)
• Linearity: ±1% FSO (Full Scale Output)
• Operating Range: -30°C to +100°C
• Supply Voltage: 18-30 VDC
• Housing Protection: IP65 (sensor), IP20 (converter)

Industrial Applications

Designed for mission-critical machinery protection across diverse sectors:

• Gas and steam turbine shaft monitoring
• Centrifugal and axial compressor surveillance
• Electric motor bearing displacement tracking
• Hydro turbine runner position monitoring
• Gearbox and coupling alignment verification
• Process pump thrust bearing analysis
• Wind turbine drivetrain condition assessment

System Advantages

• Dual-Channel Processing: Simultaneous X-Y displacement measurement for comprehensive orbit analysis
• Enhanced Sensitivity: Detects micro-level shaft movements for early fault detection
• Temperature Compensation: Automatic correction for thermal expansion effects
• Diagnostic Capability: Built-in sensor health monitoring and fault alerts
• Universal Compatibility: Integrates with Bently Nevada, GE, and legacy monitoring systems
• Rugged Construction: Stainless steel sensor housing for corrosive environments

Implementation Strategy

The CON041 converter employs advanced signal conditioning algorithms to transform raw eddy current signals from the PR6423/000-031 sensor into calibrated displacement data. The 3.1mm measurement range makes this system ideal for close-clearance applications requiring high-resolution monitoring. Installation flexibility allows sensor mounting in confined spaces while maintaining converter accessibility for calibration and troubleshooting.

Complementary Products

• EPRO CON041 Eddy Current Signal Converter - Standalone converter unit
• EPRO PR6423/000-031+CON041 8mm Eddy Current Sensor - Complete system package
• EPRO CON041+PR6424/006-131 Eddy Current Converter - Extended range alternative

Industrial Control Hub Advantage

We deliver authentic Emerson EPRO monitoring solutions backed by deep application expertise in rotating machinery diagnostics. Our engineering team provides configuration support, calibration guidance, and integration assistance to ensure optimal system performance and measurement accuracy.
