Product Details
• Manufacturer: Emerson

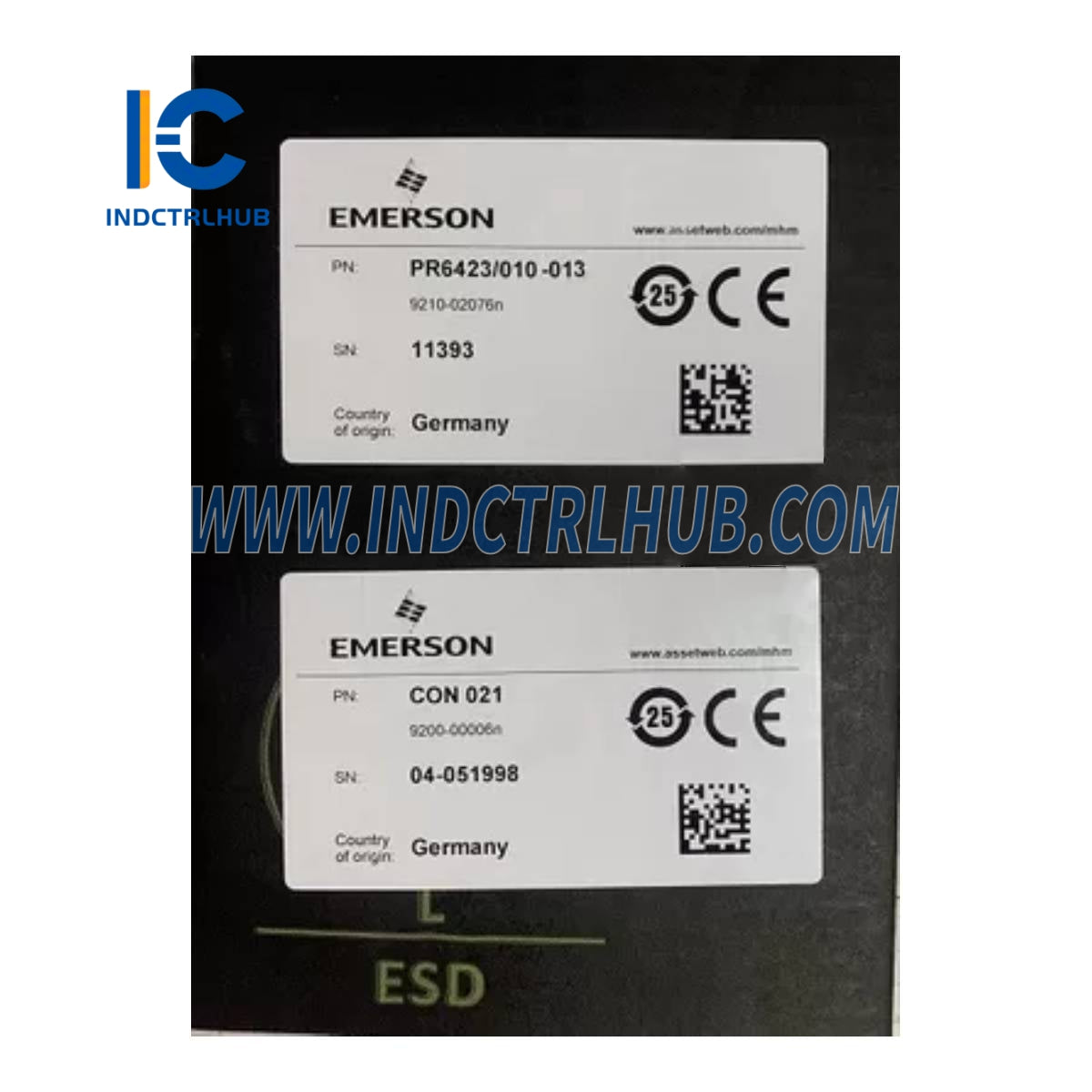

• Model/Part Number: CON021/PR6423/010-130
• Description: Eddy Current Signal Converter
Specifications
Dynamic Performance
|
Attribute |
Value |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20,000 Hz |
|
Rise Time |
<15 µs |
|
Compatible Sensors |
PR6422, PR6423, PR6424, PR6425, PR6426, PR6453 |
|
Extended Range Use |
Requires CON021/91x-xxx |
|
PR6425 Requirement |
Always requires extended range converter |
Environmental Limits
|
Attribute |
Value |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock and Vibration Resistance |
5g @ 60 Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
Power & Electrical
|
Attribute |
Value |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output Range -4V to -20V) |
|
-21V to -32V (Output Range -2V to -18V) |
Physical Specifications
|
Attribute |
Value |
|---|---|
|
Housing Material |
LMgSi 0.5 F22 |
|
Weight |
~120 grams (4.24 oz) |
|
Mounting |
4 Screws M5x20 (Included) |
|
Connections |
Transducer: Self-Locking Lemo-Plug |
|
Supply/Output: Screw Terminal Type (max. 1.5mm² wire) |
Ordering Information
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON021 |
PR6422 |
1.0mm (Standard Range) |
≤ 1.5% |
|
PR6423 |
2.0mm (Standard Range) |
≤ 1.0% |
|
|
PR6424 |
4.0mm (Standard Range) |
≤ 1.5% |
|
|
PR6426 |
8.0mm (Standard Range) |
≤ 1.5% |
|
|
CON021/912-015 |
PR6422 |
1.5mm (Extended Range) |
≤ 2.0% |
|
CON021/913-030 |
PR6423 |
3.0mm (Extended Range) |
≤ 1.5% |
|
CON021/913-040 |
PR6423 |
4.0mm (Extended Range) |
≤ 2.0% |
|
CON021/914-060 |
PR6424 |
6.0mm (Extended Range) |
≤ 1.0% |
|
CON021/914-080 |
PR6424 |
8.0mm (Extended Range) |
≤ 1.5% |
|
CON021/914-100 |
PR6424 |
10.0mm (Extended Range) |
≤ 2.0% |
|
CON021/915-040 |
PR6425 |
4.0mm (Standard Range) |
≤ 1.5% |
|
CON021/915-060 |
PR6425 |
6.0mm (Extended Range) |
≤ 2.0% |
|
CON021/915-080 |
PR6425 |
8.0mm (Extended Range) |
≤ 3.0% |
|
CON021/915-100 |
PR6425 |
10.0mm (Extended Range) |
≤ 4.0% |
|
CON021/916-120 |
PR6426 |
12.0mm (Extended Range) |
≤ 1.5% |
|
CON021/916-160 |
PR6426 |
16.0mm (Extended Range) |
≤ 2.0% |
|
CON021/916-200 |
PR6426 |
20.0mm (Extended Range) |
≤ 2.5% |
|
CON021/916-240 |
PR6426 |
24.0mm (Extended Range) |
≤ 3.5% |
