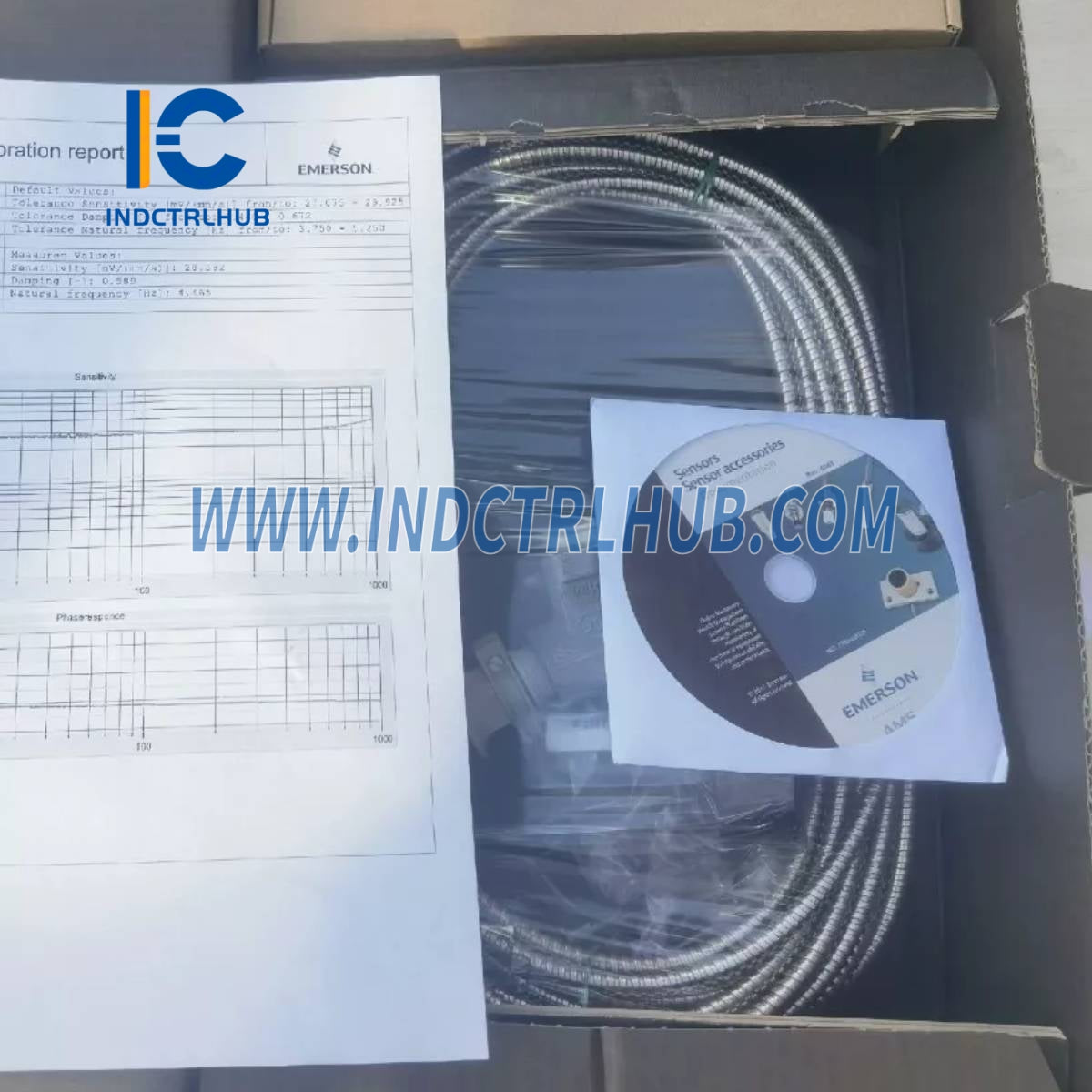

Product Description
Product Details
|

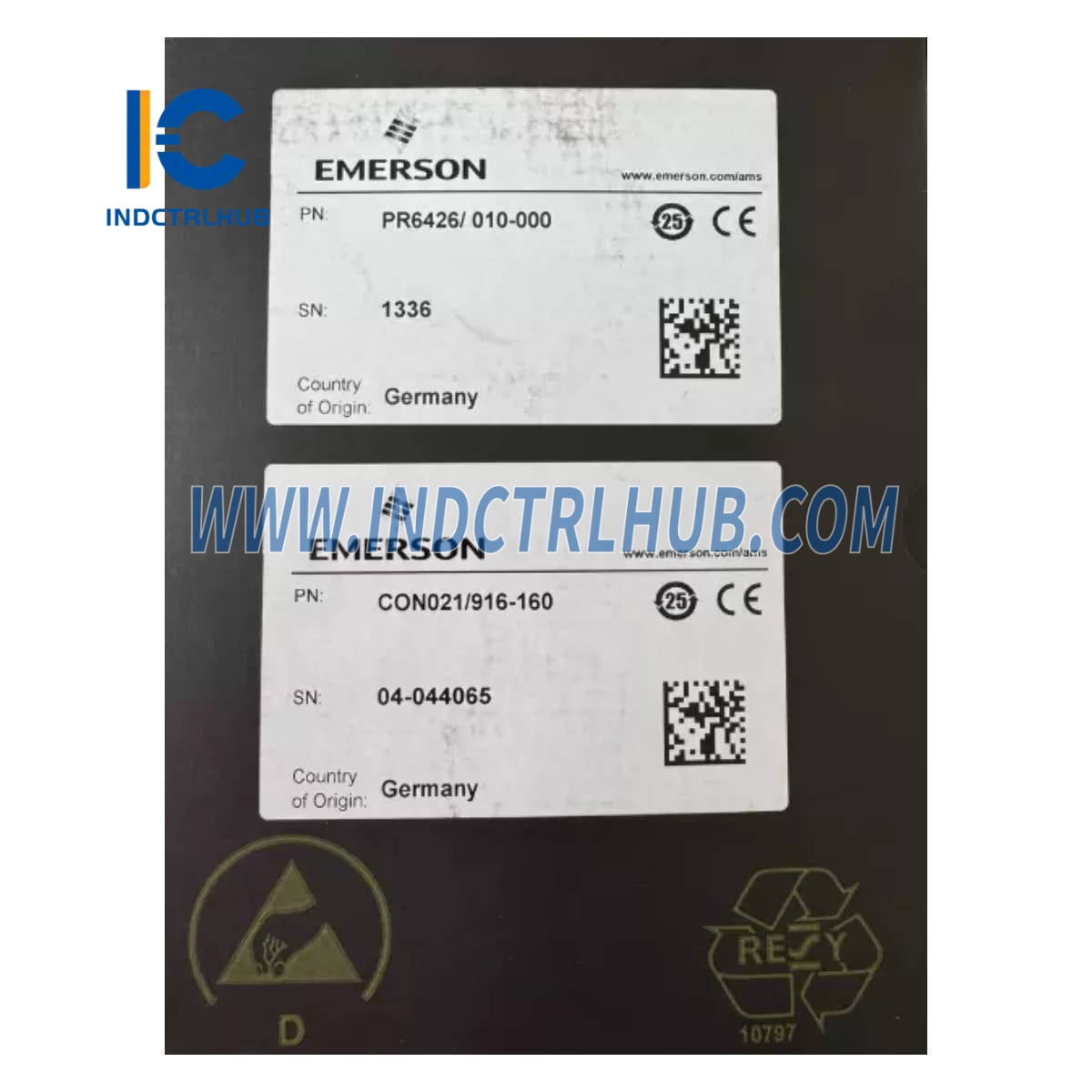

Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |
CON021/916-160+PR6426/010-000 |
|
Description |
Eddy Current Signal Converter with Sensor |
Dynamic Performance
|
Parameter |
Value |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20000 Hz |
|
Rise Time |
<15 µs |
|
Sensitivity (PR6426) |
2 V/mm (50.8 mV/mil) ≤ ±1.5% max |
|
Air Gap (Center) |
Approx. 5.5 mm (0.22”) Nominal |
|
Long Term Drift |
< 0.3% |
|
Range Static |
±4.0 mm (0.157”) |
|
Target Material |
Ferromagnetic Steel (42 Cr Mo 4 Standard) |
|
Maximum Surface Speed |
2,500 m/s (98,425 ips) |
|
Shaft Diameter |
≥200 mm (7.87”) |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) (Converter) -35 to 175°C (-31 to 347°F) (Sensor) |
|
Temperature Excursions (Max 4 Hours) |
200°C (392°F) |
|
Maximum Cable Temperature |
200°C (392°F) |
|
Temperature Error (at +23 to 100°C) |
-0.3%/100°K Zero Point < 0.15%/10°K Sensitivity |
|
Pressure Resistance (To Sensor Head) |
6,500 hpa (94 psi) |
|
Shock and Vibration |
5g @ 60Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
Power & Electrical Specifications
|
Parameter |
Value |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output Range -4V to -20V) -21V to -32V (Output Range -2V to -18V) |
Physical Specifications
|
Parameter |
Value |
|---|---|
|
Housing Material |
LMgSi 0.5 F22 |
|
Weight |
~120 grams (4.24 oz) (Converter) ~800 grams (28.22 oz) (Sensor & 1M Cable, no Armor) |
|
Mounting |
4 Screws M5x20 (Included in Delivery) |
|
Connections |
Transducer: Self-Locking Lemo-Plug Supply/Output: Screw Terminal Type (max.1.5mm² wire) |
|
Sensor Material |
Sleeve – Stainless Steel, Cable – PTFE |
Ordering Information
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON021 |
PR6422, PR6423, PR6424, PR6426 |
1.0mm - 8.0mm (Standard Range) |
≤ 1.0 - 1.5% |
|
CON021/916-160 |
PR6426 |
16.0mm (Extended Range) |
≤ 2.0% |
|
CON021/916-200 |
PR6426 |
20.0mm (Extended Range) |
≤ 2.5% |
|
CON021/916-240 |
PR6426 |
24.0mm (Extended Range) |
≤ 3.5% |
PR6426 Order Matrix
|
Parameter |
Options |
|---|---|
|
Sleeve Thread |
No Thread (0) |
|
Armored Cable |
With (1), Without (0) |
|
Sensor Length |
80 mm x 40 mm (0) |
|
Adapter Plug |
With (0), Without (1) |
|
Cable Length |
4m (0), 5m (1), 6m (2), 8m (3), 10m (4) |
|
Cable End |
LEMO (0), Open (1) |
