Product Description
Product Details
|
Field |
Information |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

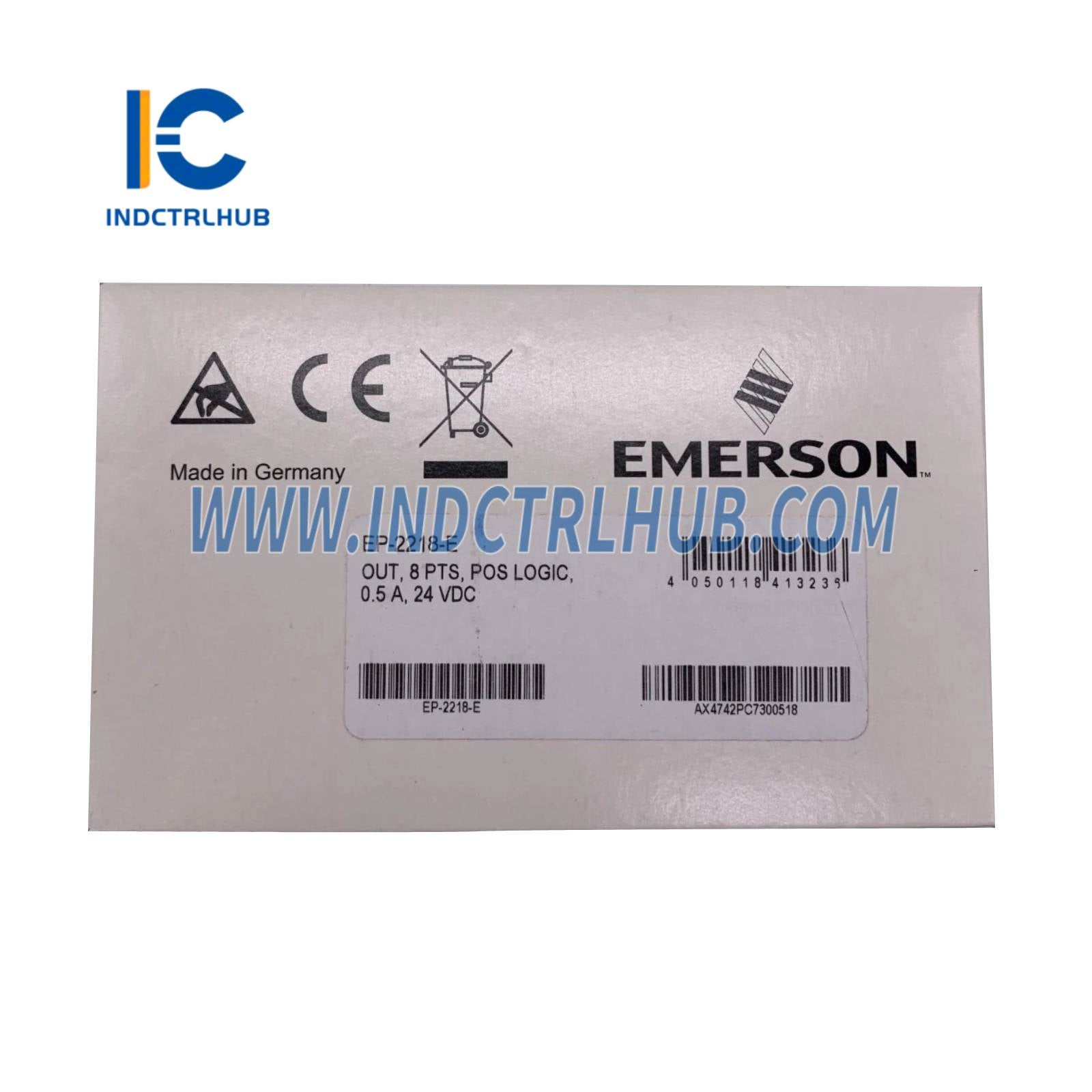

EP-2218 |
|
Description |
Digital Output, 8 Points, Positive Logic, 24VDC, 0.5A, 2-Wire |
Ordering Information
|
Module |
Description |
|---|---|
|
EP-2214 |
Digital Output, 4 Points, Positive Logic 24VDC, 0.5A, 2, 3, or 4 Wire |
|
EP-2218 |
Digital Output, 8 Points, Positive Logic, 24VDC, 0.5A, 2 Wire |
|
EP-2614 |
Digital Output, 4 Points, Positive Logic 24VDC, 2.0A, 2, 3, or 4 Wire |
|
EP-225F |
Digital Output, 16 Points, Positive Logic, 24VDC, 0.5A, 1 Wire |
|
EP-291F |
Digital Output, 16 Points, Negative Logic, 24VDC, 0.5A, 1 Wire |
|
EP-2634 |
Digital Output, 4 Points, Positive/Negative Logic 24VDC, 2.0A, 2, 3, or 4 Wire |
|
EP-2714 |
Digital Relay Output, 4 Points, Positive Logic, 24–220VDC/VAC, 6A, 2 Wire |
|
EP-2814 |
Digital Output, 4 Points, Positive Logic, 230VAC, 1A |
Specifications for EP-2218
|
Category |
Specification |
|---|---|
|
System Interface |
RSTi-EP system bus |
|
System Bus Transfer Rate |
48 Mbps |
|
Number of Outputs |
8 |
|
Output Type |
Positive Logic (P-Logic) |
|
Type of Load |
Ohmic, Inductive, Lamp load |
|
Response Time |
Low → High: max. 100 μsHigh → Low: max. 250 μs |
|
Max Output Current |
Per channel: 0.5 APer module: 4 A |
|
Breaking Energy (Inductive) |
150 mJ per channel |
|
Switching Frequency |
Resistive Load (≥47 Ω): 1 kHzInductive Load (DC 13): 0.2 Hz without free-wheeling diode / 1 kHz with diodeLamp Load (12W): 1 kHz |
|
Actuator Connection |
2-wire |
|
Short-circuit-proof |
Yes |
|
Protective Circuit |
Constant current with thermal switch-off and automatic restart |
|
Diagnostics |
Module diagnostics: YesIndividual channel diagnostics: No |
|
Reactionless |
Yes |
|
Compatibility |
Not usable with EP-19xx modules |
|
Supply Voltage |
20.4V to 28.8V |
|
Current Consumption (ISYS) |
8 mA |
|
Current Consumption (IOUT) |
35 mA + load |
|
Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity (operation/transport) |
5% to 95%, noncondensing (IEC 61131-2) |
|
Dimensions (W x D x H) |
11.5 mm x 76 mm x 120 mm (0.45 in x 2.99 in x 4.72 in) |
|
Weight |
86 g (3.03 oz) |
