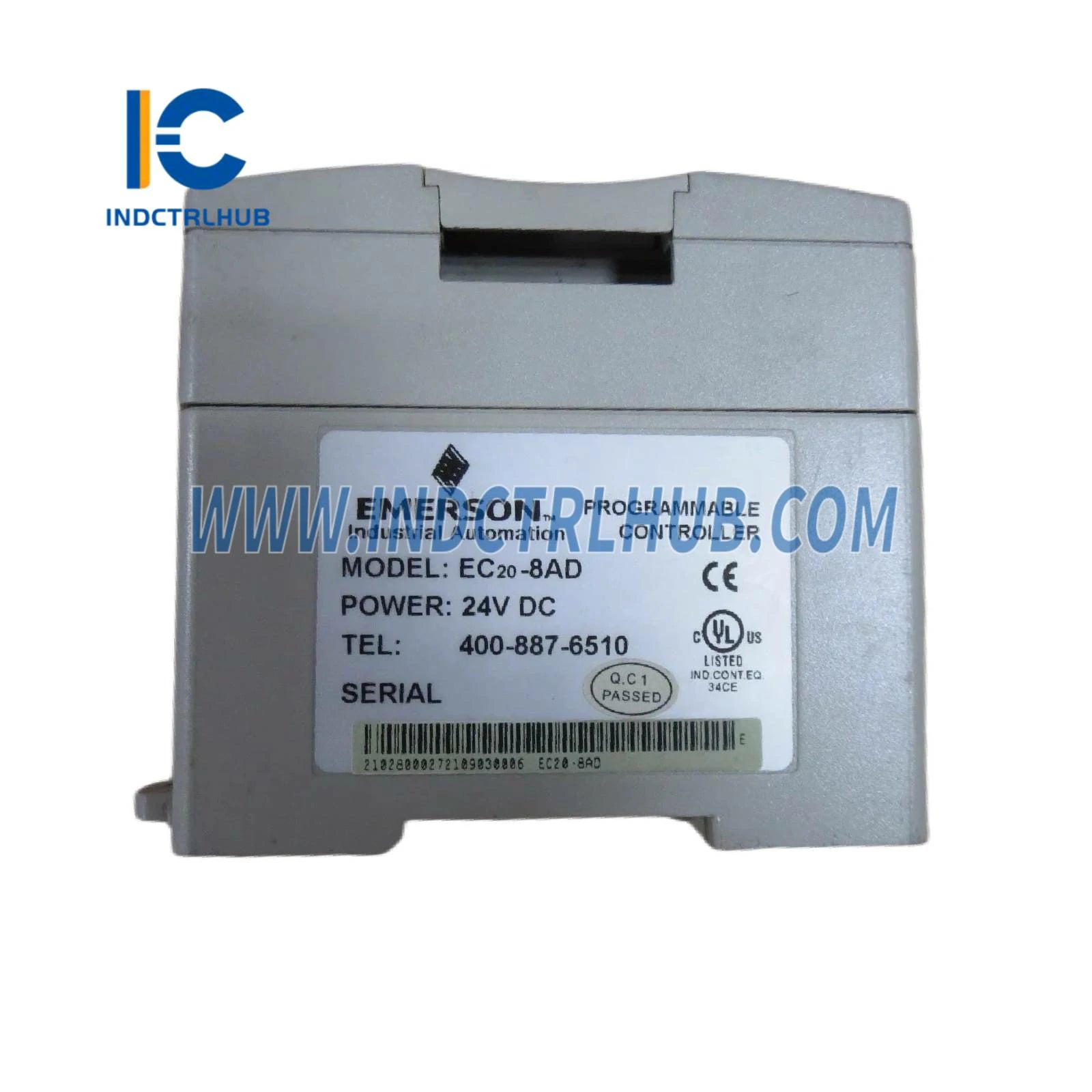

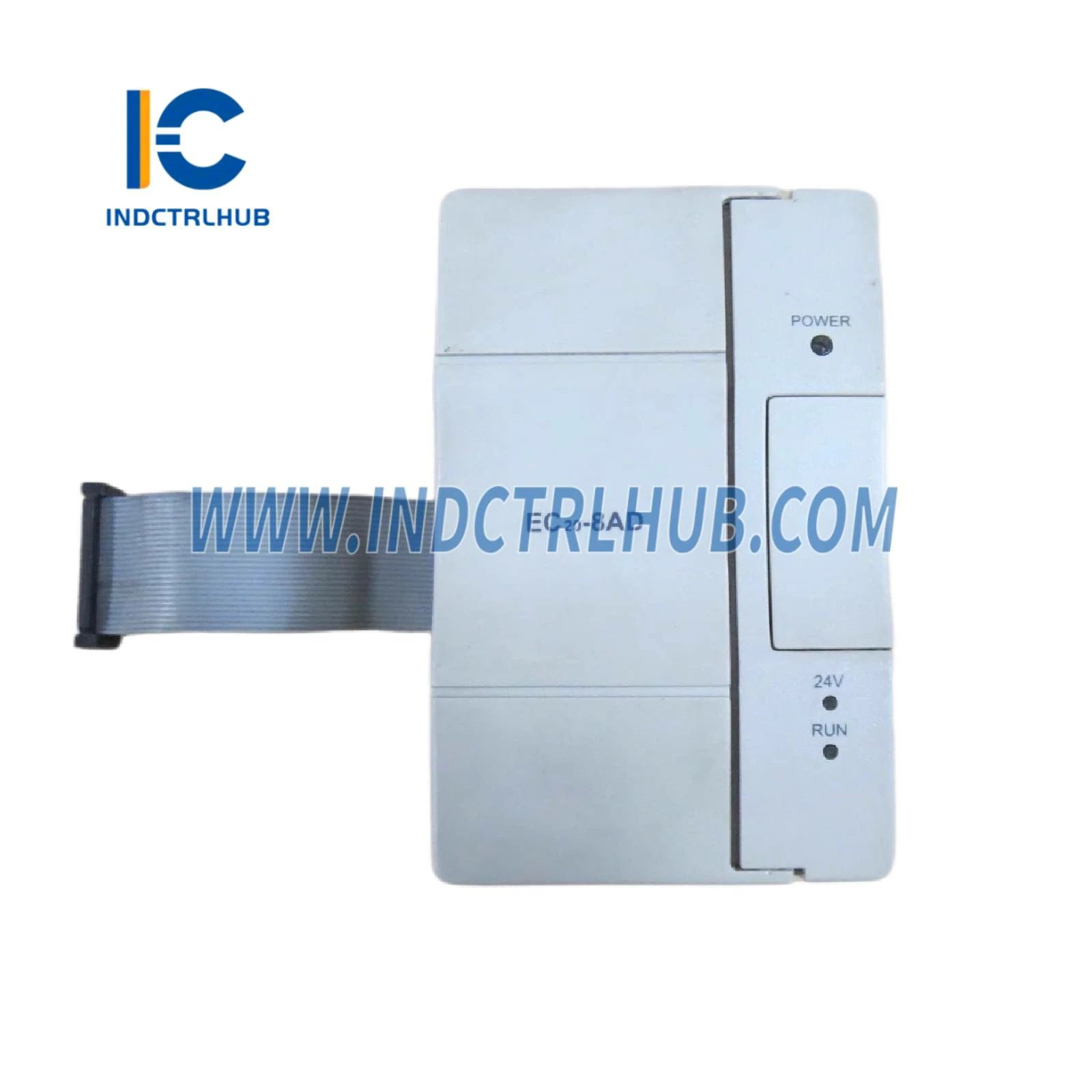

Emerson EC20-8AD 8-Channel Analog Input Module

Emerson EC20-8AD 8-Channel Analog Input Module - Precision Data Acquisition for DeltaV EC20 PLC Systems

The Emerson EC20-8AD 8-Channel Analog Input Expansion Module extends the measurement capabilities of DeltaV EC20 Series programmable logic controllers, providing high-precision analog signal acquisition from field transmitters, sensors, and instrumentation. This compact I/O module supports multiple input types (-10V to +10V, 0-20mA, 4-20mA) with 12-bit resolution and ±1% accuracy, making it ideal for oil & gas, chemical, pharmaceutical, and manufacturing applications requiring reliable process variable monitoring.

Core Technical Specifications

• Model Number: EC20-8AD
• Series: DeltaV EC20 PLC System
• Channel Count: 8 analog input channels per module
• Input Types: -10V to +10V, 0-20mA, 4-20mA (configurable per channel)
• Resolution: 12-bit A/D converter (4096 counts)
• Accuracy: ±1% of full scale
• Conversion Time: 15ms per channel (120ms for all 8 channels)
• Power Supply: 24VDC supplied by EC20 main module
• Power Consumption: Approximately 2W
• Operating Temperature: -5°C to +55°C (23°F to 131°F)
• Mounting: T-type DIN rail

Global Safety & EMC Certifications

Certified for deployment in industrial automation environments worldwide:

• CE Marking: European conformity for electrical safety and EMC compliance
• RoHS Compliant: Restriction of Hazardous Substances directive compliance
• Protection Rating: IP20 for control cabinet installation
• Environmental: ISA-S71.04-1985 Class G3 airborne contaminants protection

Industrial Process Automation Applications

Process Variable Monitoring: Acquire analog signals from pressure transmitters, temperature sensors, flow meters, and level instruments in continuous process industries. The module's support for both voltage (-10V to +10V) and current (0-20mA, 4-20mA) inputs provides flexibility to interface with diverse field instrumentation without requiring external signal conditioning.

Machine Automation & Control: Monitor analog feedback from servo drives, variable frequency drives (VFDs), and positioning systems in packaging, material handling, and assembly automation. The 12-bit resolution (4096 counts) provides sufficient granularity for closed-loop control applications requiring precise analog feedback for speed regulation, position control, and torque monitoring.

Environmental Monitoring Systems: Interface with gas analyzers, particulate sensors, humidity transmitters, and ambient temperature sensors in HVAC control, clean room monitoring, and emissions compliance applications. The ±1% accuracy ensures measurement reliability for regulatory reporting and process optimization.

Energy Management: Acquire signals from power meters, current transformers, and energy monitoring devices for facility energy management systems. Monitor electrical consumption, power factor, and demand parameters to optimize energy usage and reduce utility costs in manufacturing facilities.

Batch Process Control: Collect analog data from reactors, mixing vessels, and dosing systems in pharmaceutical, food & beverage, and specialty chemical batch manufacturing. The 15ms per channel conversion time provides adequate update rates for batch recipe execution and quality control monitoring.

Flexible Input Configuration Advantages

Versatile signal compatibility for diverse instrumentation:

• Voltage Inputs (-10V to +10V): Interface with potentiometers, position transducers, and voltage-output sensors without external signal conditioning
• Current Inputs (0-20mA): Connect to legacy instrumentation and older transmitters using 0-20mA signaling
• Current Inputs (4-20mA): Industry-standard 4-20mA loop-powered transmitters with live-zero for fault detection
• Per-Channel Configuration: Each of the 8 channels can be independently configured for voltage or current input via ControlStar software
• No External Wiring: Input type selection via software eliminates jumpers and DIP switches, reducing installation errors

System Integration & Programming

Seamless integration with DeltaV EC20 PLC ecosystem:

ControlStar Software: The EC20-8AD is programmed and monitored using Emerson's ControlStar development environment. Configure input types, scaling parameters, alarm limits, and diagnostic settings through intuitive graphical interface. Real-time monitoring displays current values, min/max readings, and fault status for each channel.

System Bus Communication: The module connects to the EC20 main module via the internal system bus, automatically recognized during power-up. No manual addressing or configuration required - the PLC scans the bus and identifies connected expansion modules, simplifying commissioning and reducing setup time.

Data Mapping: Analog input values are automatically mapped to PLC memory registers accessible by ladder logic, function block diagrams, or structured text programs. Apply scaling, filtering, and linearization functions within the PLC program to convert raw counts to engineering units (PSI, °C, GPM, etc.).

Environmental Specifications

Installation & Wiring Guidelines

Best practices for reliable analog signal acquisition:

• DIN Rail Mounting: Snap module onto T-type DIN rail adjacent to EC20 main module or other expansion modules
• Power Connection: 24VDC power supplied automatically via system bus from main module - no external power wiring required
• Signal Wiring: Use shielded twisted-pair cable for all analog inputs to minimize electromagnetic interference
• Shield Grounding: Ground cable shields at one end only (typically at the module) to prevent ground loops
• Wire Routing: Separate analog signal cables from high-power AC wiring, motor cables, and VFD outputs by minimum 300mm
• Terminal Blocks: Removable screw terminals accept 14-22 AWG wire for easy installation and maintenance

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson automation components:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert PLC technical support from certified automation engineers
• ✓ Extensive inventory of current production and legacy DeltaV EC20 modules
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, programming examples, and integration assistance

Complementary DeltaV EC20 System Components

Compatible EC20 Main Modules

• EC20-2012BTA: 20 digital inputs, 12 transistor outputs, 24VDC
• EC20-2012BRA: 20 digital inputs, 12 relay outputs, 24VDC
• EC20-3232BRA: 32 digital inputs, 32 relay outputs, 24VDC
• EC20-1616BTA: 16 digital inputs, 16 transistor outputs, 24VDC

Ordering Information & System Planning

• EC20-8AD: 8-Channel Analog Input Expansion Module (this product)
• Required: EC20 series main module (sold separately)
• Software: ControlStar programming software (free download from Emerson)
• Expansion Capacity: Up to 8 expansion modules per EC20 main module
• Spare Parts: Maintain spare modules for critical measurement loops to minimize downtime

Technical Documentation & Support

Complete installation manuals, wiring diagrams, ControlStar programming guides, and application examples available upon request. Our application engineering team provides system design consultation, I/O configuration assistance, scaling calculations, and troubleshooting support for complex EC20 PLC applications.

Maintenance & Service Life

• MTBF: >100,000 hours at 25°C ambient temperature
• Preventive Maintenance: Verify terminal tightness annually, inspect for dust accumulation quarterly
• Calibration: Factory calibrated - no field calibration required during service life
• Expected Service Life: 10+ years in typical industrial control cabinet environments
• Replacement Criteria: Replace module if input channels fail, communication errors persist, or diagnostic LEDs indicate faults
