Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
8723-CA-RB |
|
Description |

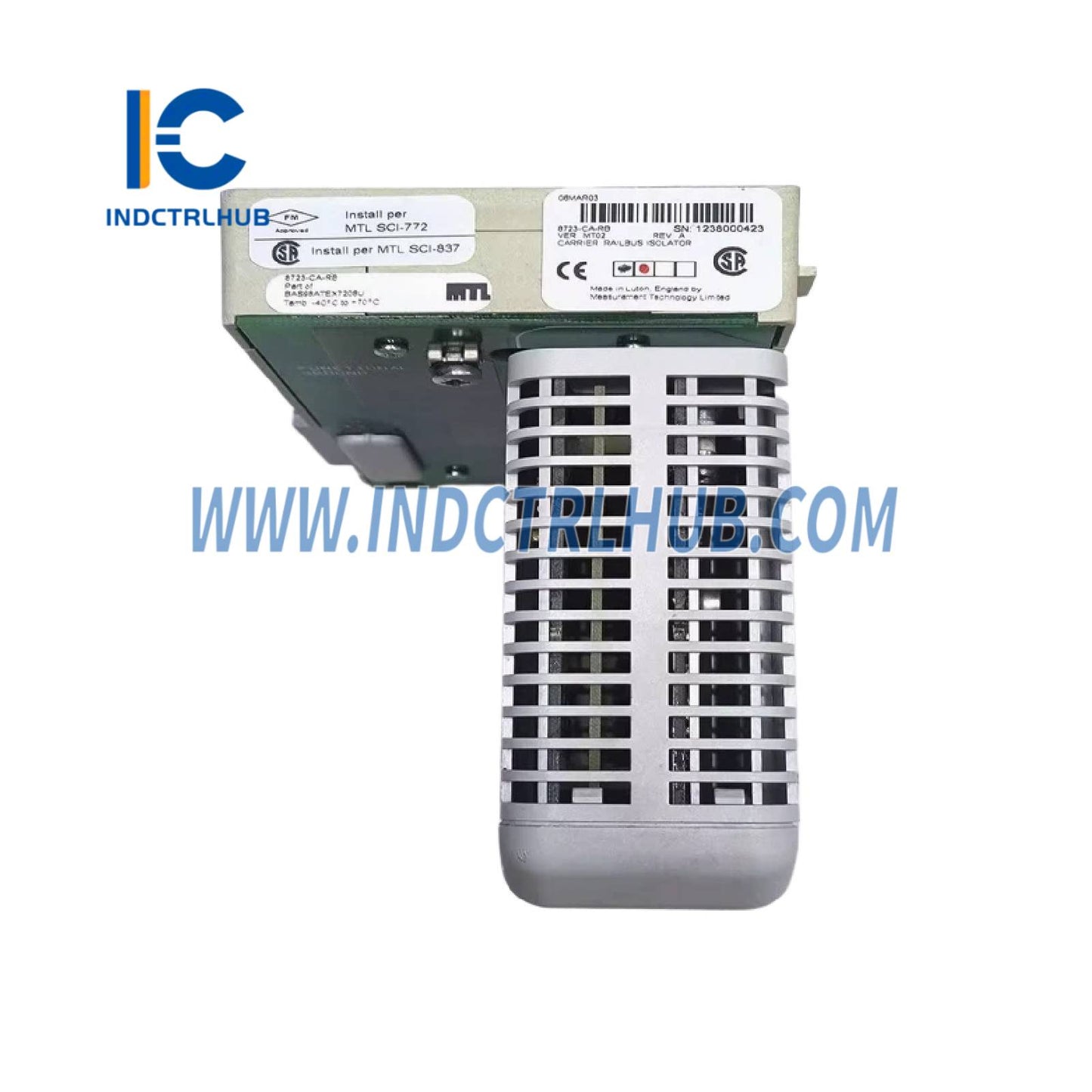

Railbus Isolator Carrier |
Carrier Specification
|
Category |
Specification |
|---|---|
|
Associated Module |
Railbus Isolator (8922-RB-IS) |
|
Hazardous Area Approvals |
- Class 1, Div 2, Groups A, B, C, D, T4 hazardous location- Zone 2, IIC T4 hazardous area |
Electrical
|
Parameter |
Specification |
|---|---|
|
Railbus Connectors |
Male input, Female output |
|
Compatibility |
Usable with 32-slot or 64-slot address nodes |
|
DC Power Source |
Supplied through multipin Railbus connectors |
Materials
|
Component |
Material |
|---|---|
|
Carrier Moulding |
Modified Poly-phenylene Oxide |
|
Printed Wiring Board |
Epoxy Resin Woven Glass Laminate |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
–40°C to +70°C |
|
Storage Temperature |
–40°C to +85°C |
|
Relative Humidity |
5% to 95% RH (Non-condensing) |
|
Vibration and Shock |
Refer to System Specification Sheet |
Mechanical
|
Parameter |
Specification |
|---|---|
|
Dimensions (W x D x H) |
93 mm x 168 mm x 35 mm |
|
Weight |
Approx. 195 g |
|
Mounting Methods |
Flat Panel (3 fixings) or DIN-rail |
|
Supported DIN-rail Types |
- ‘Top hat’, 7.5 x 35 mm or 15 x 35 mm (EN 50022)- G-section (EN 50035) |
