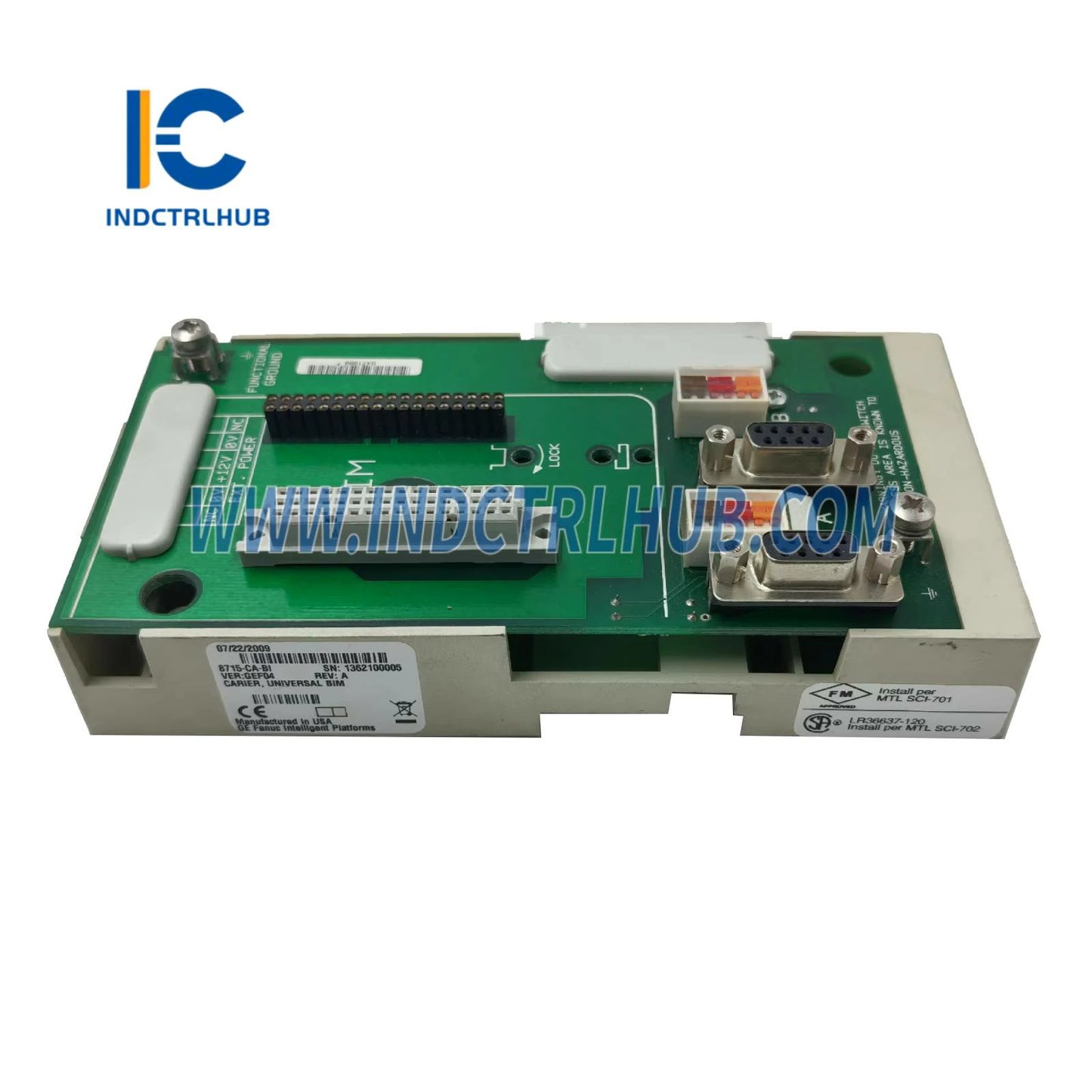

Emerson 8715-CA-BI PAC8000 BIM Carrier for Profibus DP

Emerson 8715-CA-BI PAC8000 BIM Carrier for Profibus DP Networks

The Emerson 8715-CA-BI is a specialized Bus Interface Module (BIM) carrier designed exclusively for Profibus DP fieldbus integration within PAC8000 distributed I/O architectures. This carrier provides the critical interface between Profibus DP master controllers and PAC8000 I/O modules, enabling seamless data exchange in process automation and discrete manufacturing environments.

Technical Specifications

• Model Number: 8715-CA-BI
• Function: BIM-only carrier for Profibus DP communication
• Network Protocol: Profibus DP (EN 50170)
• Baud Rate Support: 9.6 kbps to 12 Mbps auto-detection
• I/O Module Capacity: Supports up to 8 PAC8000 I/O modules per carrier
• Power Supply: 24 VDC nominal (19.2-30 VDC range)
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Mounting: DIN rail or panel mount with optional brackets
• Diagnostic LEDs: Power, bus active, fault indication
• Certifications: CE, UL, ATEX Zone 2, IECEx compliant

System Architecture & Integration

The 8715-CA-BI serves as the foundation for building distributed I/O nodes in Profibus DP networks. When paired with PAC8000 analog input, analog output, digital input, or digital output modules, it creates a complete remote I/O station that communicates directly with Profibus DP master devices such as Siemens S7 PLCs, ABB controllers, or Emerson DeltaV systems equipped with Profibus interfaces.

Each carrier occupies a single Profibus DP address and can host multiple I/O modules, significantly reducing network loading compared to individual device addressing. The BIM handles all protocol conversion, cyclic data exchange, and acyclic parameter services, presenting a standardized GSD file interface to the master controller.

Application Scenarios

Hybrid DCS/PLC Architectures: In facilities where legacy Profibus DP PLCs coexist with modern DeltaV or Ovation DCS platforms, the 8715-CA-BI enables cost-effective I/O expansion without requiring complete system replacement. Deploy PAC8000 carriers in remote process areas while maintaining centralized control through existing Profibus infrastructure.

Hazardous Area I/O: Combine the 8715-CA-BI with intrinsically safe PAC8000 I/O modules to create Zone 2/Division 2 compliant I/O stations. The carrier's wide temperature range and conformal coating make it suitable for outdoor installations in oil & gas, chemical processing, and mining applications.

Machine Automation: For packaging lines, material handling systems, and discrete manufacturing equipment, the 8715-CA-BI provides high-speed I/O response with deterministic Profibus DP communication. The modular design allows custom I/O configurations tailored to specific machine requirements.

Retrofit & Modernization: When upgrading aging I/O systems, the 8715-CA-BI offers a migration path that preserves existing Profibus DP network infrastructure. Replace obsolete remote I/O with PAC8000 modules while maintaining compatibility with current control systems.

Configuration & Commissioning

Installation begins with mounting the carrier on DIN rail or panel, connecting 24 VDC power, and attaching Profibus DP network cables to the integrated D-sub connector. PAC8000 I/O modules snap onto the carrier backplane without tools, with automatic electronic keying preventing incorrect module insertion.

Network configuration is performed using standard Profibus tools (e.g., Siemens STEP 7, TIA Portal) by importing the Emerson-supplied GSD file. The carrier supports both DP-V0 and DP-V1 protocols, enabling advanced diagnostics and parameter access beyond basic I/O data exchange. Rotary switches on the carrier set the Profibus address (0-125), and termination resistors are integrated for end-of-line installations.

Diagnostic Capabilities

Front-panel LEDs provide immediate status visibility: green for power OK, yellow for bus communication active, and red for fault conditions. Detailed diagnostics are accessible through the Profibus master, including individual module health, power supply voltage levels, and communication error counters. The carrier supports Profibus DP-V1 alarms, automatically notifying the master controller of module insertion/removal or configuration mismatches.

Why Choose Industrial Control Hub

Every Emerson 8715-CA-BI carrier ships factory-tested with full traceability documentation and manufacturer warranty. Our technical team provides pre-sales application support, GSD file assistance, and post-installation troubleshooting. We maintain global inventory for immediate shipment with expedited logistics for critical projects.
