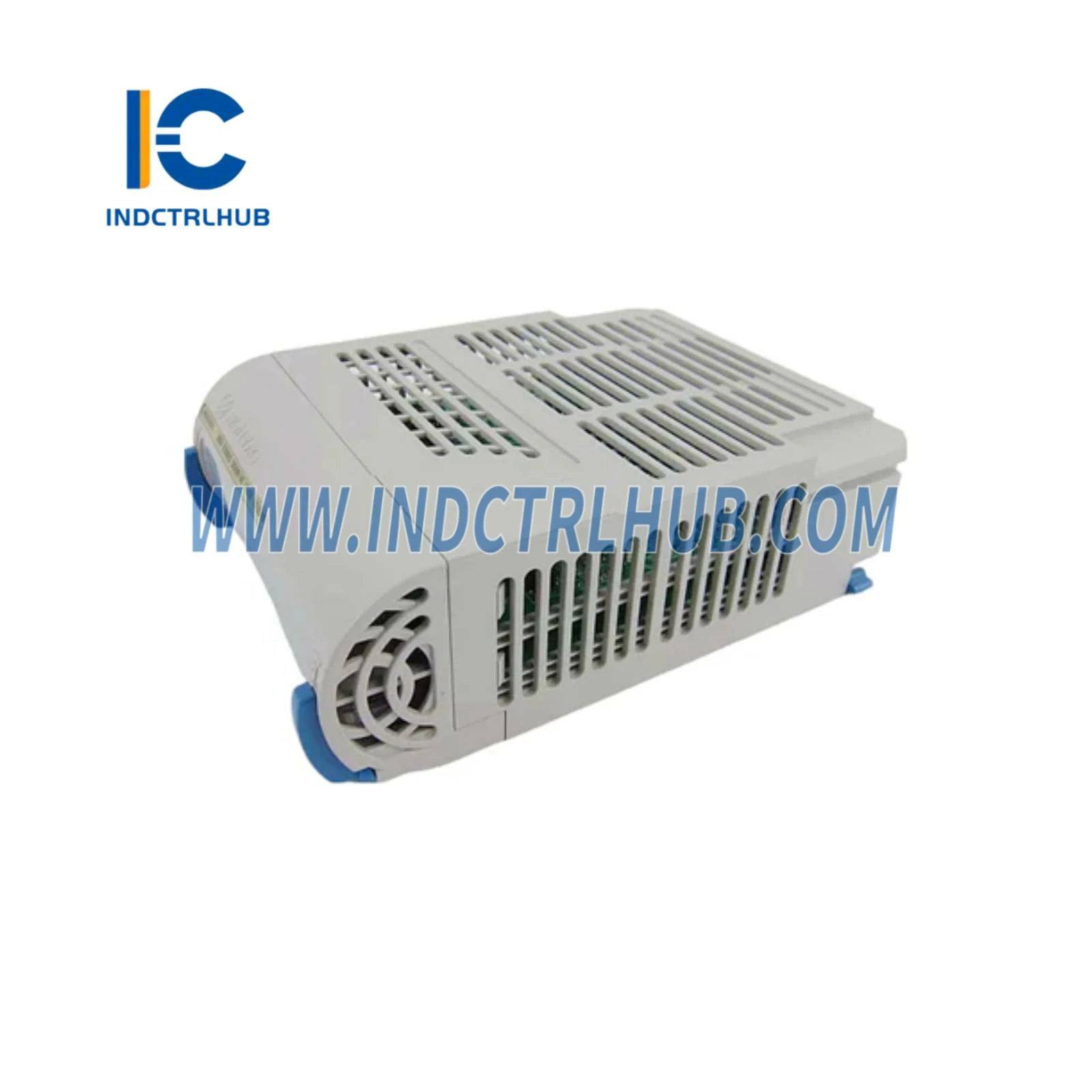

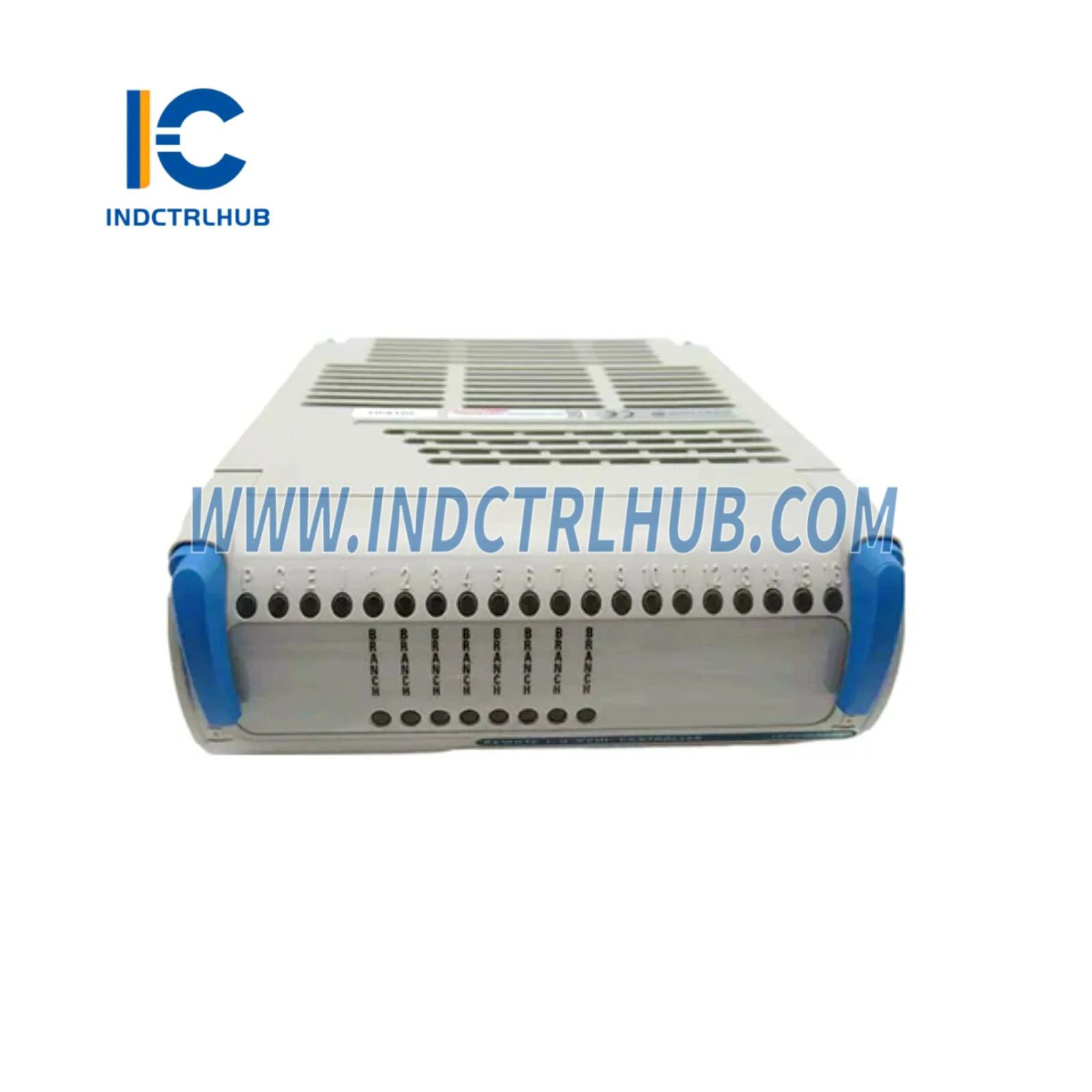

🧠 Emerson 5X00490G23 – OCR400 Ovation Controller Module

The brain of your distributed control system. The 5X00490G23 OCR400 is Emerson's flagship controller module, executing real-time control logic, managing I/O networks, and coordinating process automation across refineries, power plants, and chemical facilities worldwide.

🚀 Processing Power Meets Industrial Resilience

Built on a ruggedized architecture, the OCR400 runs deterministic control algorithms at millisecond scan rates while simultaneously handling operator interface communications, alarm management, and historian data logging. Dual-redundant processors ensure zero process interruption during controller failover—critical for continuous manufacturing operations.

🔍 What Makes OCR400 Different?

Distributed Intelligence: Unlike legacy PLCs that centralize control logic, the OCR400 distributes processing across multiple controllers, reducing network bottlenecks and improving system responsiveness. Each module manages its own I/O rack, executing control loops locally while sharing data via high-speed Ethernet.

Scalable from Day One: Start with a single controller managing 500 I/O points, then expand to multi-controller architectures handling 50,000+ tags without re-engineering your control strategy. The OCR400's modular design grows with your facility.

Cybersecurity by Design: Integrated firewall, encrypted communications, and role-based access control meet IEC 62443 industrial cybersecurity standards—protecting critical infrastructure from evolving threats.

🏭 Real-World Deployments

Crude Oil Refining: An OCR400 cluster manages distillation column temperature cascades, furnace firing controls, and product blending—coordinating 12,000 I/O points across a 200,000 bpd refinery. Redundant controllers maintain production during planned maintenance windows.

Combined-Cycle Power Generation: Controls gas turbine sequencing, heat recovery steam generators, and emissions monitoring systems. Sub-second response times prevent turbine trips during grid frequency disturbances.

Pharmaceutical Batch Processing: Executes ISA-88 batch recipes for API synthesis, managing reactor temperatures, pH control, and material transfers with full 21 CFR Part 11 audit trails.

Pulp & Paper Mills: Coordinates digester cooking cycles, bleaching sequences, and paper machine speed control—integrating with MES systems for production scheduling and quality tracking.

⚙️ Technical Architecture

🛠️ Engineering & Commissioning

Program the OCR400 using Emerson's DeltaV Operate or Control Studio software—drag-and-drop function blocks accelerate development compared to ladder logic. Built-in simulation mode validates control strategies before commissioning, reducing startup risks.

The module auto-discovers I/O cards during power-up, eliminating manual addressing. Configuration changes download to the controller without halting the running process—critical for 24/7 operations.

🔒 Compliance & Certifications

• ✅ Safety: IEC 61508 SIL 2 capable (when paired with certified I/O)
• ✅ Hazardous Areas: ATEX Zone 2, IECEx, Class I Division 2
• ✅ Cybersecurity: IEC 62443-4-2 Security Level 2
• ✅ Quality: ISO 9001 manufacturing, UL/CE marked

📦 Delivery & Support

Each 5X00490G23 module ships factory-tested with firmware pre-loaded. Includes rack mounting hardware and quick-start documentation. Programming software and I/O modules sold separately.

Backed by Emerson's global support network—24/7 technical assistance, spare parts availability, and migration paths to next-generation Ovation platforms.

Deploy the OCR400 where control precision and uptime are non-negotiable. Trusted by the world's most demanding process industries.
