Product Description

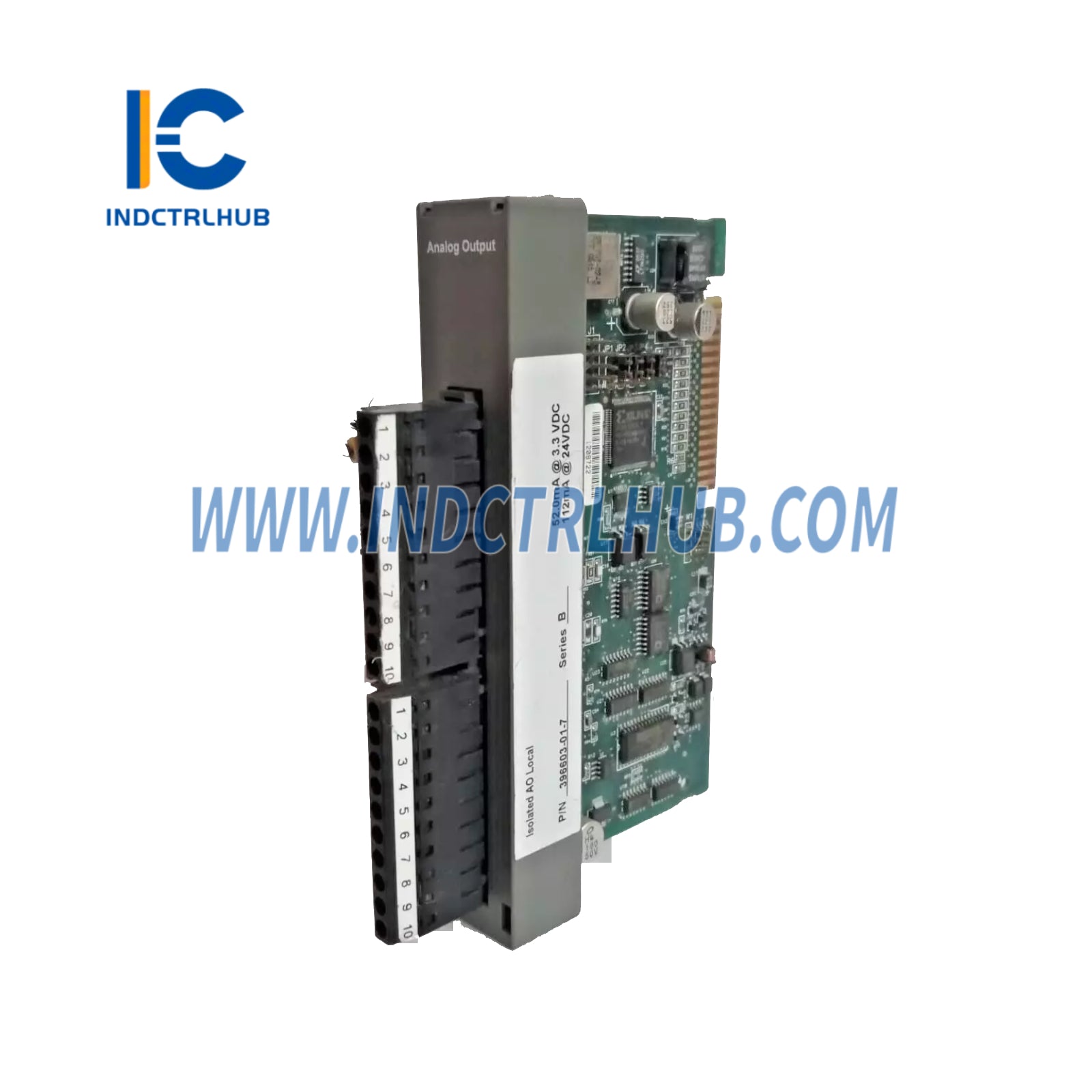

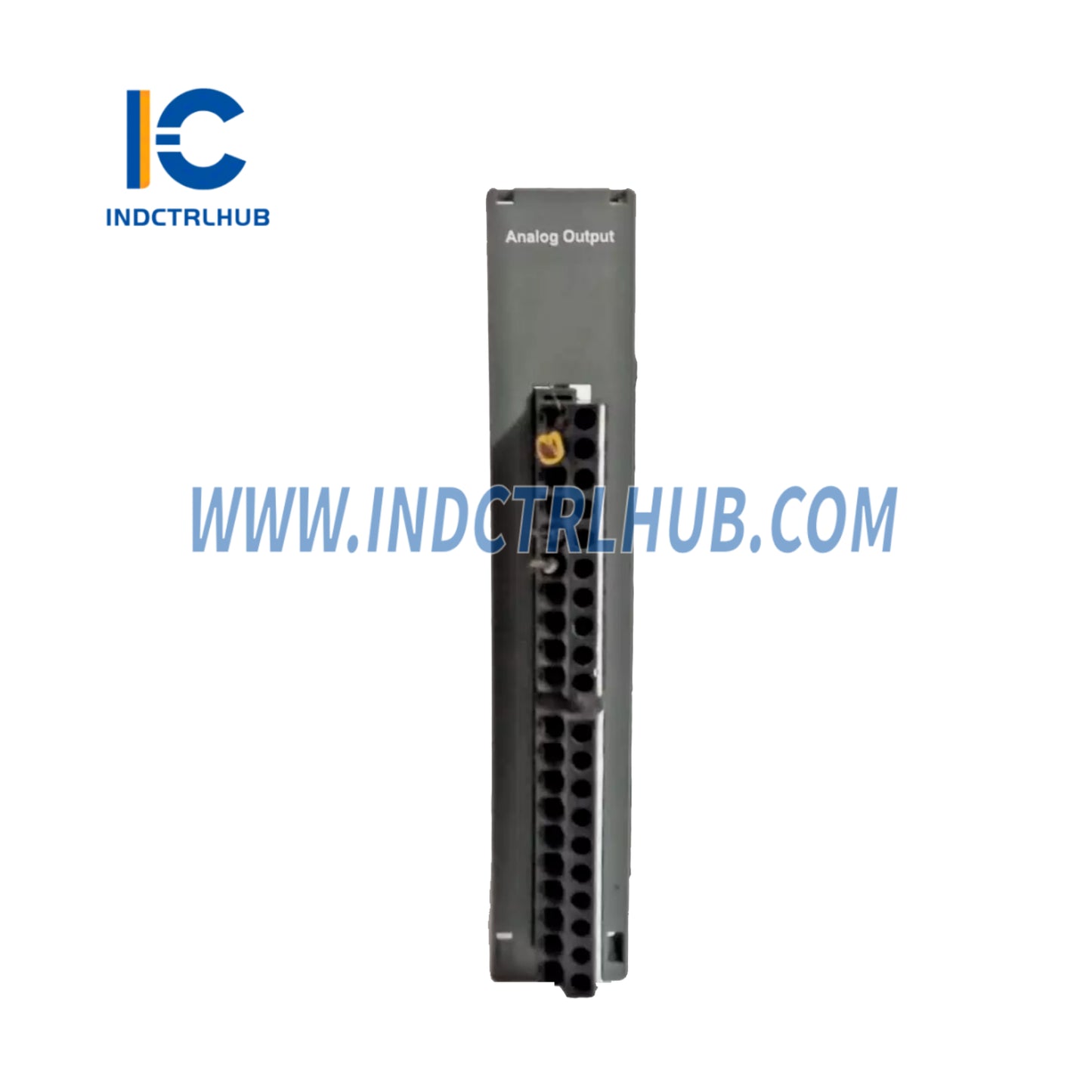

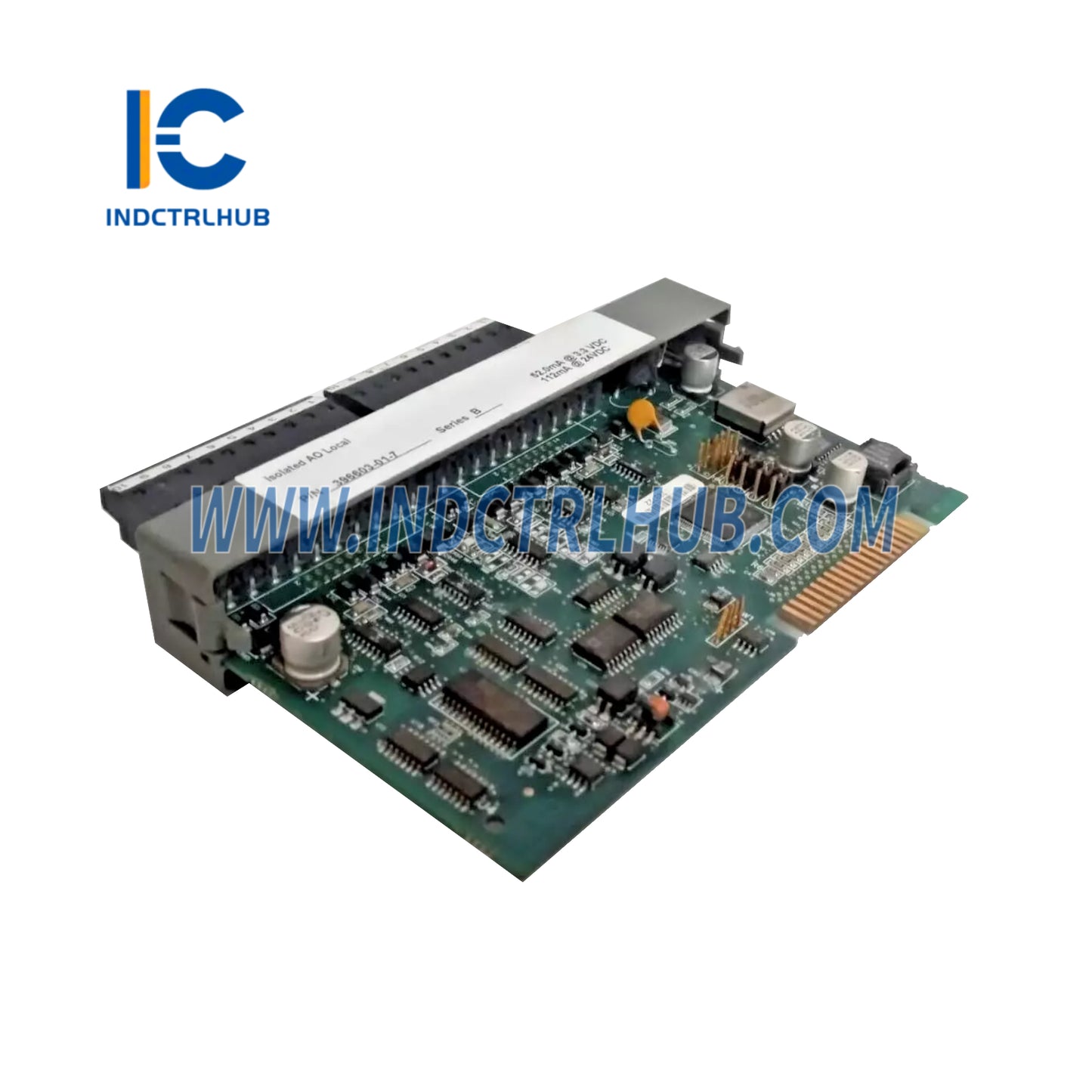

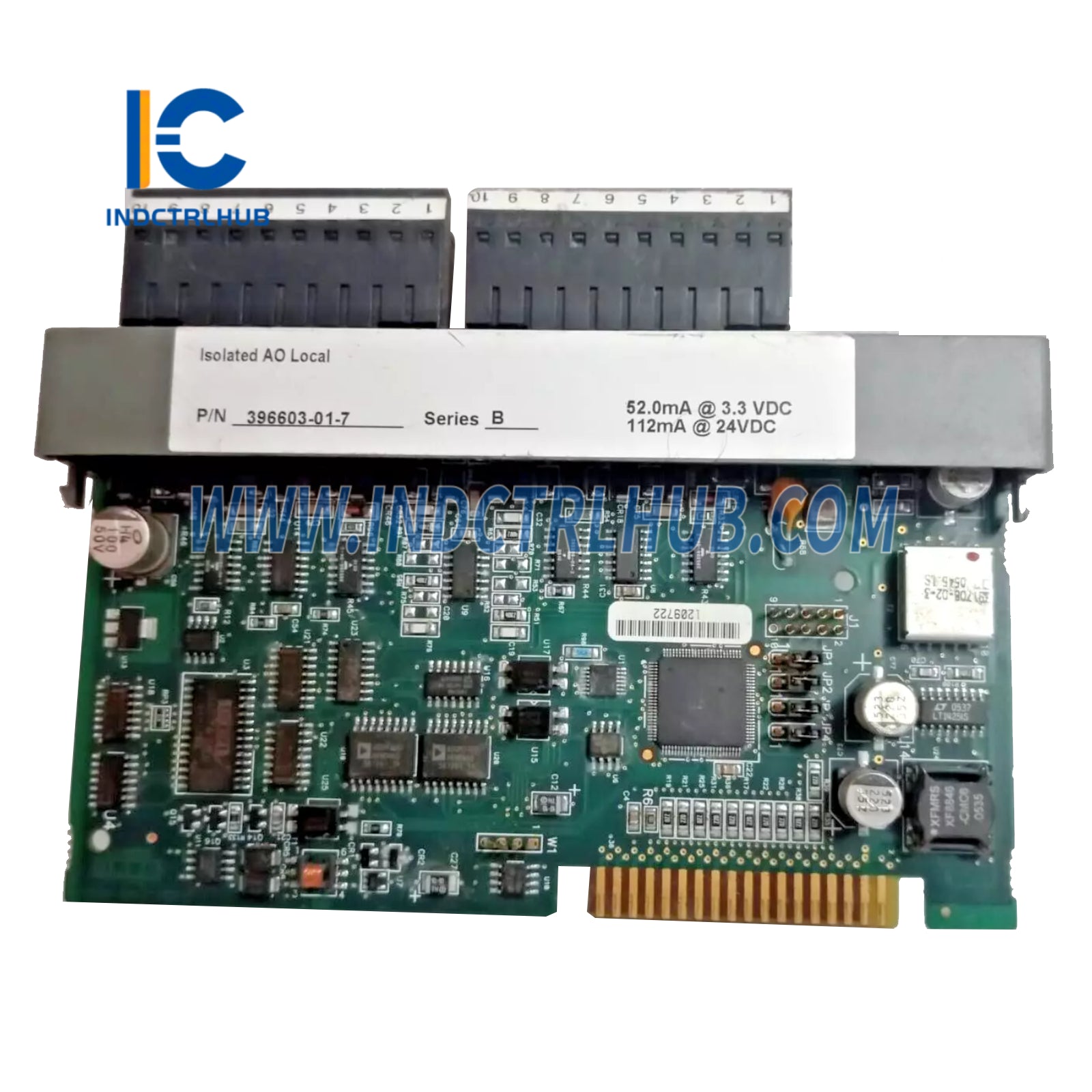

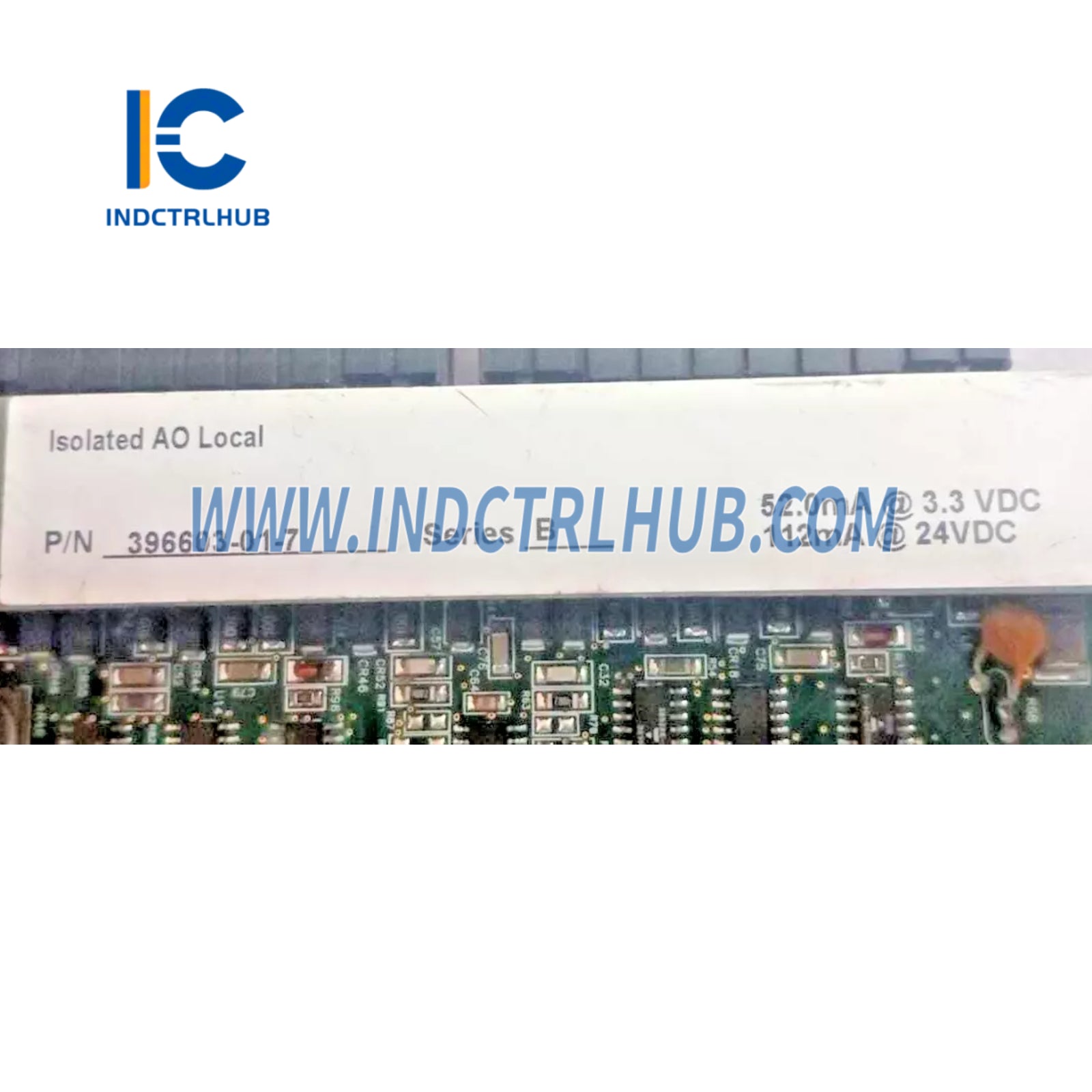

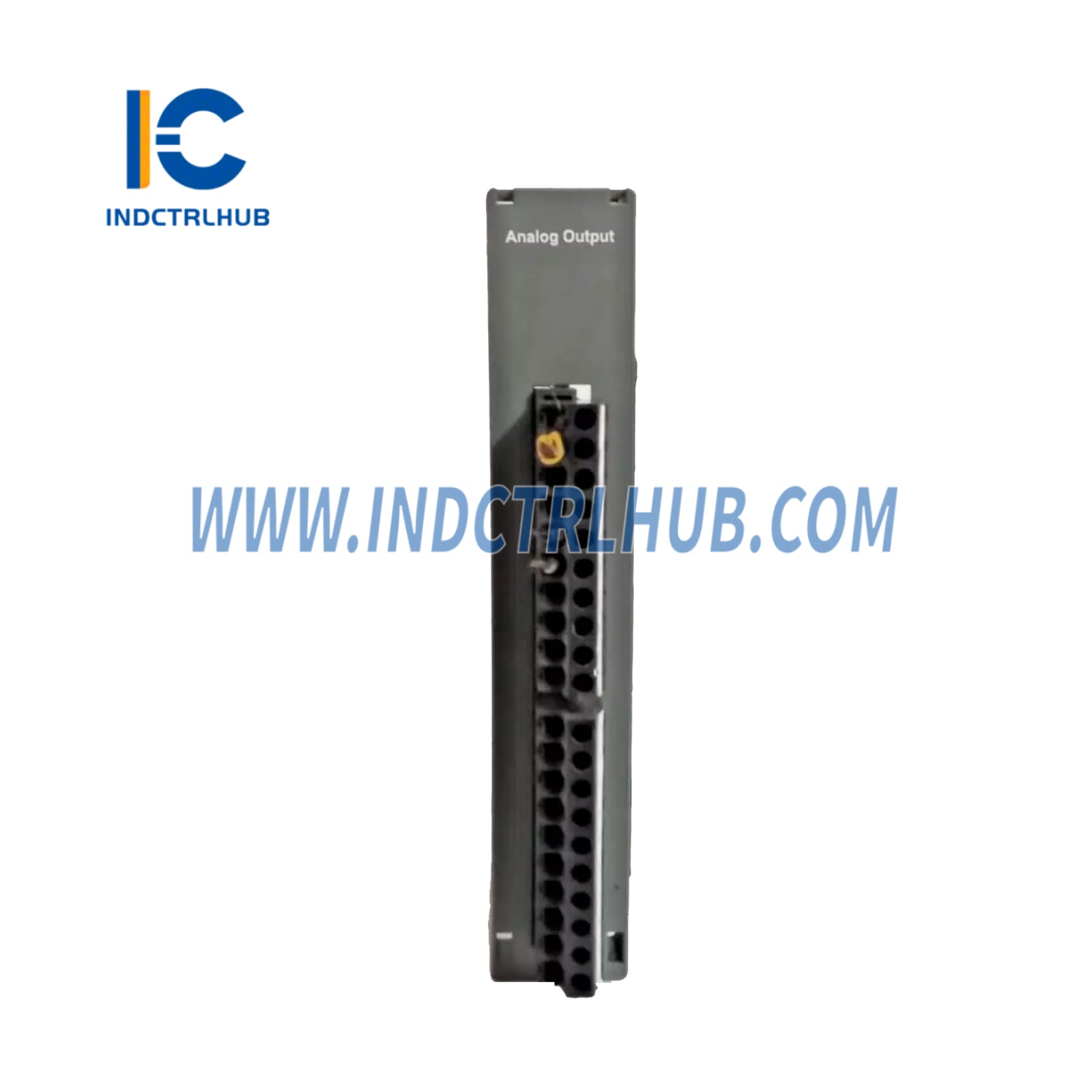

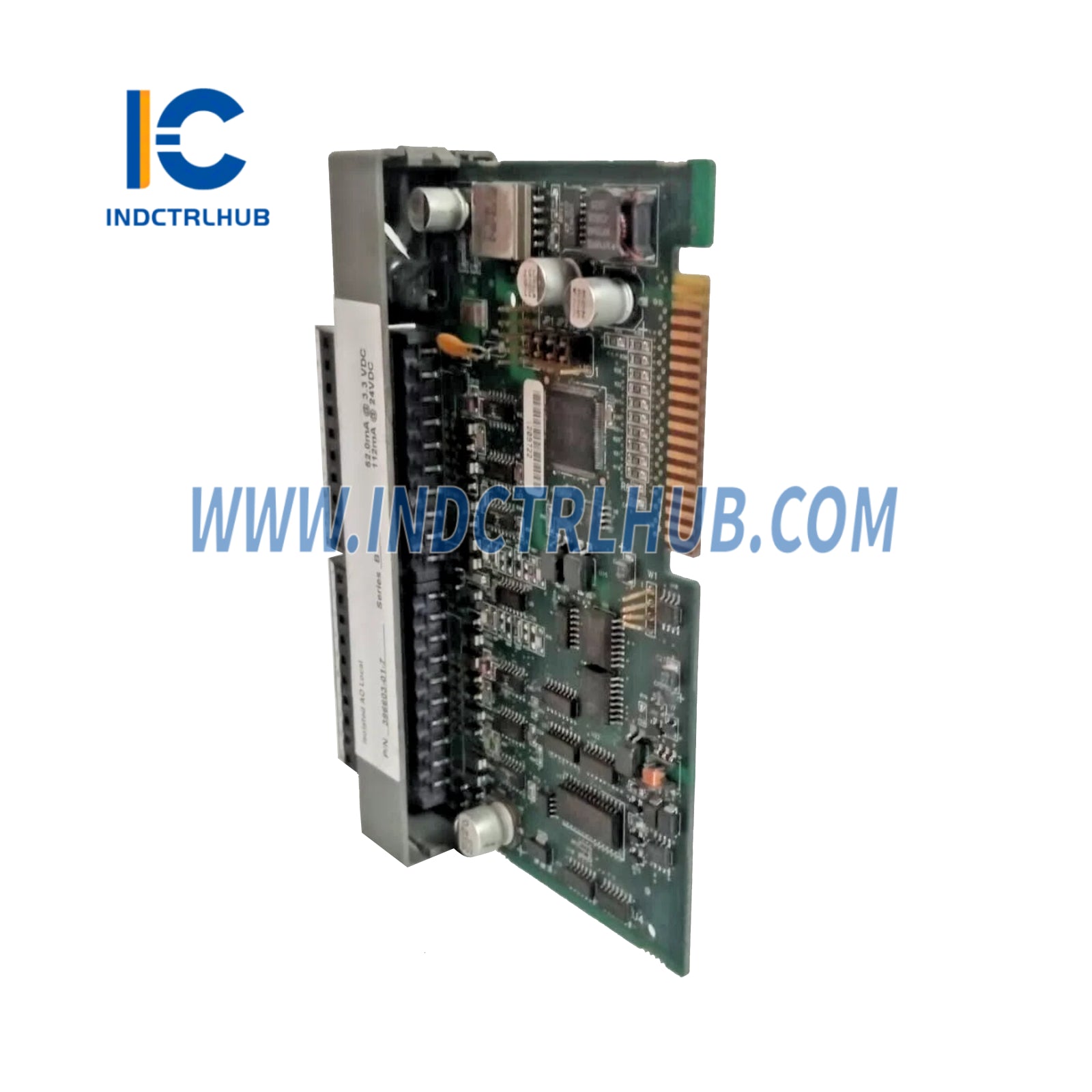

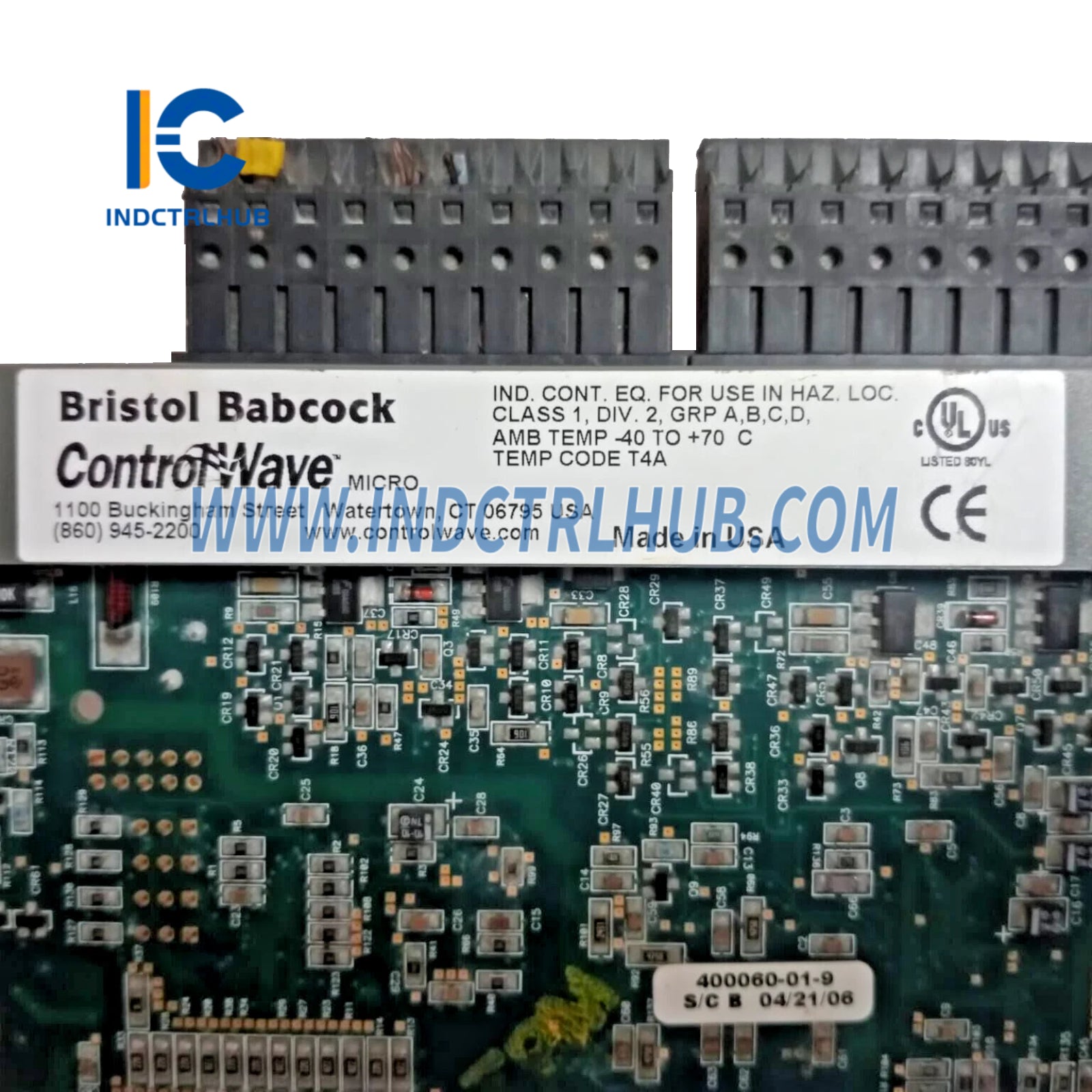

Emerson 396603-01-7 ControlWave Isolated Analog Output Module
- Manufacturer: Emerson
- Model/Part Number: 396603-01-7
- Description: ControlWave Isolated Analog Output Module, 4-Channel, 4-20 mA or 1-5 VDC
Overview
- The Emerson 396603-01-7 is an Isolated Analog Output Module designed for the ControlWave series of programmable automation controllers (PACs) and remote terminal units (RTUs). It provides four independently configurable analog output channels for precise control of field devices in industrial automation applications, such as oil and gas, water treatment, and power utilities. The module ensures electrical isolation between output circuitry and the CPU power system for enhanced reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 396603-01-7 |
| Series | ControlWave |
| Type | Isolated Analog Output Module |
| Channels | 4 independently configurable analog outputs |
| Output Types | 4-20 mA or 1-5 VDC (software-selectable) |
| Isolation | Electrically isolated from CPU power system |
| Power Consumption | 2.8 W (typical) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Mounting | DIN rail or panel mount, on ControlWave chassis |
| Weight | Approximately 0.4 kg |
| Certifications | CE, CSA, ATEX, IECEx (Zone 2) |
| System Compatibility | ControlWave Micro, ControlWave Express, ControlWave EFM |
Additional Information
- Functionality: The 396603-01-7 delivers four isolated analog outputs, configurable for 4-20 mA or 1-5 VDC, to control devices like valves, actuators, or meters. Isolation ensures protection against ground loops and electrical noise, enhancing system reliability. The module integrates with ControlWave systems for real-time control and diagnostics, supporting protocols like Modbus, DNP3, and BSAP.
