Product Description

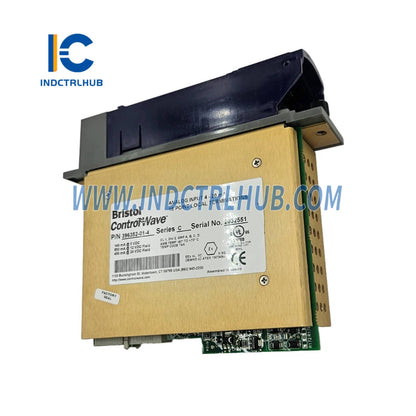

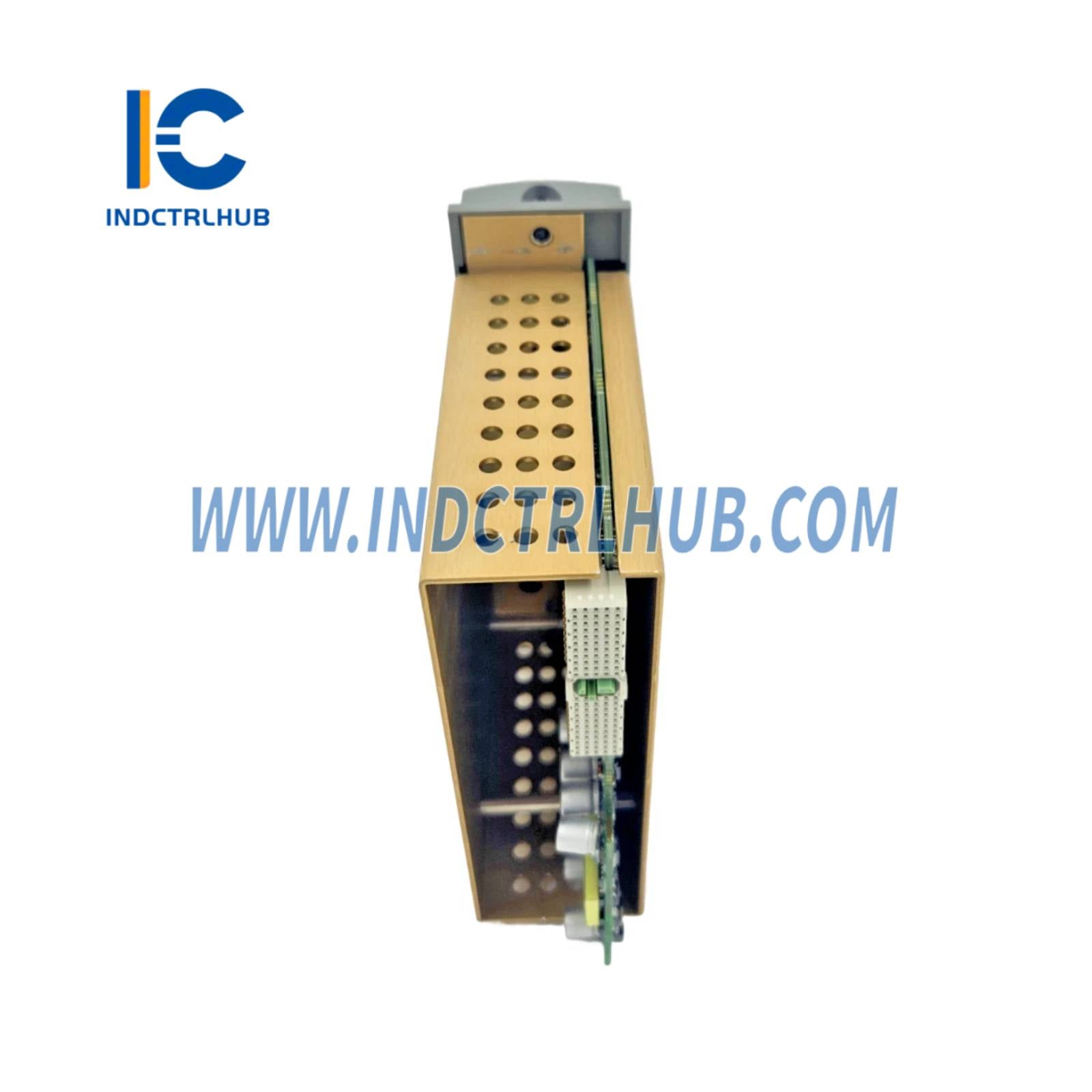

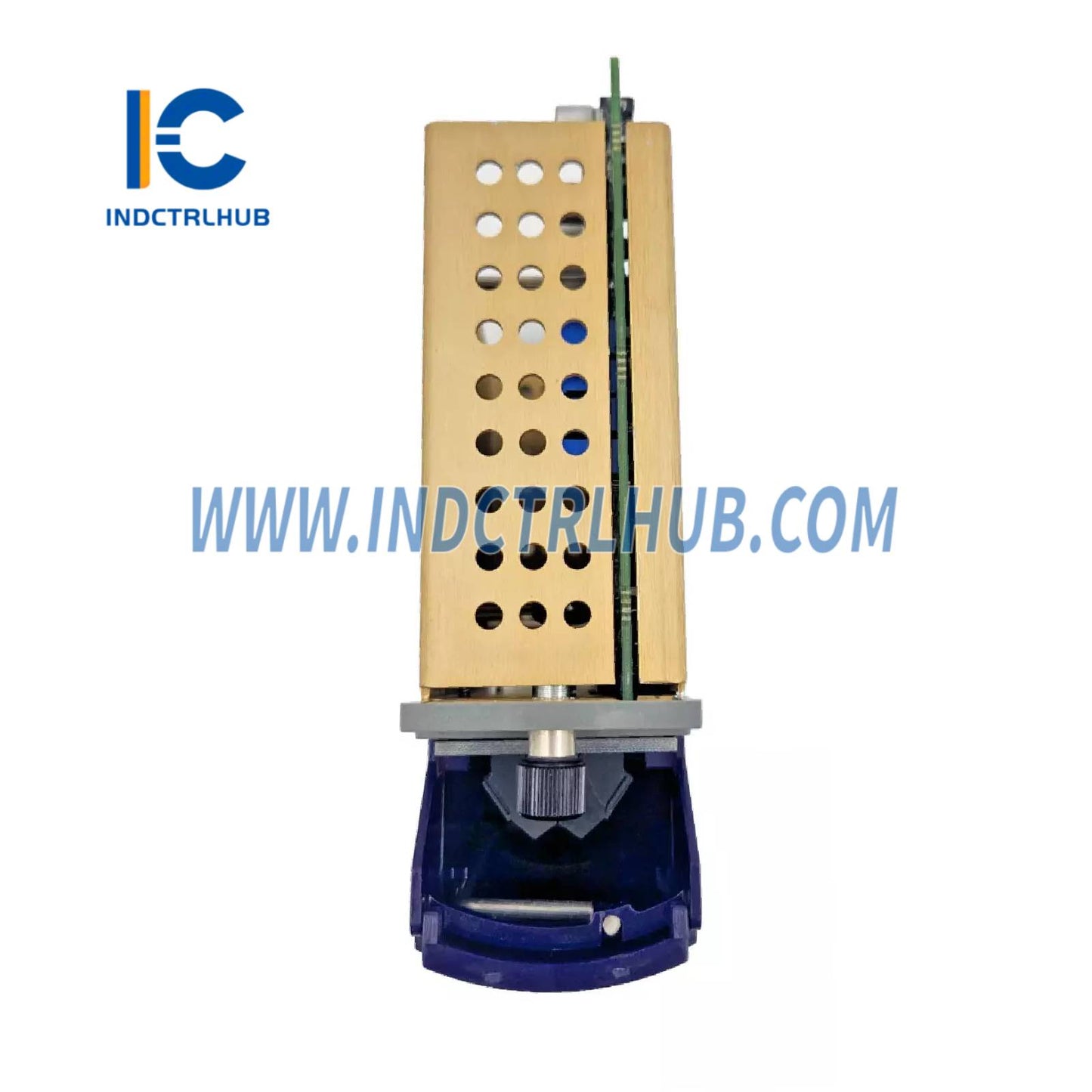

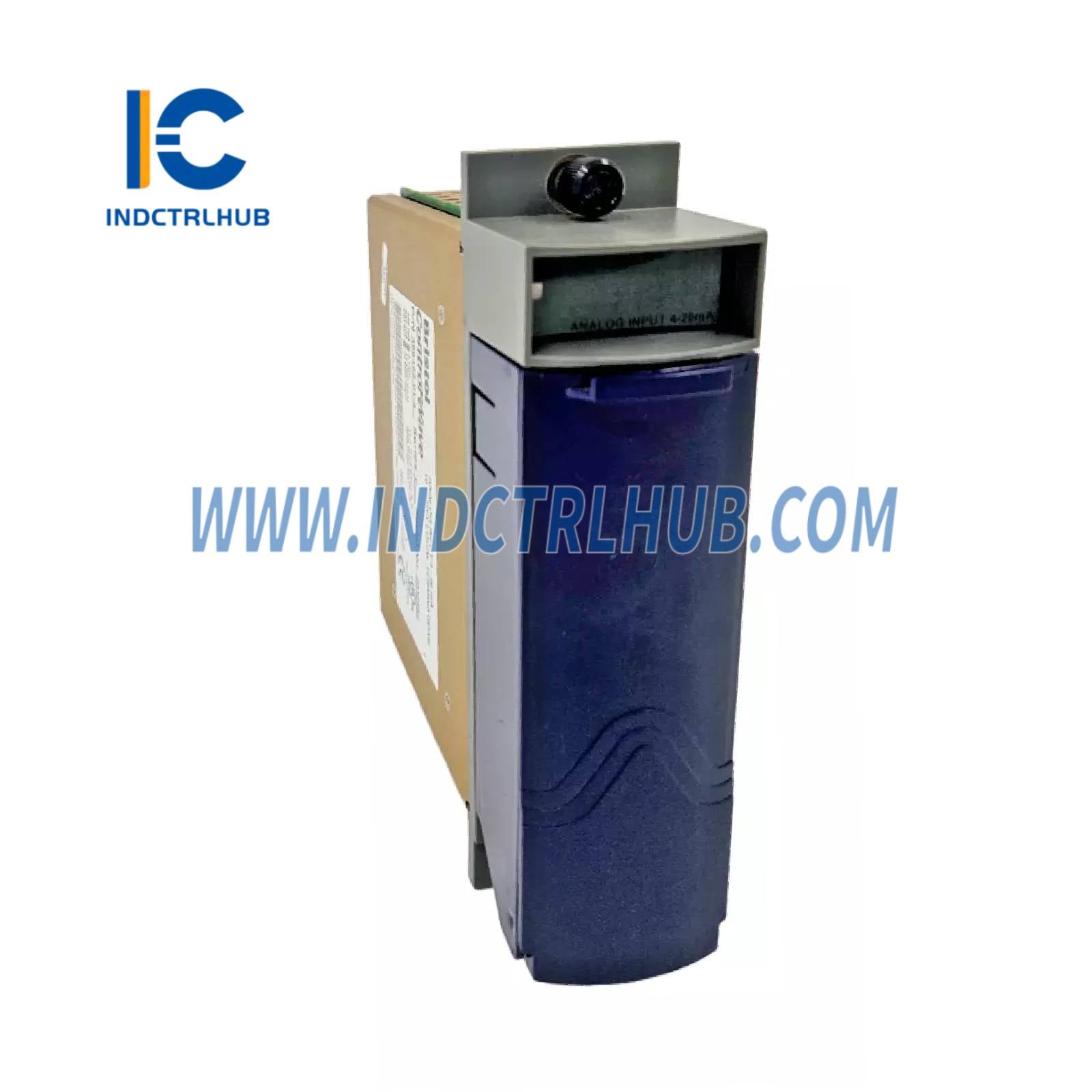

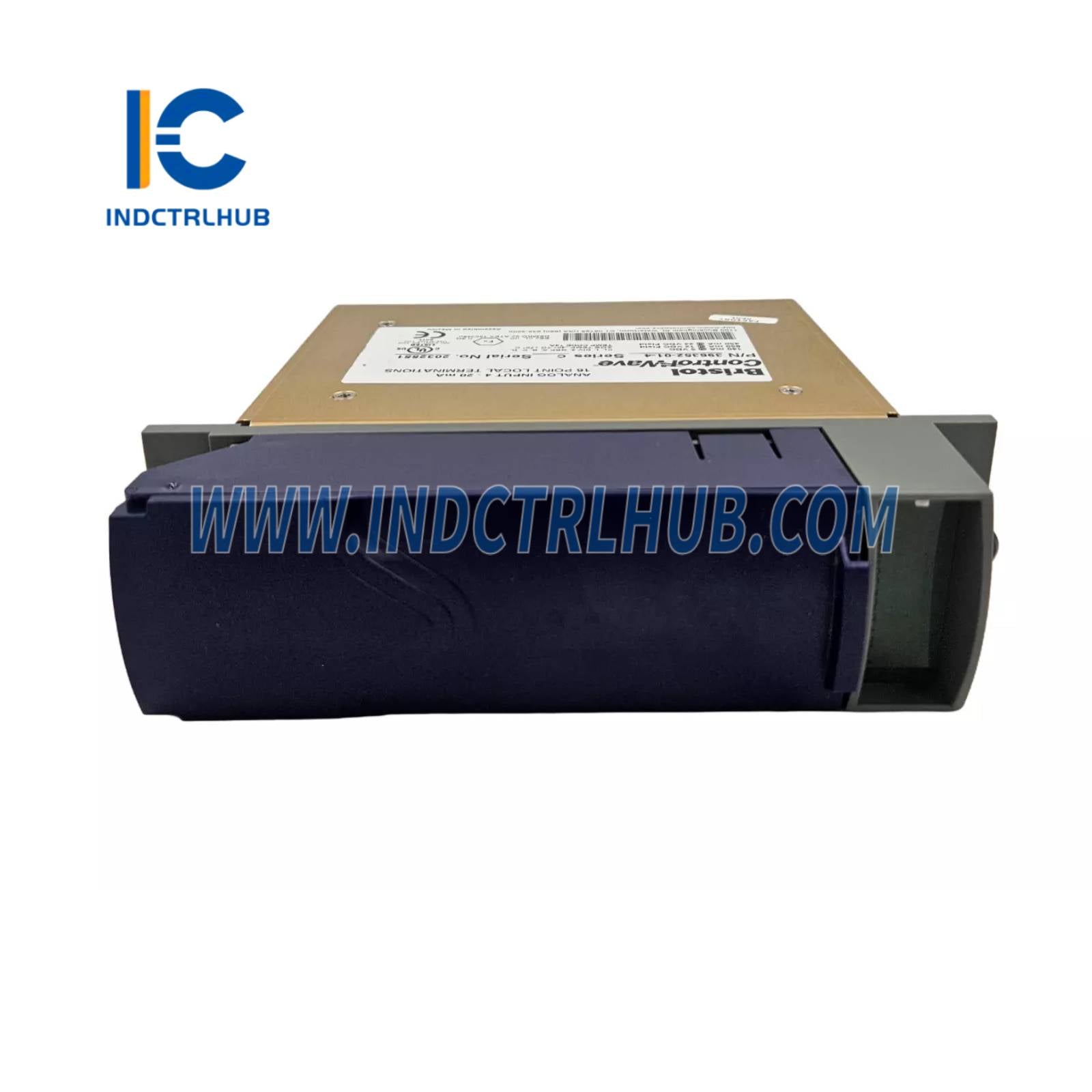

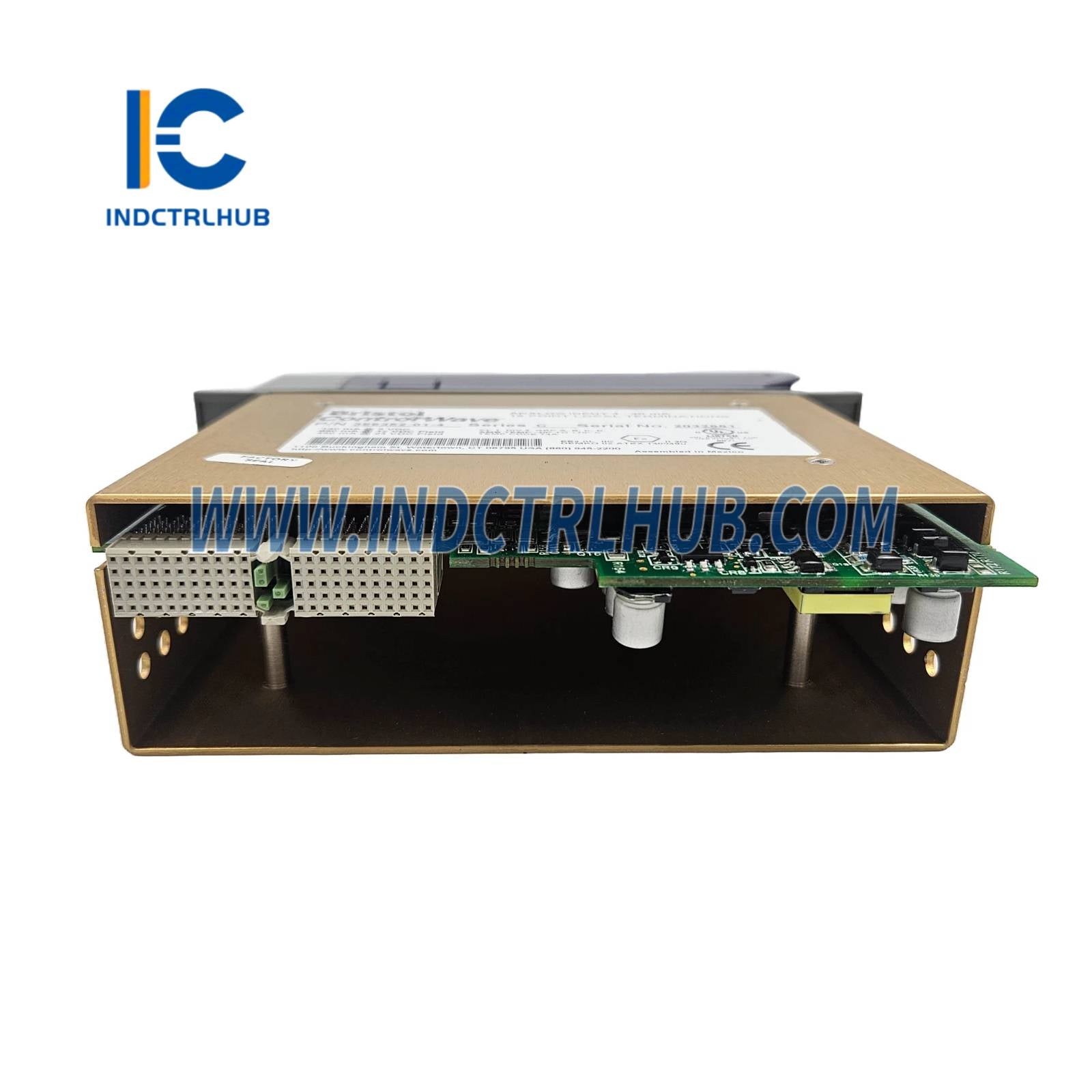

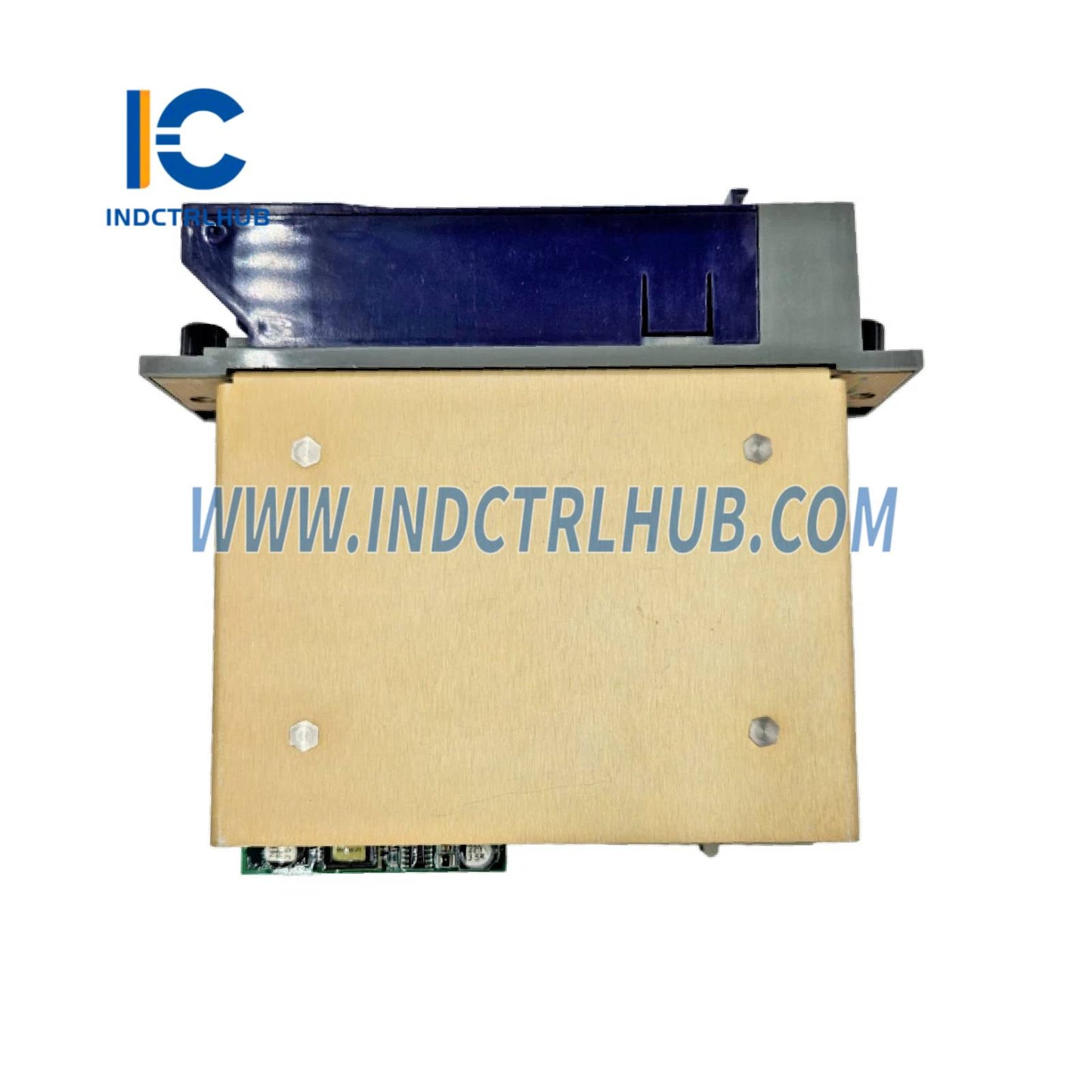

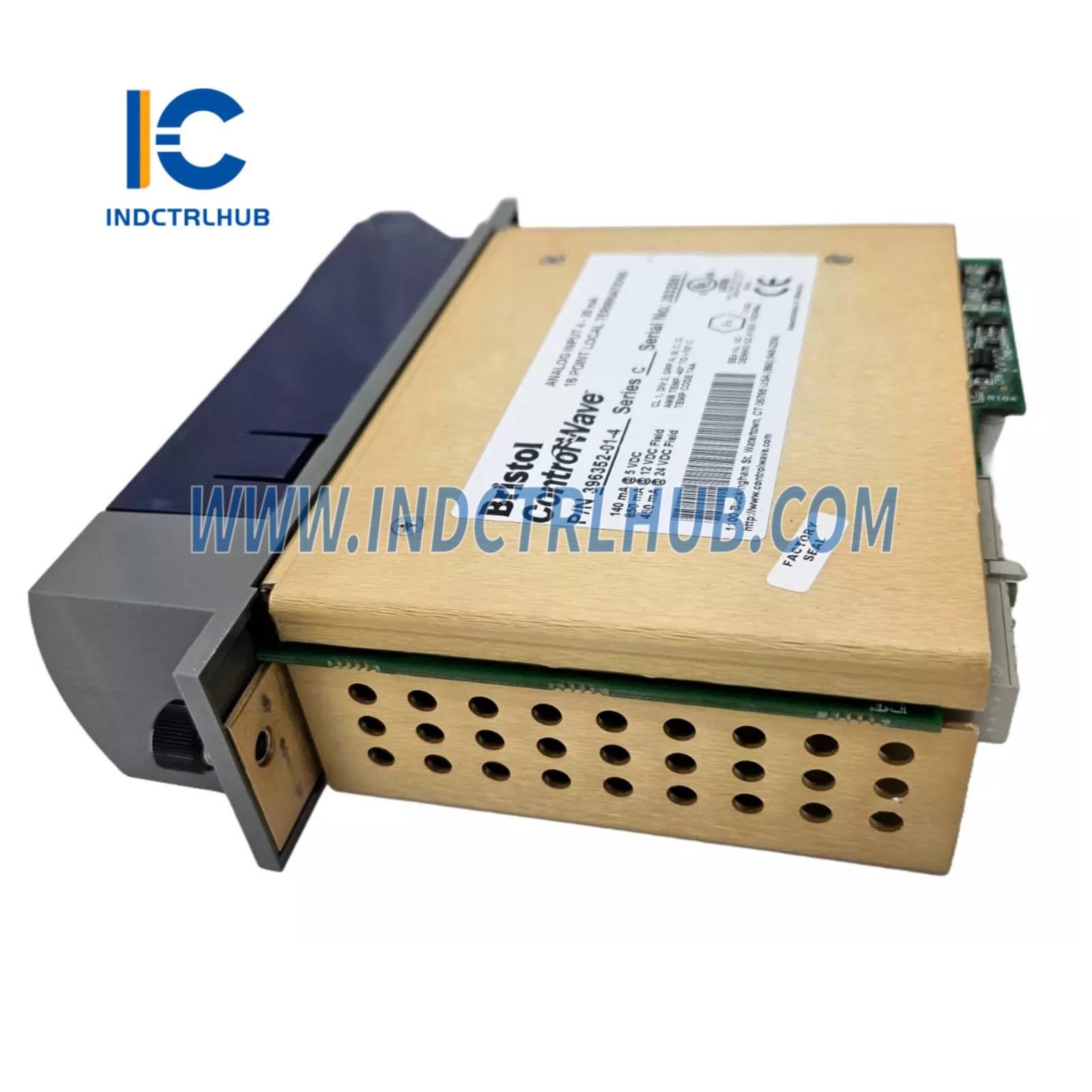

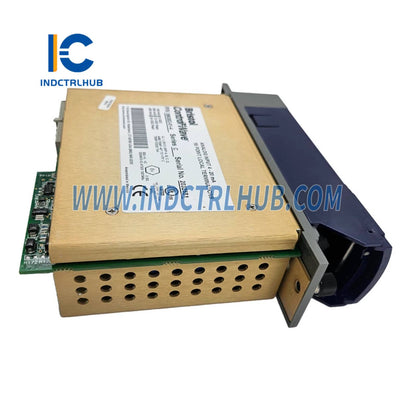

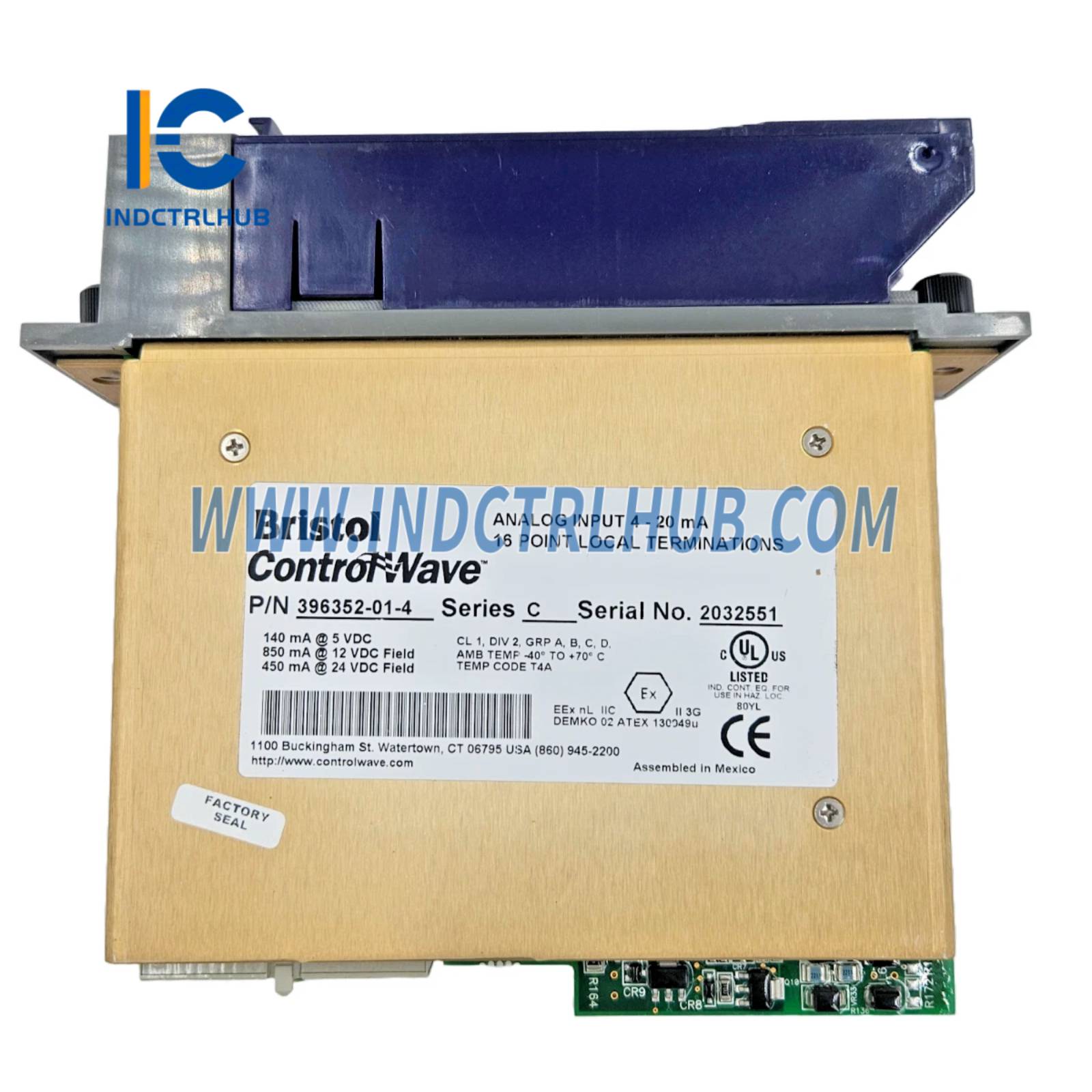

Emerson 396352-01-4 ControlWave Digital Input/Output Module
- Manufacturer: Emerson
- Model/Part Number: 396352-01-4
- Description: ControlWave Digital Input/Output Module, 16-Channel Input, 8-Channel Output, Non-Isolated, Local Termination
Overview
- The Emerson 396352-01-4 is a Digital Input/Output Module for the ControlWave series of programmable automation controllers (PACs) and remote terminal units (RTUs). It features 16 non-isolated digital input channels and 8 non-isolated digital output channels, enabling monitoring and control of field devices such as switches, sensors, relays, or actuators. The module is designed for industrial automation applications, including oil and gas, water treatment, and manufacturing, ensuring reliable operation in distributed control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 396352-01-4 |
| Series | ControlWave |
| Type | Digital Input/Output Module, Non-Isolated |
| Input Channels | 16 digital inputs |
| Output Channels | 8 digital outputs |
| Input Type | Dry contact, 24 VDC nominal |
| Input Voltage Range | 10.7 to 30 VDC |
| Input Current | 5 mA typical per channel |
| Output Type | Open-drain, sinking, 24 VDC nominal |
| Output Voltage Range | 10.7 to 30 VDC |
| Output Current | 500 mA maximum per channel, 4 A total |
| Isolation | Non-isolated, common ground |
| Termination | Local termination via terminal blocks |
| Power Consumption | 1.8 W typical (excluding field devices) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Mounting | DIN rail or panel mount, on ControlWave chassis |
| Weight | Approximately 0.4 kg |
| Certifications | CE, CSA, ATEX, IECEx (Zone 2) |
| System Compatibility | ControlWave Micro, ControlWave Express, ControlWave EFM |
Additional Information
- Functionality: The 396352-01-4 integrates 16 digital inputs for monitoring devices like switches or sensors and 8 digital outputs for controlling devices like relays or valves. Inputs support dry contact signals, while outputs provide sinking open-drain control with up to 500 mA per channel. Local terminal blocks simplify field wiring. The module interfaces with the ControlWave CPU via the system bus, supporting protocols like Modbus, DNP3, and BSAP, and is configured using ControlWave Designer software with the ACCOL III function block library.
