Product Description

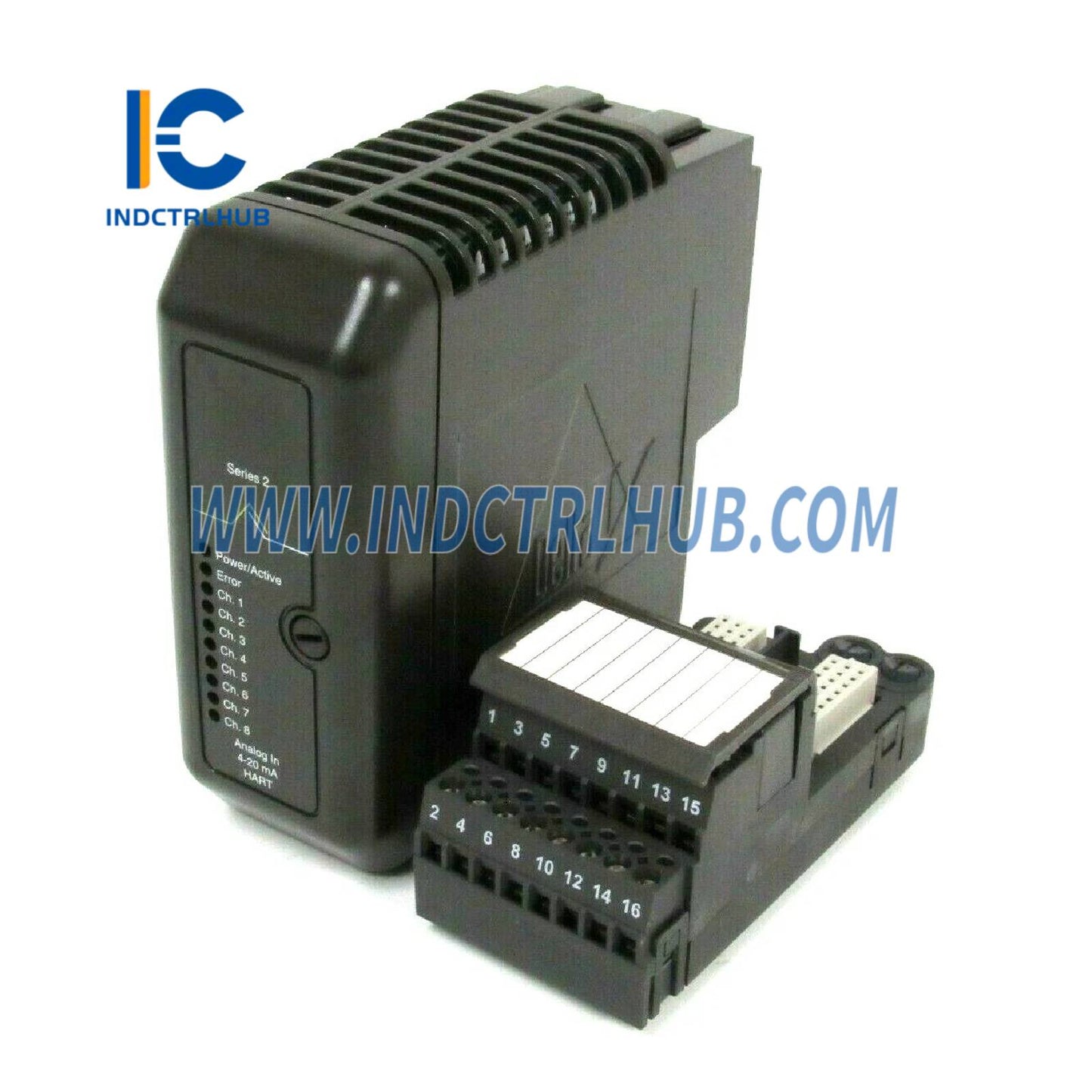

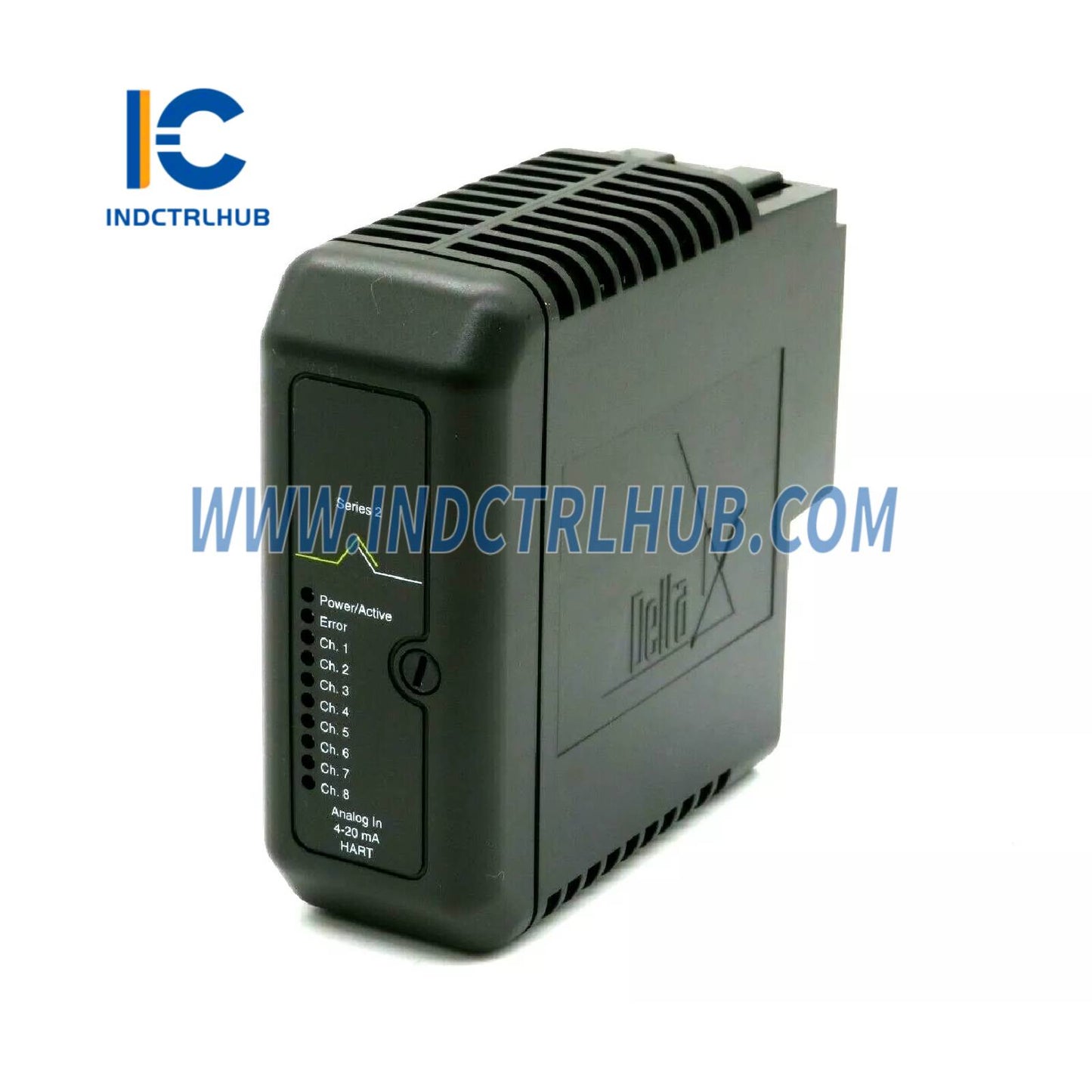

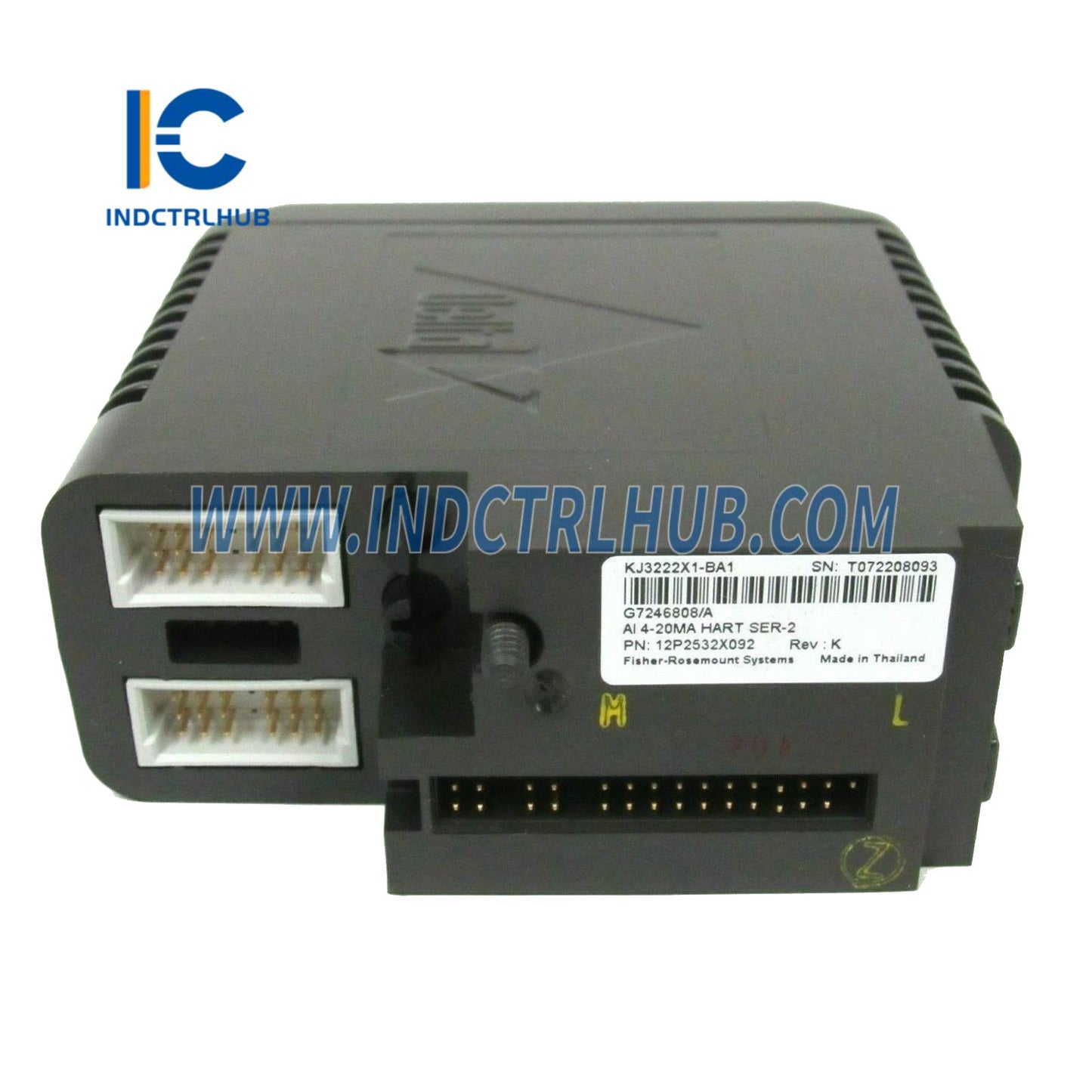

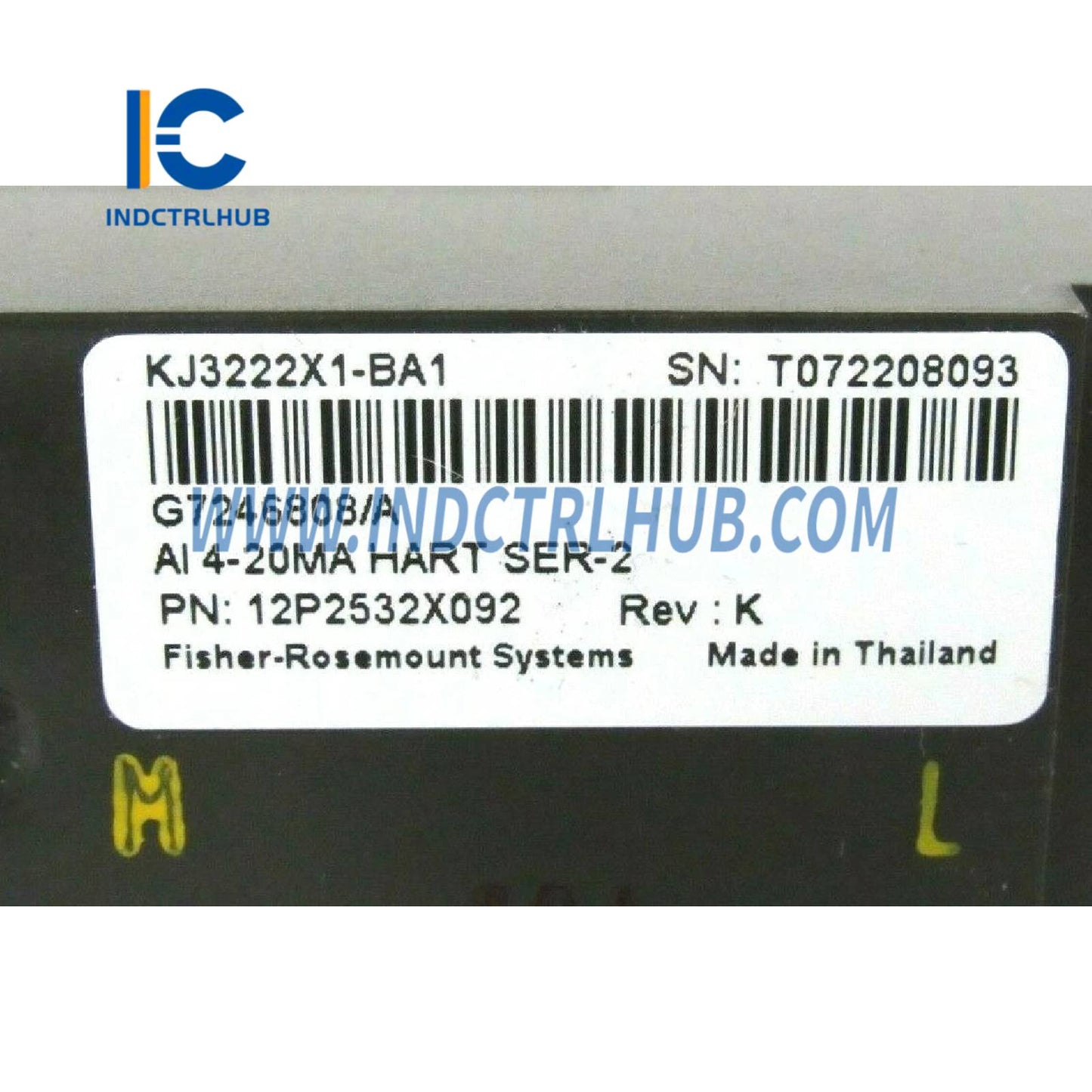

Emerson 12P2532X092 KJ3222X1-BA1 Analog Input CHARM
Product Overview
- The Emerson 12P2532X092, also referenced as KJ3222X1-BA1, is an Analog Input Module designed for the DeltaV Distributed Control System (DCS) with S-series Traditional I/O. This module processes 4-20 mA analog input signals with HART communication from field devices such as pressure, temperature, or flow transmitters for process control applications. It is widely used in industries like oil and gas, chemical, and power generation, offering robust integration with DeltaV systems. Unlike CHARM-based modules, this is a traditional I/O card designed for use with specific terminal blocks and carriers.
Technical Specifications
- The 12P2532X092 (KJ3222X1-BA1) has the following specifications based on Emerson documentation and industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 12P2532X092 (KJ3222X1-BA1) |
| Manufacturer | Emerson |
| Description | Analog Input, 8-Channel, 4-20 mA, HART, Series 2 |
| Series | DeltaV S-series (Traditional I/O) |
| Input Type | 4-20 mA analog input with HART (2-wire or 4-wire devices) |
| Number of Channels | 8 |
| Input Range | 4-20 mA (linear scaling) |
| Accuracy | ±0.1% of span |
| Resolution | 16-bit A/D converter |
| Power Requirement | Powered via LocalBus, typically 6.3 VDC at 100 mA |
| Isolation | Galvanic isolation (field to system, 300 V RMS) |
| Loop Power | 24 VDC loop power for 2-wire transmitters (with appropriate terminal block) |
| HART Support | Supports HART communication for device diagnostics and configuration |
| Environmental Specifications | Ambient Temperature: -40°C to +70°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Airborne Contaminants: ISA-S71.04–1985 Class G3 Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 12 cm x 4 cm x 14 cm |
| Weight | Approx. 0.4 kg |

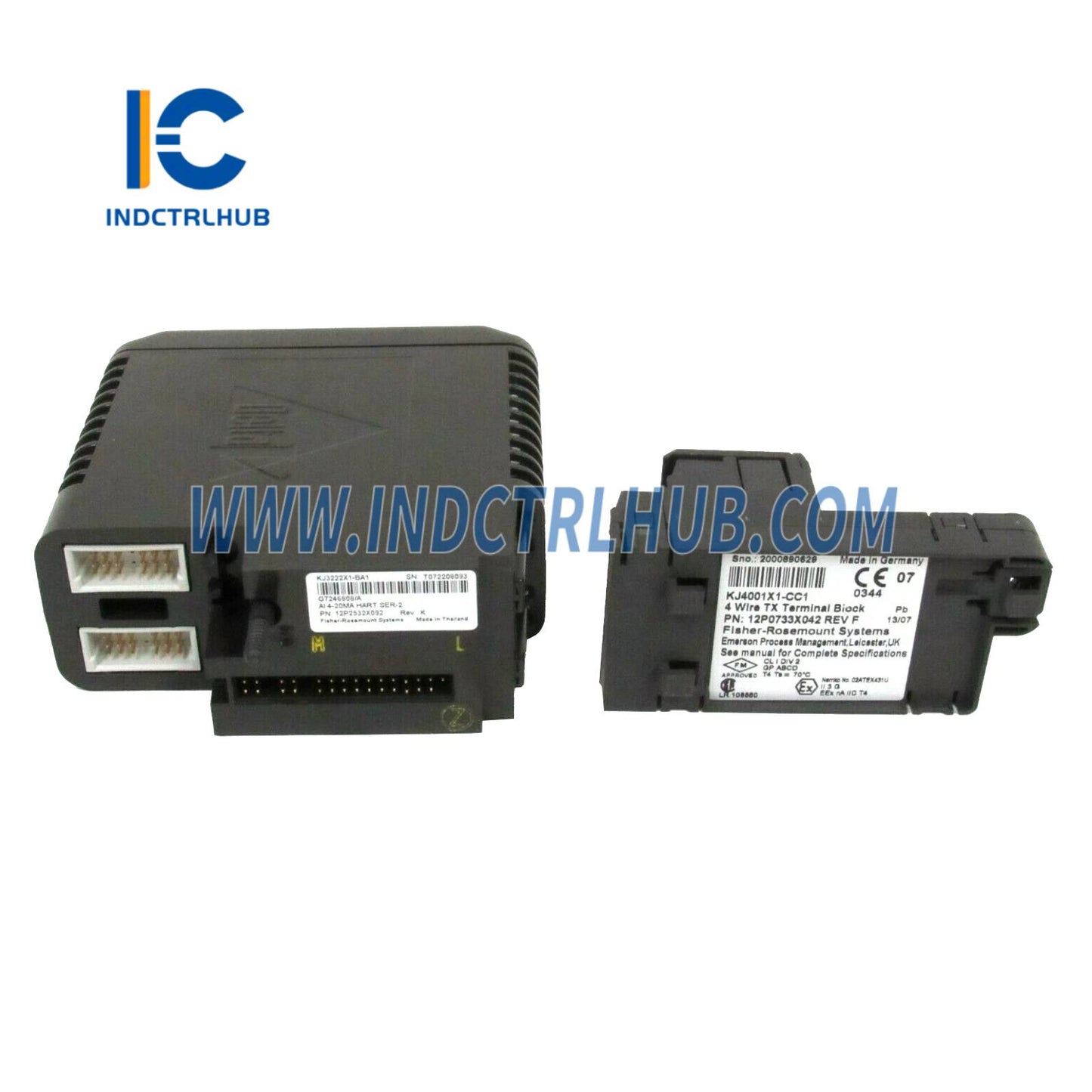

| Mounting | I/O interface carrier (e.g., KJ4001X1-BA1, DIN rail-mounted) with compatible terminal block (e.g., KJ4001X1-CK1) |
Additional Details
- The 12P2532X092 includes the following additional information based on Emerson documentation and industry sources:
- Function: Processes 4-20 mA analog input signals with HART communication across 8 channels, converting them into digital signals for DeltaV process control; supports device diagnostics, configuration, and real-time monitoring via HART; designed for traditional I/O setups with modular installation near field devices.
