Product Description
Product Details

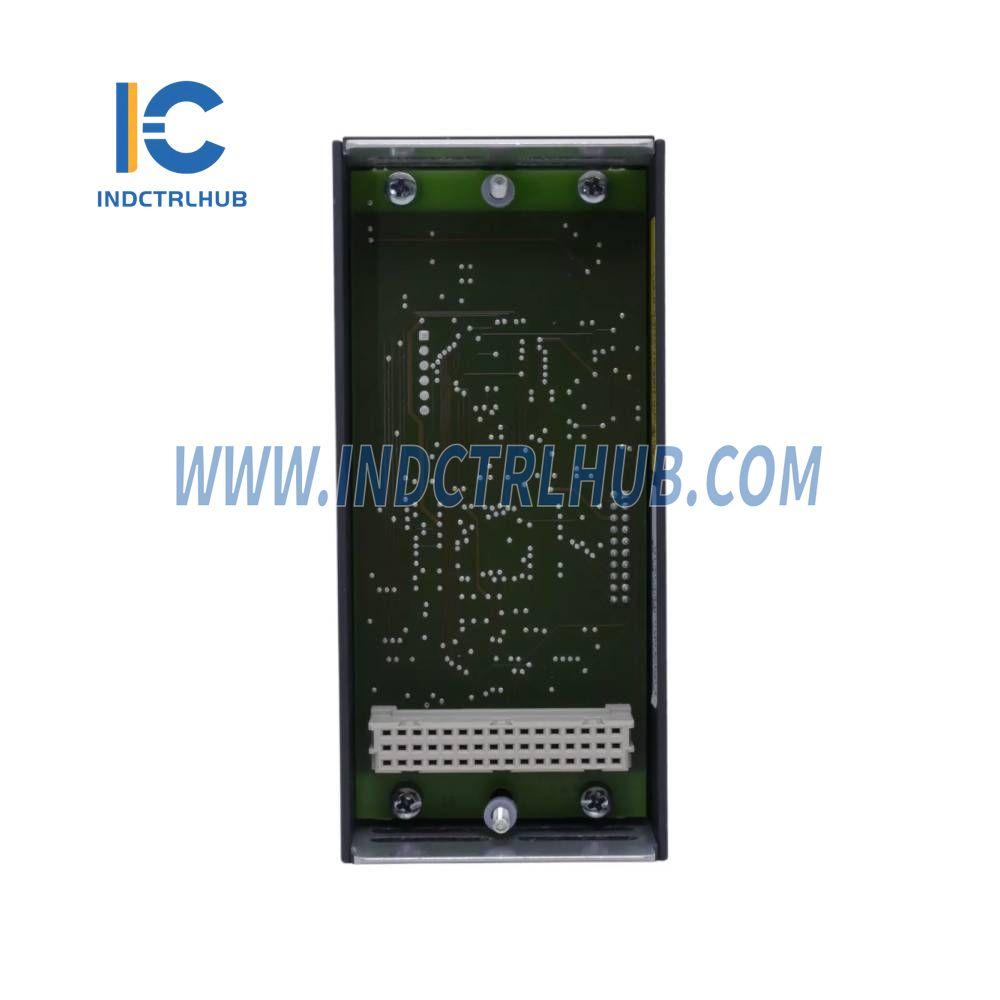

Manufacturer: BACHMANN
Model/Part Numbers: EM213
Description:
The EM213 module enhances the control system with an additional Ethernet adapter featuring three 10/100 Mbit ports. These ports provide connectivity for service laptops and other Ethernet-based networking, including FASTBUS substations.
-
Key Features:
- Ethernet cable length up to 100 m per line
- 3 RJ45 connections with autocross detection
- Status display via LED indicators
- Integrated switch
- ColdClimate (❉) variant available for harsh environments
Item Numbers:
| Model | Item Number |
|---|---|
| EM213 | 00017321-00 |
| EM213❉ | 00017470-00 |
Ethernet Master Specifications:
| Feature | Specification |
|---|---|
| Number of transceivers | 3x 10/100BaseT |
| Connectors | 3x RJ45, crossed/uncrossed cables (autocross detection) |
| Line length | Max. 100 m per line |
| Transfer rate to M1 CPU | Max. 2.4 Mbit/s (user data) |
| Transfer rate as switch | Max. 100 Mbit/s |
| Line impedance | 100 Ω |
| Status display | LEDs for power, collision, LinkPuls, speed (10/100 Mbit/s) |
Ambient Conditions:
| Parameter | EM213 Standard | EM213❉ ColdClimate (❉) |
|---|---|---|
| Operating temperature | -30°C .. +60°C | -30°C .. +60°C |
| Rel. humidity (operation) | 5 .. 95% (no condensation) | 5 .. 95% (with condensation) |
| Storage temperature | -40°C .. +85°C | -40°C .. +85°C |
| Rel. humidity (storage) | 5 .. 95% (with condensation) | 5 .. 95% (with condensation) |
Model Variants:
| Model | Description |
|---|---|
| EM213 | Ethernet interface module; RJ45; 3 Ports; Eth100 |
| EM213❉ | Like EM213; ColdClimate (❉) for harsh environments |
