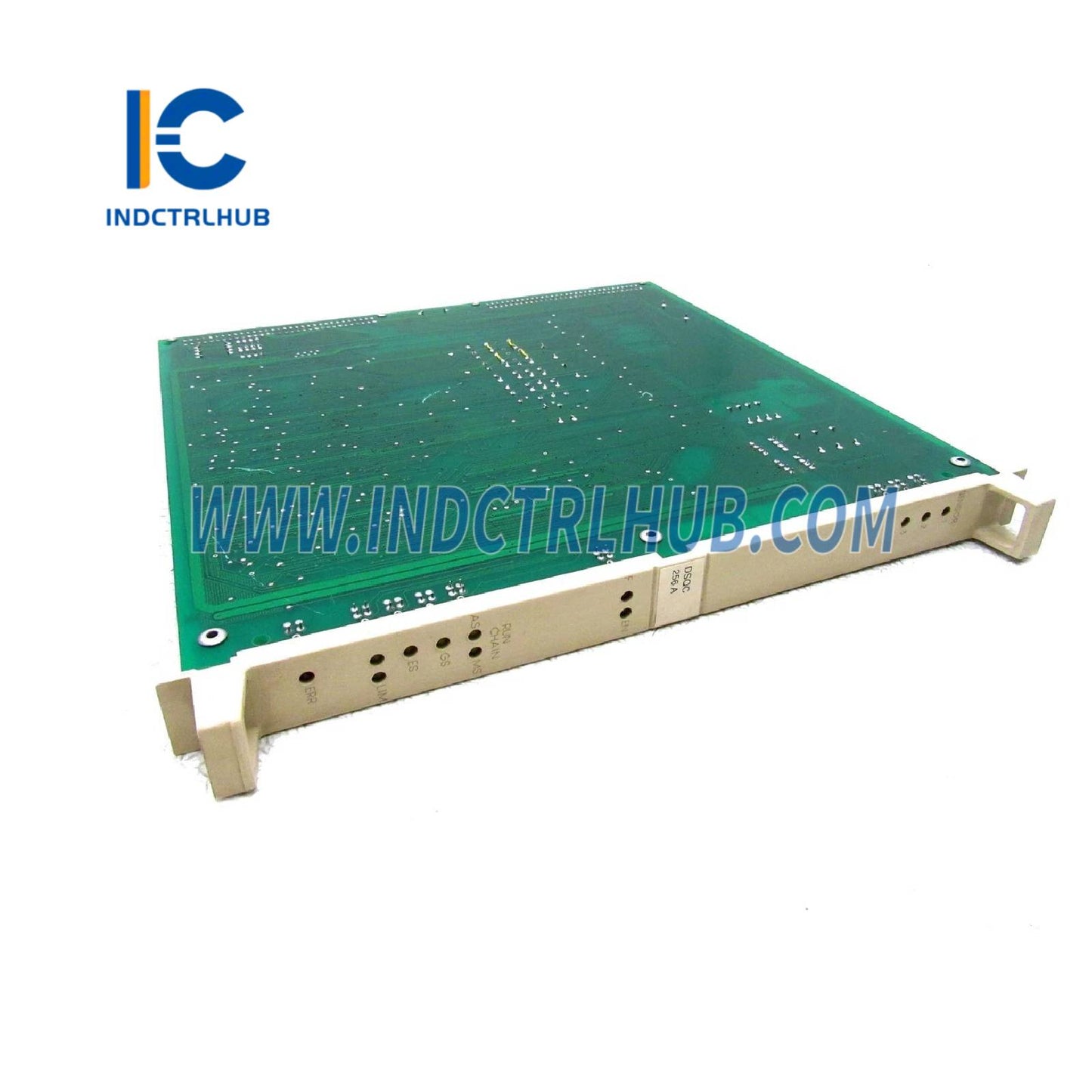

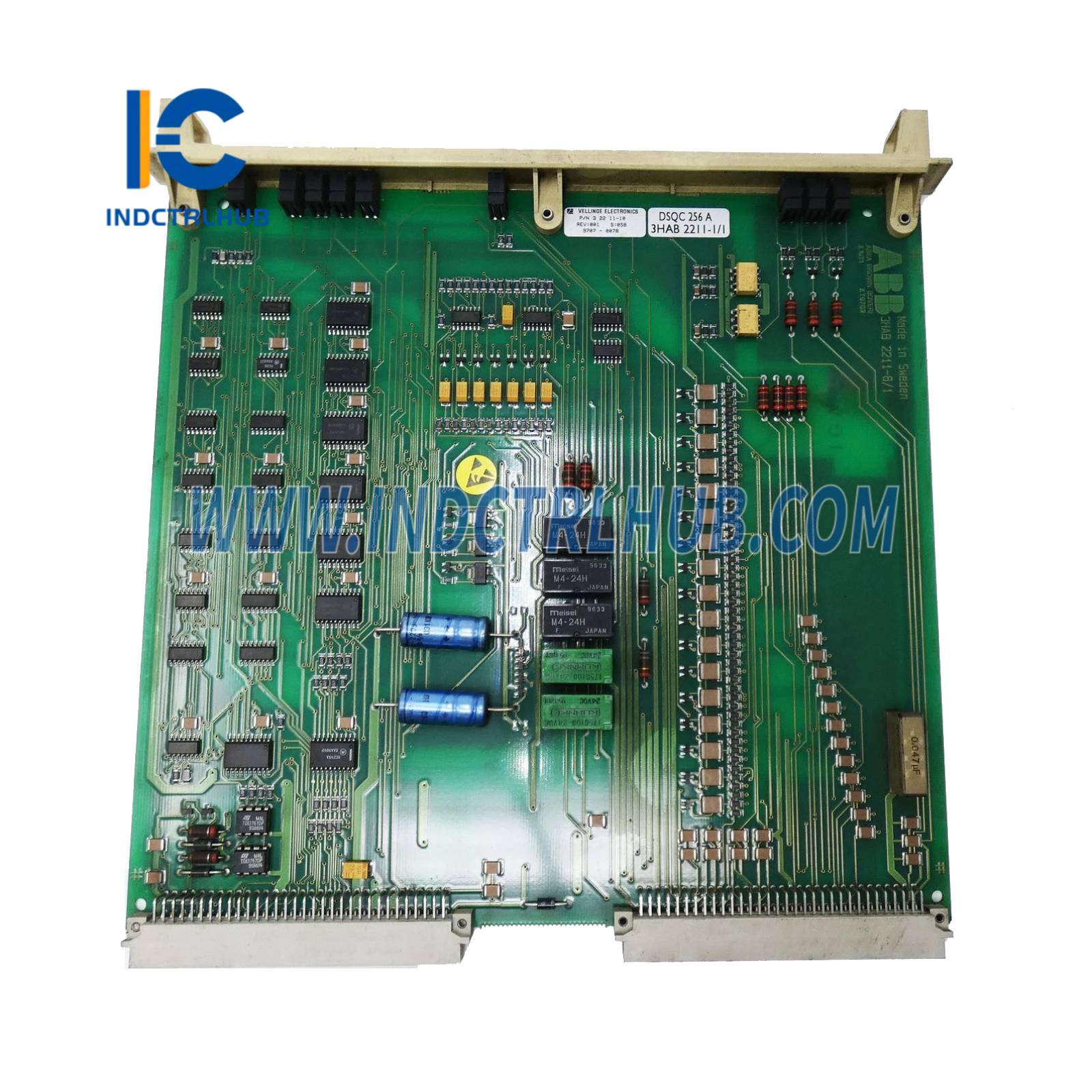

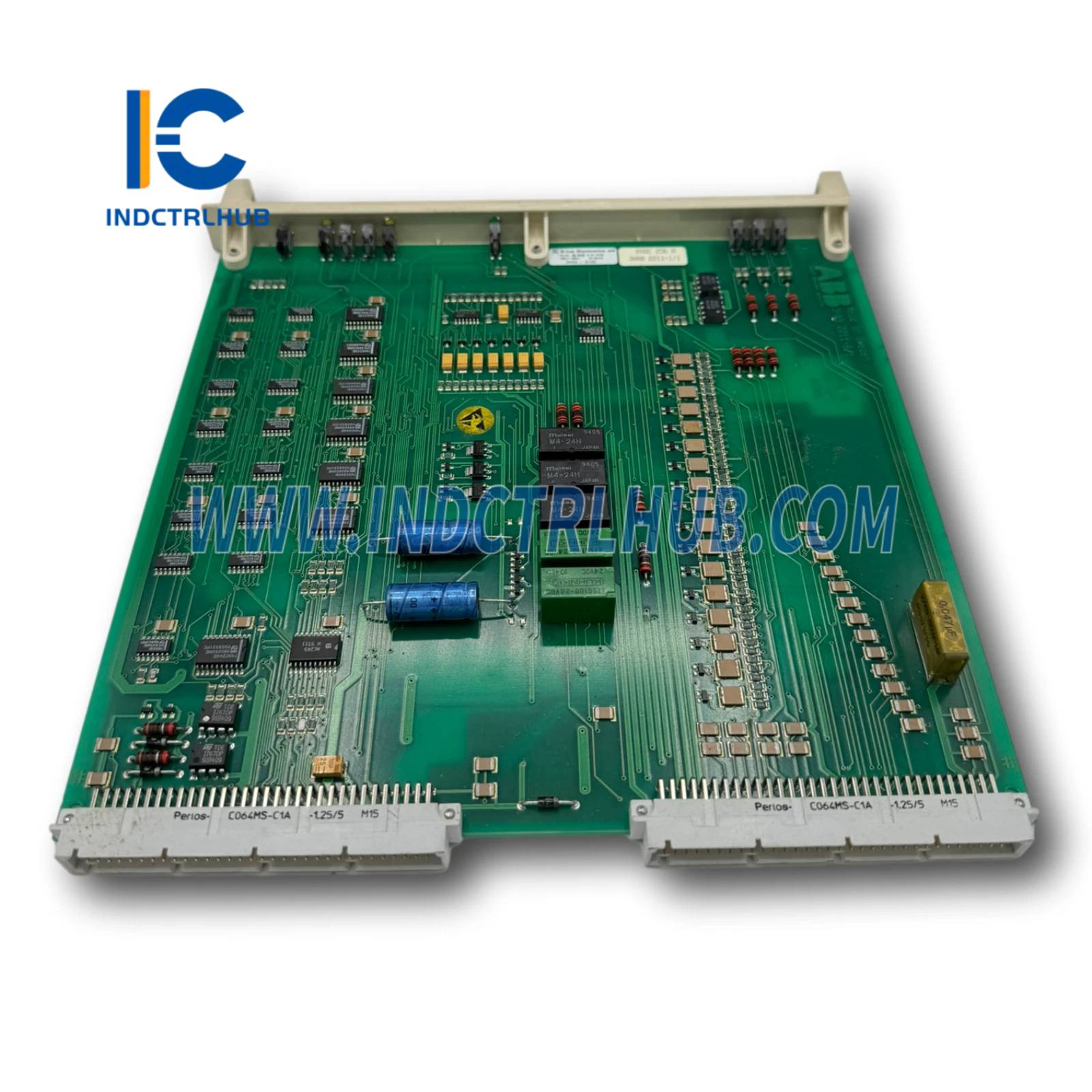

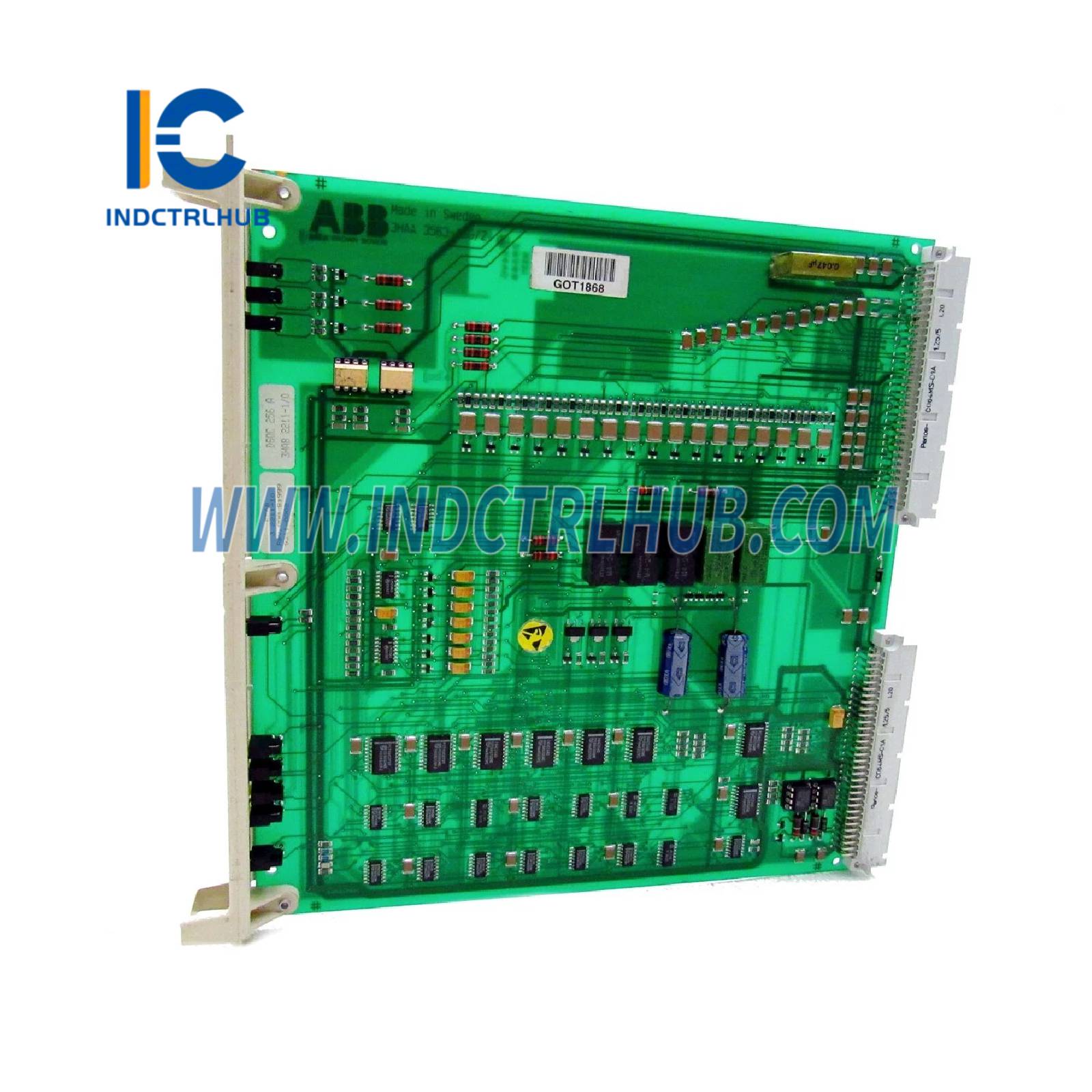

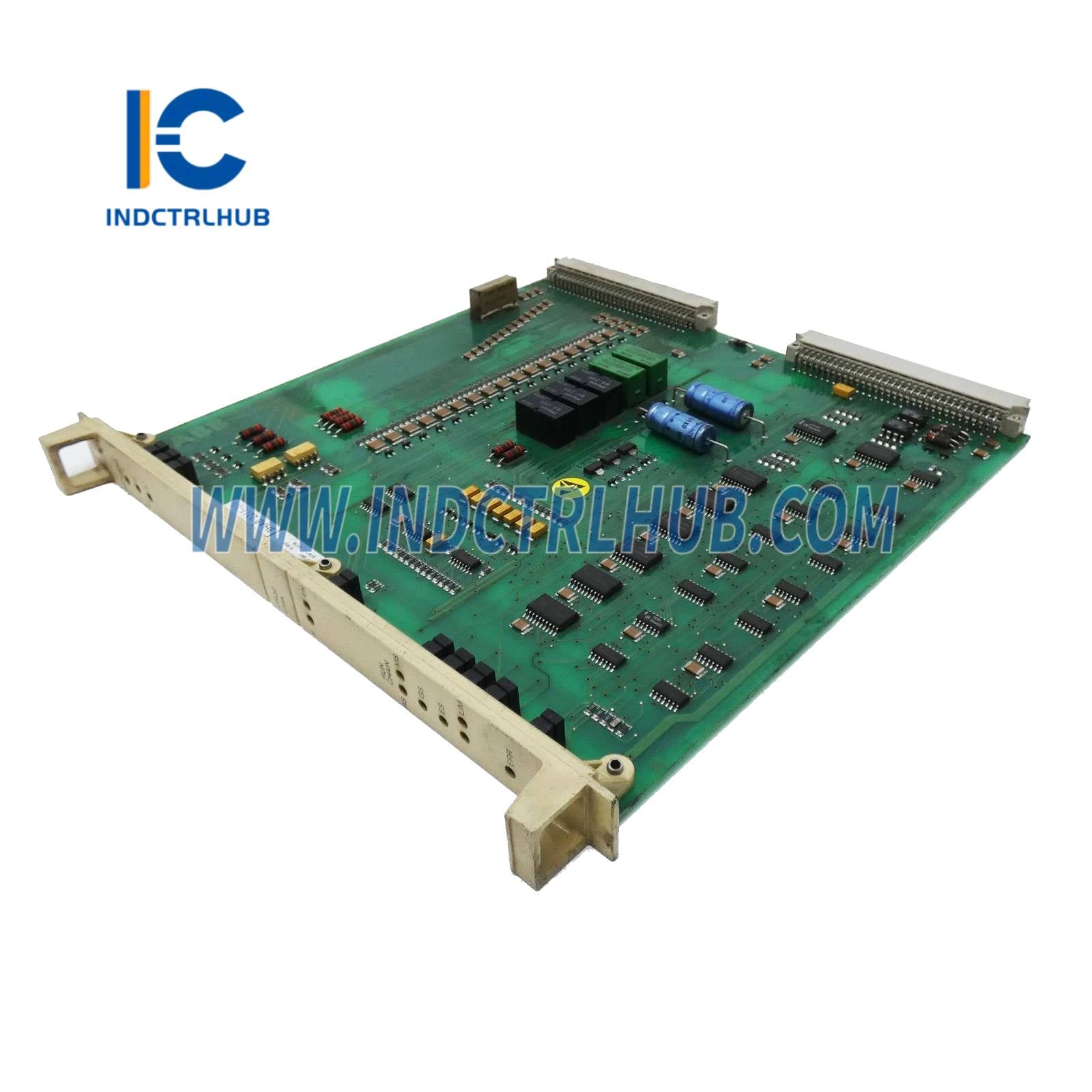

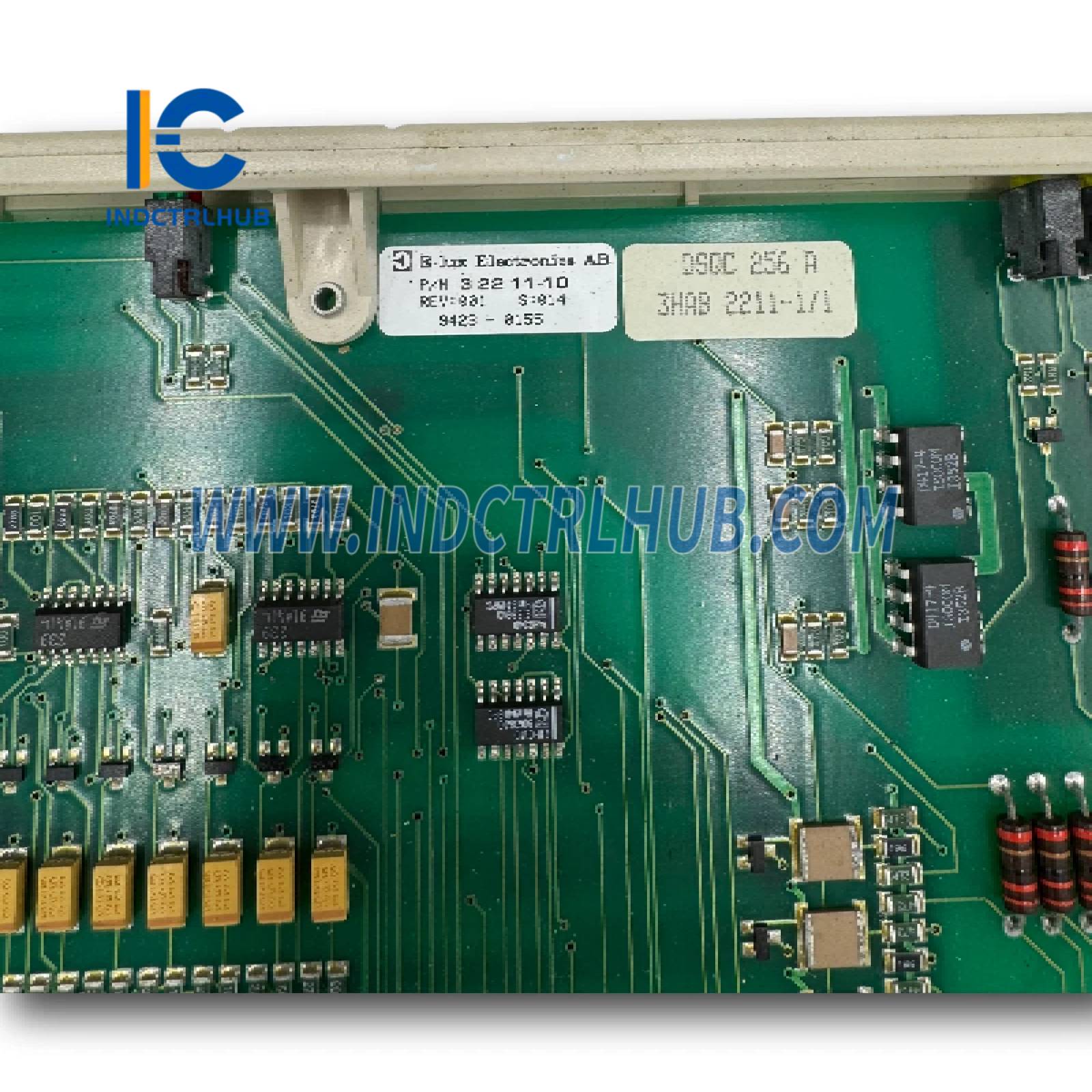

ABB DSQC256A Sensor Interface Board
Product Overview
- The ABB DSQC256A is a Sensor Interface Board designed for use in ABB’s industrial robotic systems, specifically within the IRC5 or earlier robot controllers (e.g., S4C). This board facilitates the connection and processing of sensor signals, enabling the robot to interact with external sensors for tasks such as position detection, object recognition, or process monitoring. It is commonly used in applications like welding, material handling, assembly, and painting in industries such as automotive, manufacturing, and aerospace. The DSQC256A is known for its reliability, compatibility with ABB’s robotic ecosystems, and robust performance in industrial automation environments.
Technical Specifications
- The DSQC256A has the following specifications based on industry sources and ABB documentation:
| Specification | Details |
|---|---|
| Model/Part Number | DSQC256A |
| Manufacturer | ABB |
| Description | Sensor Interface Board for ABB Robotic Systems |
| Series | IRC5, S4C Robot Controllers |
| Function | Interfaces sensors with robot controller for signal processing |
| Input Signals | Digital: Binary inputs (e.g., proximity sensors, limit switches) Analog: 0–10 V, 4–20 mA (configuration-dependent) |
| Output Signals | Digital: Binary outputs for control signals Analog: Limited output capability (configuration-dependent) |
| Number of Channels | Up to 16 digital I/O channels (exact number configuration-dependent) |
| Communication Interface | Proprietary ABB robot controller bus (e.g., DeviceNet, CAN-based) |
| Compatibility | ABB IRB series robots, IRC5/S4C controllers, compatible sensors |
| Power Supply | 24 VDC (via robot controller backplane) |
| Power Consumption | Approx. 3–5 W |
| Diagnostics | Signal status, fault detection, communication errors |
| Environmental Specifications | Operating Temperature: 0°C to +45°C (32°F to +113°F) Storage Temperature: -25°C to +70°C (-13°F to +158°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant |
| Enclosure | IP20 (installed within robot controller cabinet) |
| Dimensions | Approx. 150 mm (H) x 100 mm (W) x 30 mm (D) |
| Weight | Approx. 0.2–0.4 kg |
| Mounting | Plugs into robot controller slot |
| Certifications | CE, UL, CSA, complies with IEC 61131 standards |
