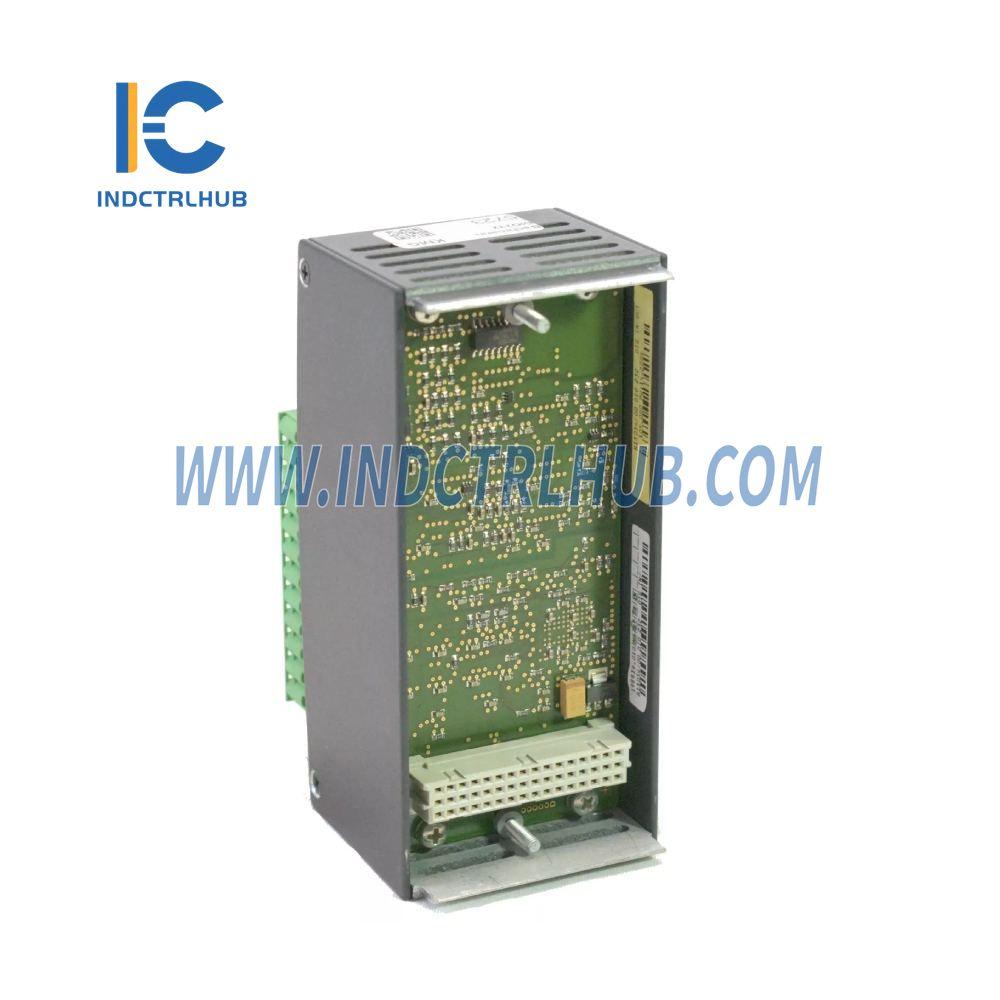

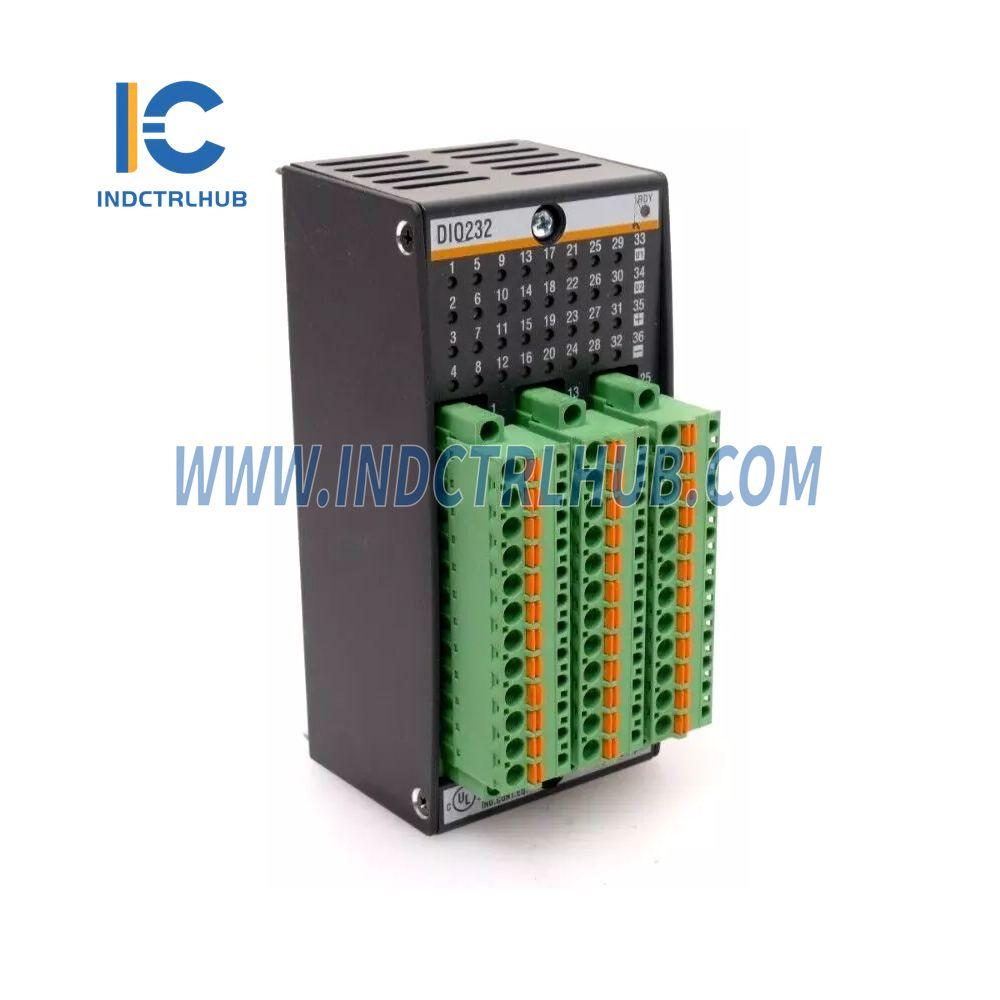

DIO232 BACHMANN Digital Input/Output Module
DIO232 BACHMANN Digital Input/Output Module
Manufacturer: BACHMANN
Product No.: DIO232
Condition:1000 in stock
Product Type: Digital Input/Output Module
Product Origin: Austria
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
Manufacturer: BACHMANN
Model/Part Number: DIO232
Description: Digital input/output modules
Inputs
| Property | Details |
|---|---|
| Quantity | 16 .. 32 |
| Input Voltage Range (H) | 15 .. 34 V DC |
| Input Voltage Range (L) | 0 .. 5 V DC |
| Input Delay (Normally) | 0 .. 365 ms |
| Internal Resistance | 6.8 kΩ |
| Status Indication (LED) | Green |
| Interrupt Inputs | 8 |
Outputs
| Property | Details |
|---|---|
| Quantity | 16 .. 32 |
| Output Voltage Range | 18 .. 34 V DC |
| Output Current per Channel (Max.) | 0.5 A |
| Total Current (Max.) | 8 A |
| Status Indication (LED) | Green |
| Switching Frequency (Max., Ohmic Load) | 1 kHz |
External Power Supply
| Property | Details |
|---|---|
| Reverse Polarity Protection | Yes |
| Galvanic Isolation from System | 500 V |
Ambient Conditions
| Condition | Details |
|---|---|
| Operating Temperature | -30°C to +60°C |
| Relative Humidity (Operation) | 5–95% (with or without condensation) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity (Storage) | 5–95% with condensation |
Execution Variants
Digital Input/Output Module:
16x DI; 40 µs..365 ms filter configurable;
16x DIO; 24V / 0.5A; 2 groups; 8 interrupt channels; 35 µs delay; isolated
