Product Description

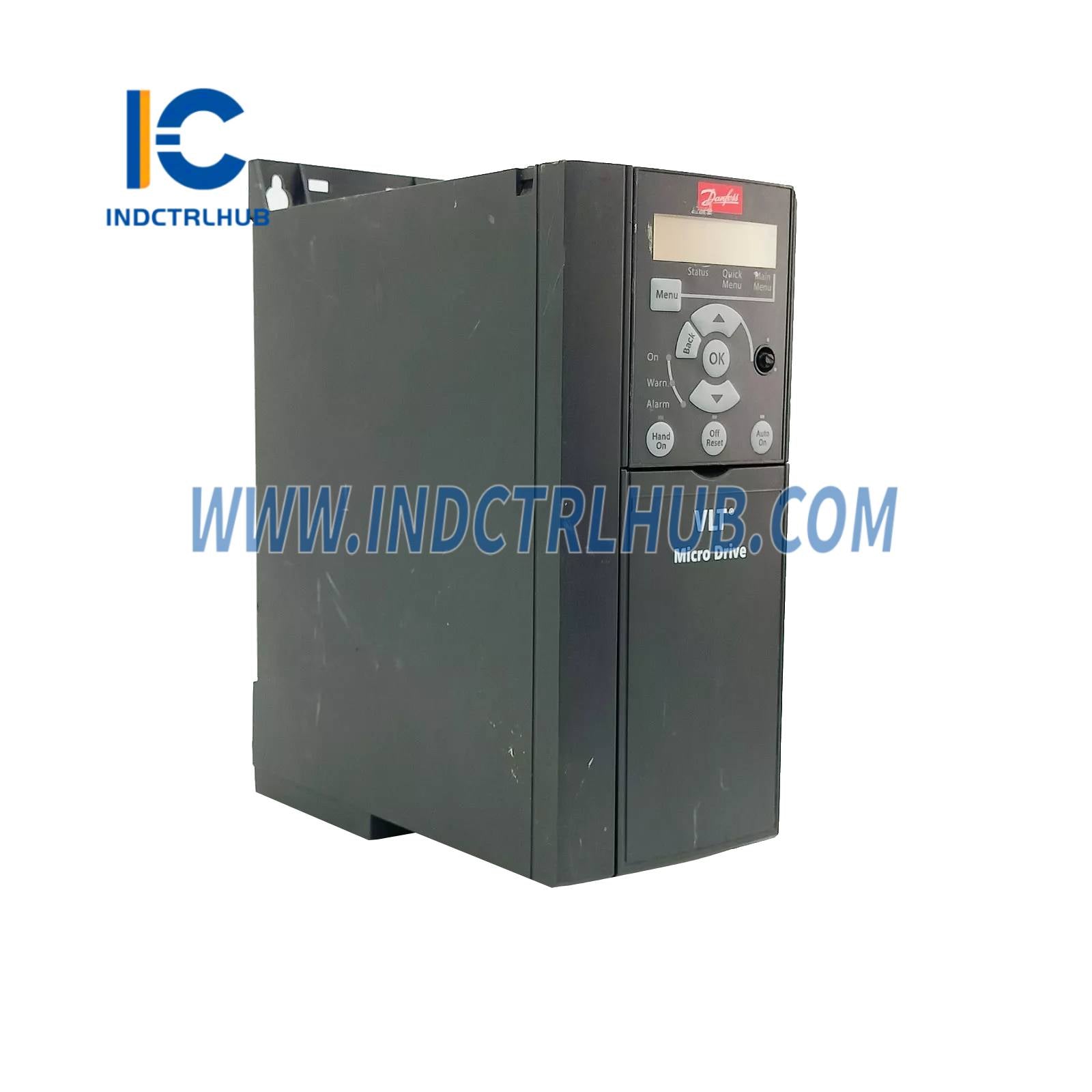

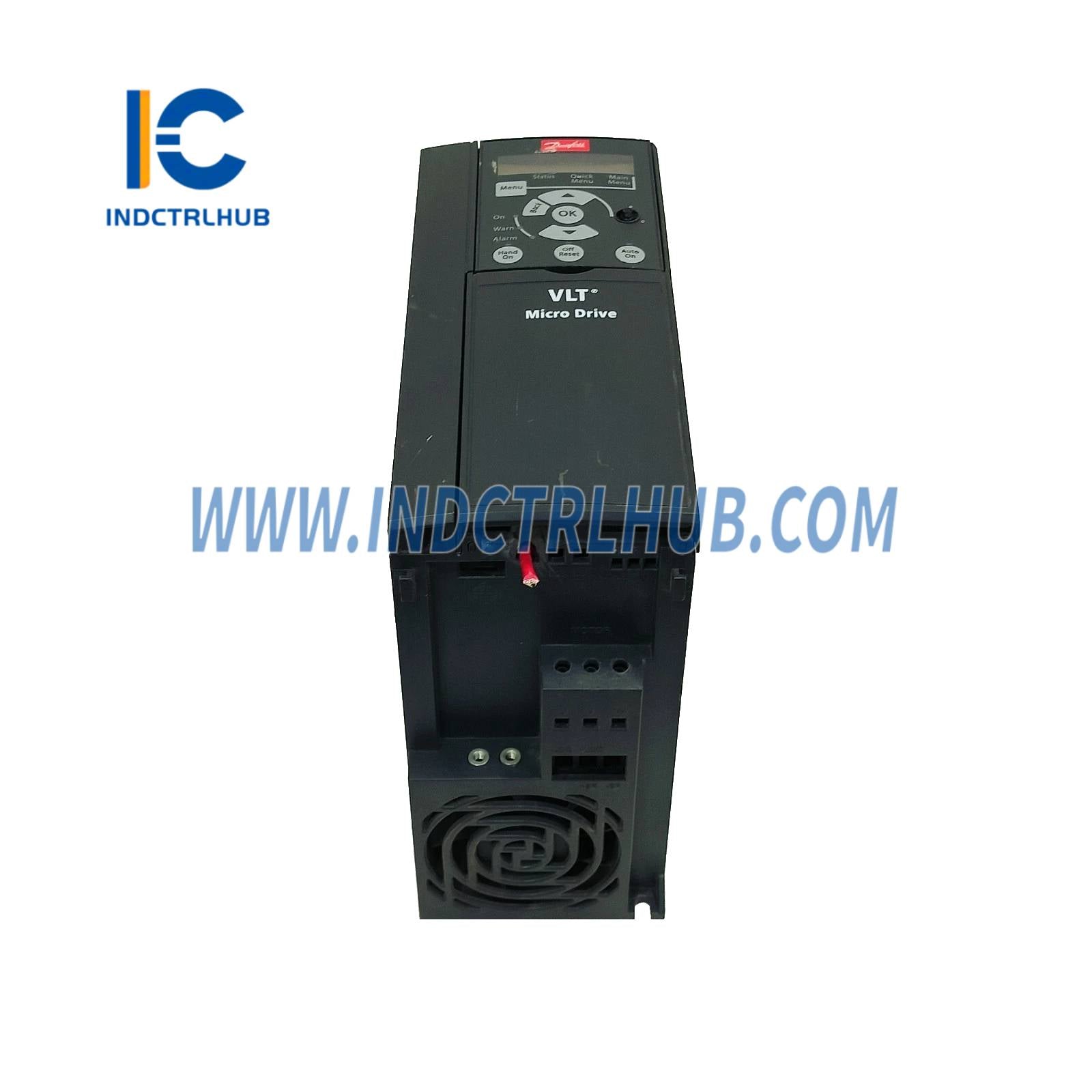

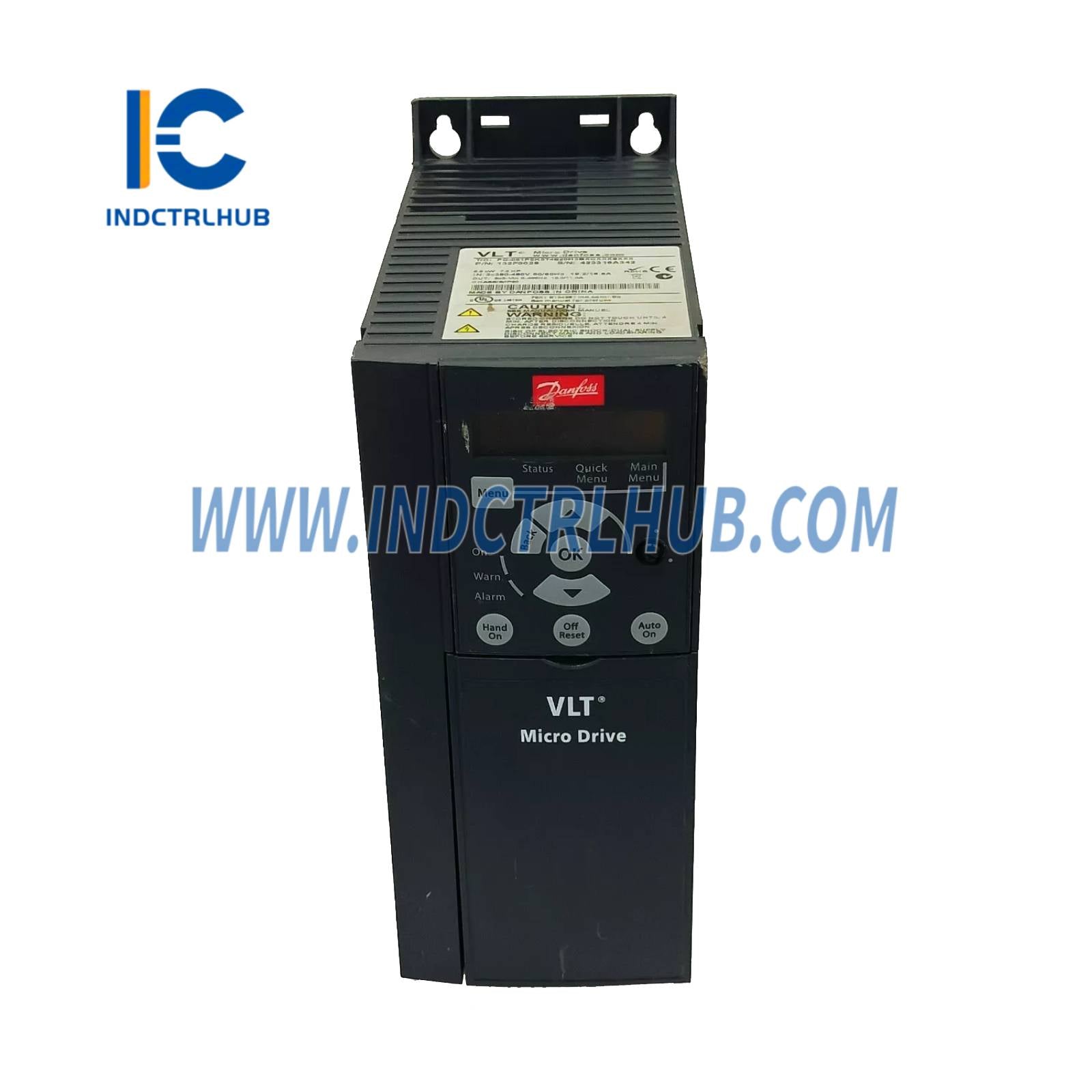

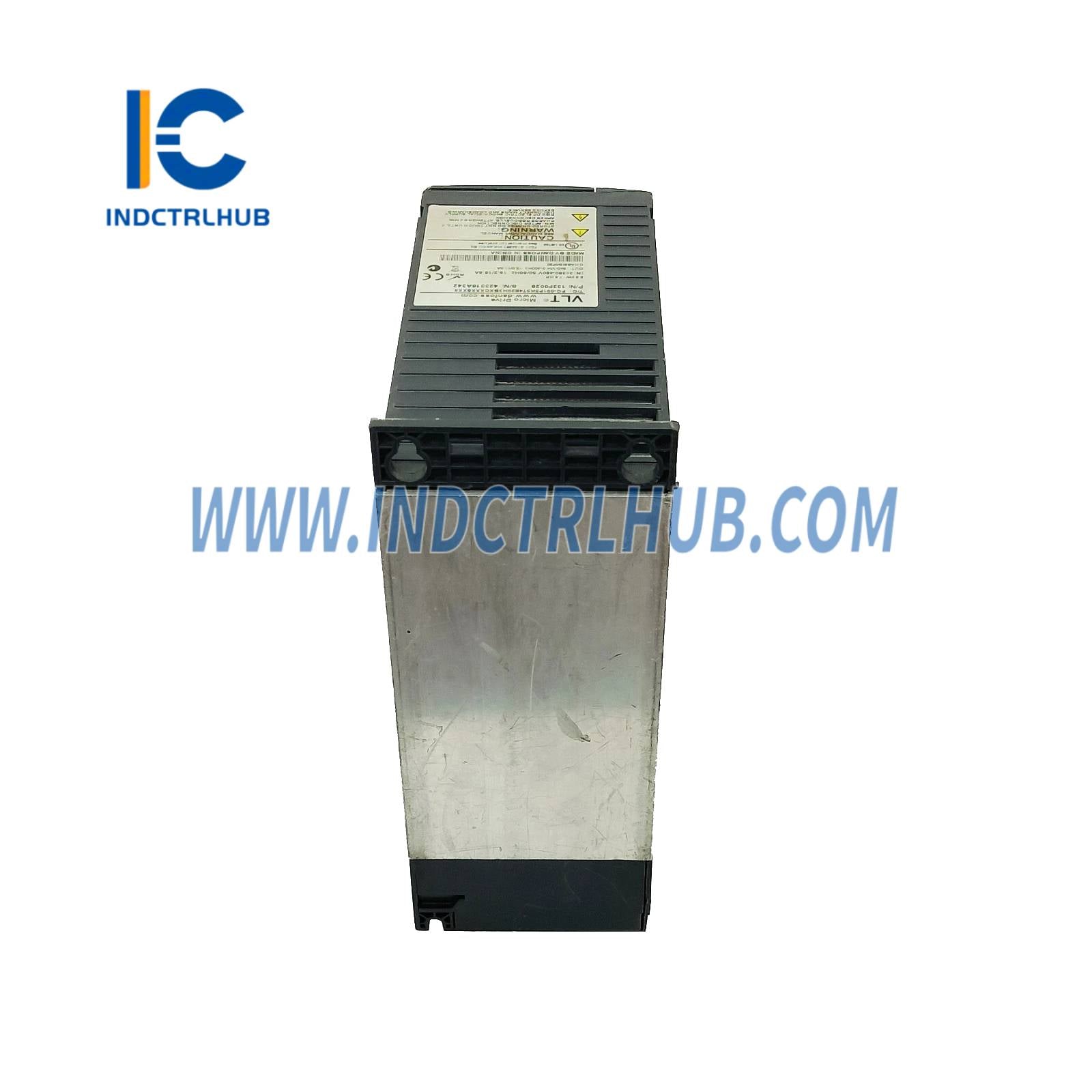

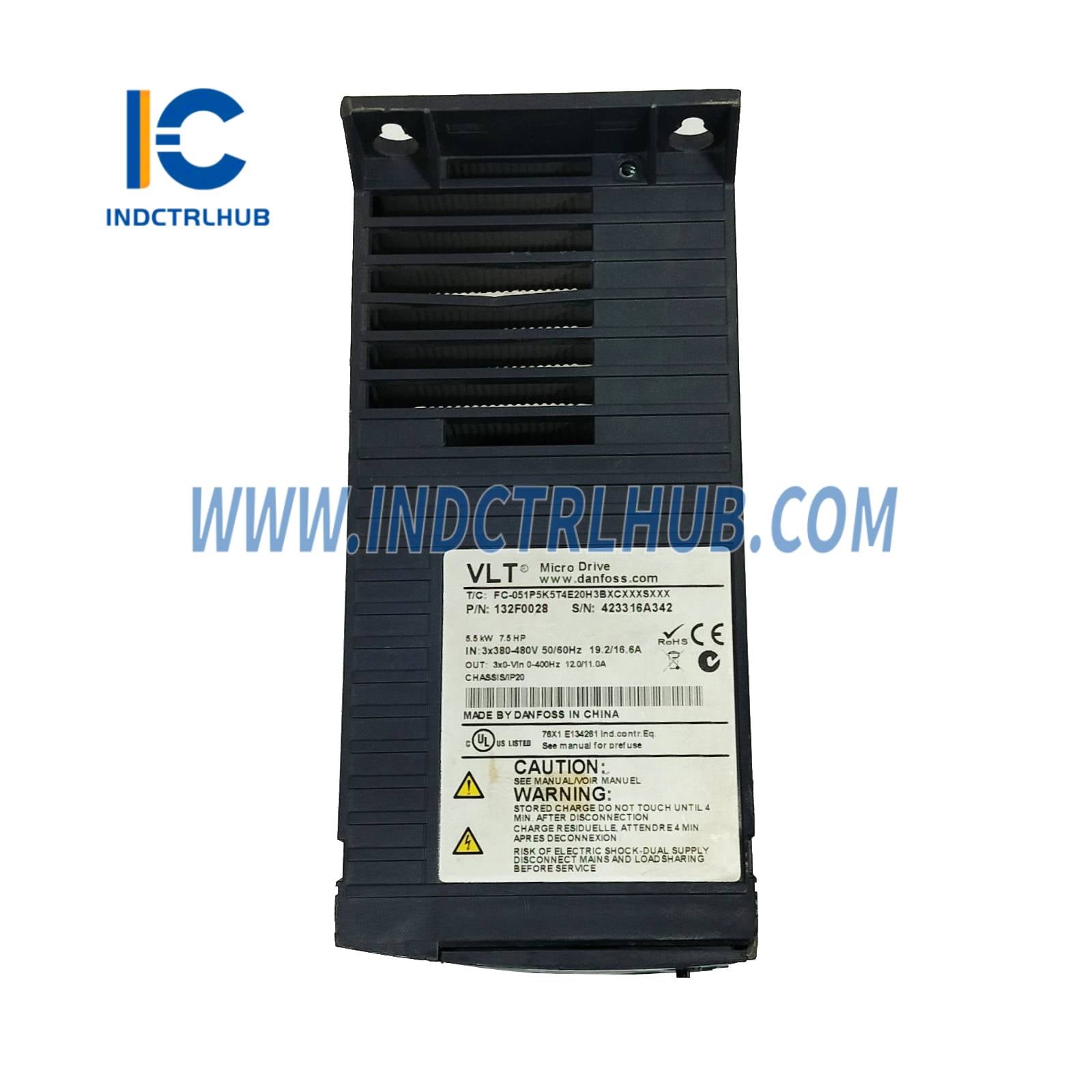

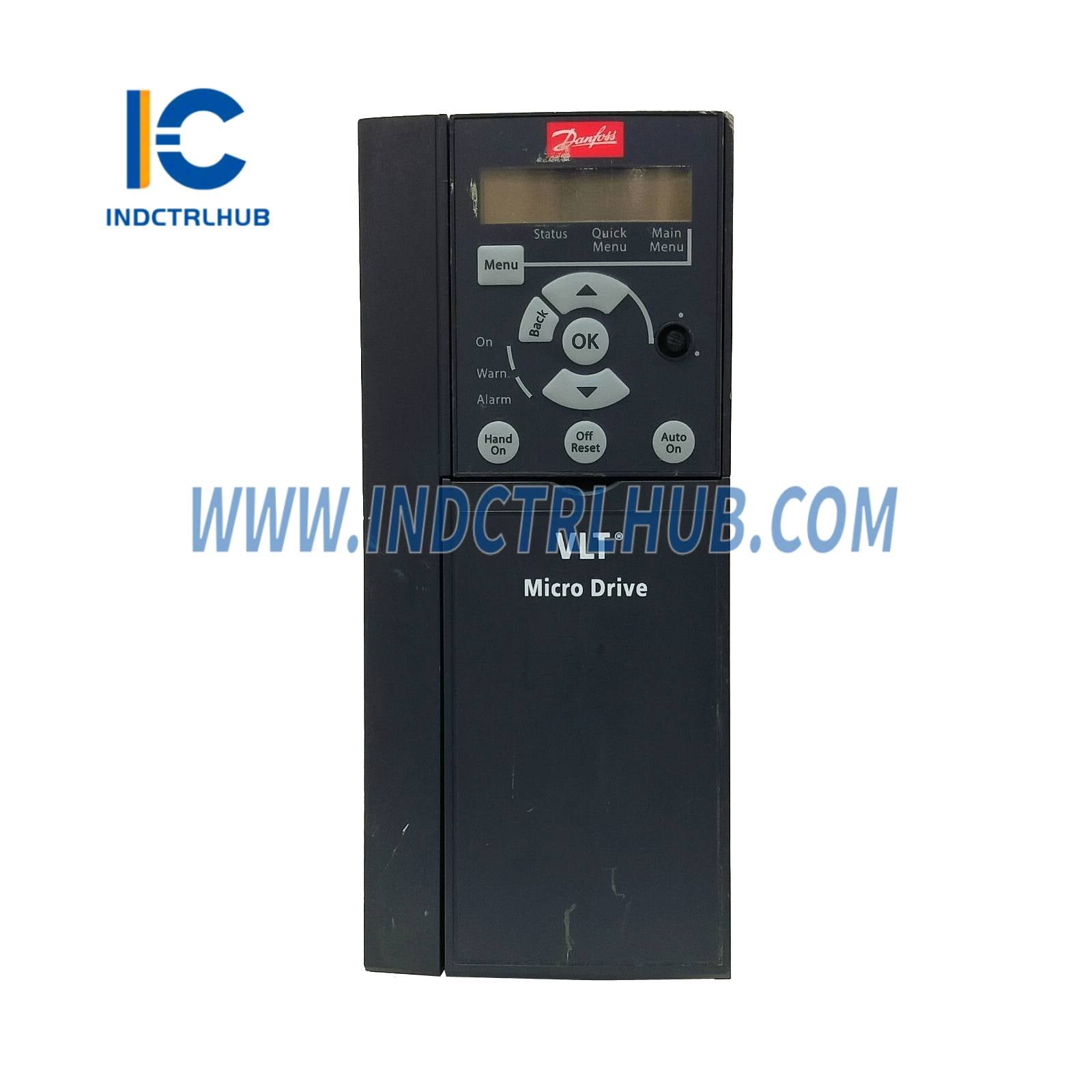

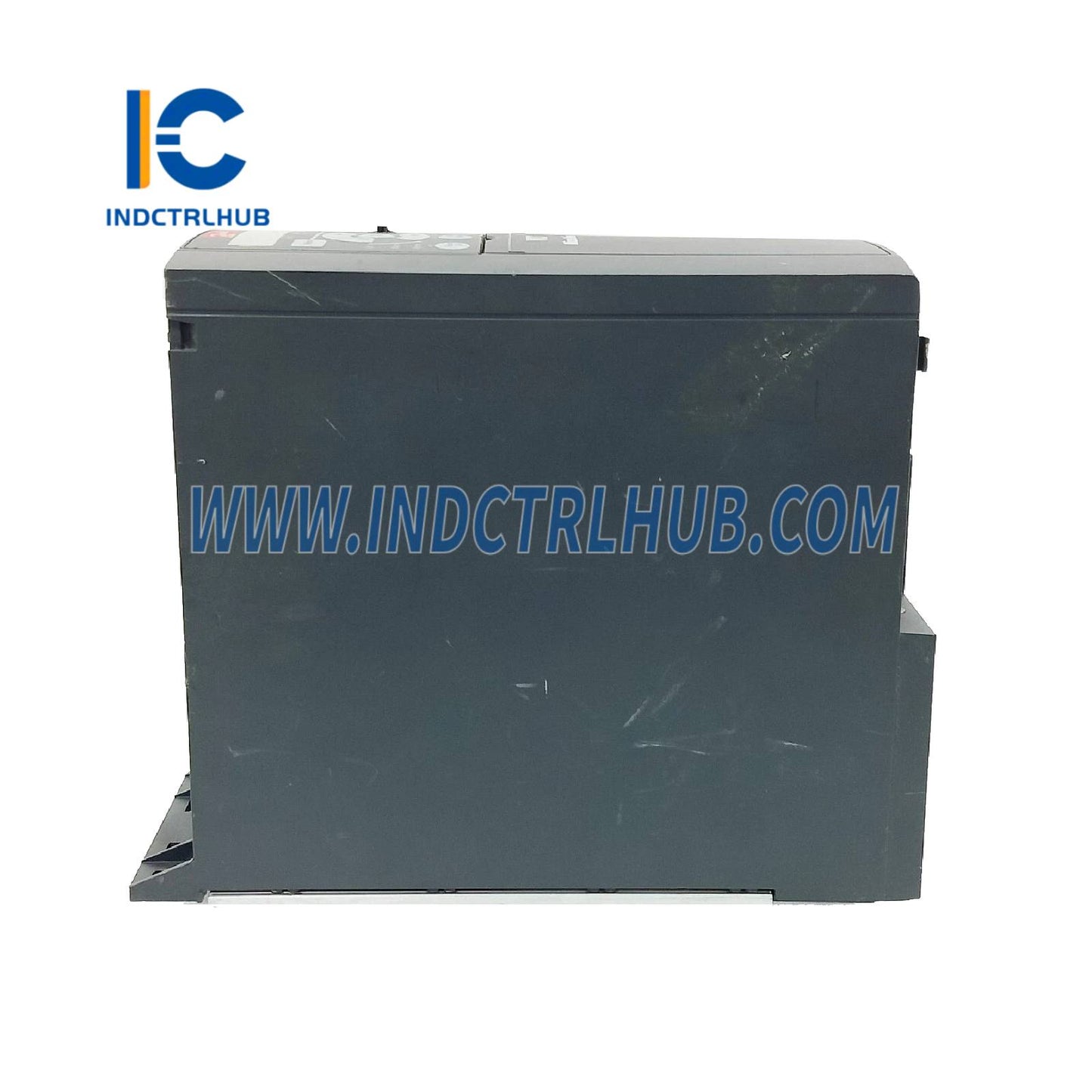

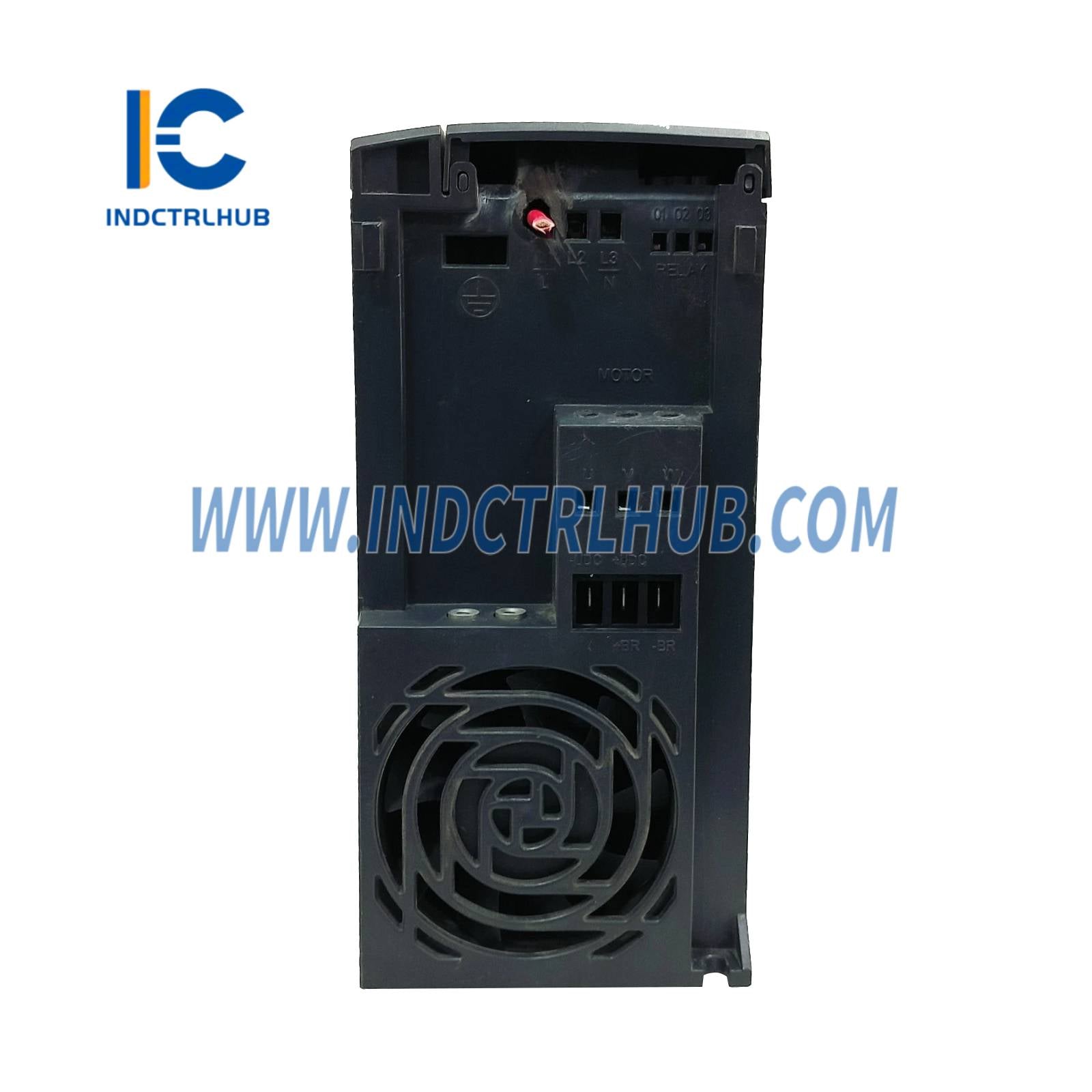

Danfoss 132F0028 VLT Micro Drive FC51
Product Overview
- The Danfoss 132F0028 is a VLT Micro Drive FC51, a compact, three-phase variable frequency drive (VFD) designed for controlling AC motors up to 5.5 kW (7.5 HP). It is part of the FC51 VLT Micro Drive series, offering reliability, ease of use, and condensed functionality for industrial applications such as pumps, fans, conveyors, and mixers. The drive features an IP20 enclosure, a built-in brake chopper, and a coated PCB for enhanced durability, but does not include a control panel, which must be purchased separately.
Technical Specifications
- The 132F0028 has the following specifications based on industry sources:
| Specification | Details |
|---|---|

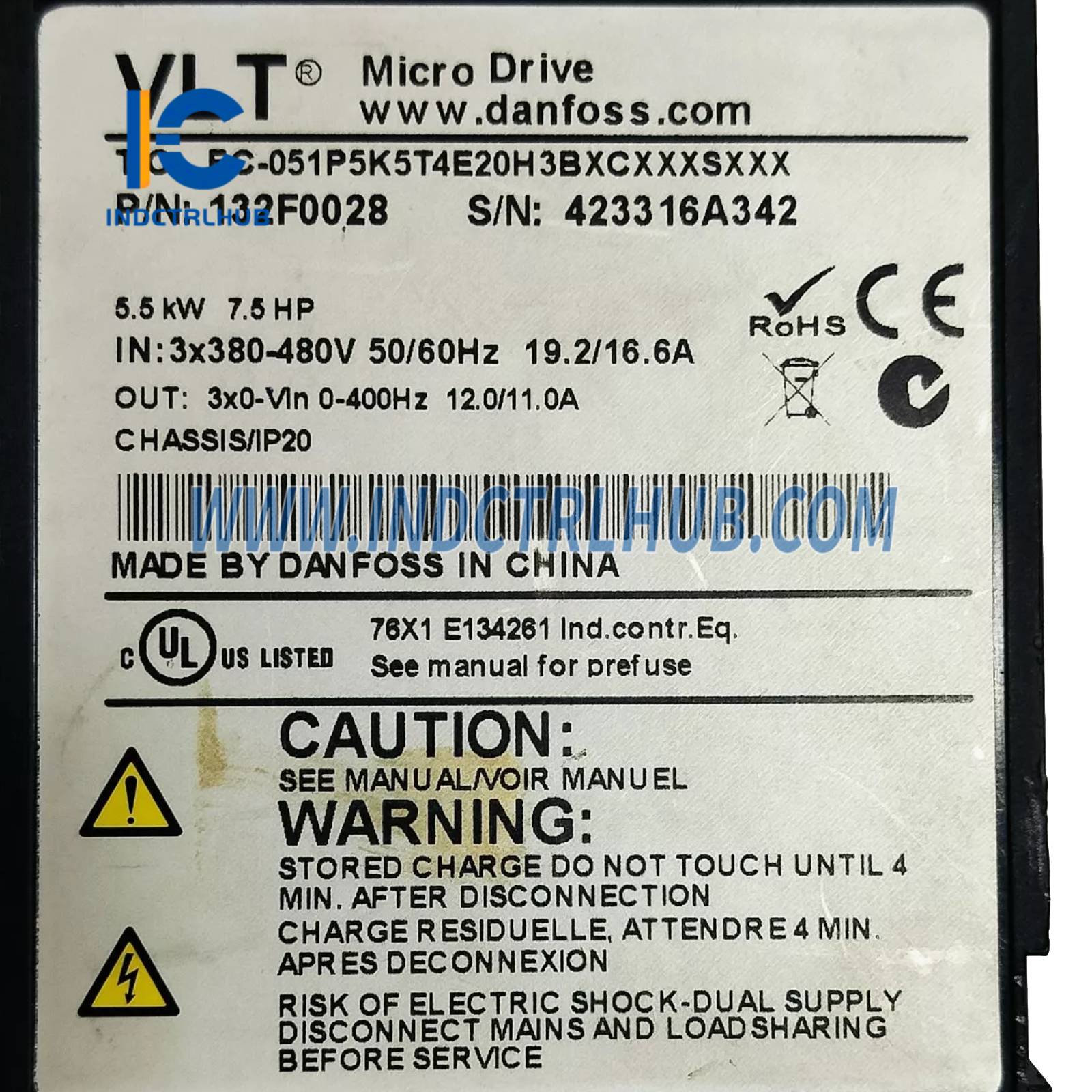

| Model/Part Number | 132F0028 |
| Manufacturer | Danfoss |
| Description | VLT Micro Drive FC51, 5.5 kW, 3-Phase, 380–480 VAC, IP20 |
| Series | VLT FC51 Micro Drive |
| Function | Variable speed control for AC motors; includes brake chopper, coated PCB, RFI Class A1/B filter |
| Rated Power | 5.5 kW (7.5 HP) |
| Input Voltage | 3-phase, 380–480 VAC |
| Output Current | 11 A (constant torque) |
| Frequency (Output) | 0–200 Hz |
| Enclosure | IP20 (NEMA 1 or IP21 optional with accessory kit) |
| Frame Size | M3 (9.41" H x 3.54" W x 7.63" D) |
| Inputs/Outputs | 2 analog inputs, 1 analog output, 5 digital inputs, 1 pulse input, 1 thermistor input, 1 relay (240 VAC, 2 A) |
| Communication | FC Protocol, Modbus RTU (optional with accessories) |
| Power Supply | Derived from input voltage |
| Power Consumption | Efficient design, exact values depend on load |
| Environmental Specifications | Ambient Temperature: -10°C to +50°C (without derating) Relative Humidity: 5% to 95% non-condensing Vibration: Per IEC 60068-2-6 Shock: Per IEC 60068-2-27 |
| Dimensions | 239 mm (H) x 90 mm (W) x 194 mm (D) |
| Weight | Approx. 3.5 kg (net), 3.55 kg (gross) |
| Mounting | Surface or DIN rail mounting, book-style for side-by-side installation |
| Certifications | CE, cULus, RoHS compliant |
