Product Description

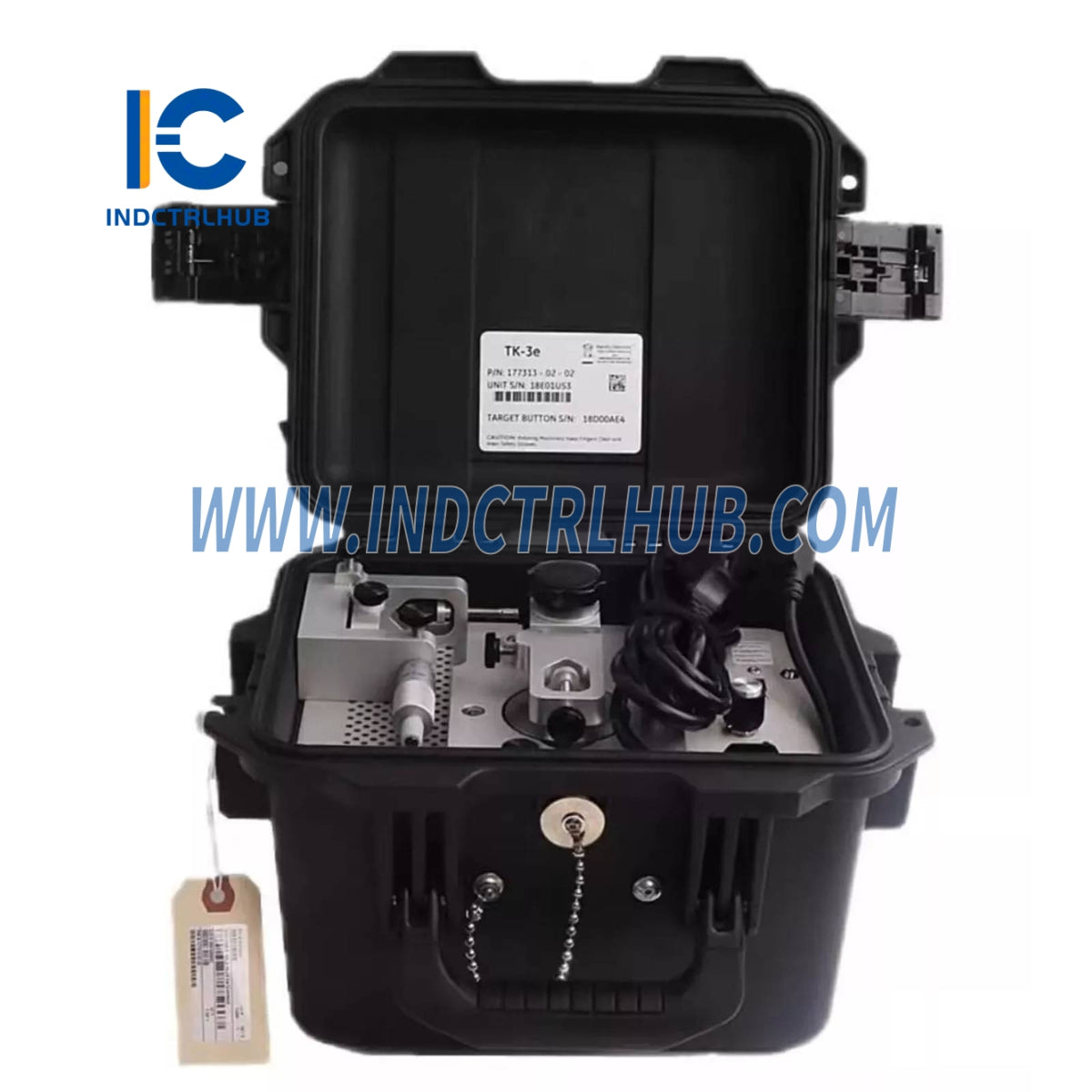

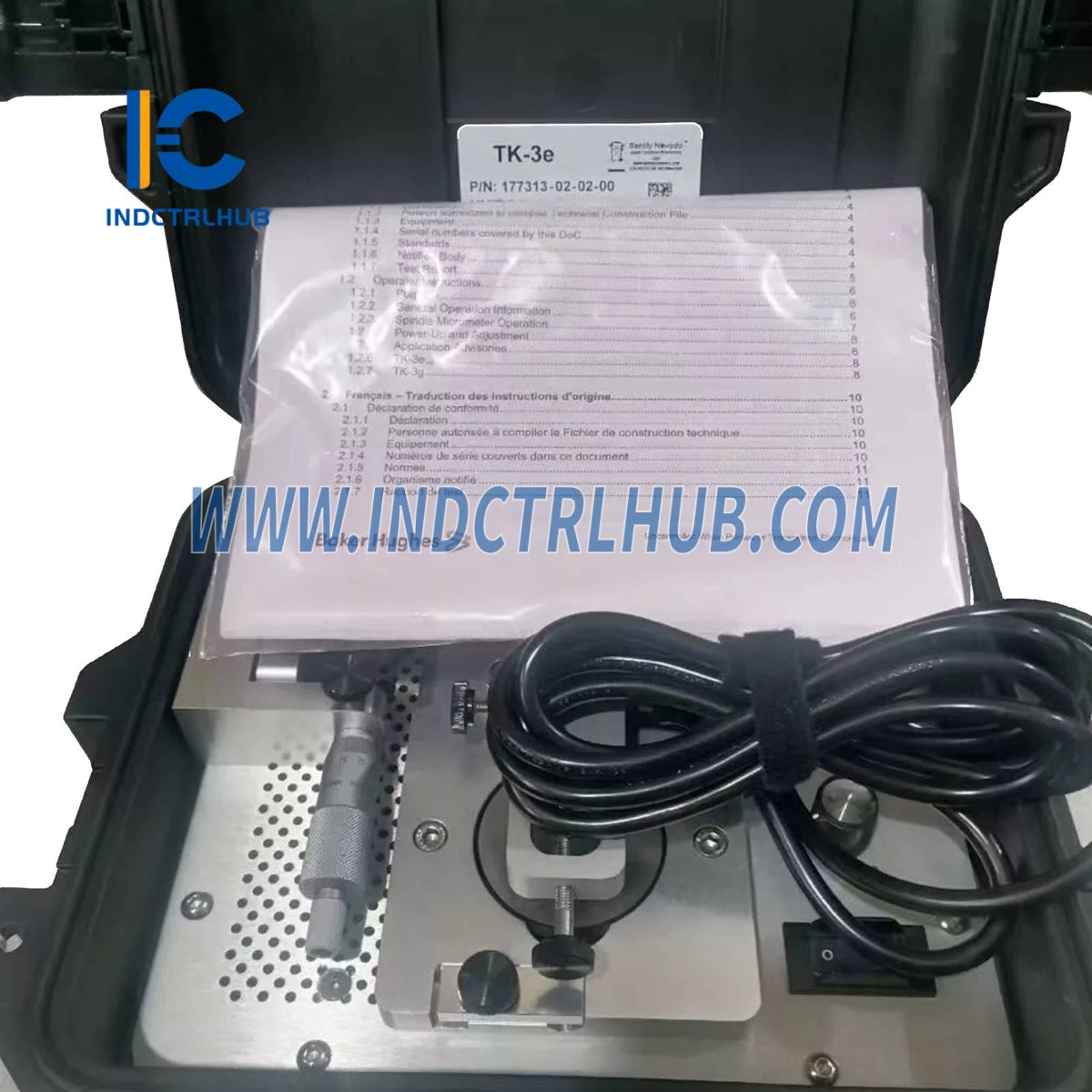

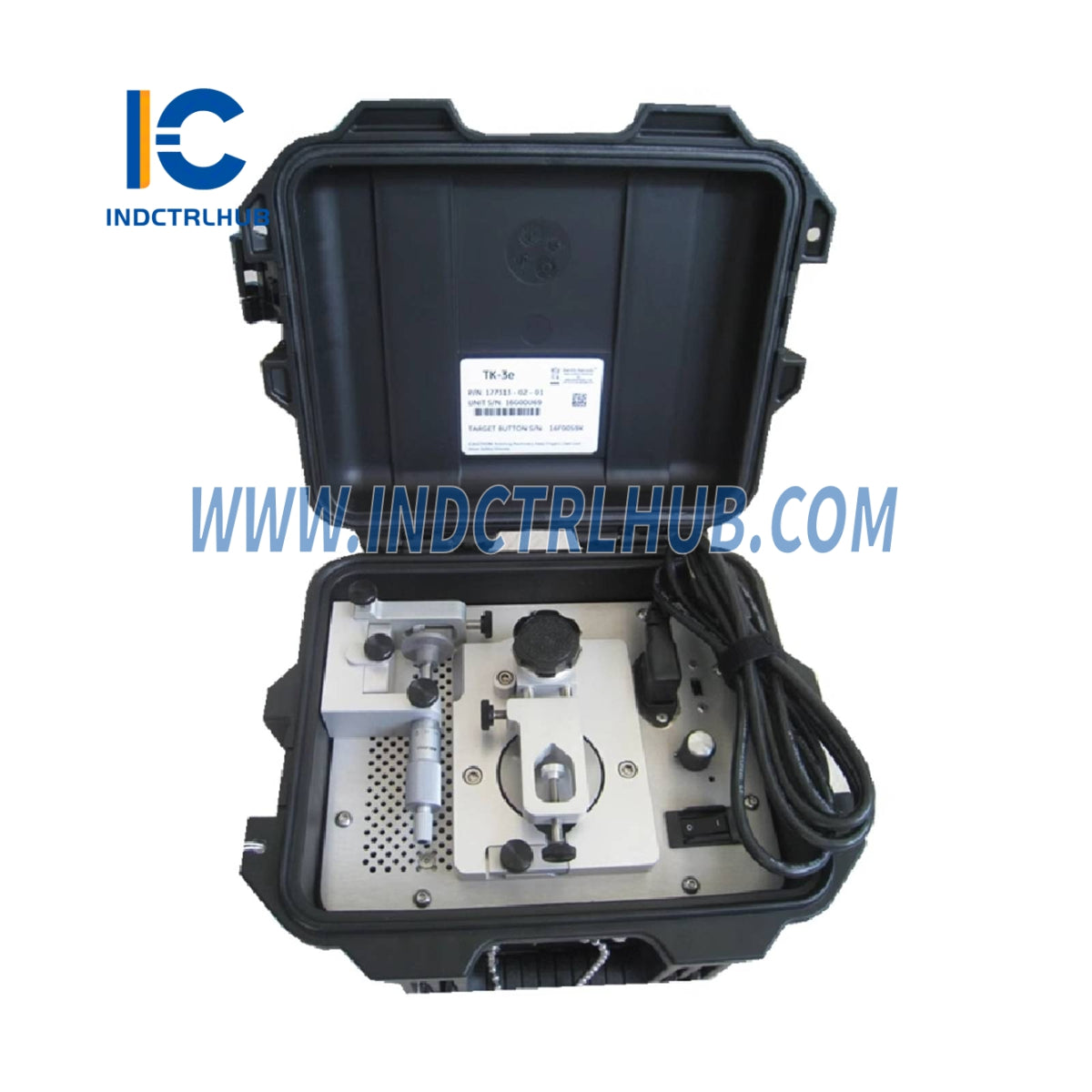

Product Overview
| Field | Details |
|---|---|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Part Number | 177313-02-02 |
| Product Type | TK-3e Electric Driven Proximity System Test Kit |
| Function | Simulates shaft vibration and position for calibrating proximity monitors |
| Associated Document | 178087 Rev. F (TK3 Proximity System Test Kit Datasheet) |
Functional Specifications

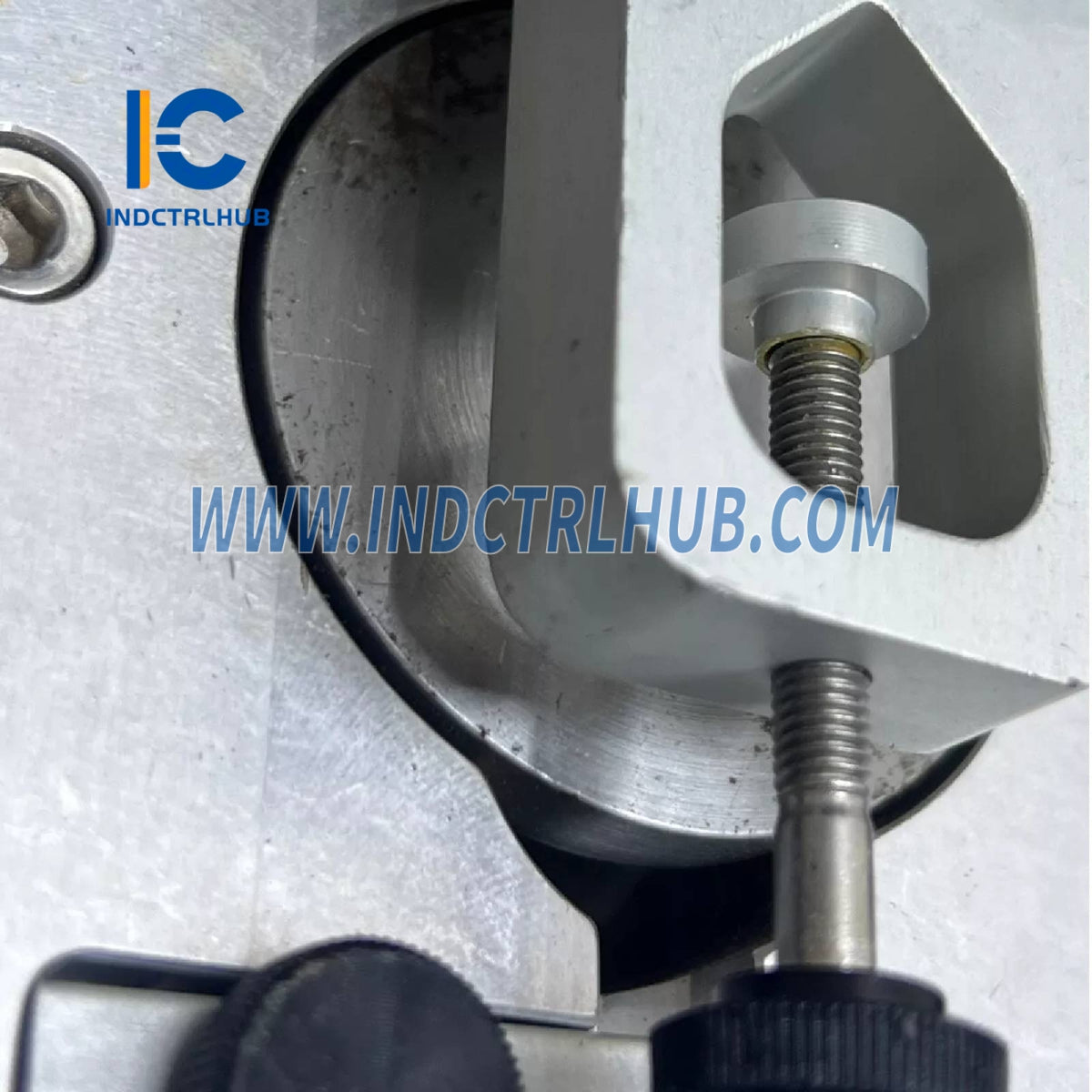

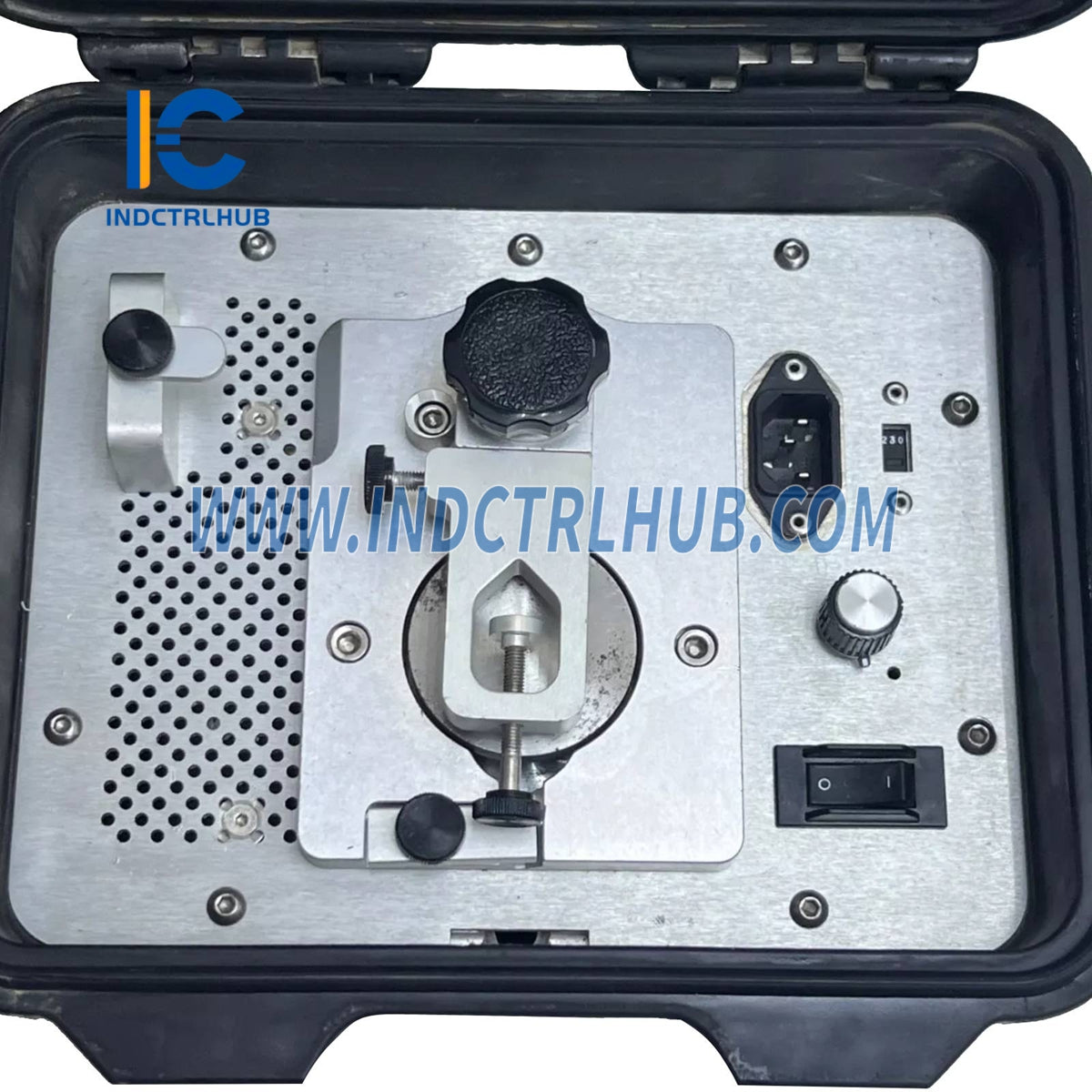

| Feature | Specification |
|---|---|
| Calibration Method | - Spindle Micrometer: Verifies transducer system and position monitor calibration - Wobble Plate: Calibrates vibration monitors using motor-driven mechanical vibration |
| Probe Compatibility | Universal probe mount for 5 mm to 19 mm (0.197 in to 0.75 in) diameter probes |
| Vibration Amplitude Range | 50 to 254 μm (2 to 10 mils) peak-to-peak |
| Maximum Speed | 0 to 5000 cpm ±1000 cpm |
| Spindle Micrometer Range | 0 to 25.4 mm (0 to 1000 mils) |
| Target Material | AISI 4140 Alloy Steel (target button and wobble plate); special materials available on request |
| Measurement Output | DC voltage output measured via multimeter (no oscilloscope required) |
| Features | - Removable spindle micrometer assembly with magnetic base - Swing-arm assembly for wobble plate - Absolute scale factor adjustment for vibration calibration |

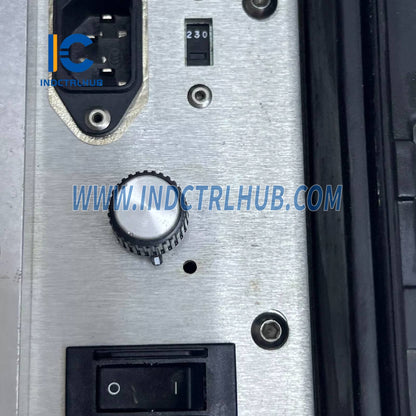

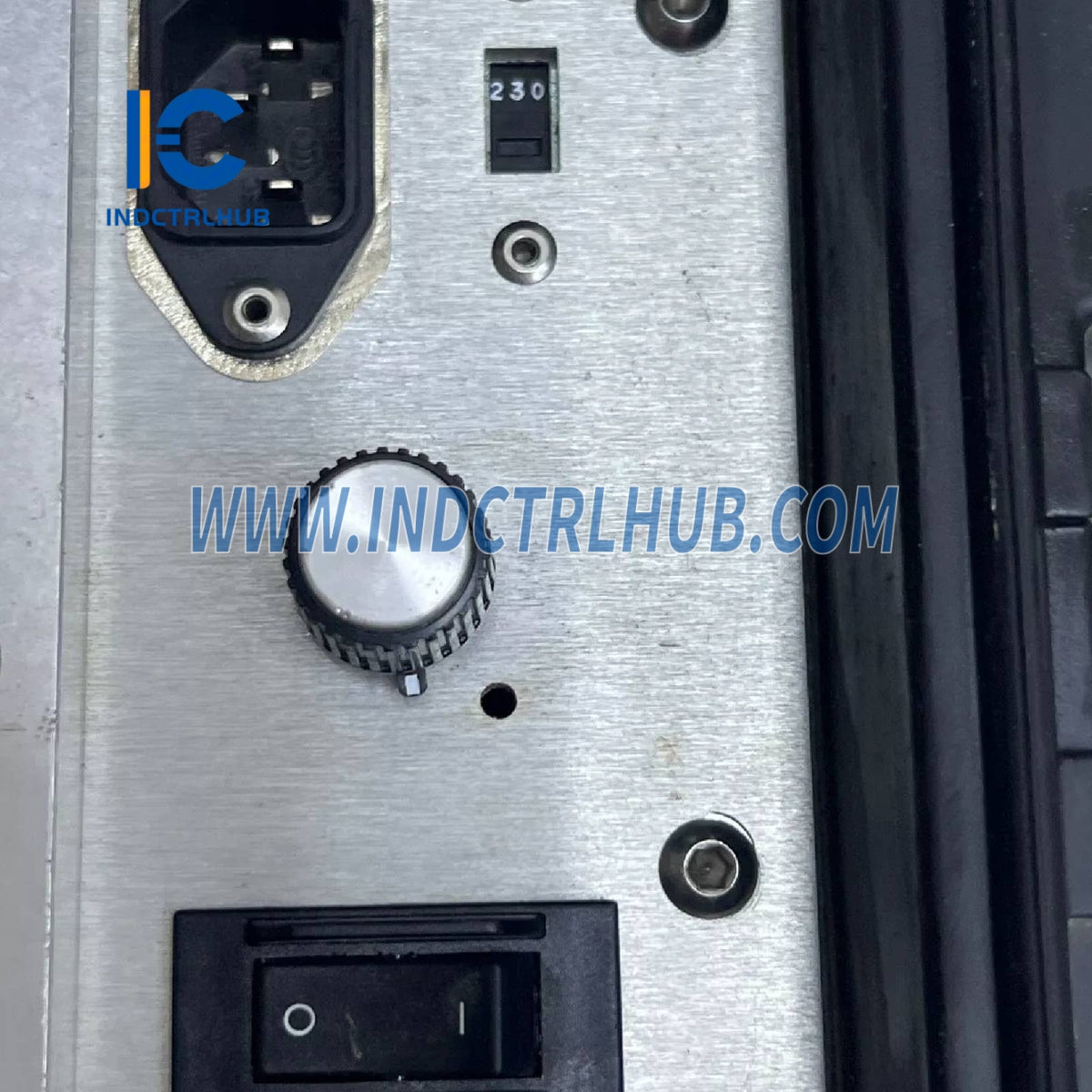

Power Specifications
| Feature | Specification |
|---|---|
| Power Source | Electric: 95-125 Vac or 190-250 Vac, 50/60 Hz, 1 A minimum |
| Power Cord Type | European (option 02) |
| Power Disconnection | Via power cable disconnection from TK-3e unit |
Physical Specifications
| Feature | Specification |
|---|---|
| Height | 195 mm (7.68 in) |
| Width | 299 mm (11.8 in) |
| Depth | 248 mm (9.76 in) |
| Weight | 5.22 kg (11.5 lb) |
| Scale Units | Metric (option 02) |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0 to 50°C (32 to 122°F); temporary operation below 0°C acceptable, max 40°C for extended use |
| Storage Temperature | -18 to 65°C (0 to 150°F) |
| Humidity | 95% non-condensing |
| Exposure | IP54 for dust and water (when closed) |
| Altitude | Max 2000 m |
| Usage | Indoor use only |
Compliance and Certifications
| Certification Type | Details |
|---|---|
| FCC | Complies with Part 15; no harmful interference, accepts received interference |
| EMC | - EN 61000-6-2, EN 61000-6-4 - EMC Directive 2014/30/EU |
| RoHS | Complies with RoHS Directive 2011/65/EU |
| Low Voltage Directive (LVD) | - EN 61010-1 - LV Directive 2014/35/EU |
| Agency Approvals | None (option 98) |
Ordering Information
| Field | Details |
|---|---|
| Part Number | 177313-02-02 (A: 02 - Metric, B: 02 - European Power Cord, C: 98 - No Agency Approvals) |
| Accessories | 168605: MDS 100 - Data Acquisition Scanning CBT (Computer Based Training) Module |
| Related Documents | - 178087 Rev F: TK3 Proximity System Test Kit Datasheet - 108M1756: Approvals Quick Reference Guide |
Safety Information
| Warning | Details |
|---|---|
| Rotational Hazard | - Risk of injury from rotating parts (wobble plate) - Avoid loose clothing/objects - Use safety glasses and guards - Ensure mounting screws are secure - Keep clear of wobble plate during operation to avoid injury from moving parts or contact |
Notes
- Purpose: Ensures accurate calibration of Bently Nevada proximity monitors by simulating shaft vibration and position, verifying transducer inputs and monitor outputs.
- Operation: Uses a multimeter to measure DC voltage for calibration; spindle micrometer for position, wobble plate for vibration. No oscilloscope needed.
- Limitations: Indoor use only; max altitude 2000 m; special target materials require separate order. Temporary low-temperature use allowed but not for extended periods.
- Installation: Magnetic base and universal probe mount simplify field use. Ensure secure mounting to prevent debris-related injuries.
