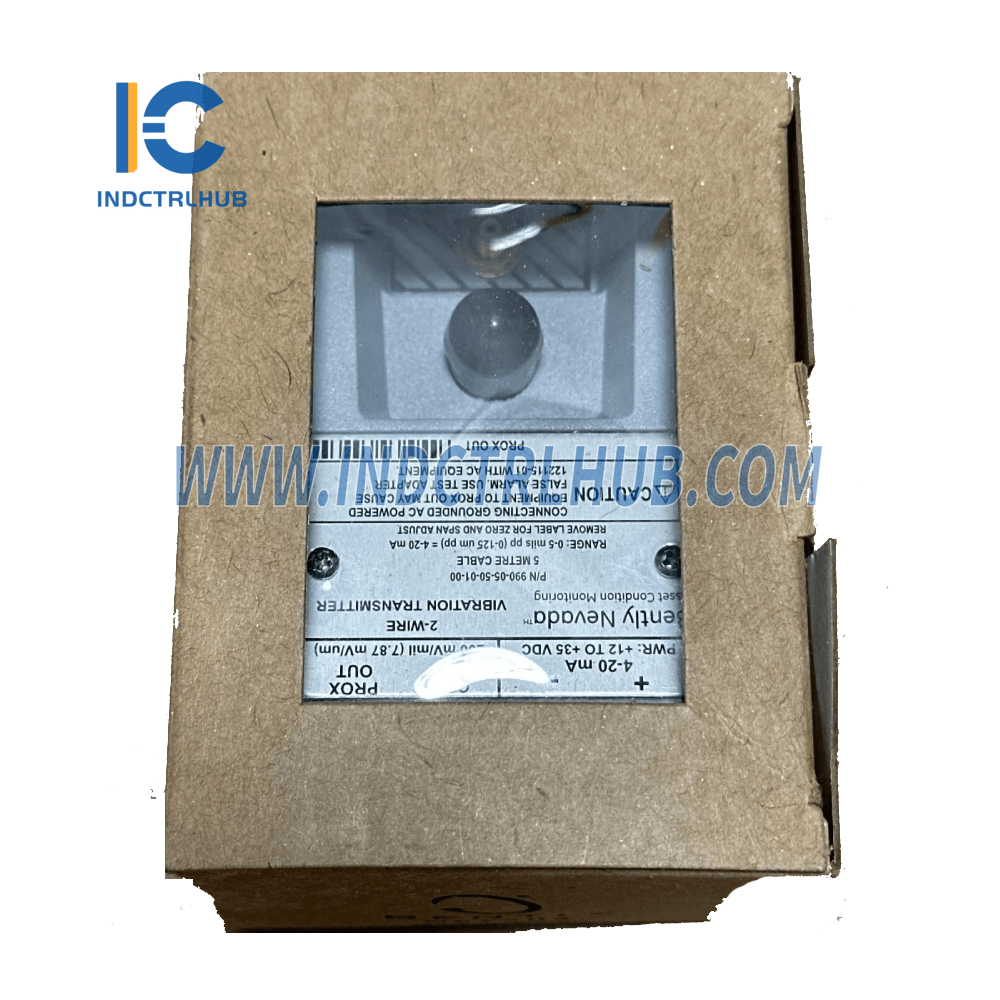

Bently Nevada 990-05-50-01-00 990 Vibration Transmitter

Bently Nevada 990-05-50-01-00 990 Vibration Transmitter

  • Manufacturer: Bently Nevada

  • Product No.: 990-05-50-01-00

  • Condition:1000 in stock

  • Product Type: 990 Vibration Transmitter

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 820g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Model/Part Number: 990-05-50-01-00
  • Description: 165353-01 990 Vibration Transmitter

Key Features

  1. Environmental Limits:

    • Transmitter Temperature:
      • Operating: -35°C to +85°C (-31°F to +185°F)
      • Storage: -52°C to +100°C (-62°F to +212°F)
    • Probe Temperature:
      • Operating: -52°C to +177°C (-62°F to +351°F)
      • Storage: -52°C to +177°C (-62°F to +351°F)
    • Relative Humidity:
      • 100% condensing, non-submerged, with protection of coaxial connectors.

  2. Mechanical Specifications:

    • Transducer Tip Material:
      • Polyphenylene sulfide (PPS).
    • Transducer Case Material:
      • AISI 303 or 304 Stainless Steel (SST).
    • Probe Cable:
      • 75Ω coaxial, fluoroethylene propylene (FEP) insulated.
    • Cable Armor (Optional):
      • Flexible AISI 302 SST with optional FEP outer jacket.
    • Tensile Strength:
      • 222 N (50 lbf) maximum, probe case to probe lead.
    • Transmitter Weight:
      • 0.43 kg (0.9 lbm).
    • Total System Weight:
      • 0.82 kg (1.8 lbm) typical.

Ordering Options

Full-Scale Option (A)

Code Description
04 0-4 mils pp (0-100 μm pp)
05 0-5 mils pp (0-125 μm pp)
08 0-8 mils pp (0-200 μm pp)
10 0-10 mils pp (0-250 μm pp)

System Length Option (B)

Code Description
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)

Mounting Option (C)

Code Description
01 35 mm DIN rail clips
02 Bulkhead screws
03 DIN clips and screws

Agency Approval Option (D)

Code Description
00 Not required
01 CSA Division 2
05 CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval



Check below popular items for more information in  Industrial Control Hub
Brand Description  Price (USD)  Stock Link
Bently Nevada 16710-50 Interconnect Cable  93-1093  200 Interconnect Cable
Bently Nevada 330101-00-08-10-11 3300 XL 8 mm Proximity Probe 16-1016 600 3300 XL 8 mm Proximity Probe
Bently Nevada 16710-15 Interconnect Cable with Armor  0-953  700 Interconnect Cable with Armor
Bently Nevada 3500/60 Temperature Module (01-02, 163179-01 + 133819-01)  2631-3631  200 Temperature Module
Bently Nevada 3500/05 System Rack (02-04-00-00-01)  1683-2683  600 System Rack
View full details

Product Description

Product Details

  • Manufacturer: Bently Nevada
  • Model/Part Number: 990-05-50-01-00
  • Description: 165353-01 990 Vibration Transmitter

Key Features

  1. Environmental Limits:

    • Transmitter Temperature:
      • Operating: -35°C to +85°C (-31°F to +185°F)
      • Storage: -52°C to +100°C (-62°F to +212°F)
    • Probe Temperature:
      • Operating: -52°C to +177°C (-62°F to +351°F)
      • Storage: -52°C to +177°C (-62°F to +351°F)
    • Relative Humidity:
      • 100% condensing, non-submerged, with protection of coaxial connectors.

  2. Mechanical Specifications:

    • Transducer Tip Material:
      • Polyphenylene sulfide (PPS).
    • Transducer Case Material:
      • AISI 303 or 304 Stainless Steel (SST).
    • Probe Cable:
      • 75Ω coaxial, fluoroethylene propylene (FEP) insulated.
    • Cable Armor (Optional):
      • Flexible AISI 302 SST with optional FEP outer jacket.
    • Tensile Strength:
      • 222 N (50 lbf) maximum, probe case to probe lead.
    • Transmitter Weight:
      • 0.43 kg (0.9 lbm).
    • Total System Weight:
      • 0.82 kg (1.8 lbm) typical.

Ordering Options

Full-Scale Option (A)

Code Description
04 0-4 mils pp (0-100 μm pp)
05 0-5 mils pp (0-125 μm pp)
08 0-8 mils pp (0-200 μm pp)
10 0-10 mils pp (0-250 μm pp)

System Length Option (B)

Code Description
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)

Mounting Option (C)

Code Description
01 35 mm DIN rail clips
02 Bulkhead screws
03 DIN clips and screws

Agency Approval Option (D)

Code Description
00 Not required
01 CSA Division 2
05 CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval
