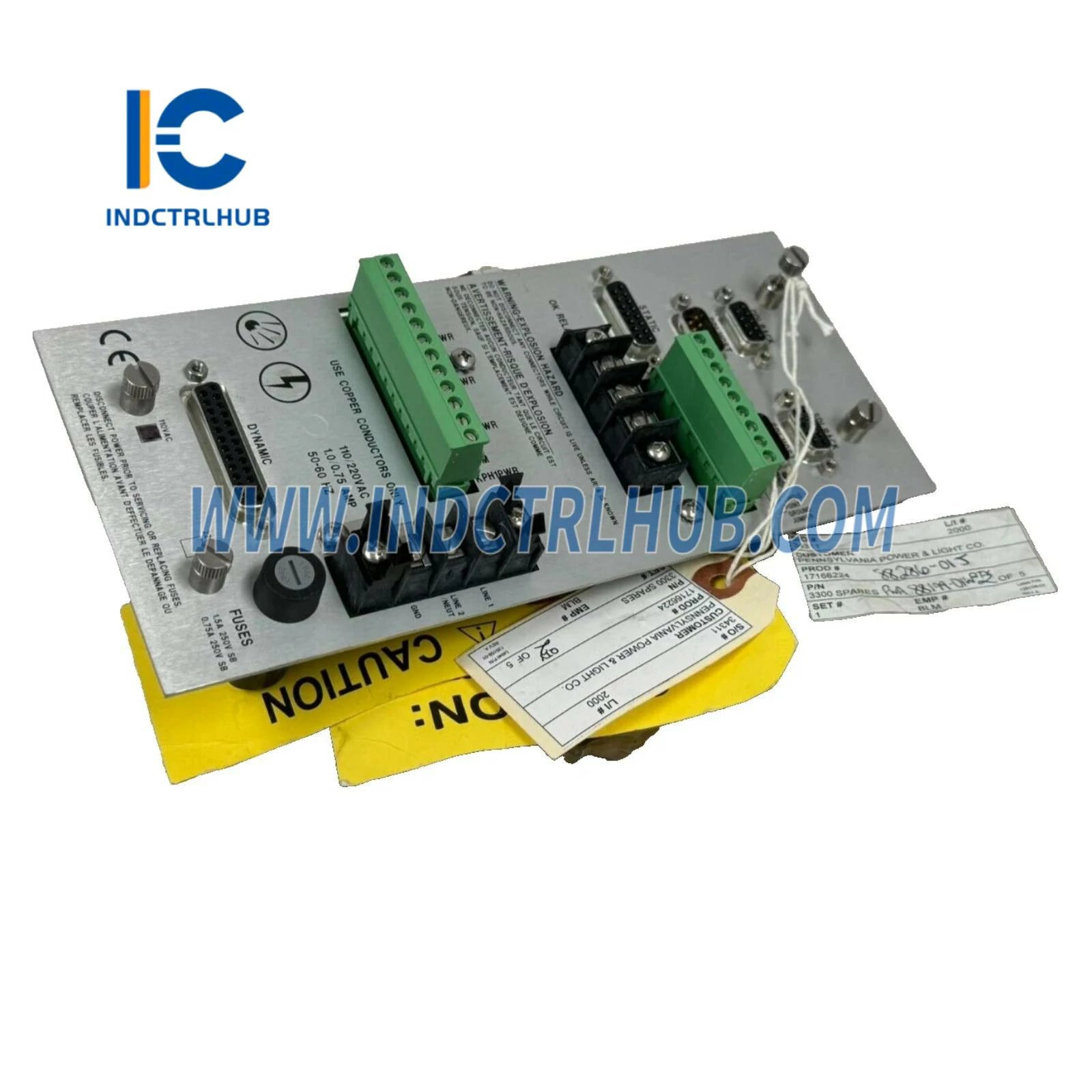

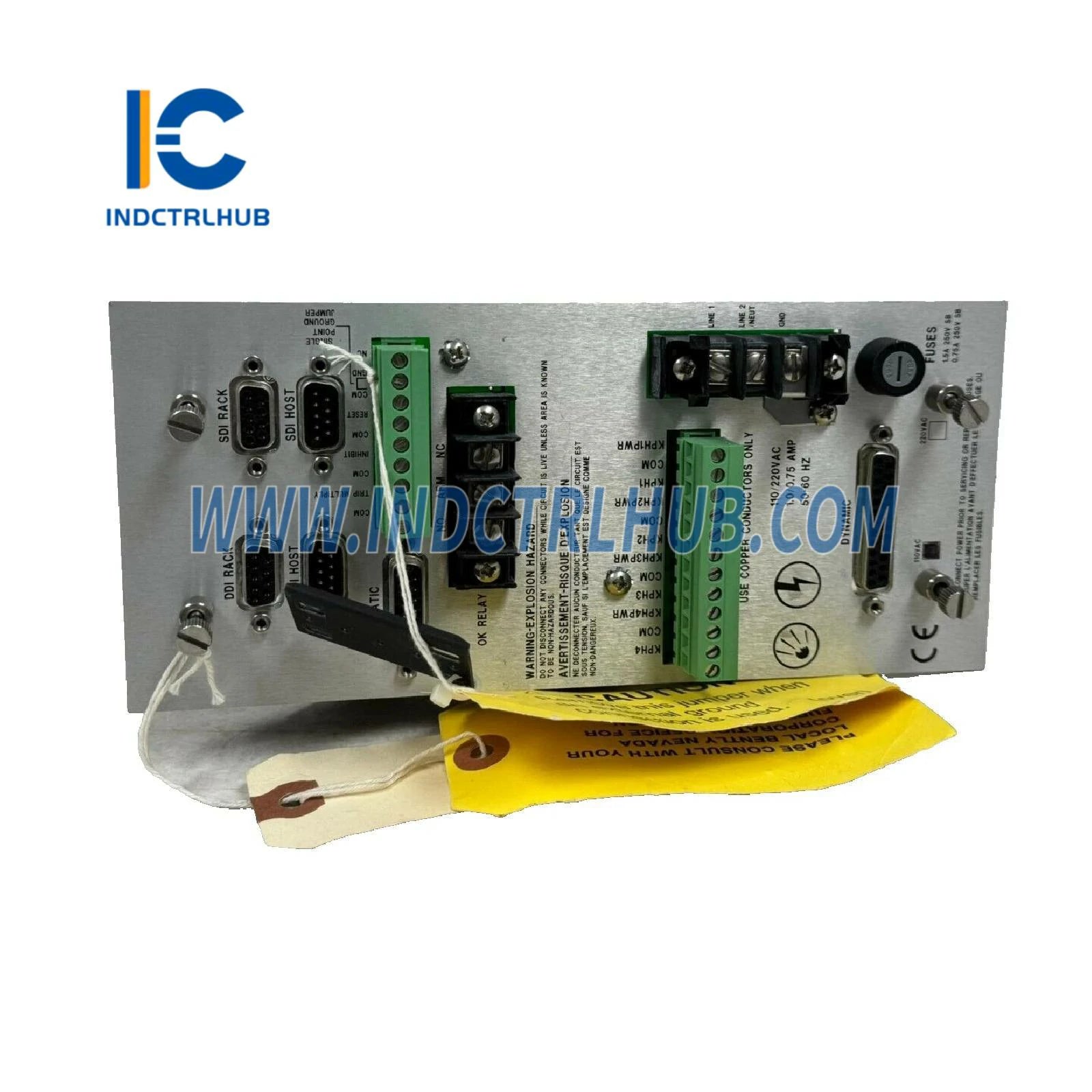

Bently Nevada 88286-01 Distribution Terminal Board

Bently Nevada 88286-01 Distribution Terminal Board

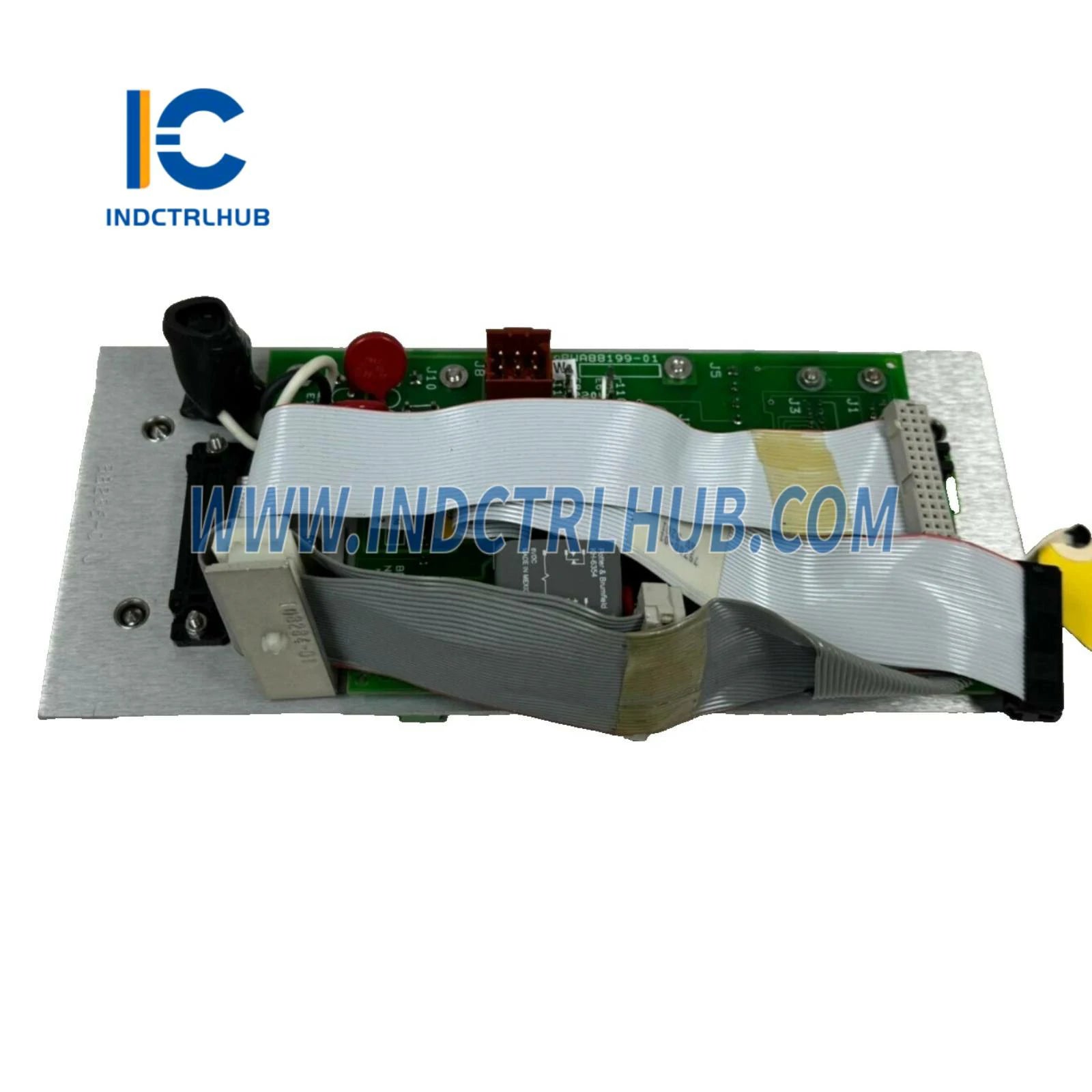

Professional-grade power distribution terminal board assembly for Bently Nevada 3300 Series monitoring systems. The 88286-01 incorporates PWA88199-01 printed wiring assembly, providing organized power distribution, signal routing, and electrical isolation for multi-channel monitoring installations requiring centralized power management.

⚡ Terminal Board Specifications

Part Number: 88286-01

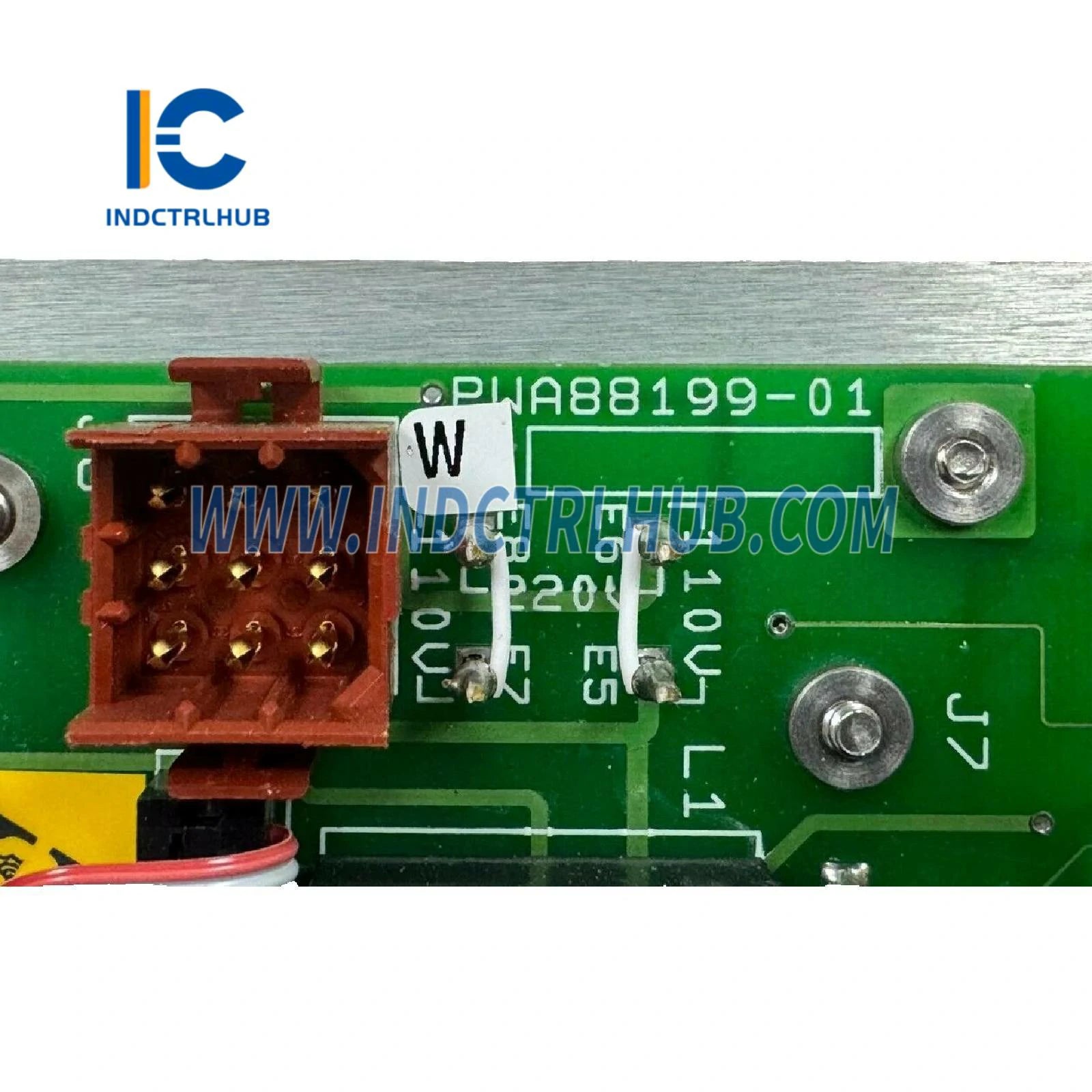

PWA Assembly: PWA88199-01 printed wiring assembly
Product Type: Distribution terminal board
System Compatibility: 3300 Series monitoring systems
Primary Function: Power distribution and signal routing
Power Input: -24 VDC from 3300 power supply
Distribution Channels: Multiple output circuits
Terminal Type: Screw-clamp connections
Wire Gauge: 12-24 AWG (solid or stranded)
Current Rating: Per channel specification
Isolation: Channel-to-channel electrical isolation
Fusing: Individual circuit protection (if applicable)
Mounting: DIN rail or panel mount
Operating Temperature: -30°C to +65°C
Protection Rating: IP20 standard
Compliance: UL, CE, RoHS

🎯 Power Distribution Architecture

Large-scale machinery monitoring installations require systematic power distribution where a central power supply feeds multiple monitoring modules through organized distribution networks. The 88286-01 terminal board serves as this distribution hub, accepting power from 3300 Series power supplies and routing it to proximity monitors, accelerometer interfaces, and other monitoring modules through clearly labeled terminal connections.

The terminal board approach eliminates point-to-point wiring between power supplies and individual monitors, instead using a centralized distribution architecture that simplifies installation, reduces wiring errors, and enables rapid troubleshooting. Technicians can verify power availability at the distribution board without accessing individual monitor connections, accelerating fault isolation during system commissioning or maintenance.

🏭 System Integration Applications

Multi-Monitor Power Distribution: Deploy in monitoring systems with numerous proximity monitors, accelerometer channels, and temperature modules requiring organized power distribution. The terminal board consolidates power connections in a single, accessible location where technicians can verify voltage levels, check circuit continuity, and isolate power to specific monitoring channels without disturbing other system components.

Rack-Mounted Monitoring Systems: Install in 3300 Series monitoring racks as the central power distribution point for all rack-mounted modules. The terminal board mounts alongside monitors and power supplies, providing short, organized power connections that minimize voltage drop and reduce electromagnetic interference from long power cable runs.

Distributed Monitoring Architectures: Use in installations where monitoring equipment is distributed across multiple locations—turbine pedestals, compressor stations, pump houses—with local terminal boards providing power distribution at each location. This architecture reduces cable costs and simplifies troubleshooting by localizing power distribution near monitored equipment.

Retrofit and Expansion Projects: Add to existing 3300 Series installations when expanding monitoring capacity beyond original power supply output capability. The terminal board enables systematic power distribution for new monitoring channels without replacing existing power supplies or reconfiguring established wiring.

⚙️ Distribution Board Features

✓ Organized Power Distribution: Labeled terminals for systematic wiring
✓ PWA88199-01 Assembly: Proven printed wiring design
✓ Electrical Isolation: Channel-to-channel protection
✓ Circuit Protection: Individual fusing or current limiting
✓ Test Points: Accessible voltage measurement locations
✓ Modular Design: Expandable for growing systems

💼 Installation and Wiring Benefits

The terminal board significantly reduces installation labor compared to direct wiring methods. Instead of running individual power cables from the power supply to each monitor, installers make short connections from the power supply to the terminal board, then distribute power to monitors via organized terminal connections. This approach reduces cable costs, simplifies cable routing through congested panels, and creates professional installations that are easier to document and maintain.

The labeled terminal layout enables clear wiring documentation where each terminal is assigned to a specific monitor or monitoring channel. This documentation is essential for commissioning verification, troubleshooting, and future system modifications. Technicians can quickly identify which terminal supplies power to which monitor without tracing cables through complex wiring bundles.

🔧 Installation Best Practices

Mount the terminal board in locations accessible for maintenance but protected from mechanical damage and environmental exposure. Ensure adequate clearance for door opening, cable routing, and technician access to terminals. Use appropriate wire management—cable ties, wire ducts, terminal markers—to maintain organized installations that are easy to troubleshoot.

Verify power supply voltage and polarity before connecting to the terminal board. Incorrect voltage or reversed polarity can damage the PWA88199-01 assembly and connected monitoring equipment. Use a multimeter to confirm -24 VDC at the power supply output before making terminal board connections.

🔌 Wiring Configuration Guidelines

Maintain proper wire sizing for power distribution circuits. Undersized wires cause excessive voltage drop, reducing available voltage at monitors and potentially causing measurement errors or equipment malfunctions. Calculate voltage drop based on wire gauge, cable length, and total current draw to ensure adequate voltage at all monitoring modules.

Tighten terminal screws to manufacturer-specified torque values. Under-tightened connections create high-resistance joints that generate heat and cause intermittent faults. Over-tightened connections can damage terminals or break wire strands. Use a torque screwdriver for critical connections in high-reliability applications.

📊 Maintenance and Troubleshooting

Perform periodic inspection of terminal connections, checking for loose screws, corroded terminals, or damaged wire insulation. Thermal imaging can identify high-resistance connections before they cause failures. Re-tighten terminals annually or per facility maintenance schedules to maintain reliable connections.

When troubleshooting power-related problems, verify voltage at the terminal board first. If voltage is present at the board but absent at a monitor, the problem is in the wiring between the board and monitor. If voltage is absent at the board, the problem is in the power supply or connections between the supply and board.

📦 Complete Terminal Board Package

One Bently Nevada 88286-01 distribution terminal board with PWA88199-01 printed wiring assembly, mounting hardware (DIN rail or panel mount), terminal identification labels, installation instructions, and wiring diagram showing recommended power distribution configurations for 3300 Series systems.

Product Condition: Brand new, factory-sealed with full manufacturer warranty and technical support access.
