Product Description
Product Overview

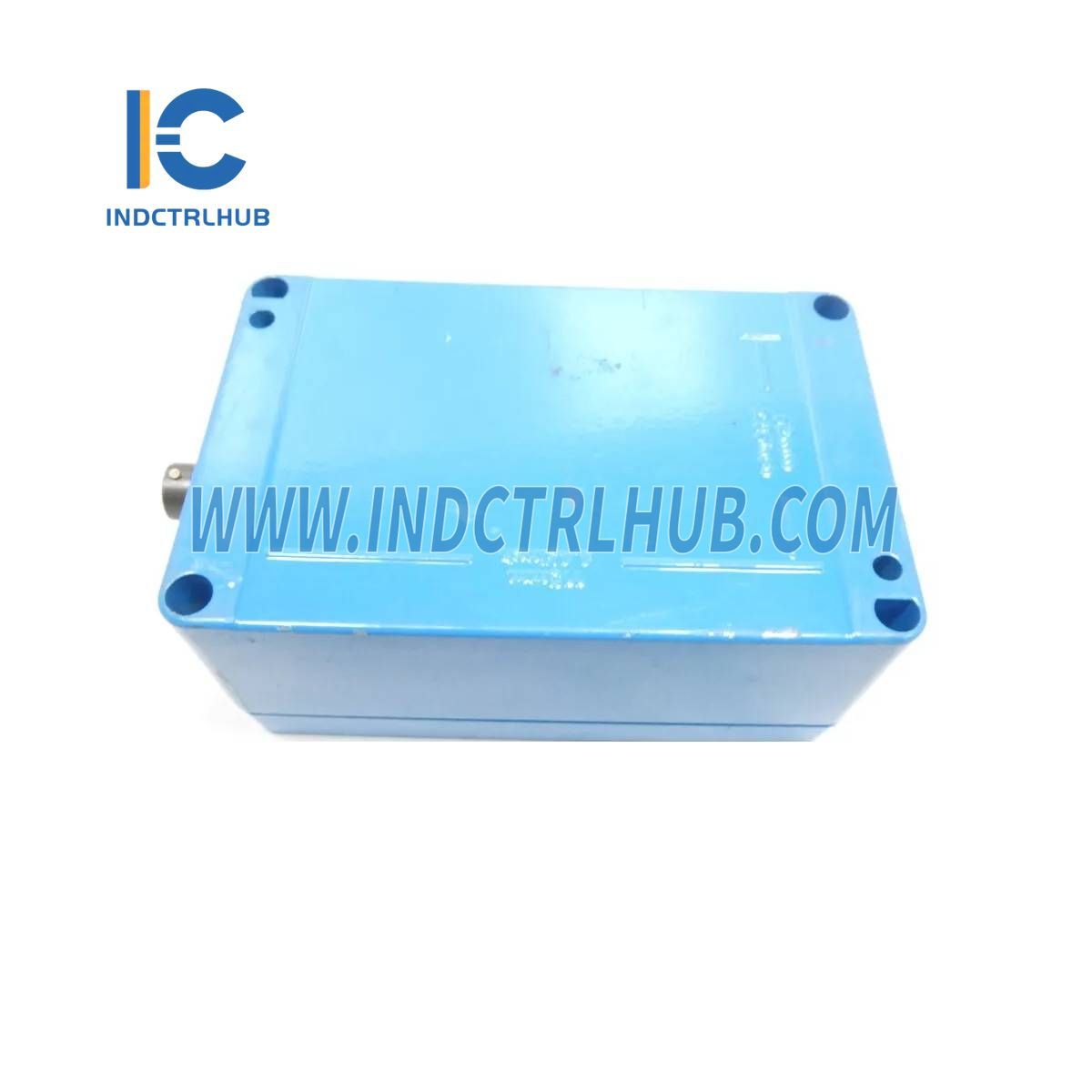

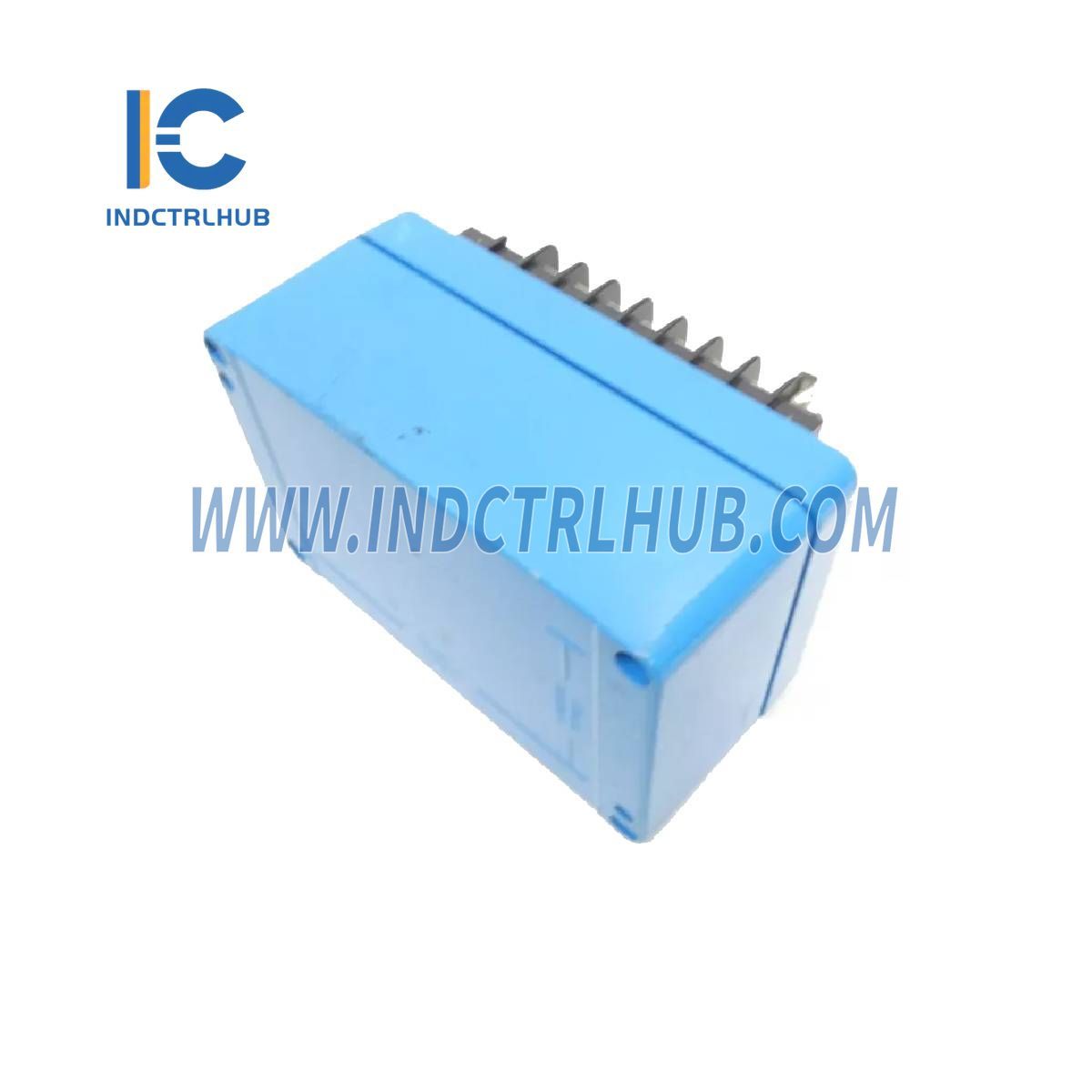

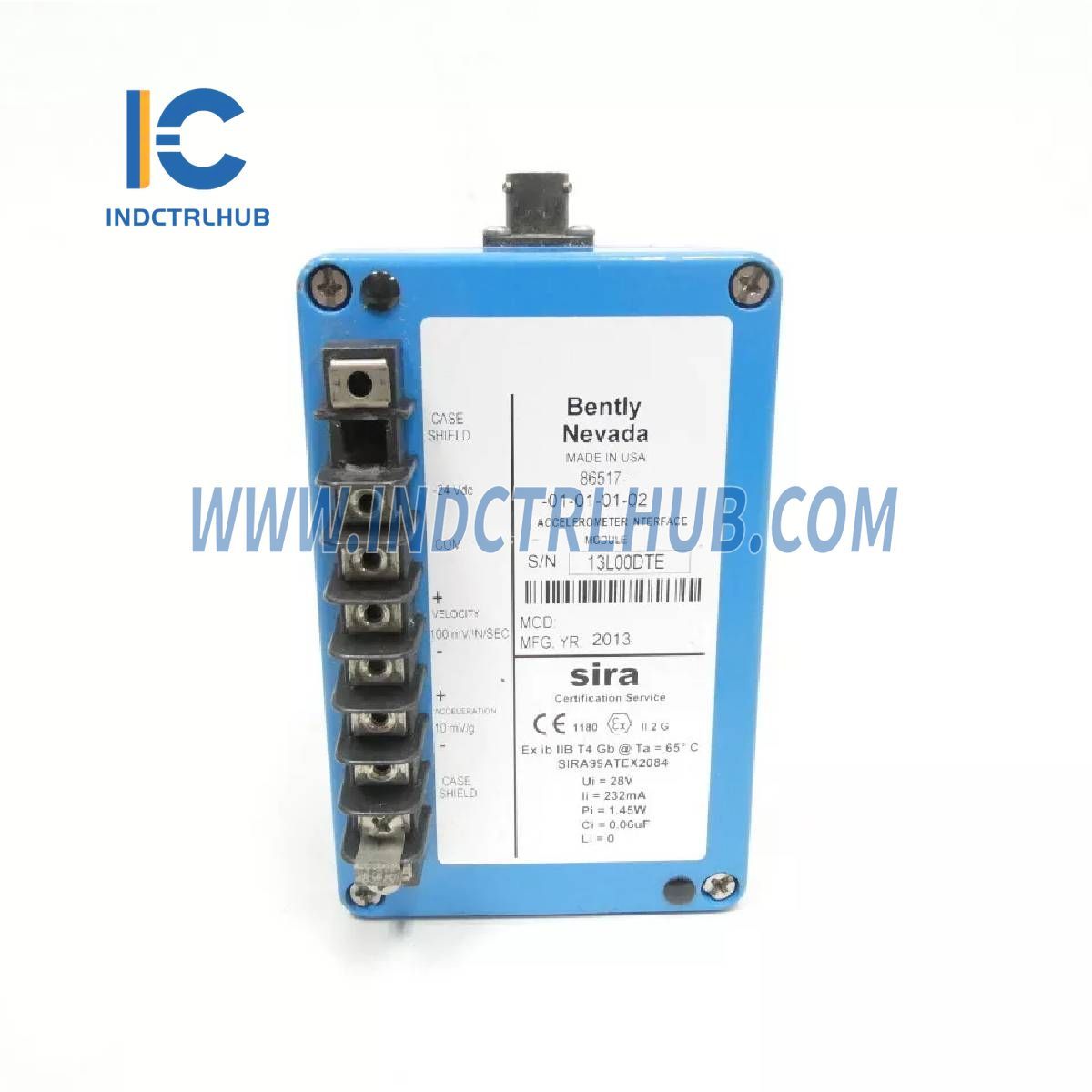

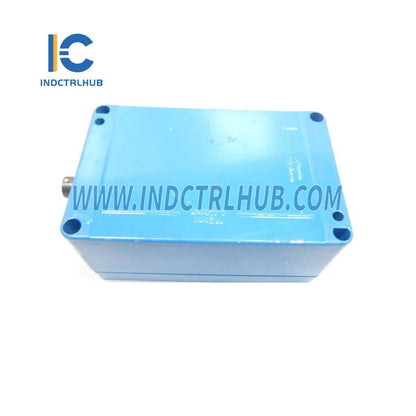

The Bently Nevada 86517-01-01-01-02 is an Accelerometer Interface Module designed to process signals from accelerometers for vibration monitoring in industrial machinery. Manufactured by Bently Nevada, a Baker Hughes brand, this module is typically used with aeroderivative gas turbines and generators (e.g., LM2500, LM6000), interfacing with the 3300 Series monitoring systems. It converts accelerometer charge inputs into voltage signals, enabling precise condition monitoring of critical equipment in industries like power generation and oil and gas.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | Compatible with 3300 Series |
| Model/Part Number | 86517-01-01-01-02 |
| Model Type | Accelerometer Interface Module |
| Input | 50 pC/g transducer charge, 10 VDC signal bias |
| Output | 10 VDC (Acceleration: 10 mV/g peak, Velocity: 100 mV/in/s peak) |
| Frequency Response | 25 Hz high pass corner, 350 Hz low pass corner |
| Power Supply | -23 VDC to -26 VDC (24 VDC nominal), 138 mA max |
| Operating Temperature | 0 °C to +70 °C (32 °F to +158 °F) |
| Weight | 560 g (1.23 lbs) |
