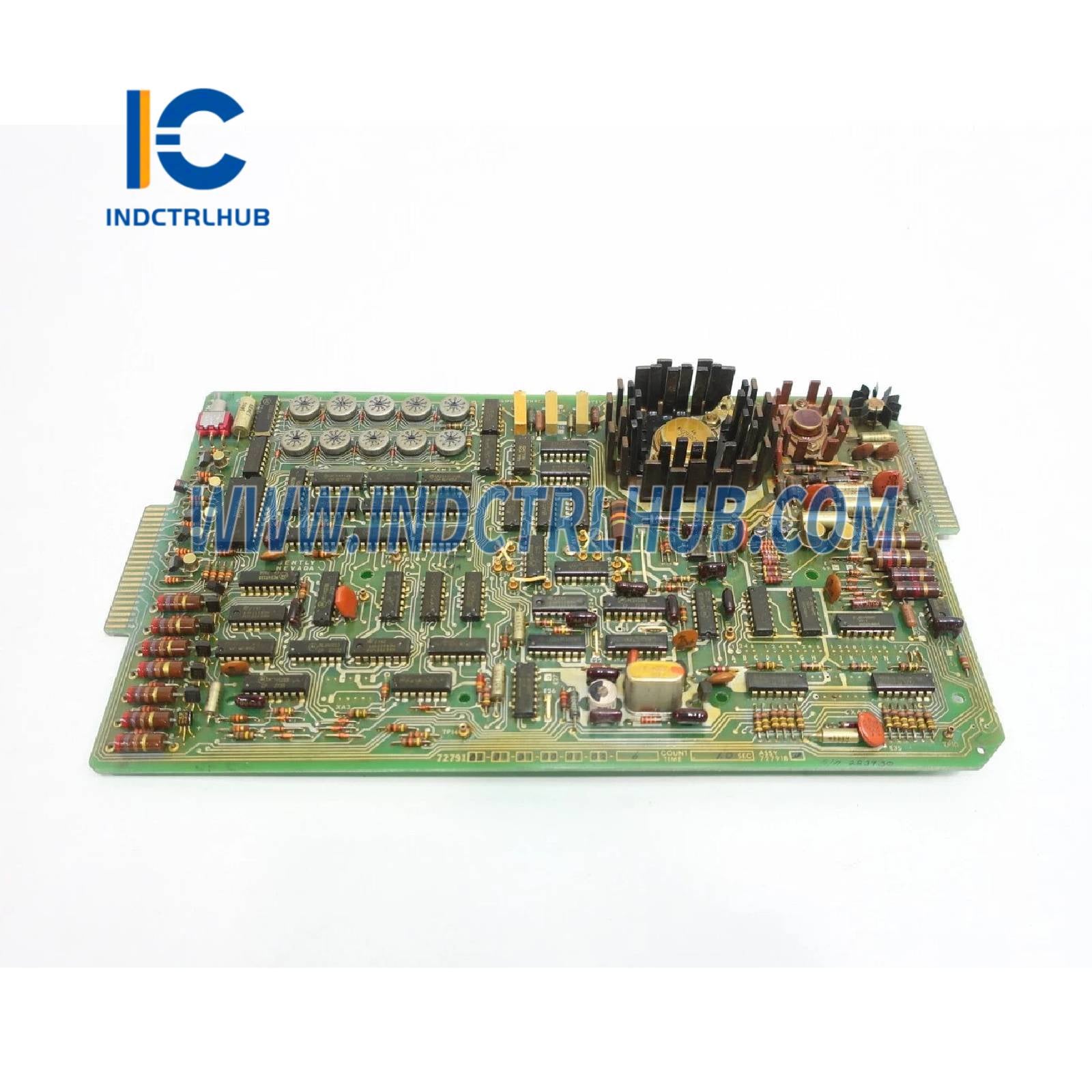

Bently Nevada 7279103-01-01-00-01-04-1 Monitor Module

Bently Nevada 7279103 Control and Monitoring Module

High-performance control and monitoring module from Bently Nevada's advanced 72000 Series platform. The 7279103-01-01-00-01-04-1 delivers comprehensive machinery surveillance with integrated signal processing, multi-parameter monitoring, and flexible communication interfaces for critical equipment protection.

📊 Module Configuration Details

Complete Part Number: 7279103-01-01-00-01-04-1
Module Type: Control and monitoring module
Product Series: 72000 Machinery Monitoring System
Configuration Code: 01-01-00-01-04-1
Input Channels: Multi-channel monitoring capability
Measurement Parameters: Vibration, position, temperature, speed
Alarm Architecture: Multi-stage with voting logic
Output Interfaces: Relay contacts, 4-20mA analog, digital communication
Communication: Modbus RTU/TCP, Ethernet TCP/IP
Display: Front-panel LCD with real-time data
Power Supply: 100-240 VAC, 50/60 Hz universal input
Operating Environment: -30°C to +65°C
Mounting: 19-inch rack or panel mount
Certifications: API 670, CE, UL, CSA

🎯 Multi-Parameter Monitoring Philosophy

Modern machinery protection requires simultaneous monitoring of multiple parameters—vibration amplitude reveals mechanical problems, shaft position indicates thrust bearing condition, temperature warns of lubrication failures, and speed confirms proper operation. The 7279103 module integrates all these measurements in a single platform, implementing coordinated protection logic that considers the complete machinery health picture.

This multi-parameter approach prevents false trips caused by single-parameter anomalies while ensuring genuine problems trigger protective action. The module's voting logic can require multiple parameters to exceed thresholds before initiating shutdown, or it can implement OR logic where any critical parameter triggers immediate protection.

🏭 Critical Equipment Protection

Steam Turbine Monitoring: Deploy on high-pressure turbines where vibration, differential expansion, thrust position, and bearing temperature must be monitored simultaneously. The 7279103 processes all parameters, implementing API 670-compliant protection logic that coordinates shutdown decisions based on the complete machinery condition rather than isolated measurements.

Gas Turbine Surveillance: Monitor radial vibration, axial position, casing temperature, and rotor speed on industrial and aero-derivative gas turbines. The module's high-speed processing captures transient events during startup and shutdown sequences, providing continuous protection through all operating modes.

Centrifugal Compressor Protection: Track vibration, thrust position, and bearing temperature on multi-stage compressors in petrochemical and gas processing facilities. The integrated monitoring approach detects developing problems—bearing wear, seal rubs, surge conditions—before they escalate to catastrophic failures.

Large Motor Monitoring: Surveil vibration and bearing temperature on motors driving critical processes. The 7279103's multi-parameter capability provides comprehensive motor health assessment, detecting rotor bar problems, bearing defects, and thermal issues that single-parameter monitors might miss.

⚙️ Advanced Processing Capabilities

✓ Real-Time Processing: High-speed signal analysis <50ms update rate
✓ Configurable Filtering: Bandpass filters isolate specific frequency ranges
✓ Voting Logic: 1oo2, 2oo3, and custom voting schemes
✓ Alarm Delays: Programmable timers prevent nuisance trips
✓ Data Recording: Historical trend storage for pattern analysis
✓ Remote Diagnostics: Network access for off-site troubleshooting

💼 Integrated System Architecture

The 7279103 consolidates multi-parameter monitoring, signal processing, alarm management, and communication in a single integrated module. This architecture eliminates the need for separate monitors for each parameter type, reducing hardware costs, panel space requirements, and installation complexity.

The universal power input (100-240 VAC) enables global deployment without voltage selection switches or transformer requirements. The module operates reliably across wide voltage and frequency variations, simplifying international installations and reducing spare parts inventory.

🔧 Configuration Flexibility

Software-based configuration enables rapid setup and modification without hardware changes. Engineers define input types, measurement ranges, alarm setpoints, relay assignments, and communication parameters through intuitive interfaces. Configuration data stores in non-volatile memory, maintaining settings through power cycles and module replacements.

Front-panel controls provide direct access to all parameters without requiring external software or laptop connections. Operators can view real-time measurements, alarm status, and diagnostic information on the LCD display, enabling rapid assessment during plant rounds and troubleshooting activities.

📊 Communication and Data Integration

The Modbus RTU/TCP and Ethernet interfaces enable integration with PLCs, DCS systems, SCADA platforms, and asset management software. The module streams real-time measurement data, alarm status, and diagnostic information to multiple destinations simultaneously, supporting both local control and enterprise-level condition monitoring.

Multiple 7279103 modules can be networked together to create facility-wide monitoring architectures. A single operator interface can access data from dozens of machines across multiple locations, enabling centralized condition monitoring programs that improve reliability while optimizing maintenance resources.

📦 Complete Module Package

One Bently Nevada 7279103-01-01-00-01-04-1 control and monitoring module, rack mounting hardware, power cord, communication cables, configuration guide, installation manual, and comprehensive technical documentation supporting API 670 compliance verification.

Product Condition: Brand new, factory-sealed with full manufacturer warranty, global technical support, and access to Bently Nevada's application engineering resources.
