Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Bently Nevada (a Baker Hughes business) |
|
Model/Part Number |

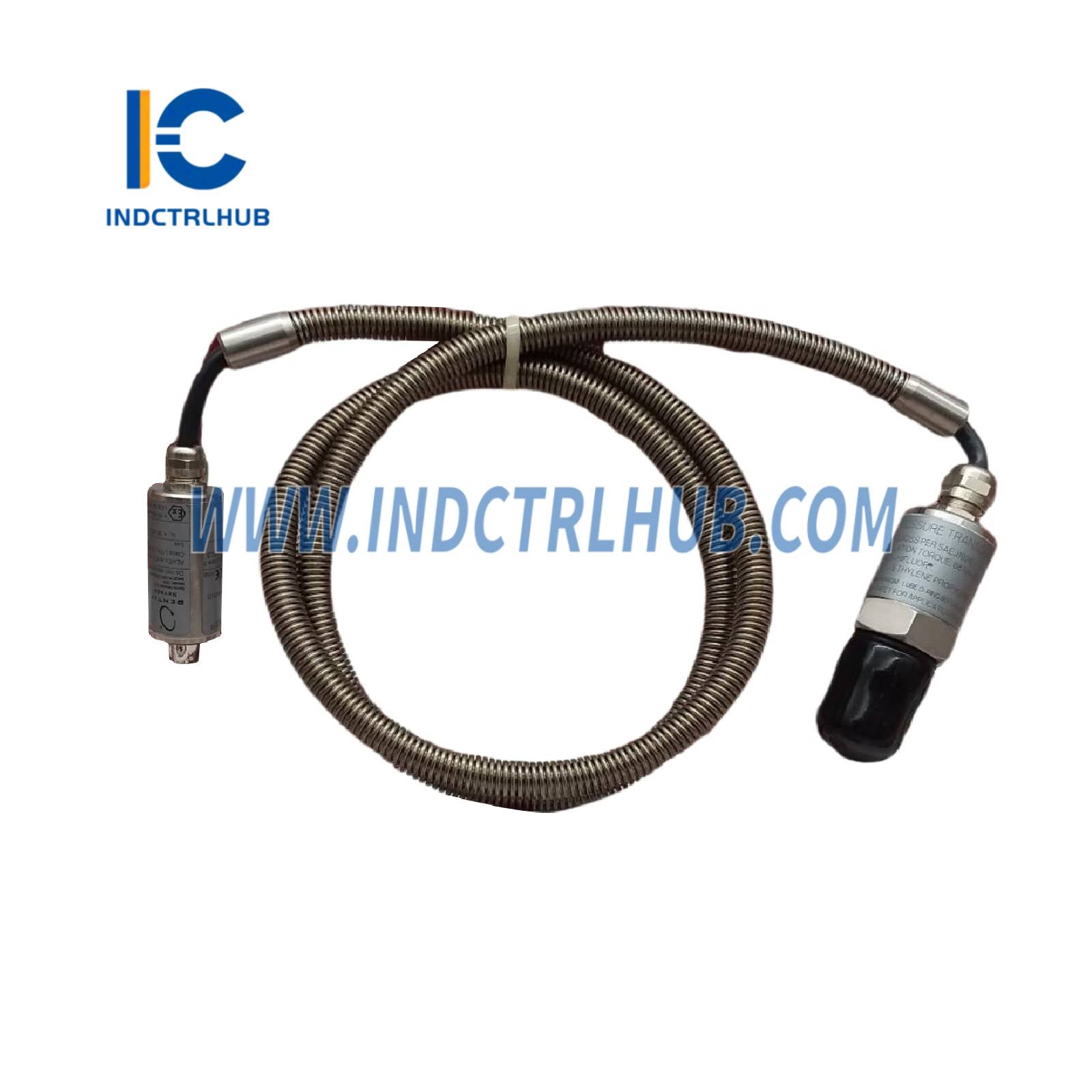

165855-16-01 |
|
Product Type |
Cylinder Pressure Transducer |
|
Application |
Designed for monitoring reciprocating compressor cylinder pressure |
|
Compatible Systems |
3500/77M Cylinder Pressure Monitor, System 1 Software |
Measurement and Electrical Specifications
|
Parameter |
Specification |
|---|---|
|
Measurement Range |
0 to 206 bar (0 to 3000 psia) |
|
Proof Pressure (1.5× FS) |
309 bar (4500 psia) |
|
Burst Pressure (3× FS) |
618 bar (9000 psia) |
|
Full Scale Output |
10 ± 0.3 VDC |
|
Zero Output |
0.5 ± 0.1 VDC |
|
Supply Voltage |
18 to 30 VDC |
|
Max Current Draw |
< 15 mA |
|
Frequency Response |
0 Hz to 5500 Hz ± 1 dB |
|
Linearity, Hysteresis, Repeatability |
≤ ±0.3% of Full Scale |
Temperature Characteristics
|
Parameter |
Specification |
|---|---|
|
Compensated Temperature Range |
-40 to +85°C (-40 to +185°F) |
|
Operating Temperature |
-40 to +85°C (electronics), -40 to +150°C (sensor head) |
|
Thermal Zero Shift (3000 psia) |
-0.5% to +1.5% of Full Scale |
|
Thermal Sensitivity Shift |
Provided graphically (consult manufacturer for chart) |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Humidity |
95% condensing |
|
Ingress Protection |
IP67 |
|
Altitude Limit |
2000 m |
|
Pollution Degree |
2 |
|
Overvoltage Category |
II |
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Sensor Head Material |
316L stainless steel, gold-plated C-276 diaphragm |
|
Mounting Thread |
7/8-14 UNF |
|
Mounting Torque |
68 N·m (50 lbf·ft) |
|
Sensor Weight |
150 g (0.33 lbm) |
|
Electronics Module Weight |
250 g (0.55 lbm) |
|
Compatible O-Rings |
Hifluor or Ethylene Propylene (fluid-specific compatibility) |
Certifications and Compliance
|
Certification Type |
Details |
|---|---|
|
EMC |
EN 61326-1, EMC Directive 2014/30/EU |
|
FCC |
Complies with Part 15 Subpart B |
|
RoHS |
Compliant with Directive 2011/65/EU |
|
ATEX / IECEx (Option 02) |
Ex ia IIC T4 Ga and Ex nA IIC T4 Gc, -40°C to +85°C |
