Product Description
Product Details
| Manufacturer | Bently Nevada |
|---|---|
| Series | 3500/46M |
| Model/Part Number | 140734-06 |
| Model Type | Hydro Monitor |
Description

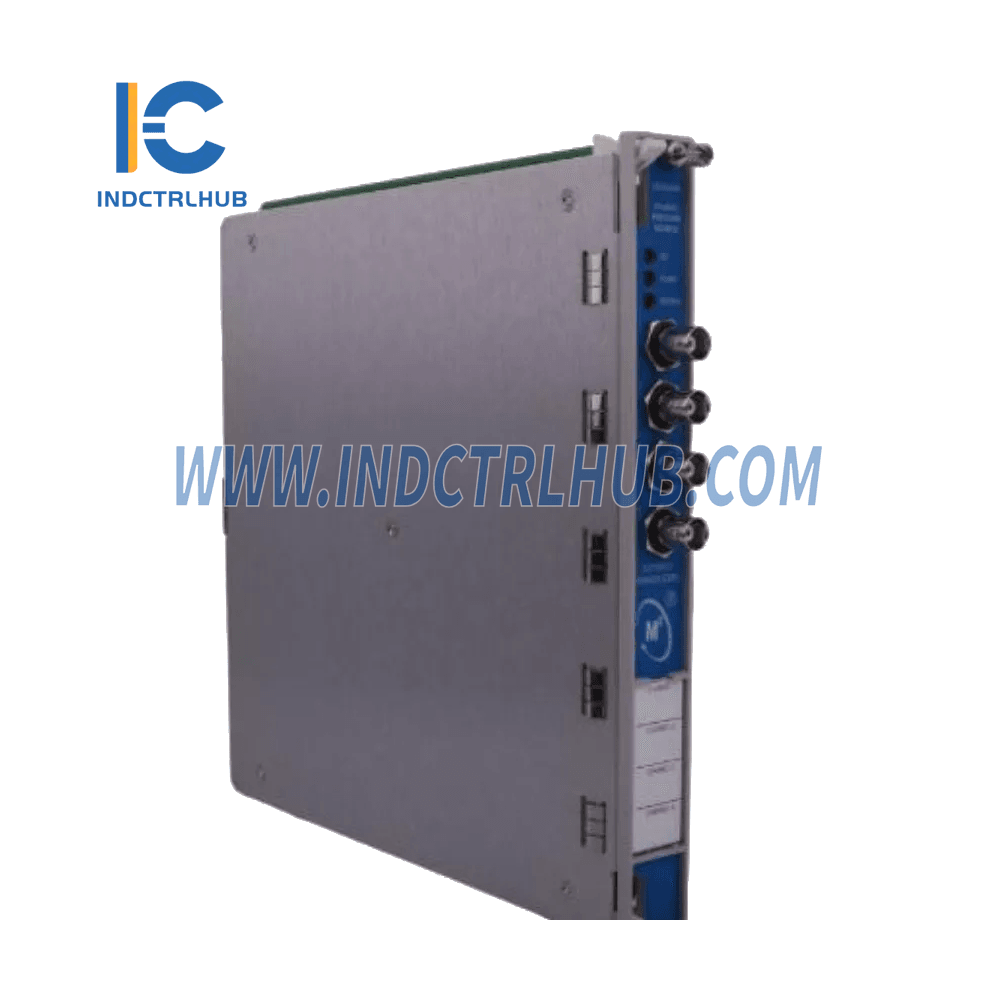

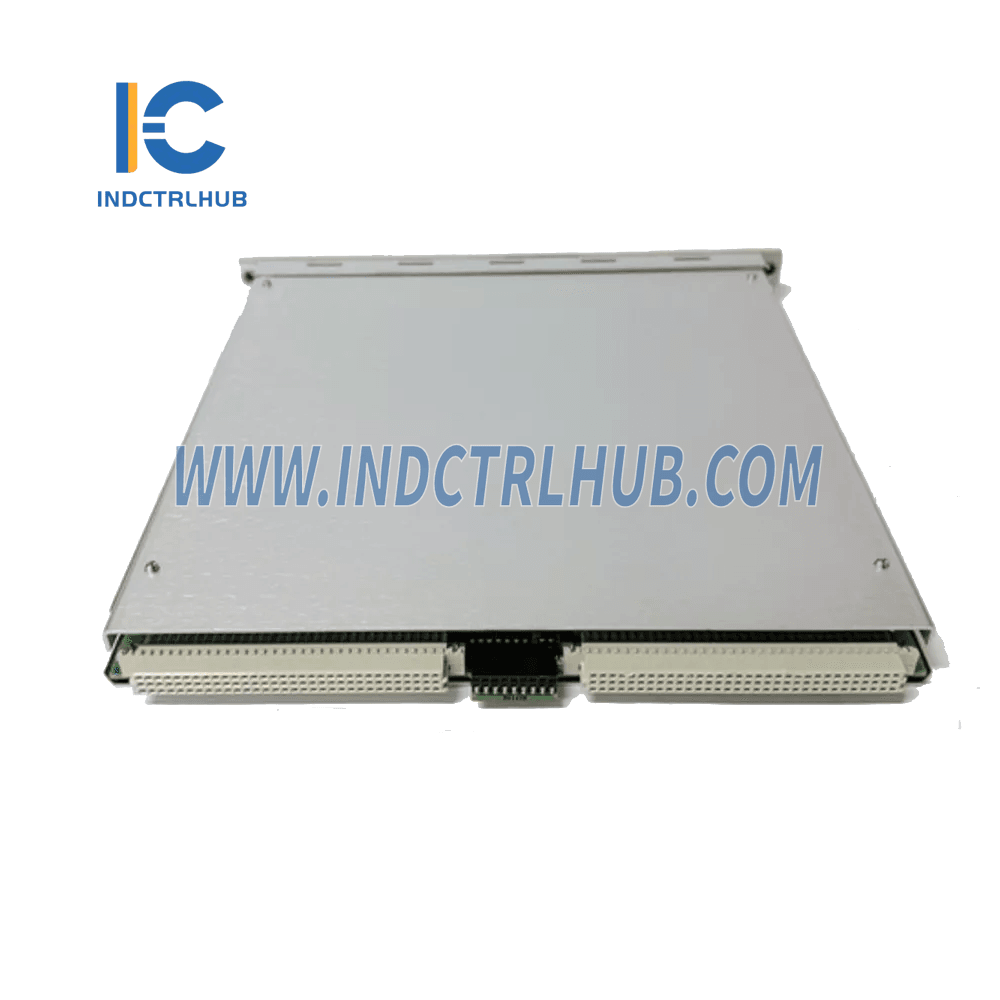

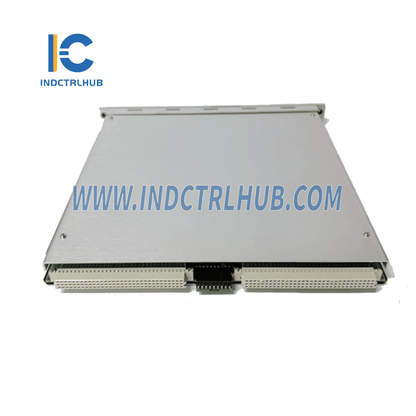

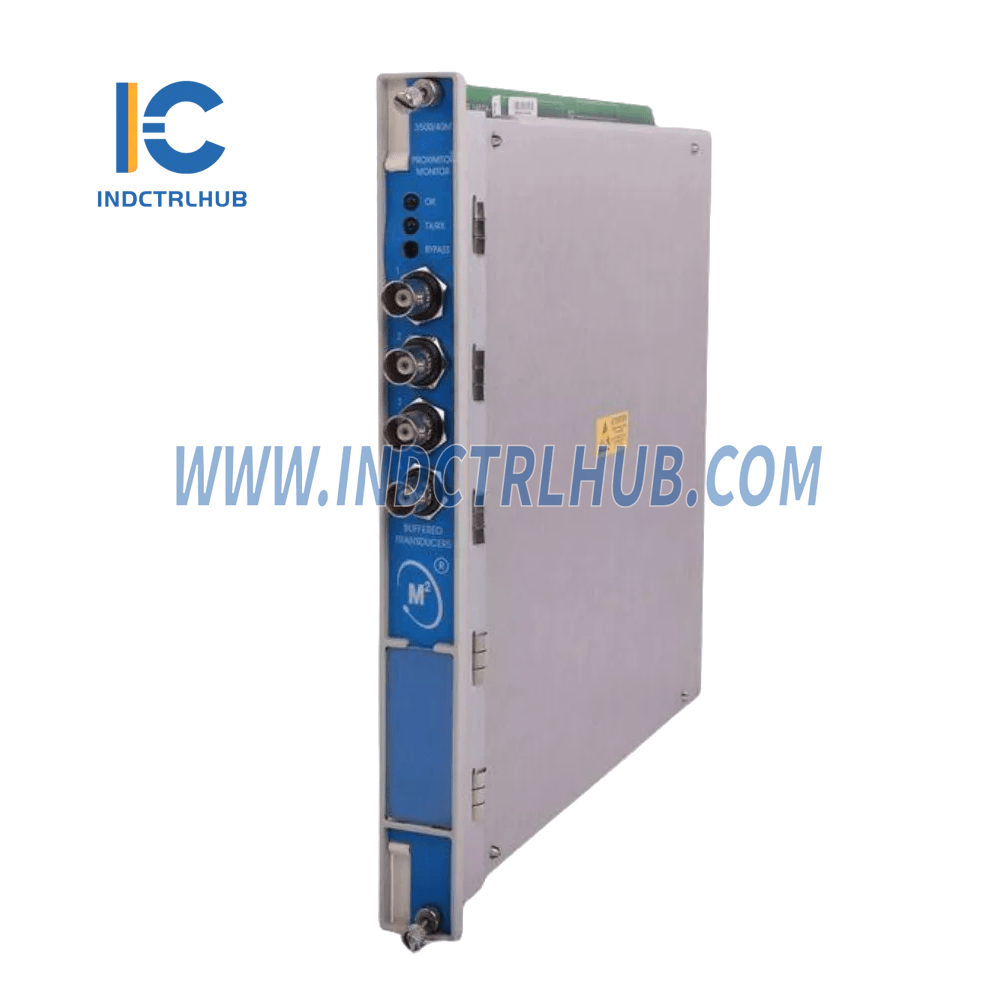

The 3500/46M Hydro Monitor is a four-channel module designed to accept inputs from:
- Proximity sensors
- Seismic sensors
- Dynamic pressure sensors
- Air gap sensors
It conditions these input signals to provide vibration, position, and both static and dynamic pressure measurements. The module compares the conditioned signals against user-programmable alarms.
A unique feature of the Hydro Radial Vibration channels is their ability to combine shaft gap movement with NX amplitude, enabling effective monitoring and alarming for shear-pin failure scenarios.
Outputs
| Front Panel LEDs | Description |
|---|---|
| OK LED | Indicates the monitor is functioning properly. |
| TX/RX LED | Indicates communication with other modules in the 3500 Rack. |
| Bypass LED | Indicates the monitor is in Bypass Mode. |
Physical Specifications
| Component | Dimensions (H x W x D) | Weight |
|---|---|---|
| Monitor Module | 241.3 mm x 24.4 mm x 241.8 mm | 0.91 kg (2.0 lb) |
| I/O Modules | 241.3 mm x 24.4 mm x 99.1 mm | 0.20 kg (0.44 lb) |
Ordering Information
| Hydro Monitor Part Number | 3500/46-AA-BB |
|---|---|
| A: I/O Module Type | |
| 01 | Prox/Velom I/O Module with Internal Terminations |
| 02 | Prox/Velom I/O Module with External Terminations |
| 03 | Multimode Prox/Velom I/O Module with Internal Terminations |
| 04 | Multimode Prox/Velom I/O Module with External Terminations |
| 05 | Multimode Positive Input I/O Module with Internal Terminations |
| 06 | Multimode Positive Input I/O Module with External Terminations |
| B: Hazardous Area Approval | |
| 00 | None |
| 01 | cNRTLus (Class 1, Division 2) |
| 02 | ATEX/IECEx/CSA (Class 1, Zone 2) |
