Product Description
Product Details
Manufacturer: Bently Nevada
Series: 3500/44M
Model Type: Aeroderivative GT Vibration Monitor
Description

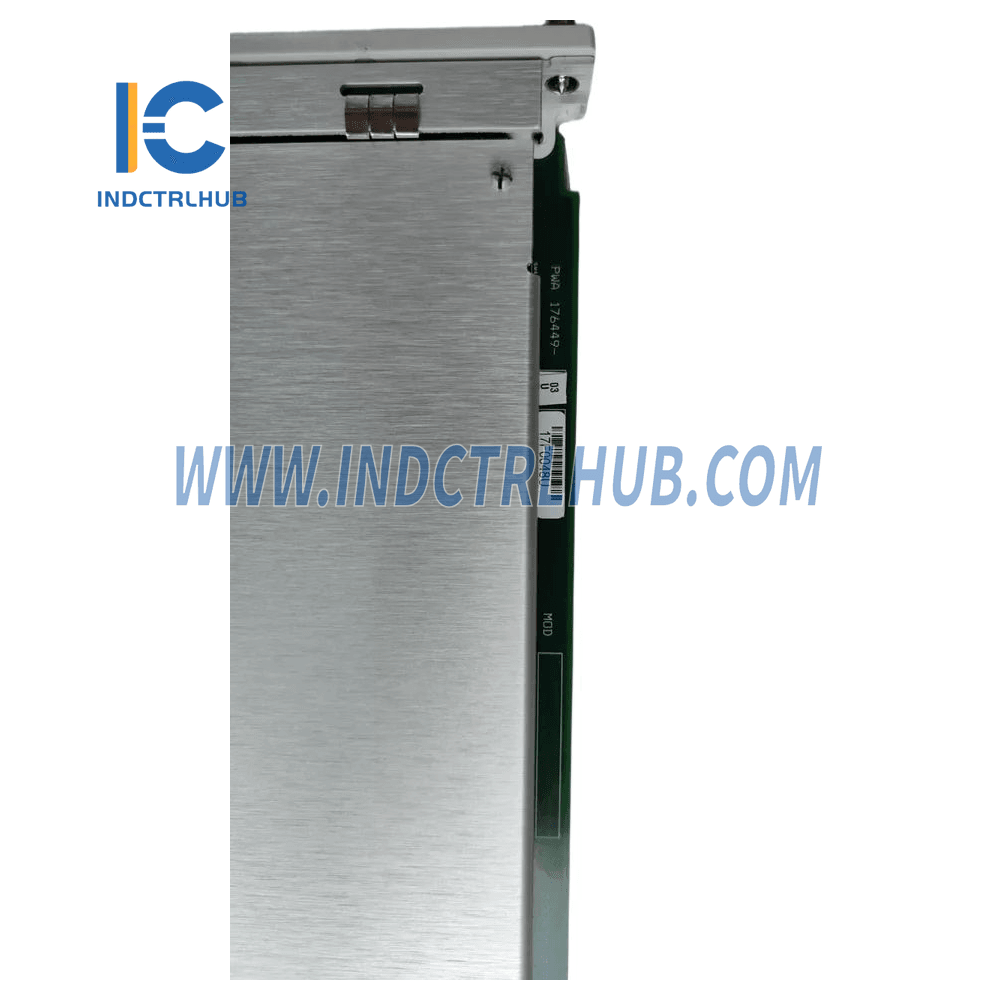

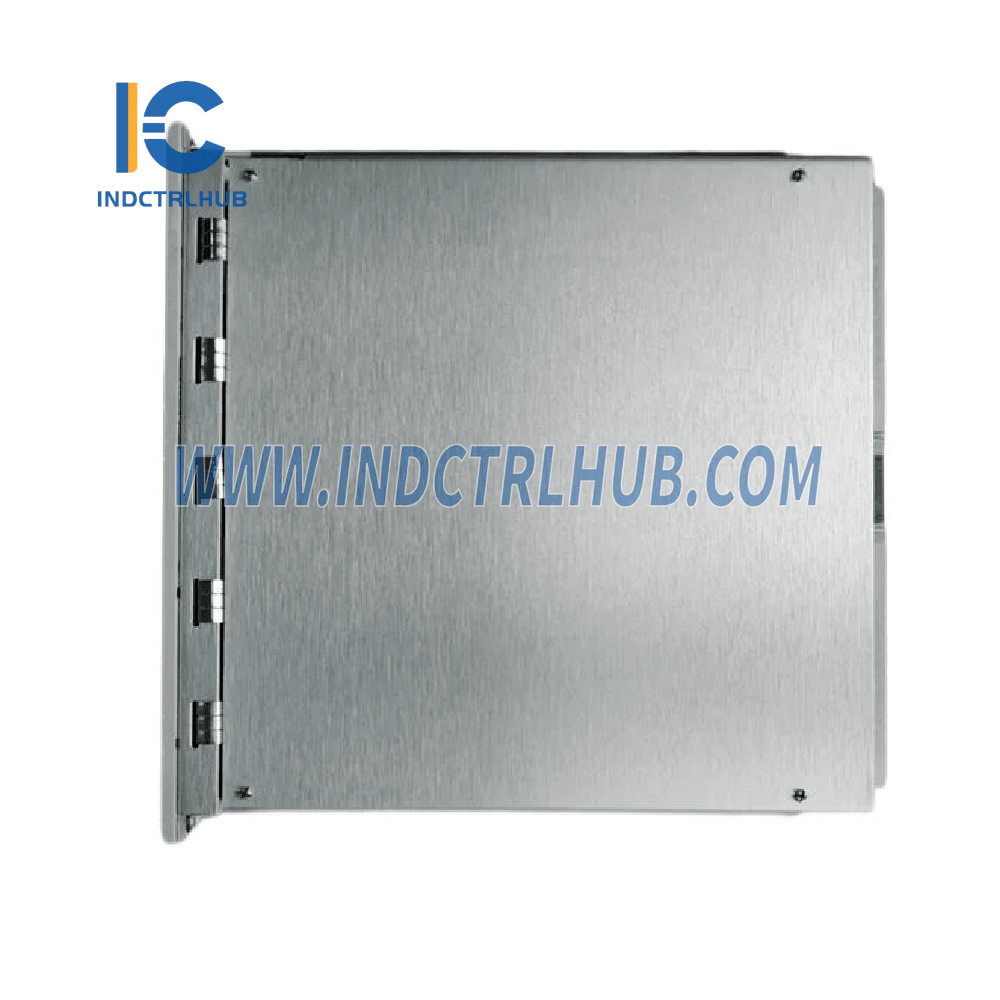

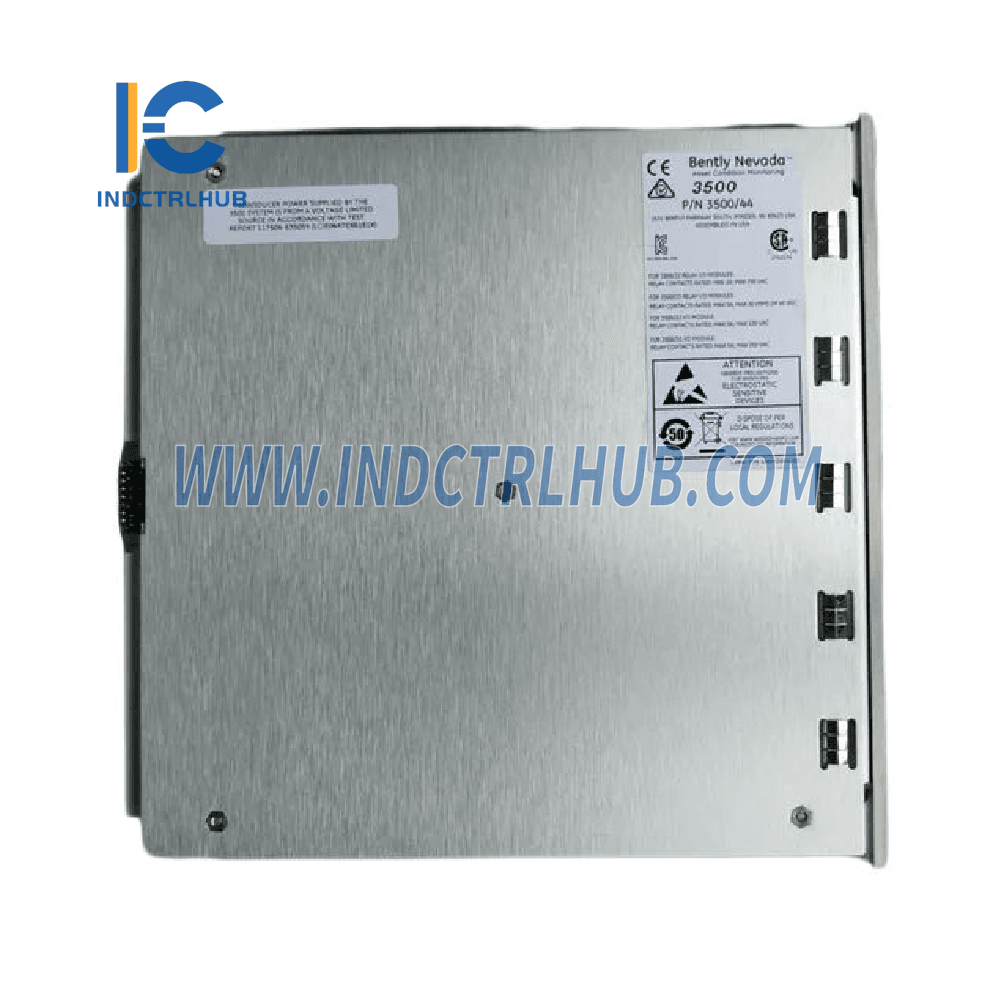

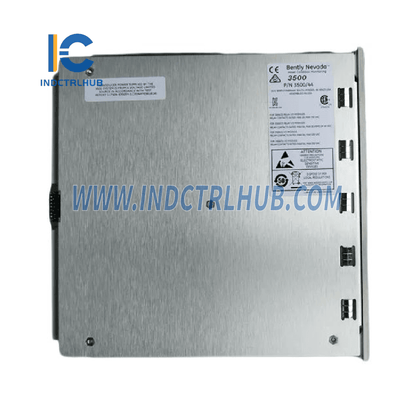

The 3500/44M Aeroderivative GT Vibration Monitor is a four-channel module specifically designed for monitoring aeroderivative gas turbines. It ensures machinery protection by continuously monitoring conditions and comparing parameters against user-configured alarm setpoints. When thresholds are exceeded, it triggers alarms to safeguard equipment. Additionally, the module provides critical operational data to support maintenance and operational efficiency.
Features
- Machinery Protection: Continuously monitors machinery and triggers alarms based on user-defined thresholds.
- Enhanced Communication: Delivers essential machine insights to operations and maintenance personnel.
- Configurable I/O Options: Offers flexible I/O configurations to adapt to specific application needs.
Technical Specifications
Outputs
-
Front Panel LEDs:
- OK LED: Illuminates when the monitor operates correctly.
- TX/RX LED: Flashes to indicate communication with other modules in the rack.
- Bypass LED: Illuminates when the monitor is in bypass mode.
Physical Specifications
| Component | Dimensions (H x W x D) | Weight |
|---|---|---|
| Main Monitor | 241.3 mm x 24.4 mm x 241.8 mm | 0.91 kg (2.0 lbs) |
| I/O Module | 241.3 mm x 24.4 mm x 99.1 mm | 0.45 kg (1.0 lb) |
Ordering Information
The model number format is 3500/44-AA-BB, where:
A: I/O Module Type
| Option | Description |
|---|---|
| 01 | Aero GT I/O Module with Internal Terminations |
| 02 | Aero GT I/O Module with External Terminations |
| 05 | Prox/Velom I/O Module with Internal Terminations |
| 06 | Prox/Velom I/O Module with External Terminations |
| 07 | Multimode Prox/Velom I/O Module with Internal Terminations |
| 08 | Multimode Prox/Velom I/O Module with External Terminations |
B: Hazardous Area Approval Option
| Option | Description |
|---|---|
| 00 | None |
| 01 | cNRTLus (Class 1, Division 2) |
| 02 | ATEX/IECEx/CSA (Class 1, Zone 2) |
