Product Description
Product Details

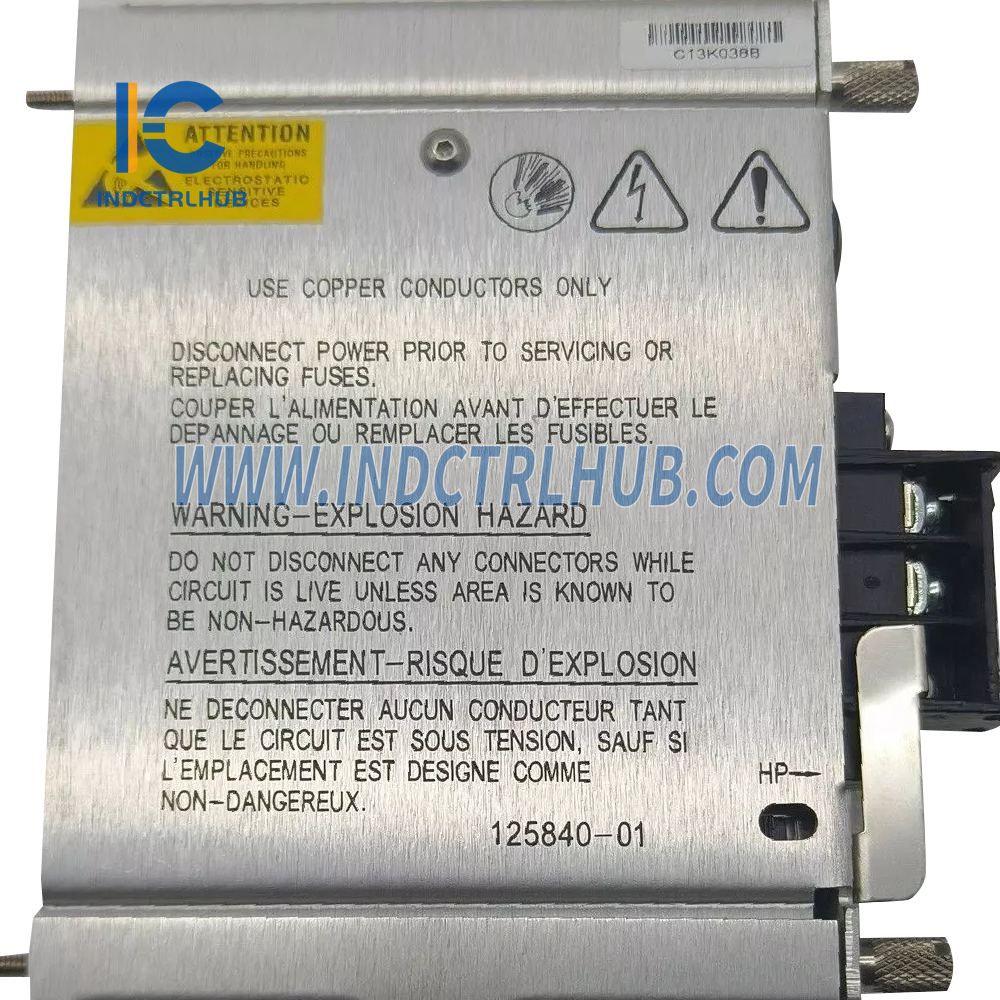

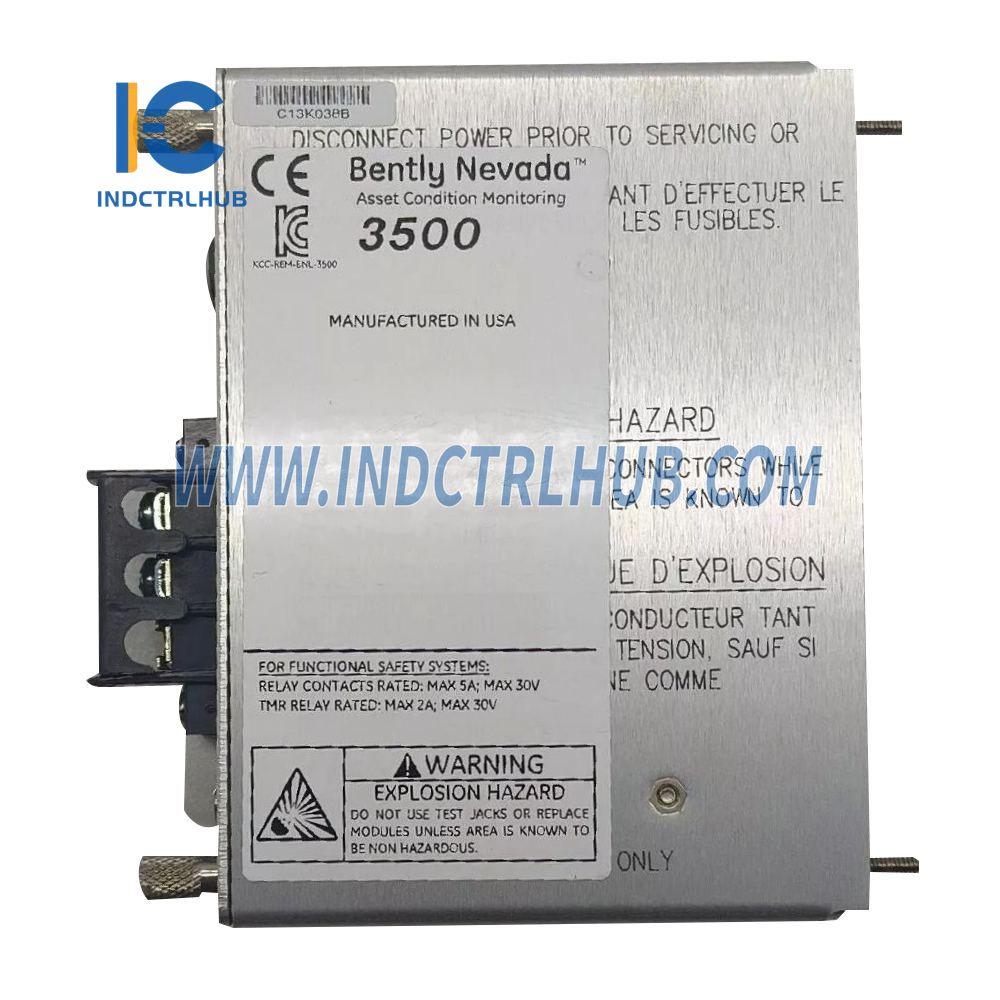

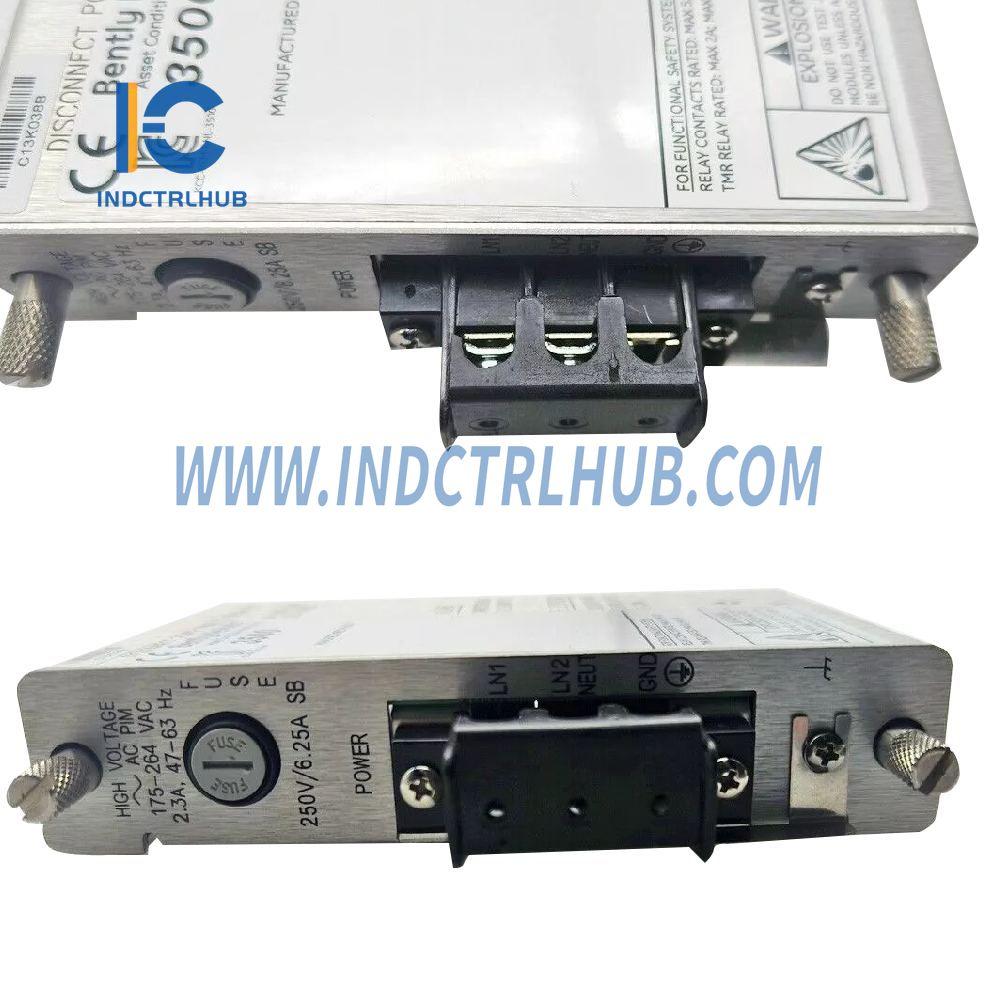

- Manufacturer: Bently Nevada
- Model/Part Number: 3500/15 125840-01
- Description: AC and DC Power Supplies I/O Module
Specifications
Voltage Options
-
Universal Voltage AC:
- This option uses the universal AC Power Supply and universal AC Power Input Module (PIM).
Input
| Parameter | Value |
|---|---|
| Voltage | 110 to 220 Vac nominal |
| Non-hazardous areas: 85 to 264 Vac RMS | |
| Hazardous areas: 85 to 250 Vac RMS, 120 to 373 Vac PK | |
| The universal AC Power Supply and Power Input Module are not compatible with legacy High Voltage AC or Low Voltage AC units. | |
| Frequency | 47 to 63 Hz |
Physical Dimensions
| Component | Dimensions (H x W x D) | Weight |
|---|---|---|
| Power Supply Module | 120.7 mm x 50.8 mm x 251.5 mm | 1.39 kg (3.06 lb) |
| 4.75 in x 2.0 in x 9.9 in | ||
| Power Input Module | 120.7 mm x 25.4 mm x 114.3 mm | 0.34 kg (0.75 lb) |
| 4.75 in x 1.0 in x 4.5 in |
Environmental Limits
| Parameter | Value |
|---|---|
| Operating Temperature | -30 °C to +65 °C (-22 °F to +150 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95%, non-condensing |
