Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |
330980-51-05 |
|
Model Type |

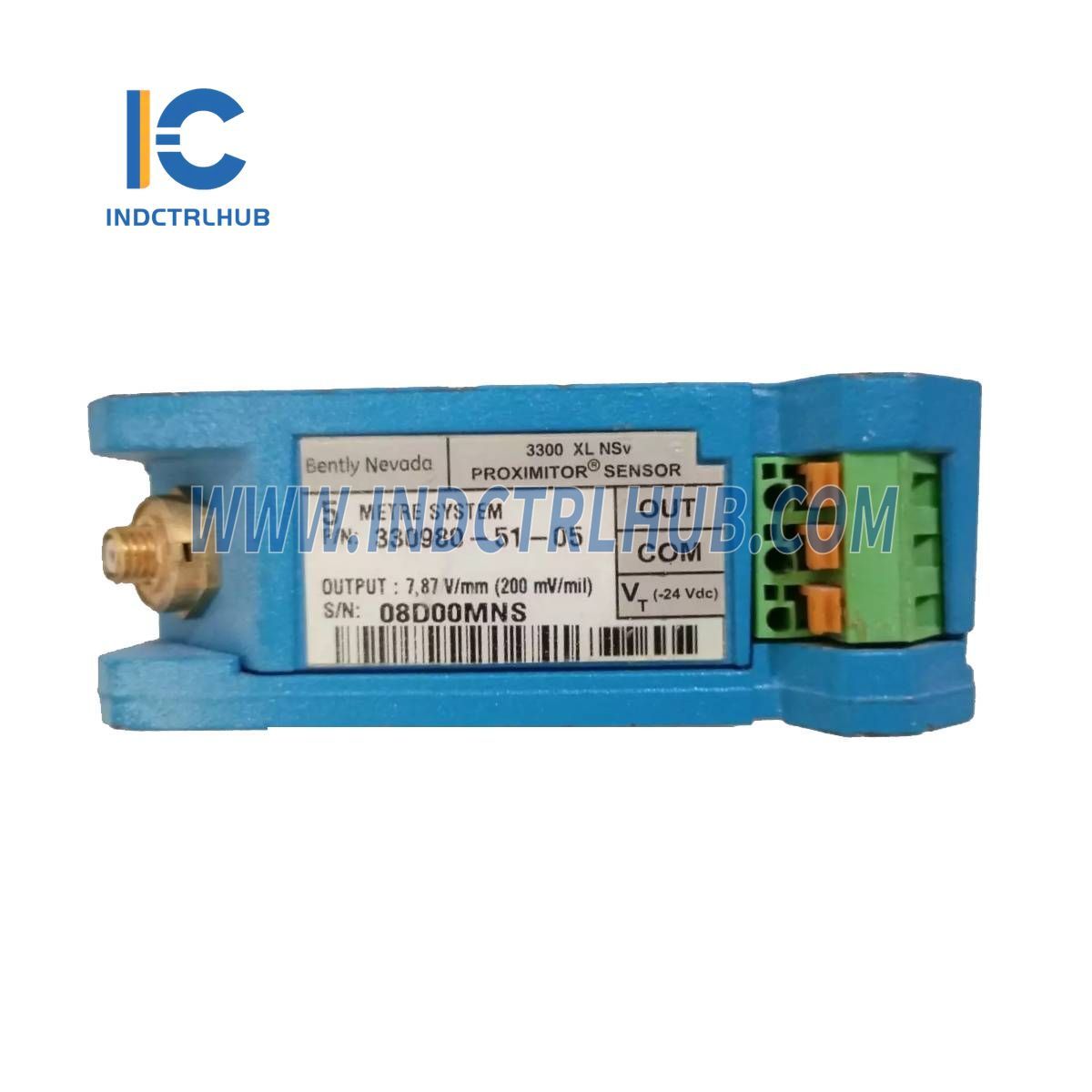

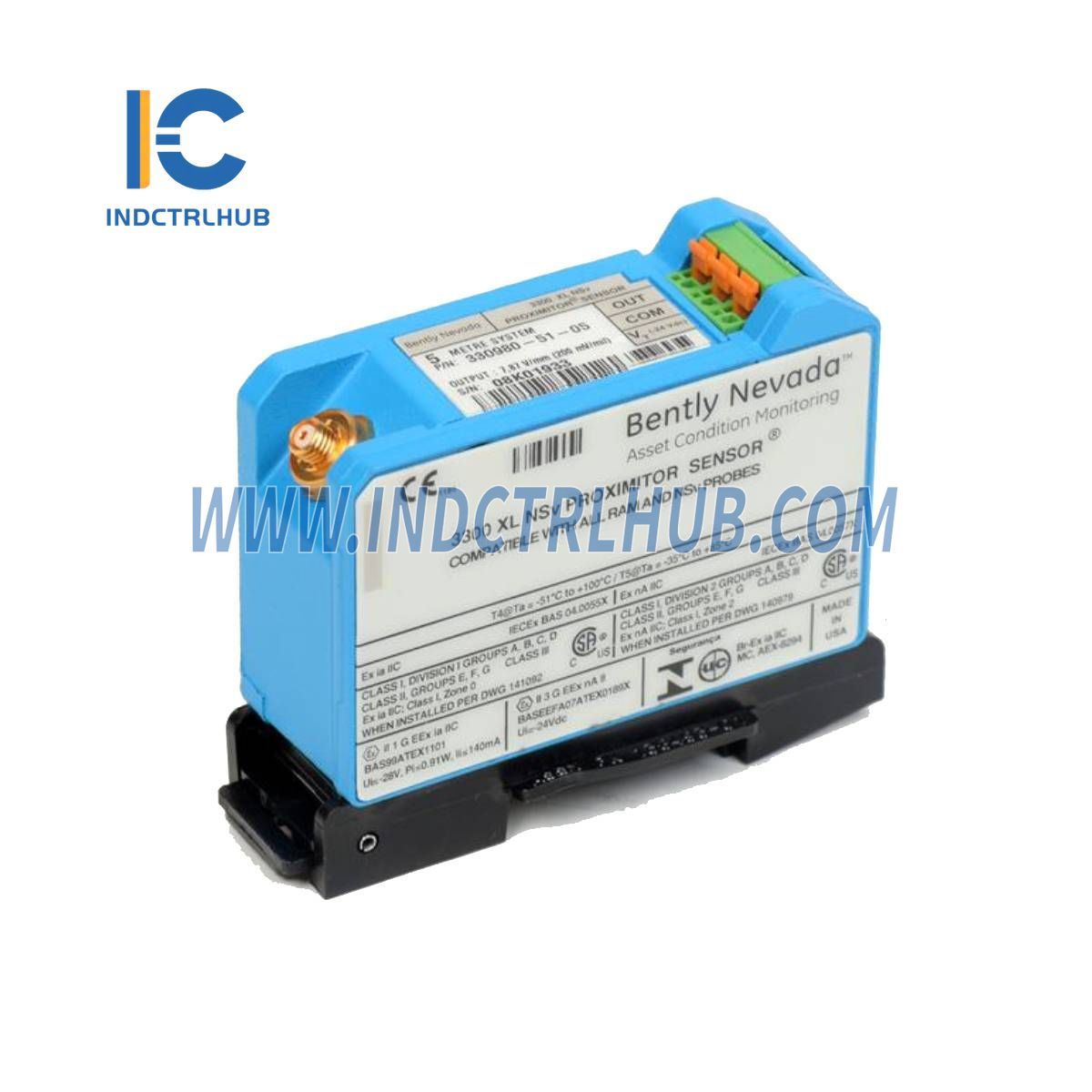

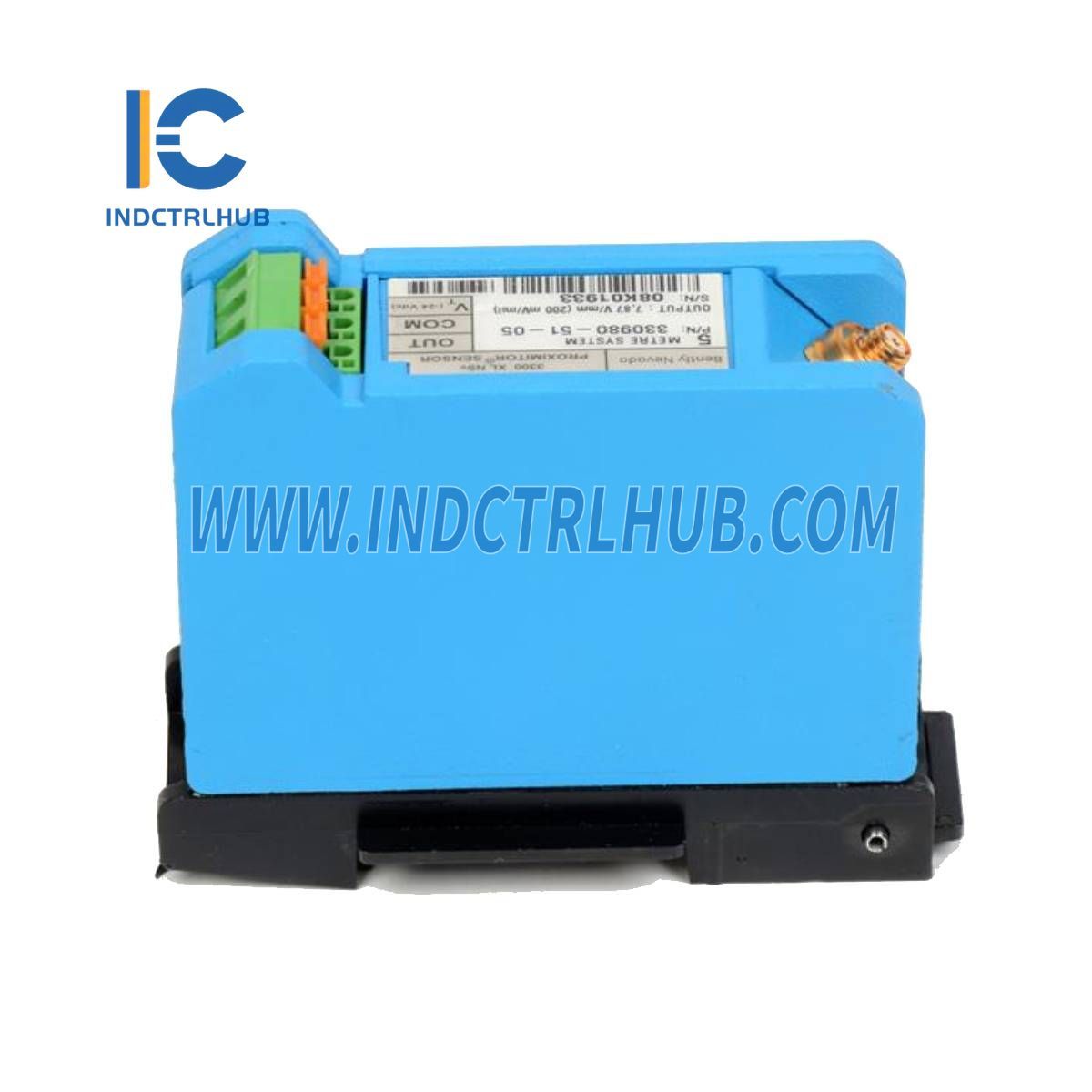

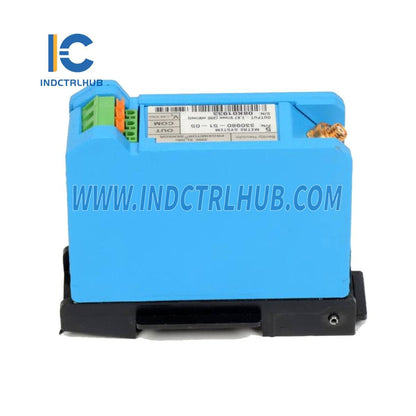

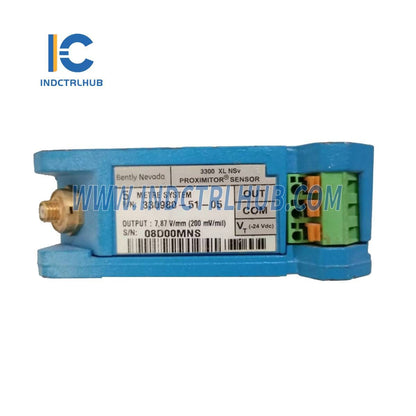

3300 XL NSv Proximitor Sensor |
Description
The 3300 XL NSv Proximitor Sensor shares similar features with the 3300 XL 8 mm Proximitor Sensor but has a thinner design, allowing for flexible installation in high-density DIN-rail setups or traditional panel mounts.
• Enhanced RFI/EMI immunity ensures compliance with European CE mark approvals without additional mounting requirements.
• SpringLoc terminal strips provide tool-free, robust field wiring connections.
• Prevents high-frequency radio signals from interfering with the transducer system.
Specifications
|
Parameter |
Value |
|---|---|
|
Proximitor Sensor Weight |
255 g (9 oz) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Relative Humidity |
100% condensing, non-submersible when connectors are protected (Tested to IEC 68-2-3 damp heat) |
Ordering Information
|
Part Number |
Total Length & Mounting Option |
|---|---|
|
330980-50 |
5.0 meters (16.4 feet) system length, panel mount |
|
330980-51 |
5.0 meters (16.4 feet) system length, DIN mount |
|
330980-52 |
5.0 meters (16.4 feet) system length, no mounting hardware |
|
330980-70 |
7.0 meters (23.0 feet) system length, panel mount |
|
330980-71 |
7.0 meters (23.0 feet) system length, DIN mount |
|
330980-72 |
7.0 meters (23.0 feet) system length, no mounting hardware |
|
Approval Option |
Description |
|---|---|
|
00 |
Not required |
|
05 |
Multiple approvals |
