Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Bently Nevada (a Baker Hughes business) |
|
Product Type |
Extension Cable for 3300 XL NSv Proximity Transducer System |
|
Model/Part Number |

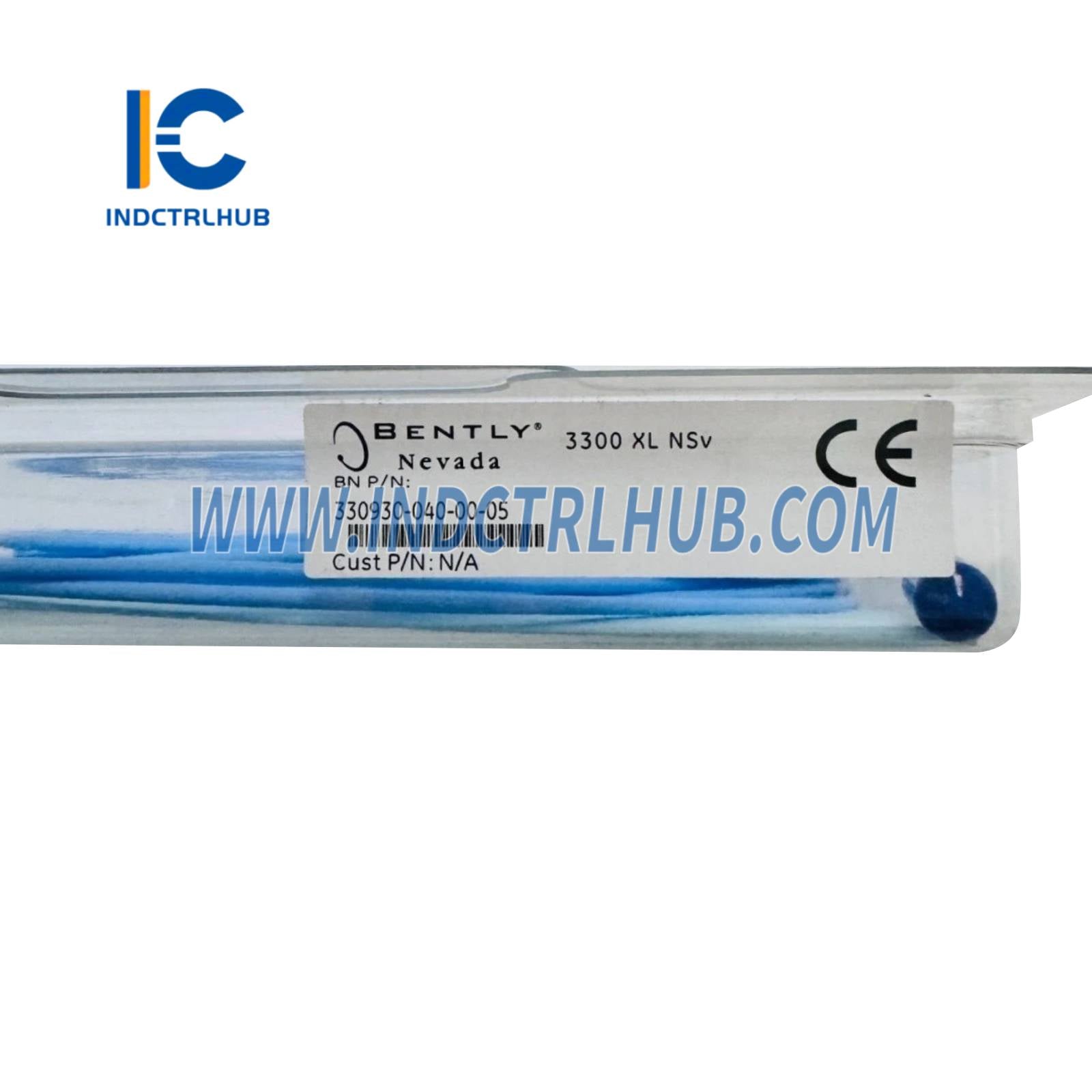

330930-040-00-05 |
|
Description |

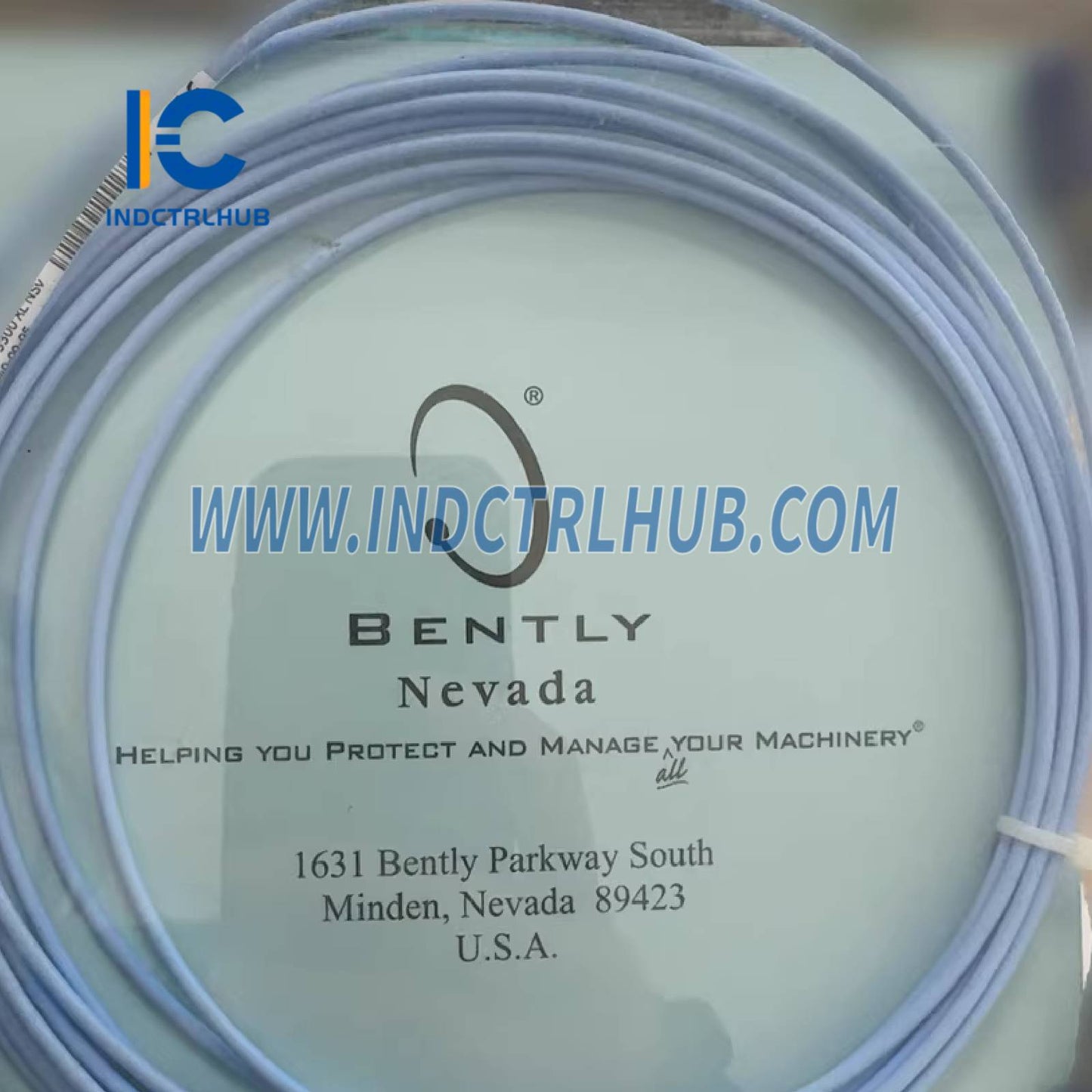

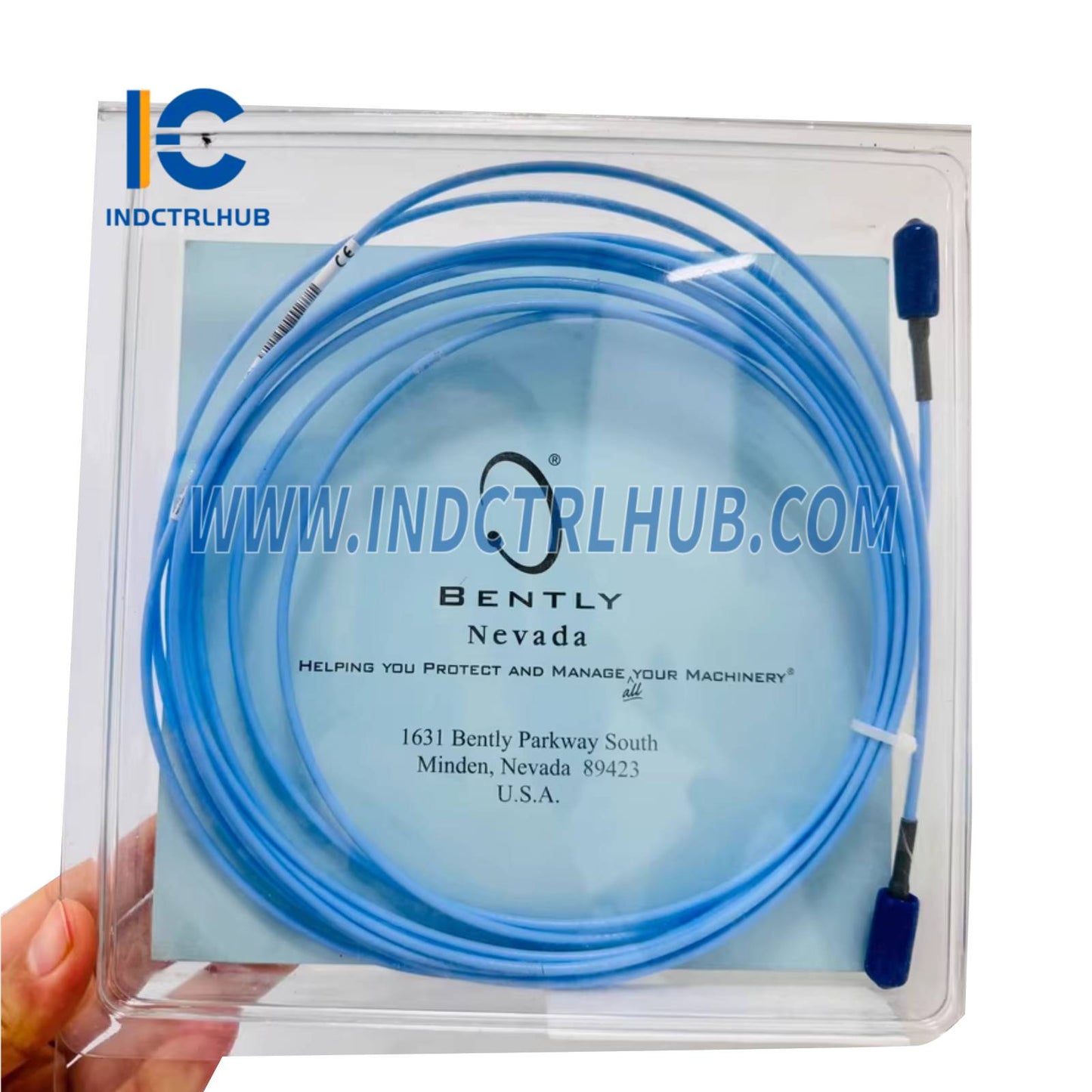

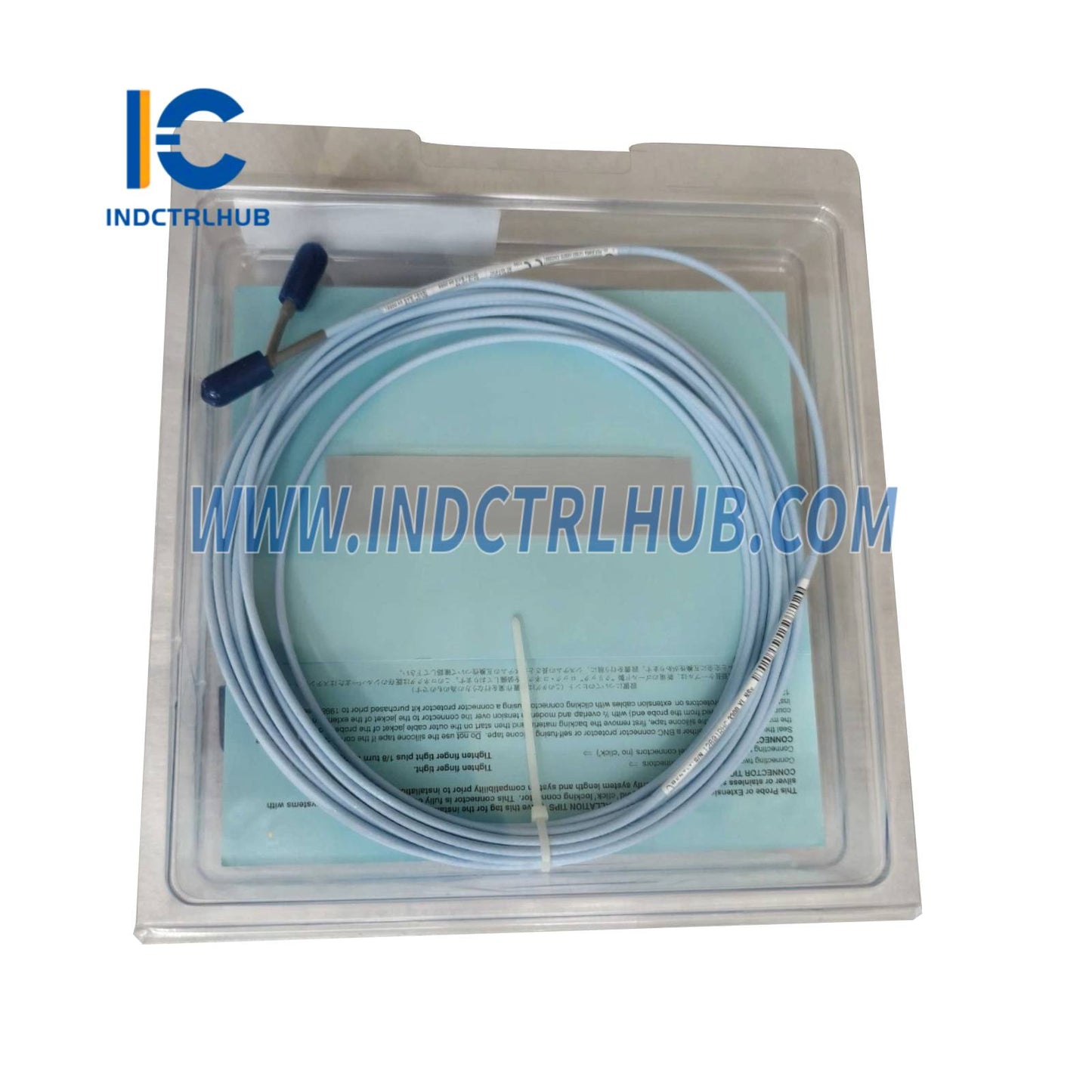

NSv Extension Cable, 4.0 meters, with stainless steel armor, no FEP jacket, with connector protector |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Cable Length |
4.0 meters (13.1 feet) |
|
Armor Type |
Stainless steel armor without FEP jacket |
|
Connector |
ClickLoc connector with connector protector |
|
Cable Type |
75 Ω coaxial, FEP insulated |
|
DC Resistance (Center Conductor) |
0.220 Ω/m (0.067 Ω/ft) |
|
DC Resistance (Shield) |
0.066 Ω/m (0.020 Ω/ft) |
|
Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
System Compatibility |
Compatible with 3300 XL NSv Proximitor Sensor and NSv Proximity Probes |
|
Maximum System Length |
Matches system lengths of 5.0 m or 7.0 m depending on configuration |
