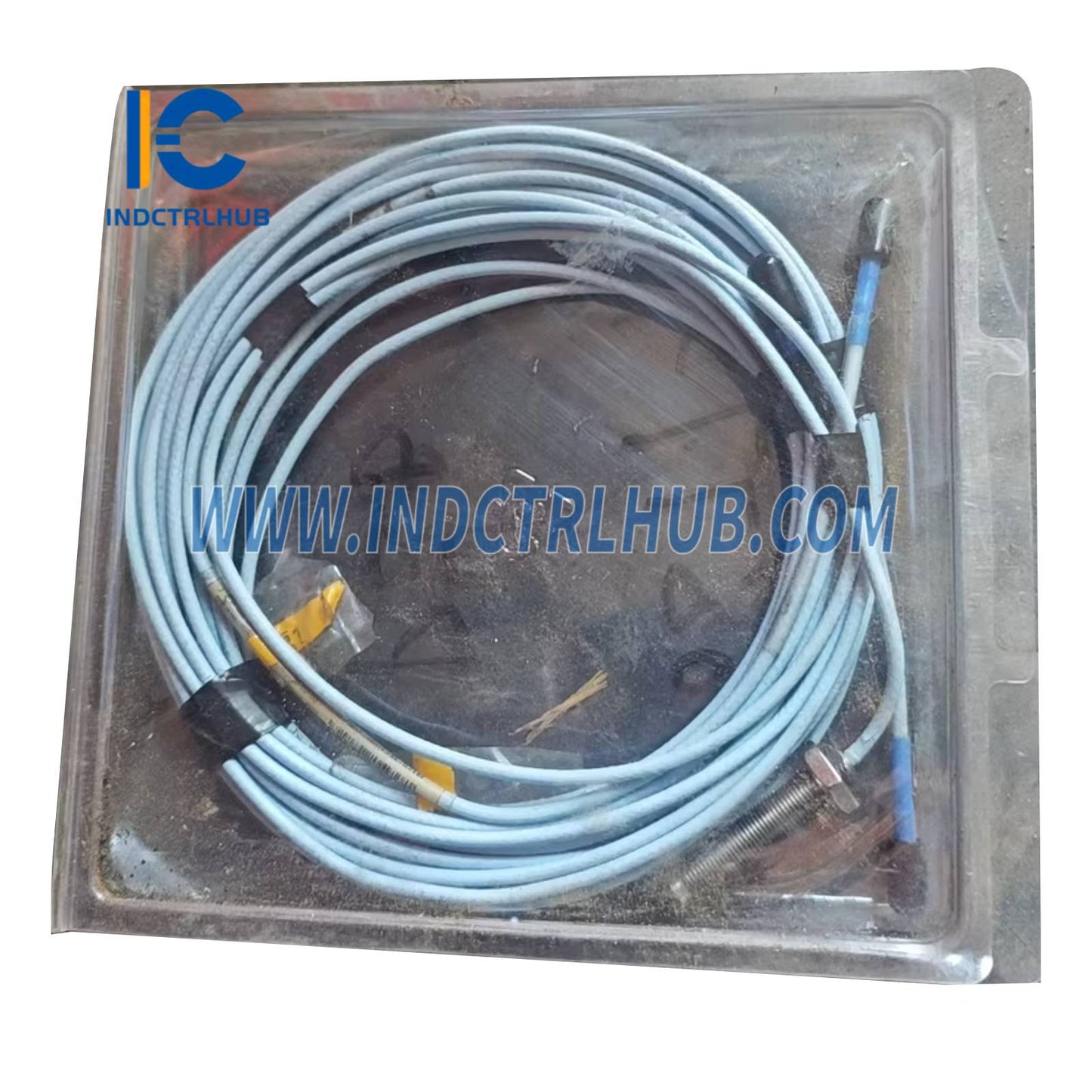

Bently Nevada 330703-00-060-10-11-00 Proximity Probe

Quantity

Bently Nevada 330703-00-060-10-11-00 3300 XL 11 mm Proximity Probe

The Bently Nevada 330703-00-060-10-11-00 is an 11 mm Proximity Probe from the 3300 XL Series, designed for non-contact vibration and displacement measurements in machinery condition monitoring. Utilizing eddy current technology, it measures the distance between the probe tip and a conductive surface, ideal for applications such as radial vibration, axial position, differential expansion, and Keyphasor signals on fluid-film bearing machines. Compliant with API 670 standards (4th Edition), it is used in critical industrial systems like turbines, compressors, motors, and pumps, particularly where a longer linear range is required compared to 8 mm probes.

Specification	Details
Model	330703-00-060-10-11-00
Series	3300 XL
Type	Proximity Probe (Eddy Current)
Probe Tip Diameter	11 mm
Measurement Range	3.6 mm (140 mils) linear range, 0.25–3.85 mm (10–150 mils) gap
Average Scale Factor	3.94 V/mm (100 mV/mil)
Unthreaded Length	0 mm (00)
Overall Case Length	60 mm (060)
Total Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc, stainless steel, with connector protector (11)
Armor Option	Standard cable (11)
Agency Approvals	None (00)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Probe Pressure	Seals differential pressure with Viton O-ring (not pressure-tested)
Operating Temperature	-52°C to +177°C (-62°F to +350°F)
Storage Temperature	-52°C to +177°C (-62°F to +350°F)
Protection Rating	IP65 (estimated, for industrial environments)
Frequency Response	0 Hz (DC) to 10 kHz
Weight	Approximately 0.1 kg (3.5 oz)
Mounting	Threaded case (M14 x 1.5 or 1/2-20 UNF options)
System Components	Compatible with 3300 XL 11 mm Proximitor Sensor (e.g., 330780) and extension cables
Interchangeability	Fully interchangeable with 3300 XL 11 mm probes, cables, and Proximitor Sensors without calibration
Applications	Radial vibration, axial position, differential expansion, Keyphasor signals

The Bently Nevada 330703-00-060-10-11-00 is an 11 mm Proximity Probe from the 3300 XL Series, designed for non-contact vibration and displacement measurements in machinery condition monitoring. Utilizing eddy current technology, it measures the distance between the probe tip and a conductive surface, ideal for applications such as radial vibration, axial position, differential expansion, and Keyphasor signals on fluid-film bearing machines. Compliant with API 670 standards (4th Edition), it is used in critical industrial systems like turbines, compressors, motors, and pumps, particularly where a longer linear range is required compared to 8 mm probes.

Specification	Details
Model	330703-00-060-10-11-00
Series	3300 XL
Type	Proximity Probe (Eddy Current)
Probe Tip Diameter	11 mm
Measurement Range	3.6 mm (140 mils) linear range, 0.25–3.85 mm (10–150 mils) gap
Average Scale Factor	3.94 V/mm (100 mV/mil)
Unthreaded Length	0 mm (00)
Overall Case Length	60 mm (060)
Total Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc, stainless steel, with connector protector (11)
Armor Option	Standard cable (11)
Agency Approvals	None (00)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Probe Pressure	Seals differential pressure with Viton O-ring (not pressure-tested)
Operating Temperature	-52°C to +177°C (-62°F to +350°F)
Storage Temperature	-52°C to +177°C (-62°F to +350°F)
Protection Rating	IP65 (estimated, for industrial environments)
Frequency Response	0 Hz (DC) to 10 kHz
Weight	Approximately 0.1 kg (3.5 oz)
Mounting	Threaded case (M14 x 1.5 or 1/2-20 UNF options)
System Components	Compatible with 3300 XL 11 mm Proximitor Sensor (e.g., 330780) and extension cables
Interchangeability	Fully interchangeable with 3300 XL 11 mm probes, cables, and Proximitor Sensors without calibration
Applications	Radial vibration, axial position, differential expansion, Keyphasor signals
