Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |
330425-01-05 |
|
Model Type |
Accelerometer (Acceleration Transducer) |
Description

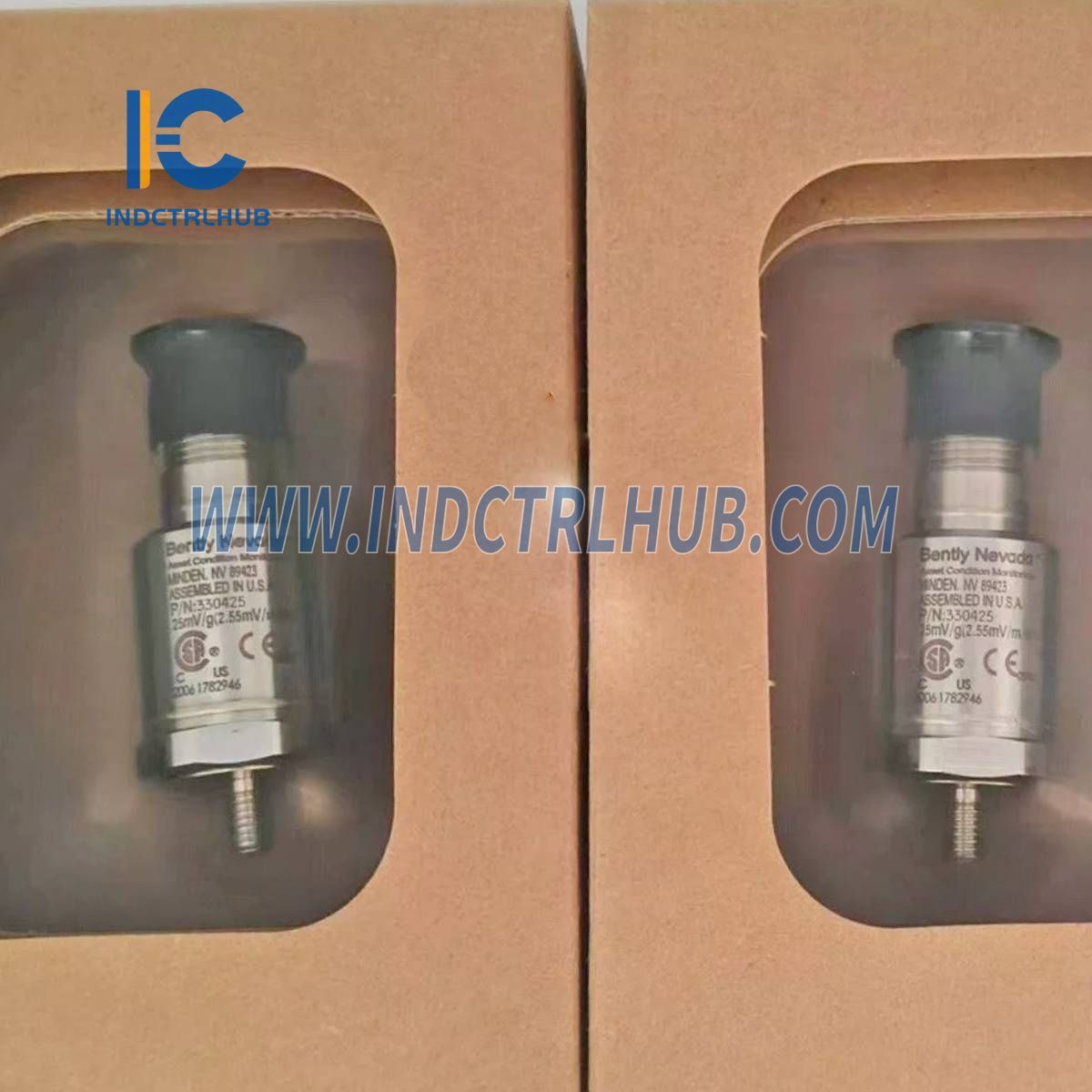

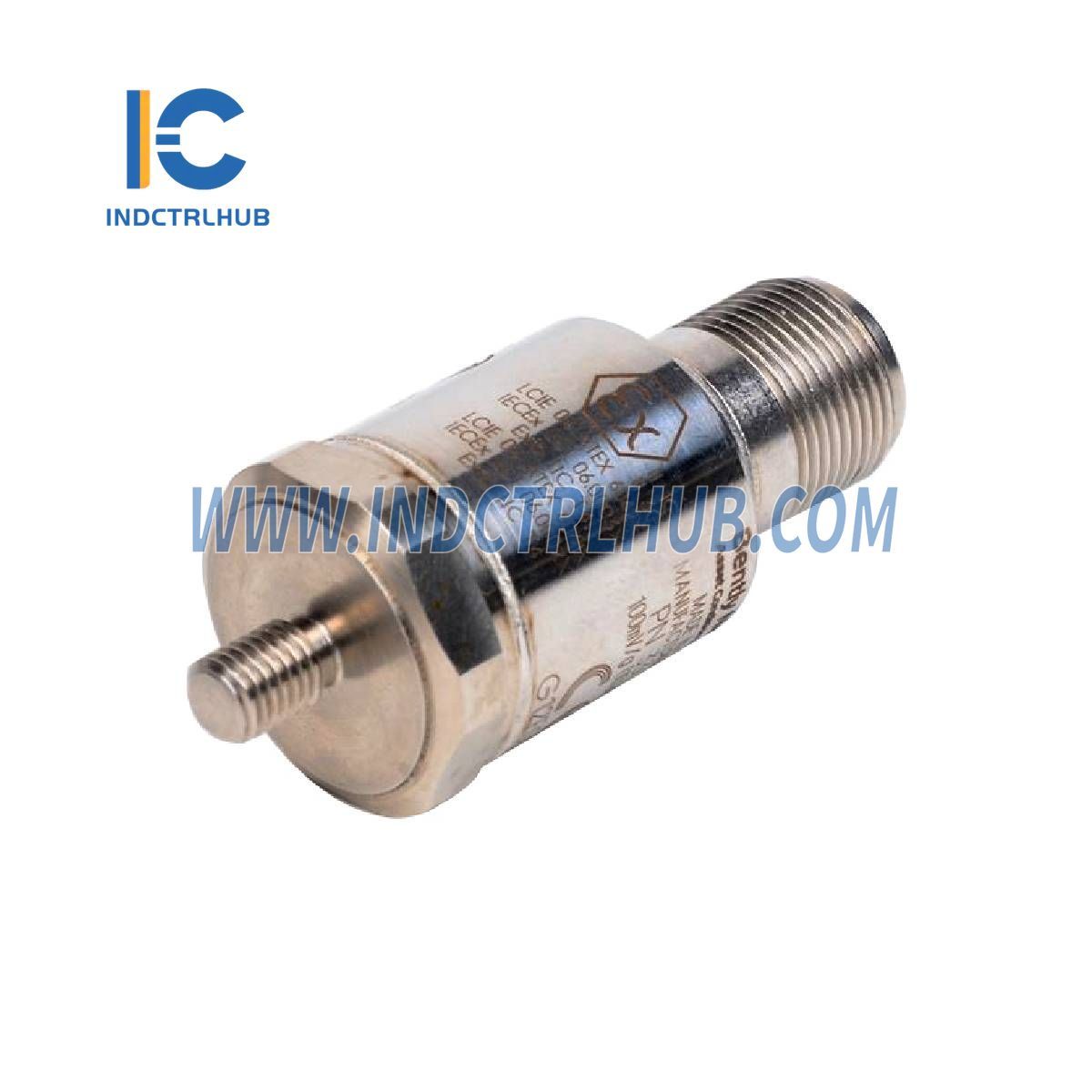

The Bently Nevada 330425 Accelerometer is a high-performance vibration and acceleration transducer designed for use in harsh industrial environments. It features a hermetically sealed case, 316L stainless steel construction, and high shock survivability, making it ideal for high-accuracy monitoring of machinery vibrations.
Specifications
Electrical Specifications
|
Parameter |
Details |
|---|---|
|
Sensitivity |
2.5 mV/m/s² (25 mV/g) ±5% |
|
Acceleration Range |
735 m/s² (75 g) peak, within 10 Hz to 15 kHz frequency span |
|
Amplitude Linearity |
±1% to 735 m/s² (75 g) peak |
Environmental Limits
|
Parameter |
Details |
|---|---|
|
Operating & Storage Temperature |
-55°C to +121°C (-67°F to +250°F) |
|
Shock Survivability |
49,050 m/s² (5000 g) peak, maximum |
|
Relative Humidity |
100% condensing, non-submerged |
|
Magnetic Field Susceptibility |
<2.21 mm/s²/gauss (225 mg/gauss) [50 gauss, 50-60Hz] |
|
IP Rating |
Equivalent to IP 68 (Dust tight and watertight) |
Physical Specifications
|
Parameter |
Details |
|---|---|
|
Weight (no cable) |
99 g (3.5 oz) |
|
Diameter |
23 mm (0.93 in) |
|
Height |
59 mm (2.3 in) |
|
Connector |
3-pin MIL-C-5015 Receptacle |
|
Mounting Surface |
32 microinch rms |
|
Mounting Torque |
4.1 N·m (3.0 ft·lb) |
|
Case Material |
316L stainless steel |
|
Mounting Angle |
Any orientation |
Ordering Information
330425 Accelerometer
|
Model Number |
Mounting Thread Option |
|---|---|
|
330425-01-05 |
¼-28 UNF integral stud |
|
330425-02-05 |
M8 X 1 integral stud |
Agency Approval Option
|
Option |
Description |
|---|---|
|
00 |
None |
|
05 |
Multiple approvals (CSA, ATEX, IECEx) |
