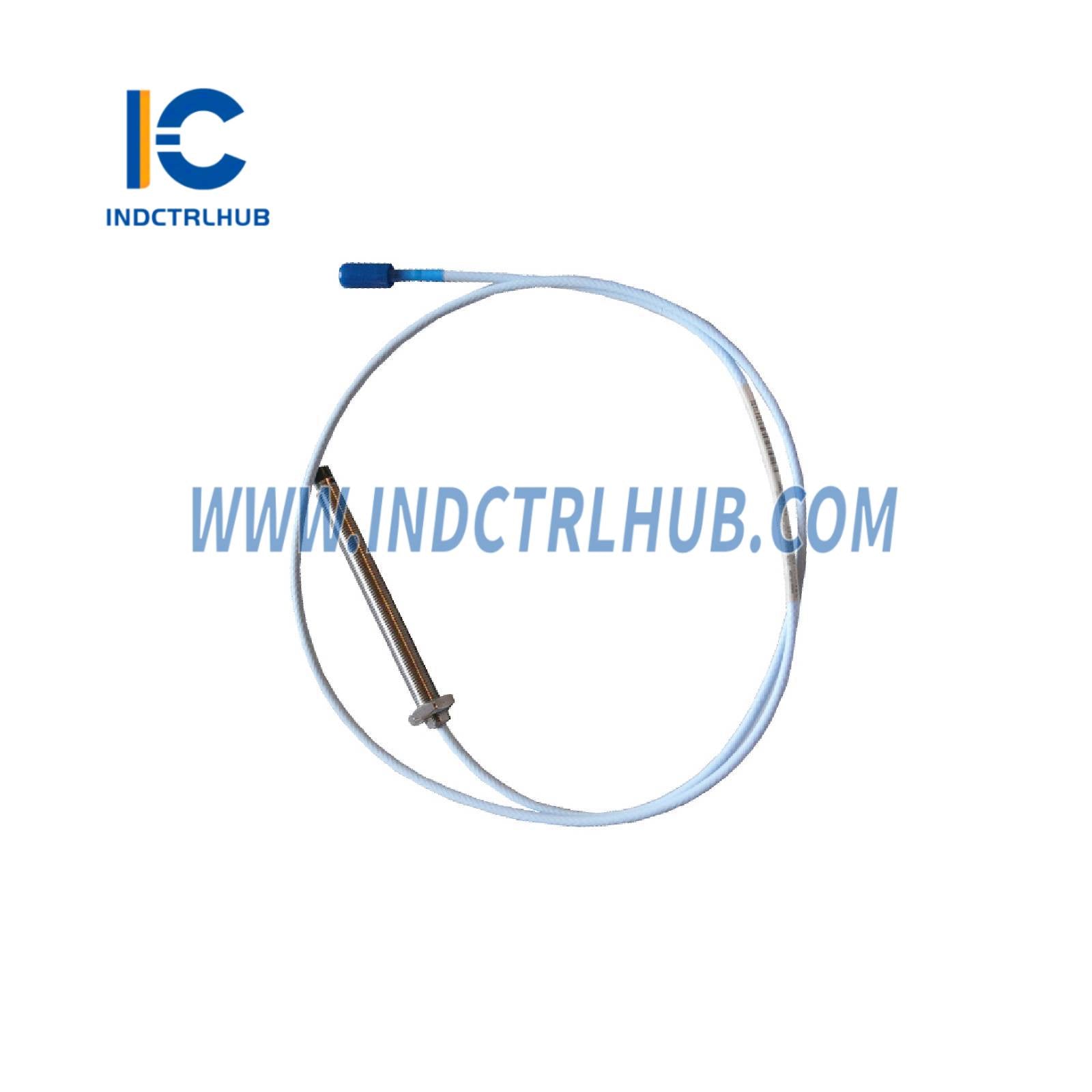

Bently Nevada 330140-08-10-12-05-00 3300 XL 8 mm Proximity Transducer Probe

Bently Nevada 330140-08-10-12-05-00 3300 XL 8 mm Proximity Transducer Probe

  • Manufacturer: Bently Nevada

  • Product No.: 330140-08-10-12-05-00

  • Condition:1000 in stock

  • Product Type: 3300 XL 8 mm Proximity Transducer Probe

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Bently Nevada 330140-08-10-12-05-00 Parameters

Product Overview



Parameter Details
Part Number 330140-08-10-12-05-00
Product Name 3300 XL 8 mm Proximity Transducer Probe
Application Vibration monitoring for critical machinery such as turbines, compressors, and pumps
Compatibility Compatible with 3300 XL 8 mm Proximity Transducer System, including Proximitor Sensors and related cables
Function Measures radial vibration and position of rotating shafts using eddy current principle

Functional Specifications



Parameter Details
Probe Diameter 8 mm
Overall Probe Length 80 mm (08 in the part number)
Tip-to-Sensor Clearance 100 mm (10 in the part number)
Cable Length 120 mm (12 in the part number)
Armor Type Armored cable (05 in the part number)
Temperature Range -46°C to +135°C (-51°F to +275°F)
Pressure Rating Up to 13.79 bar (200 psig) at probe tip
Sensing Element Non-contact, eddy current probe with polyurethane coating
Electrical Connection 3-wire configuration for connection to Proximitor Sensor
Hazardous Area Certifications CSA, ATEX, IECEx approved for use in explosive atmospheres
Mounting Side view or radial vibration monitoring; mounting clamps sold separately
Dimensions Probe: 8 mm diameter x 80 mm length; cable: 120 mm armored
Standards Compliance API 670 compliant for machinery protection systems
