Product Description
Bently Nevada 330130-085-00-05 Parameters
Product Overview
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300 XL |
| Model/Part Number | 330130-085-00-05 |
| Model Type | Extension Cable |

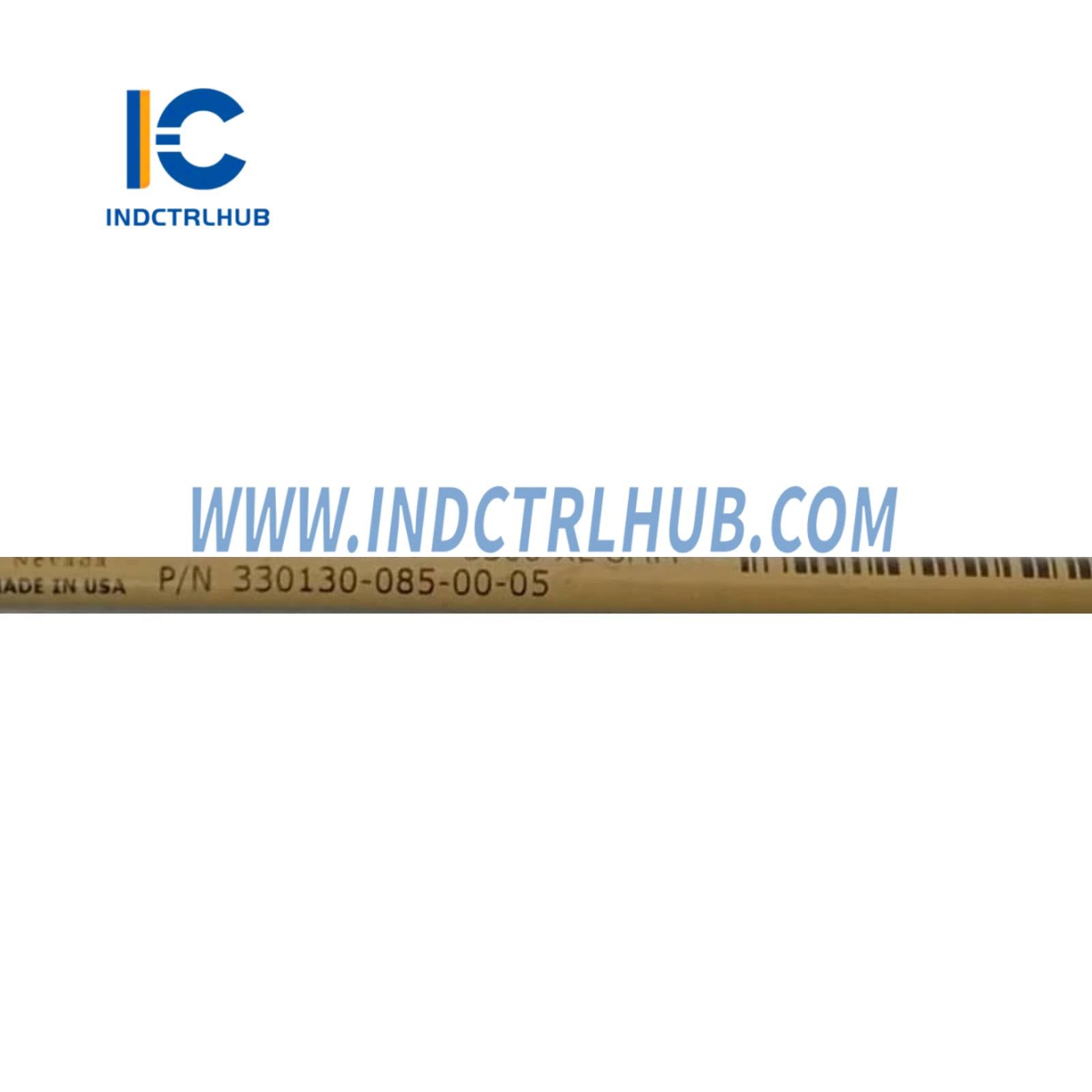

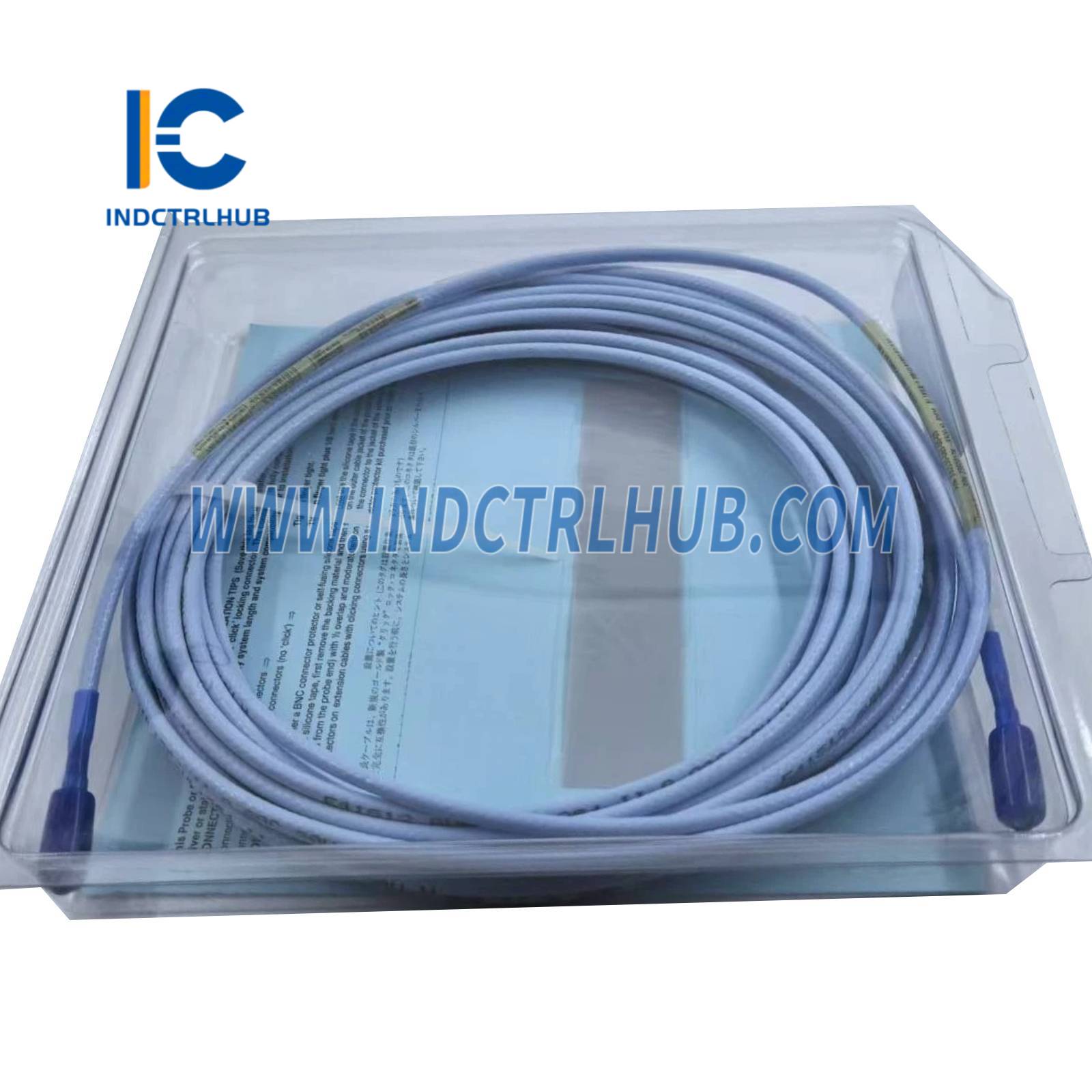

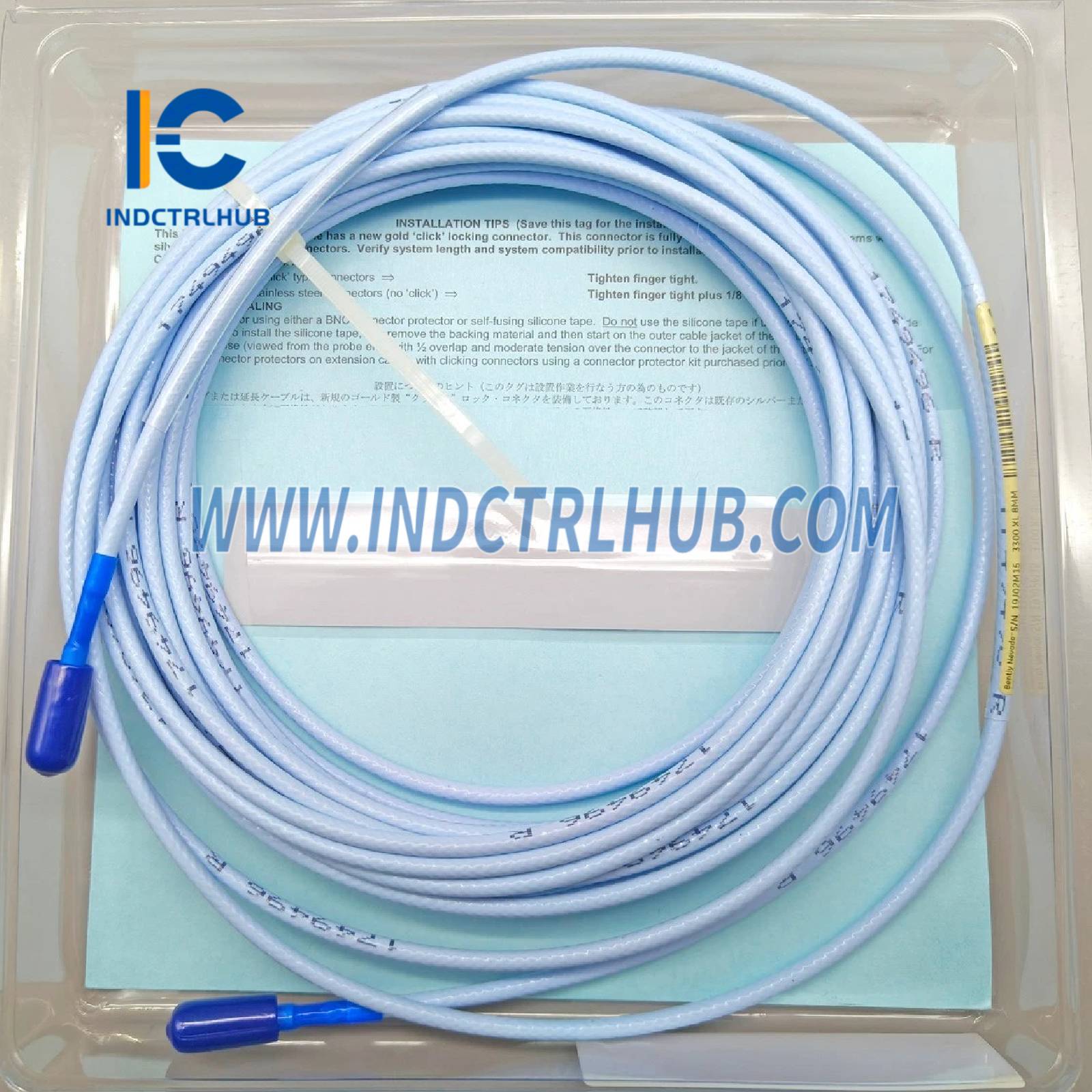

| Product Name | 3300 XL 8 mm Extension Cable |
| Application | Extends the electrical length of the 3300 XL Proximity Transducer System for precise shaft position and vibration measurements |
| Compatibility | Compatible with 3300 XL 8 mm Proximity Probes and Proximitor Sensors; total system electrical length must match |
| Function | Provides reliable signal transmission between probe and sensor in rotating machinery condition monitoring |
Functional Specifications
| Parameter | Details |
|---|---|
| Cable Type | Standard |
| Cable Length | 8.5 m (27.9 ft) |
| Connector Protector and Cable Option | Standard |
| Agency Approval | CSA, ATEX, IECEx approvals |
| Weight | 0.289 kg |
| Weight per Meter | 34 g/m |
| Operating Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Material | 75 ohms triaxial, perfluoroalkoxyethylene (PFA) insulated |
| Max Bend Radius | 25 mm |
| Installation | Use with ClickLoc connectors; install per Bently Nevada drawing 141092 |
