Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |

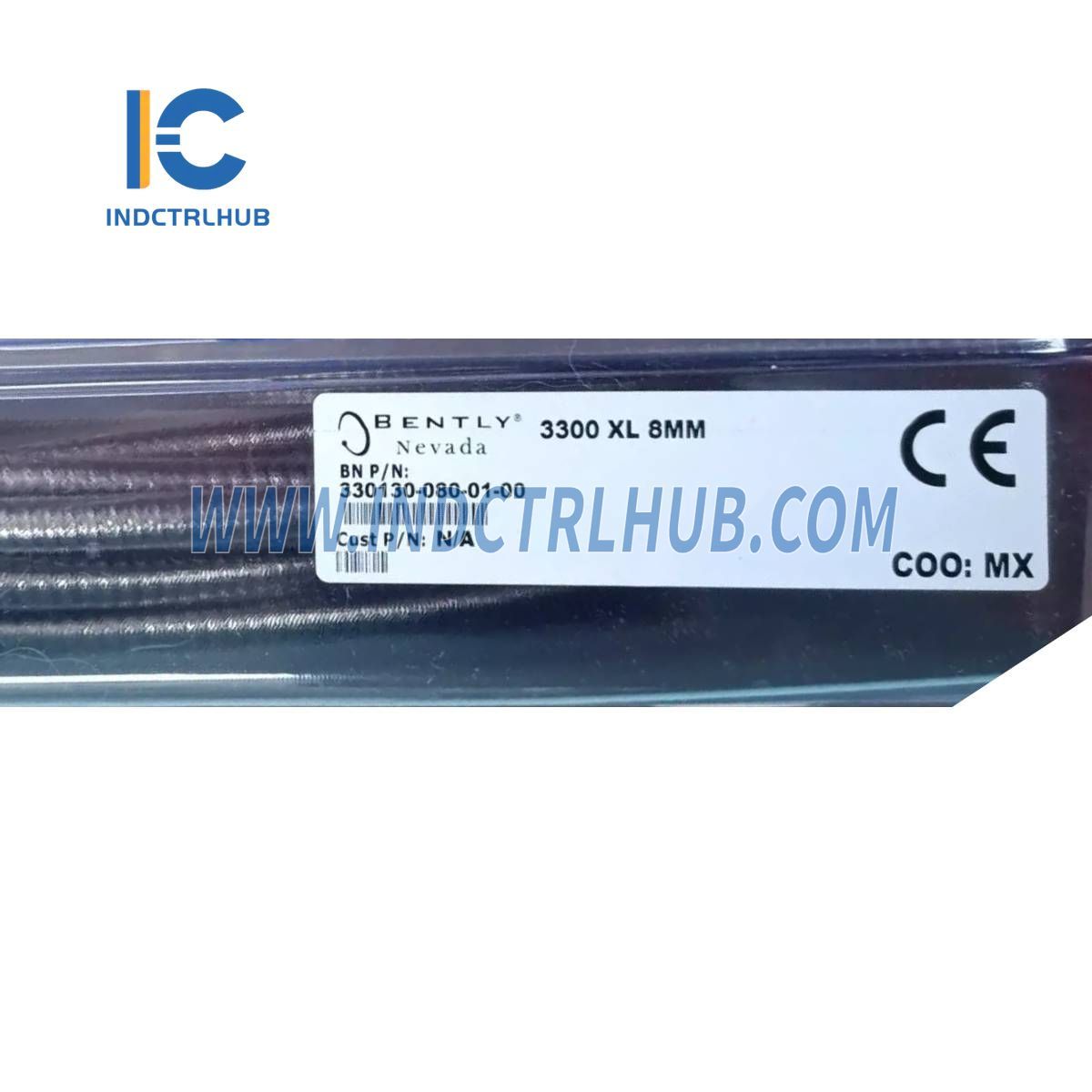

330130-080-01-05 |
|
Model Type |
3300 XL Standard Extension Cable |
Proximity Probe and Extension Cable Specifications
|
Component |
Details |
|---|---|
|
TipLoc Technology |
Patented molding method for a robust bond between the probe tip and probe body |
|
CableLoc Technology |
Provides 330 N (75 lbf) pull strength for secure attachment of the probe cable and probe tip |
|
Standard Cable Material |
75Ω triaxial, fluoroethylene propylene (FEP) insulated |
|
Extended Temperature Range Cable |
75Ω triaxial, perfluoroalkoxy (PFA) insulated |
|
Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
Length and Weight
|
Specification |
Details |
|---|---|
|
System Length Options |
5 or 9 meters (including extension cable), or 1 meter (probe only) |
|
Total System Weight |
0.7 kg (1.5 lb m) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|

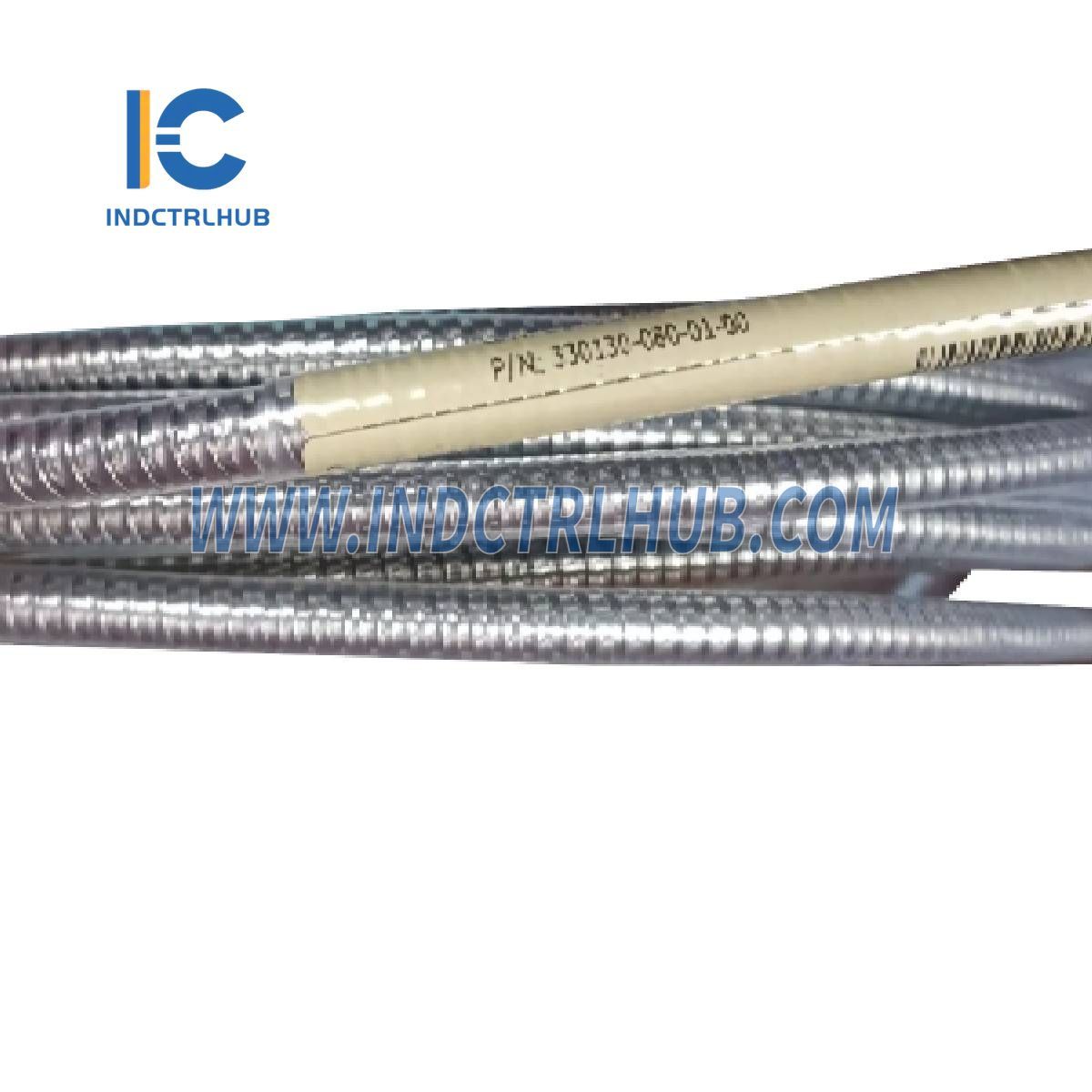

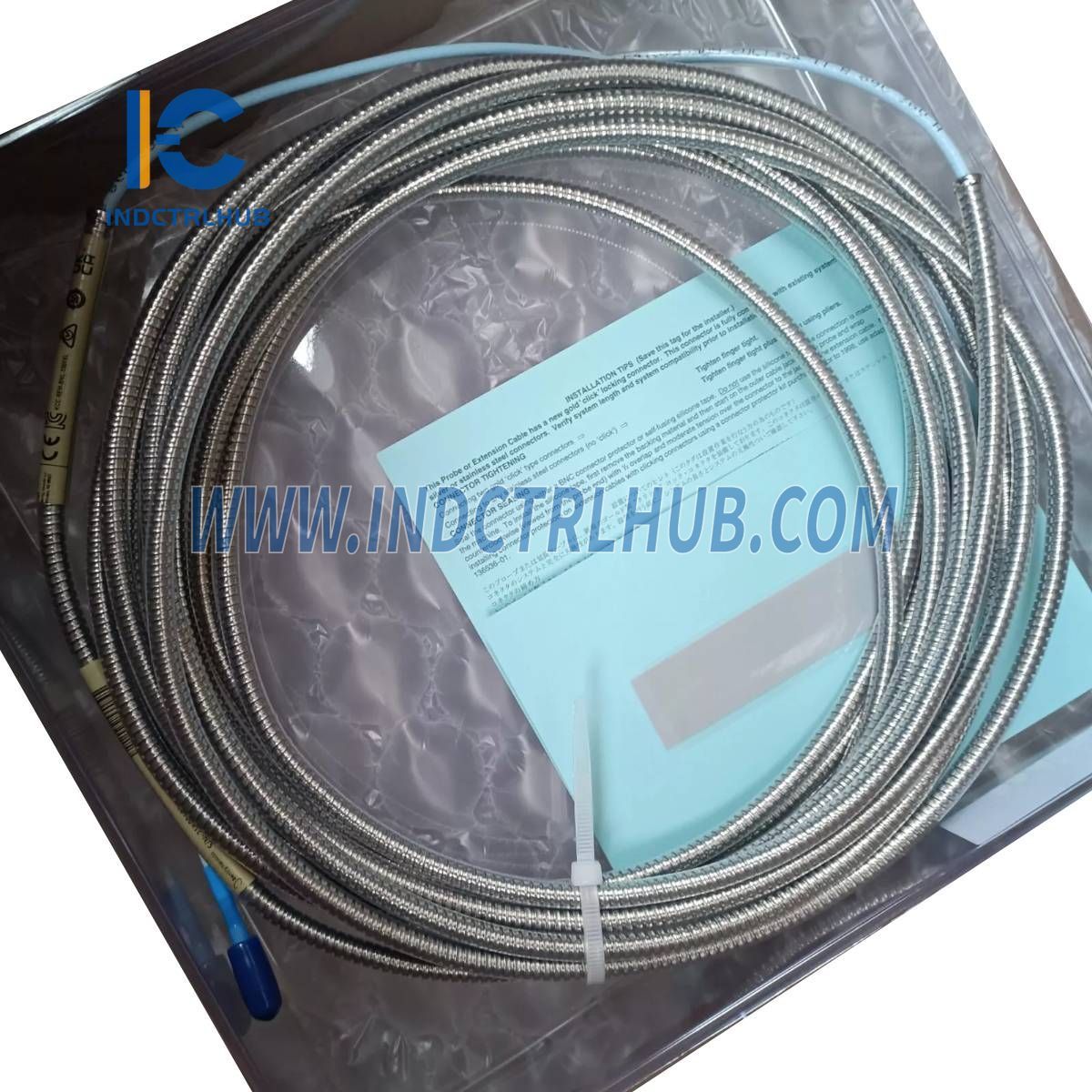

Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
Ordering Information for Extension Cables
3300 XL Standard Extension Cable
|
Part Number |
Description |
|---|---|
|
330130-AAA-BB-CC |
Standard Extension Cable Configuration |
Configuration Options
|
Option |
Description |
|---|---|
|
A: Cable Length Option |
030: 3.0m, 035: 3.5m, 040: 4.0m, 045: 4.5m, 060: 6.0m, 070: 7.0m, 075: 7.5m, 080: 8.0m, 085: 8.5m |
|
B: Connector Protector and Cable Option |
00: Standard cable, 01: Armored cable, 02: Standard cable with connector protector, 03: Armored cable with connector protector, 10: FluidLoc cable, 11: Armored FluidLoc cable, 12: FluidLoc cable with connector protector, 13: Armored FluidLoc cable with connector protector |
|
C: Agency Approval Option |
00: Not required, 05: CSA, ATEX, IECEx Approvals |
