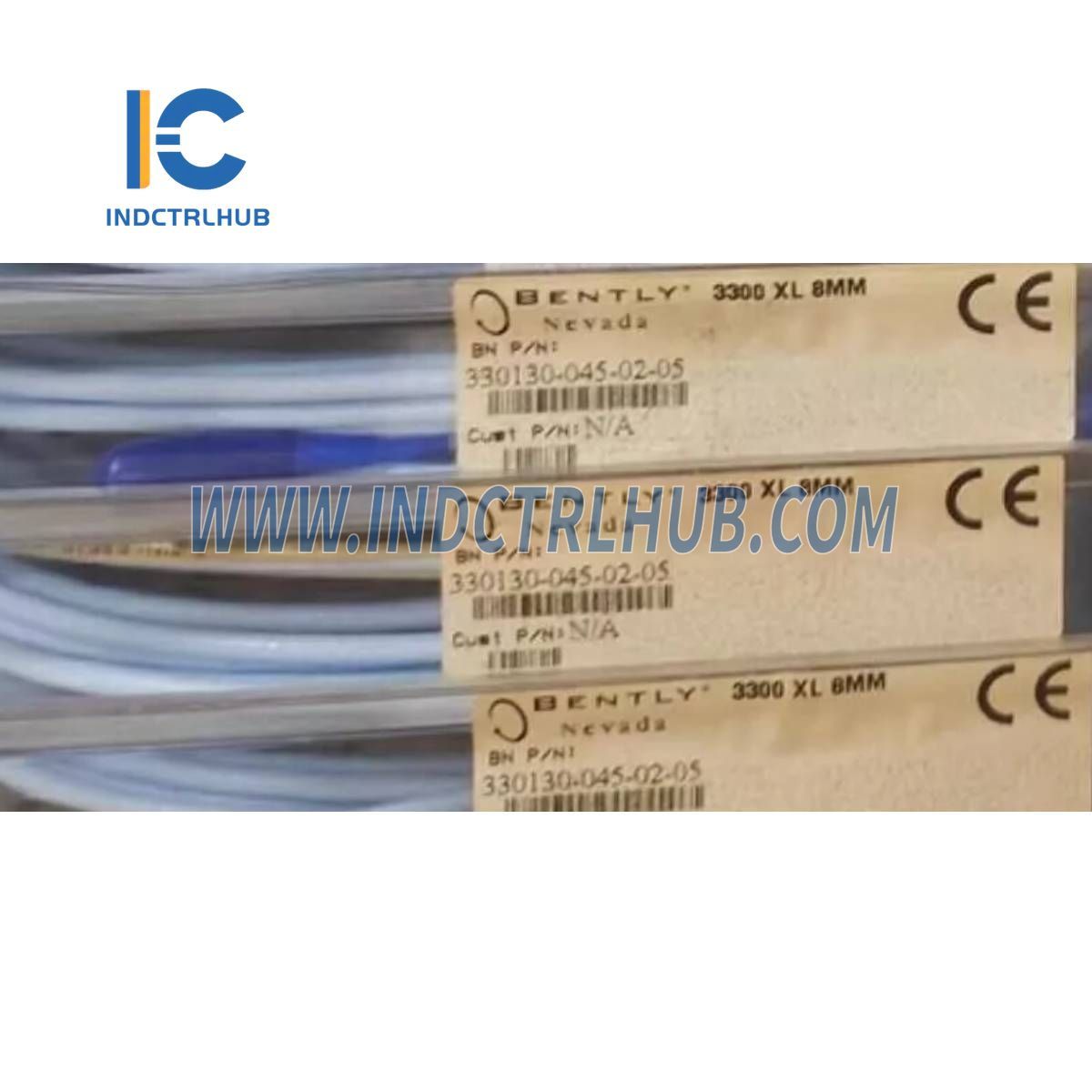

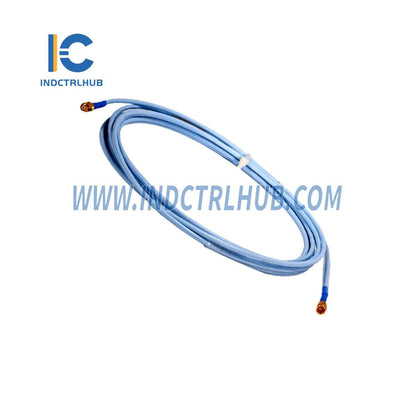

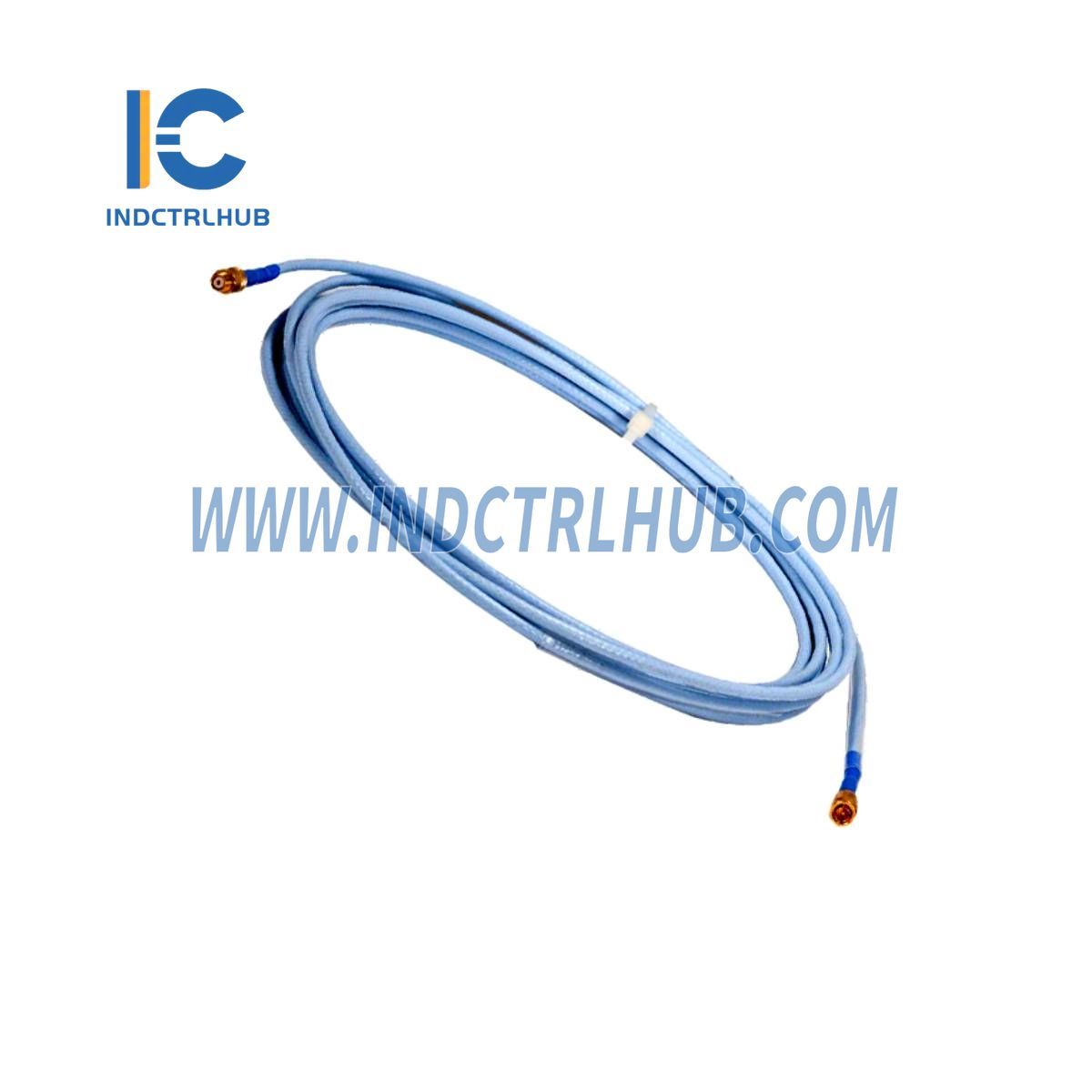

Bently Nevada 330130-045-02-05 3300 XL Standard Extension Cable
Bently Nevada 330130-045-02-05 3300 XL Standard Extension Cable
Manufacturer: Bently Nevada
Product No.: 330130-045-02-05
Condition:1000 in stock
Product Type: 3300 XL Standard Extension Cable
Product Origin: USA
Payment: T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |
330130-045-02-05 |
|
Model Type |
3300 XL Standard Extension Cable |
Description
The_3300 XL Standard Extension Cable_is designed to work with_3300-series 5 mm and 3300 XL 8 mm Proximity Probes. It features an improved_TipLoc molding method, ensuring a robust bond between the_probe tip and body, and a_patented CableLoc design, providing_330 N (75 lbf) pull strength_for a more secure connection between the_probe cable and probe tip.
Electrical Specifications
|
Attribute |
Details |
|---|---|
|
Proximitor Sensor Input |
Accepts one non-contacting_3300-series 5 mm_and_3300 XL 8 mm_Proximity Probe and Extension Cable |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Extension Cable Material |
Standard cable:_75Ω triaxial,_fluoroethylene propylene (FEP) insulated__Extended Temperature Range cable:_75Ω triaxial,_perfluoroalkoxy (PFA) insulated |
|
Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
|
Connector Material |
Gold-plated brass or gold-plated beryllium copper |
|
Maximum Connector Torque |
0.565 N_m (5 in_lbf) |
Length & Weight
|
Attribute |
Details |
|---|---|
|
System Length |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
|
Total System Weight (Typical) |
0.7 kg (1.5 lb m) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
Ordering Information
|
Part Number |
Description |
|---|---|
|
330130 |
3300 XL Standard Extension Cable |
Part Number Format:
330130-AAA-BB-CC
|
Option Code |
Description |
|---|---|
|
A: Cable Length Option |
030 =_3.0 meters (9.8 feet)__035 =_3.5 meters (13.1 feet)__040 =_4.0 meters (11.5 feet)__045 =_4.5 meters (14.8 feet)__060 =_6.0 meters (19.7 feet)__070 =_7.0 meters (22.9 feet)__075 =_7.5 meters (24.6 feet)__080 =_8.0 meters (26.2 feet)__085 =_8.5 meters (27.9 feet) |
|
B: Connector Protector and Cable Option |
00 =_Standard cable__01 =_Armored cable__02 =_Standard cable with connector protector__03 =_Armored cable with connector protector__10 =_FluidLoc cable__11 =_Armored FluidLoc cable__12 =_FluidLoc cable with connector protector__13 =_Armored FluidLoc cable with connector protector |
|
C: Agency Approval Option |
00 =_Not required__05 =_CSA, ATEX, IECEx Approvals |
