Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |
330105-02-12-05-02-05 |
|
Model Type |

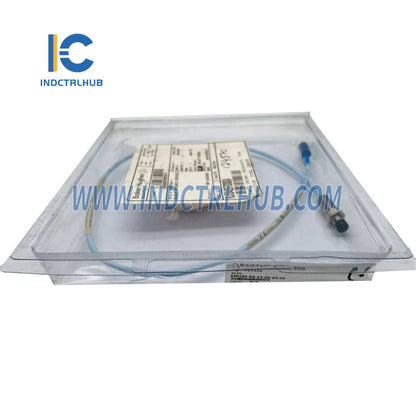

3300 XL 8 mm Reverse Mount Probe |
Description
The Bently Nevada 3300 XL 8 mm Reverse Mount Probe is a high-performance proximity probe used for measuring vibration and displacement in industrial rotating machinery. It features Miniature ClickLoc coaxial connectors, reverse mounting capability, and rugged environmental resistance, making it suitable for demanding applications.
Specifications
Physical Specifications
|
Parameter |
Details |
|---|---|
|
Total System Weight |
0.7 kg (1.5 lbm) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
Environmental Limits
|
Parameter |
Details |
|---|---|
|
Operating & Storage Temperature (Standard Probe) |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temperature Range Probe |
-52°C to +218°C (-62°F to +425°F) for probe tip; -51°C to +260°C (-60°F to +500°F) for probe cable & connector |
Ordering Information
3300 XL 8 mm Reverse Mount Probes
|
Model Number |
Thread Type |
|---|---|
|
330105-02-12-CC-DD-EE |
3/8-24 UNF threads |
|
330106-05-30-CC-DD-EE |
M10 x 1 threads |
Options Available
• C: Total Length Option
• 05 – 0.5 meter (1.6 feet)
• 10 – 1.0 meter (3.3 feet)
• 15 – 1.5 meter (4.9 feet)
• 20 – 2.0 meters (6.6 feet)
• 50 – 5.0 meters (16.4 feet)
• 90 – 9.0 meters (29.5 feet)
(5-meter probes are designed for use with the 5-meter Proximitor sensor only.)
• D: Connector & Cable-Type Option
• 02 – Miniature ClickLoc coaxial connector
• 12 – Miniature ClickLoc coaxial connector, FluidLoc cable (FluidLoc cable is typically not required due to probe sleeve presence.)
• E: Agency Approval Option
• 00 – Not required
• 05 – CSA, ATEX, IECEx Approvals
