Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |

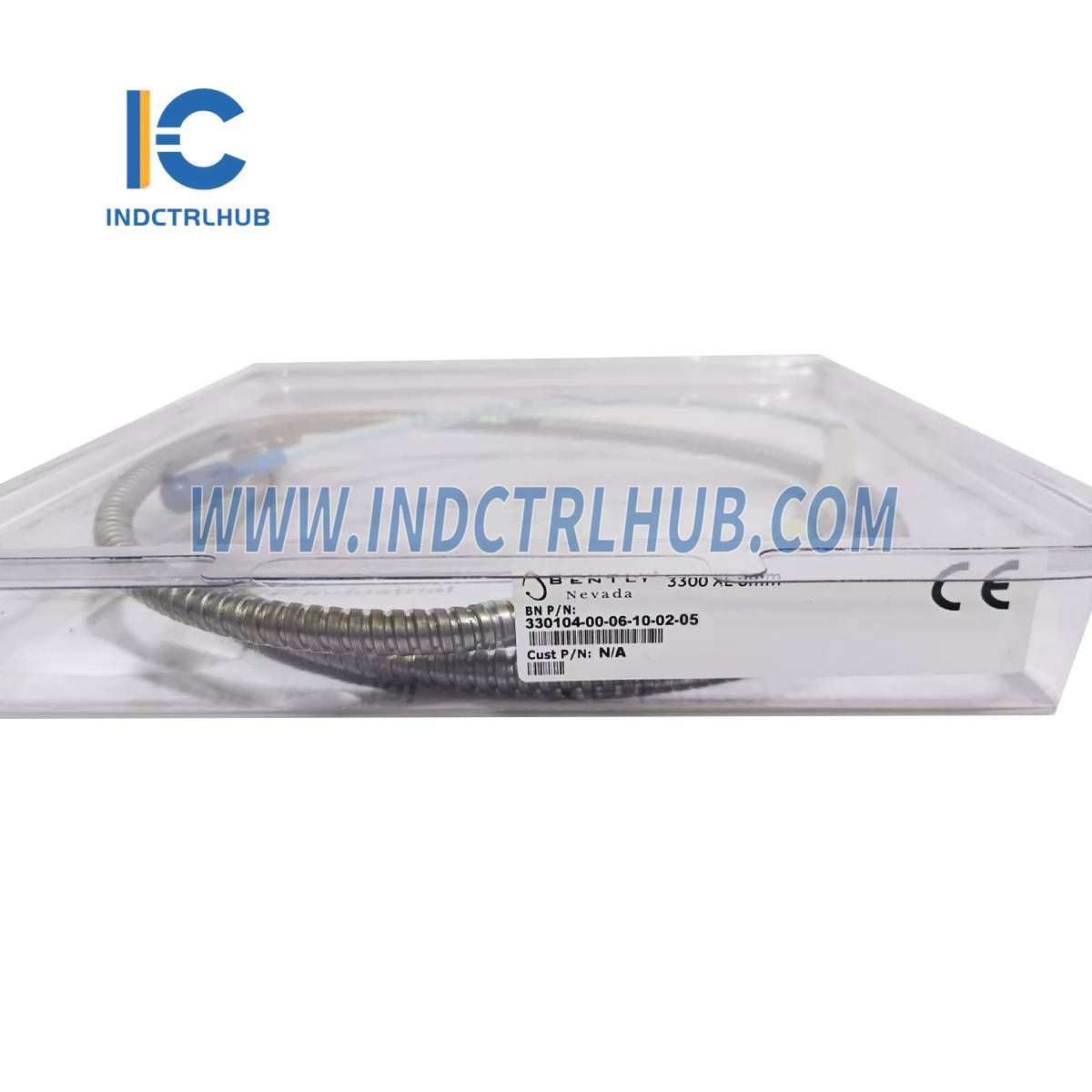

330104-00-06-10-02-05 |
|
Model Type |

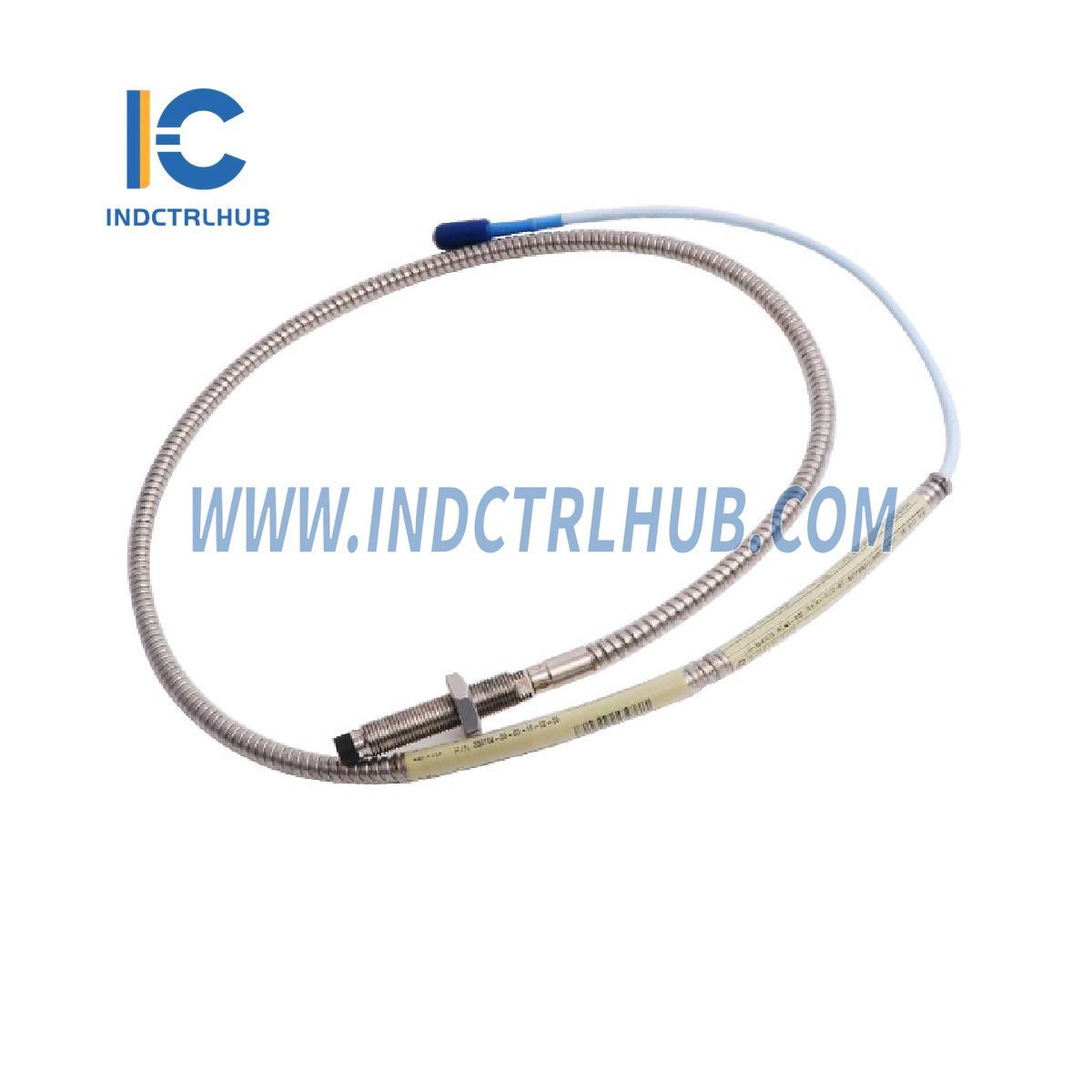

3300 XL 8 mm Proximity Probes |
Materials
|
Component |
Material |
|---|---|
|
Proximitor Sensor |
A308 aluminum |
|
Connector Material |
Gold-plated brass or gold-plated beryllium copper |
Length & Weight
|
Attribute |
Details |
|---|---|
|
System Length |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
|
Total System Weight |
0.7 kg (1.5 lb m) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
Ordering Information
3300 XL 8 mm Proximity Probes, Metric
|
Part Number |
Description |
|---|---|
|
330103 |
3300 XL 8 mm Probe, M10 x 1 thread, without armor |
|
330104 |
3300 XL 8 mm Probe, M10 x 1 thread, with armor |
Part Number Configuration: AA-BB-CC-DD-EE
• A: Unthreaded Length Option
• Unthreaded length must be at least 20 mm less than the case length.
• Order in increments of 10 mm.
• Minimum: 0 mm, Maximum: 230 mm.
• Example: 06 = 60 mm.
• B: Overall Case Length Option
• Order in increments of 10 mm.
• Minimum: 20 mm, Maximum: 250 mm.
• Example: 06 = 60 mm.
• C: Total Length Option
|
Option |
Length |
|---|---|
|
05 |
0.5 meter (1.6 feet) |
|
10 |
1.0 meter (3.3 feet) |
|
15 |
1.5 meters (4.9 feet) |
|
20 |
2.0 meters (6.6 feet) |
|
50 |
5.0 meters (16.4 feet) (For use with 5-meter Proximitor sensor only) |
|
90 |
9.0 meters (29.5 feet) |
• D: Connector and Cable-Type Option
|
Option |
Description |
|---|---|
|
01 |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
02 |
Miniature coaxial ClickLoc connector, standard cable |
|
11 |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
|
12 |
Miniature coaxial ClickLoc connector, FluidLoc cable |
• E: Agency Approval Option
|
Option |
Approval |
|---|---|
|
00 |
Not Required |
|
05 |
CSA, ATEX, IECEx Approvals |
