Product Description

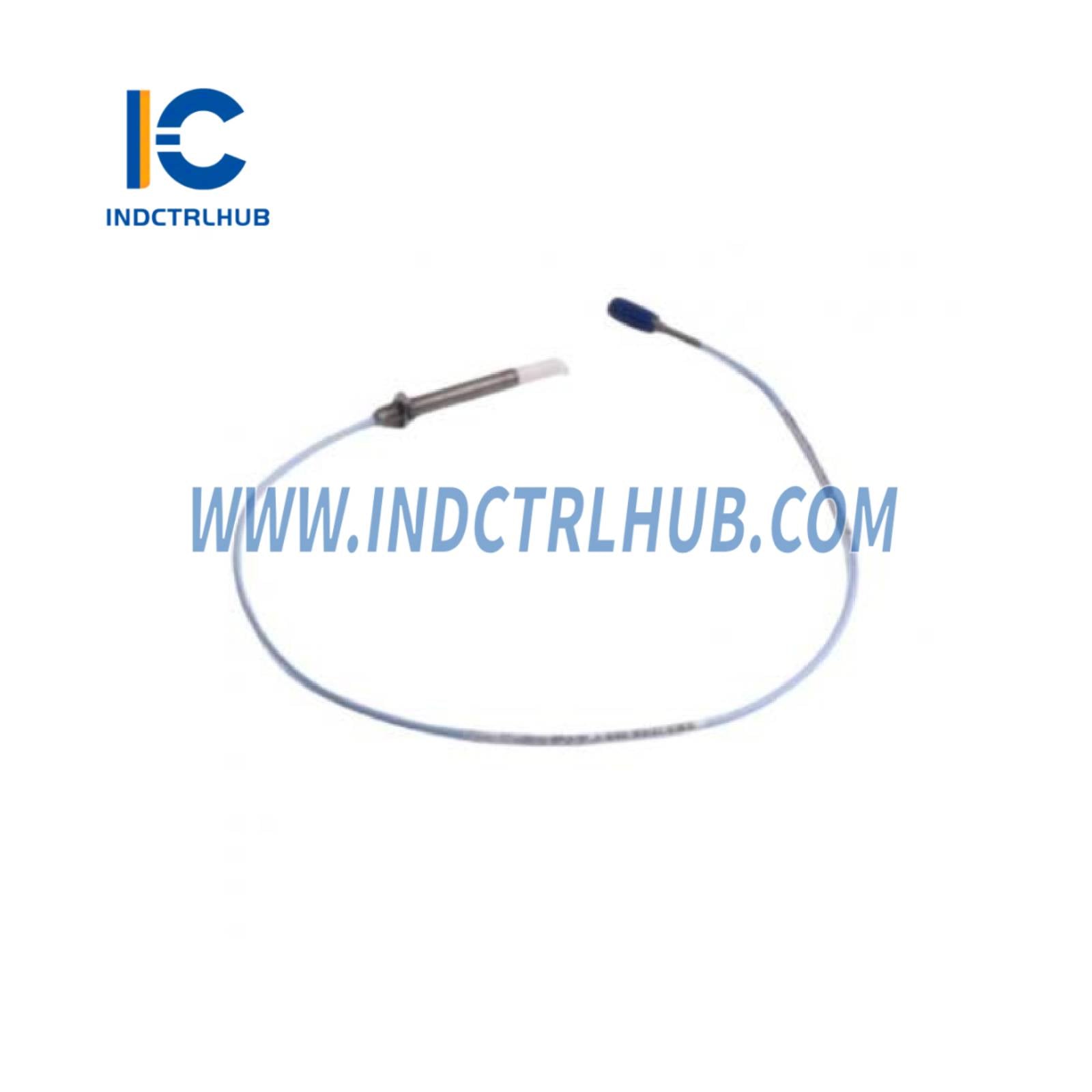

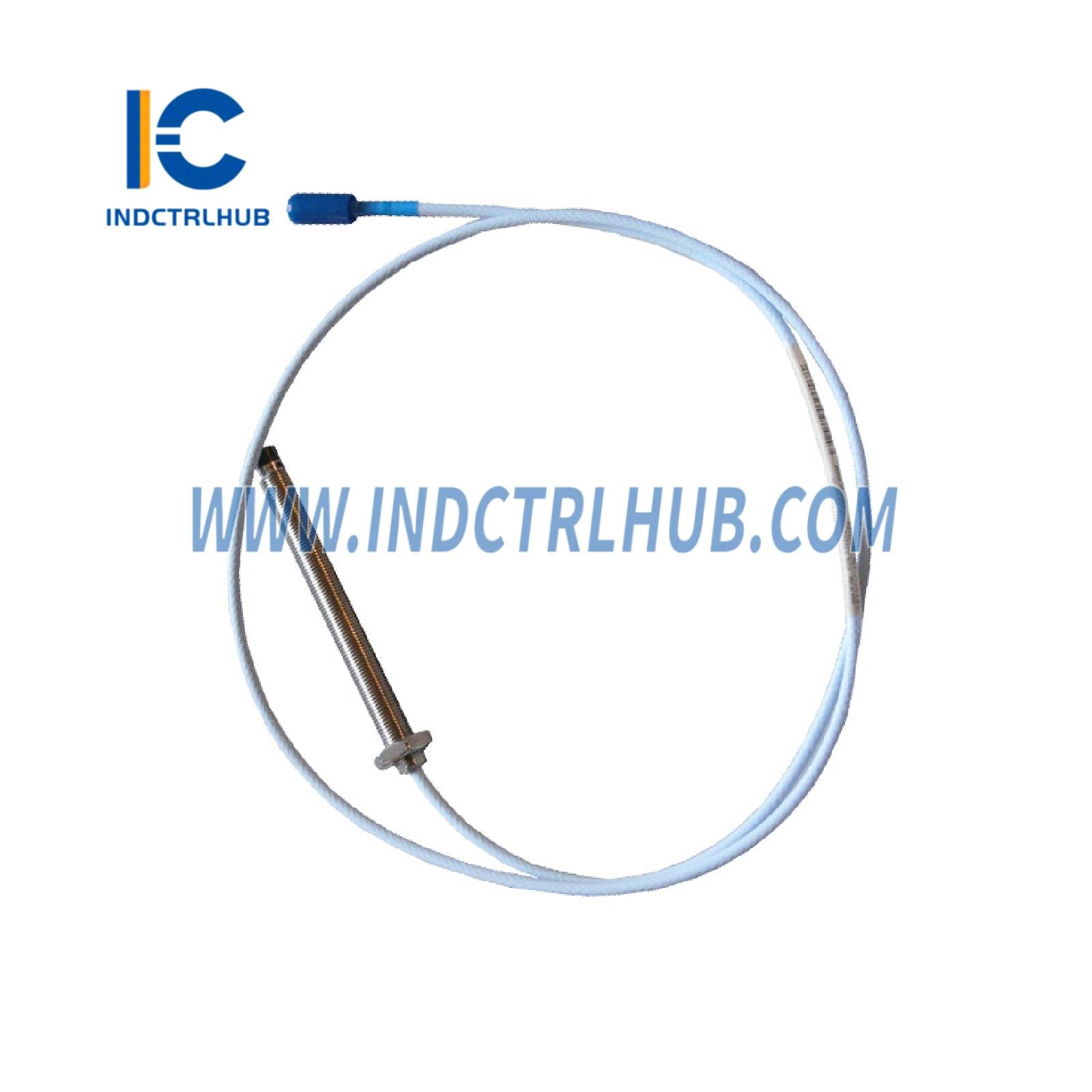

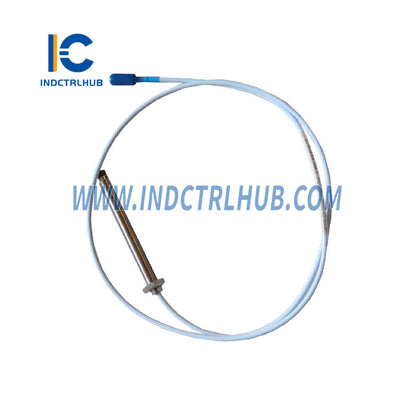

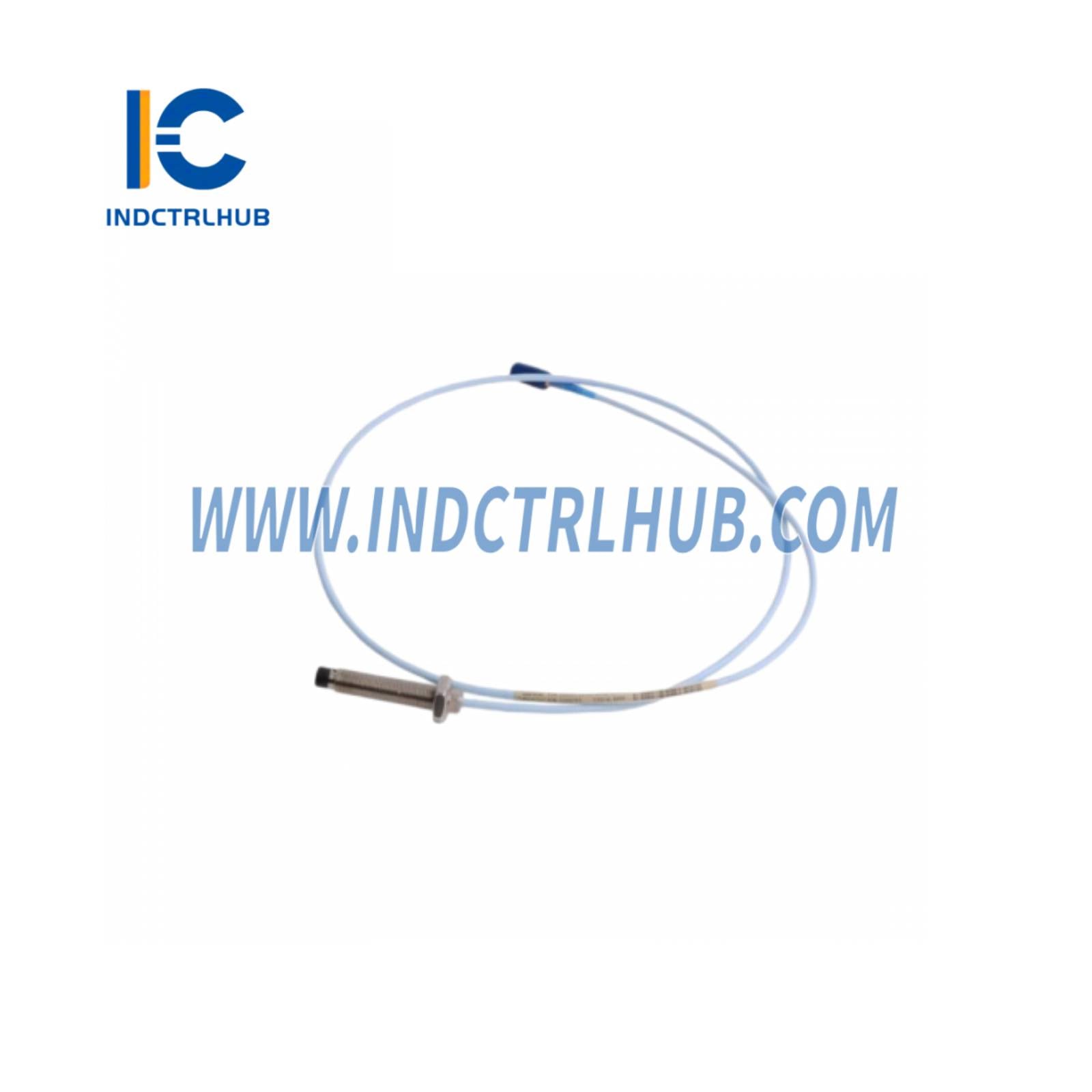

Bently Nevada 330103-00-08-10-02-05 Proximity Probe
Product Overview
- The Bently Nevada 330103-00-08-10-02-05 Proximity Probe measures vibration, position, or speed in rotating machinery, such as turbines, compressors, and pumps, across power generation, oil and gas, and industrial sectors.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300 XL Series |
| Model/Part Number | 330103-00-08-10-02-05 |
| Model Type | Proximity Probe (3300 XL 8 mm) |
| Function | Measures vibration, position, or speed using eddy-current technology |
| Processor | Not applicable (passive sensor) |
| Memory | Not applicable |
| Display | None |
| Inputs | Not applicable (senses conductive target) |
| Outputs | 1 analog signal (via Proximitor sensor, -24 VDC to 0 VDC proportional to gap distance) |
| Communication Interfaces | None (connects to Proximitor sensor via extension cable) |
| Signal Conditioning | Generates eddy-current signal (conditioned by Proximitor sensor) |
| Measurement Range | 2 mm (80 mils) linear range with 3300 XL 8 mm probe |
| Frequency Range | 0–10 kHz (suitable for vibration and speed signals) |
| Accuracy | ±1% of full-scale range (with compatible Proximitor and monitor) |
| Redundancy | Non-redundant |
| Diagnostics | Limited to signal integrity (diagnostics handled by Proximitor and monitor) |
| Compatibility | Works with Bently Nevada 3300 XL Proximitor sensors, 3300 XL extension cables, 3300 Series monitors (3300/16, 3300/20), and 3500 Series monitors (3500/40M); integrates with System 1 software via monitor interface |
| Power Supply | Receives power from Proximitor sensor (-24 VDC) |
| Power Consumption | Negligible (powered by Proximitor) |
| Environmental Specifications | Operating Temperature: -51°C to +100°C (-60°F to +212°F) Storage Temperature: -51°C to +100°C (-60°F to +212°F) Relative Humidity: 0% to 100% condensing Vibration: Complies with IEC 60068-2-6 Shock: Complies with IEC 60068-2-27 |
| Enclosure | IP68 (probe tip, stainless steel housing) |
| Dimensions | Probe tip: 8 mm diameter Total length: Approximately 80 mm (unthreaded case) + cable length (8 meters) |
| Weight | Approximately 0.2–0.3 kg (probe and 8-meter cable) |
| Mounting | Threaded case (3/8-24 UNF-2A); mounts in machine housing or bracket |
| Certifications | Meets CE, CSA, ATEX/IECEx Zone 0/1/2 (with approved barriers), marine certifications, such as DNV, ABS |
