Product Description
Bently Nevada 330101-00-50-10-02-00 Parameters
Product Overview
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300 XL |

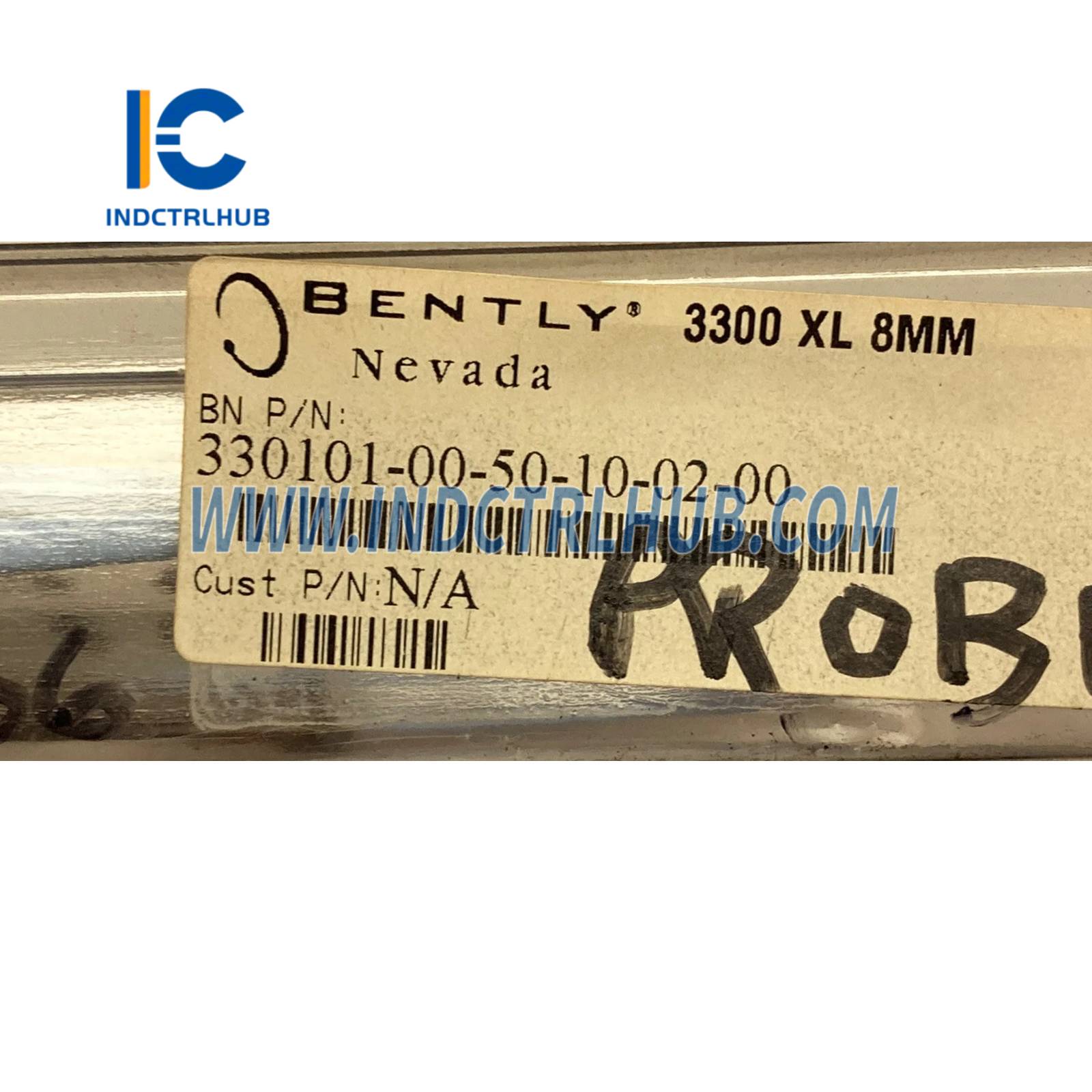

| Model/Part Number | 330101-00-50-10-02-00 |
| Model Type | Proximity Probe |

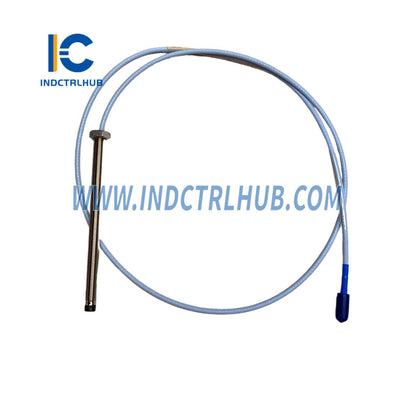

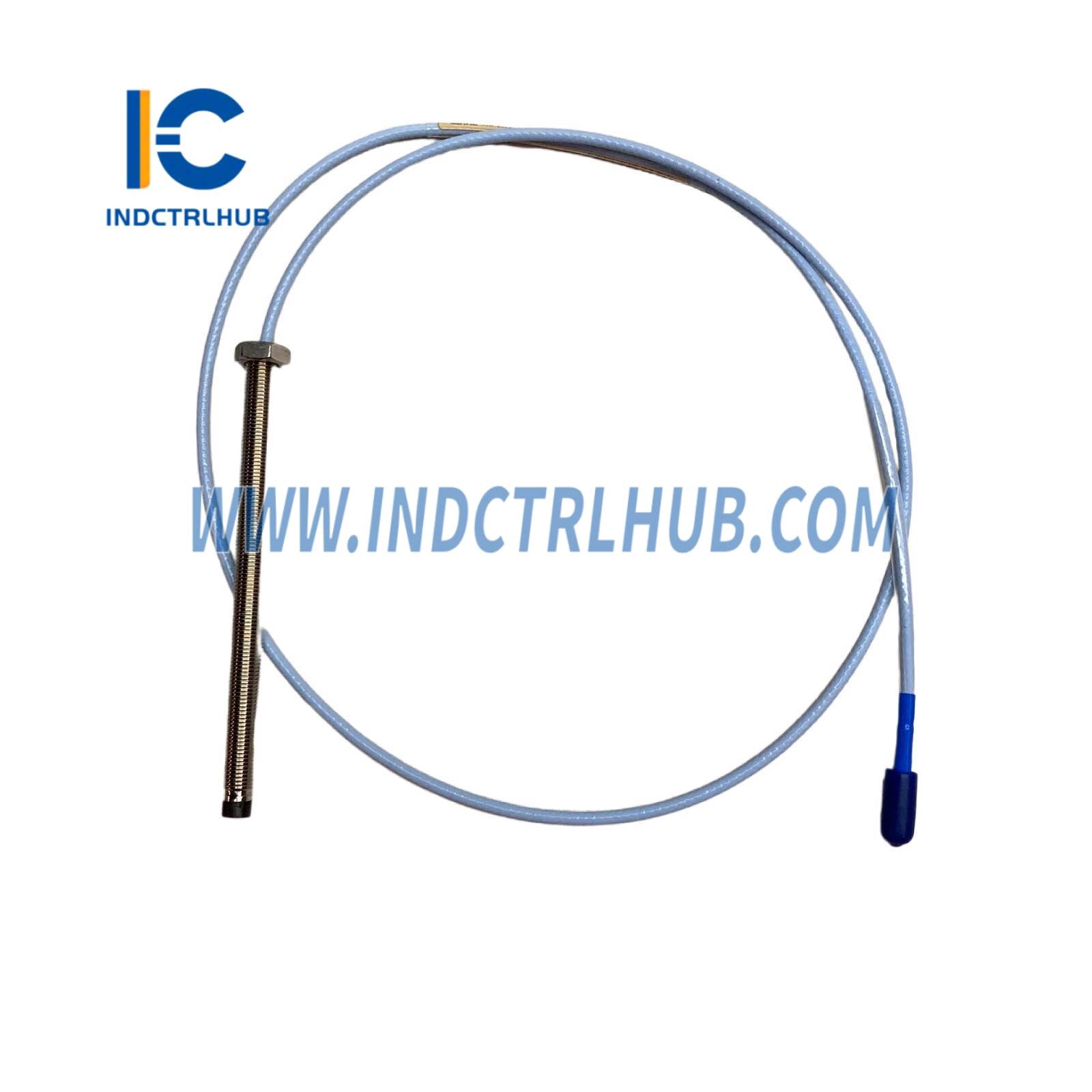

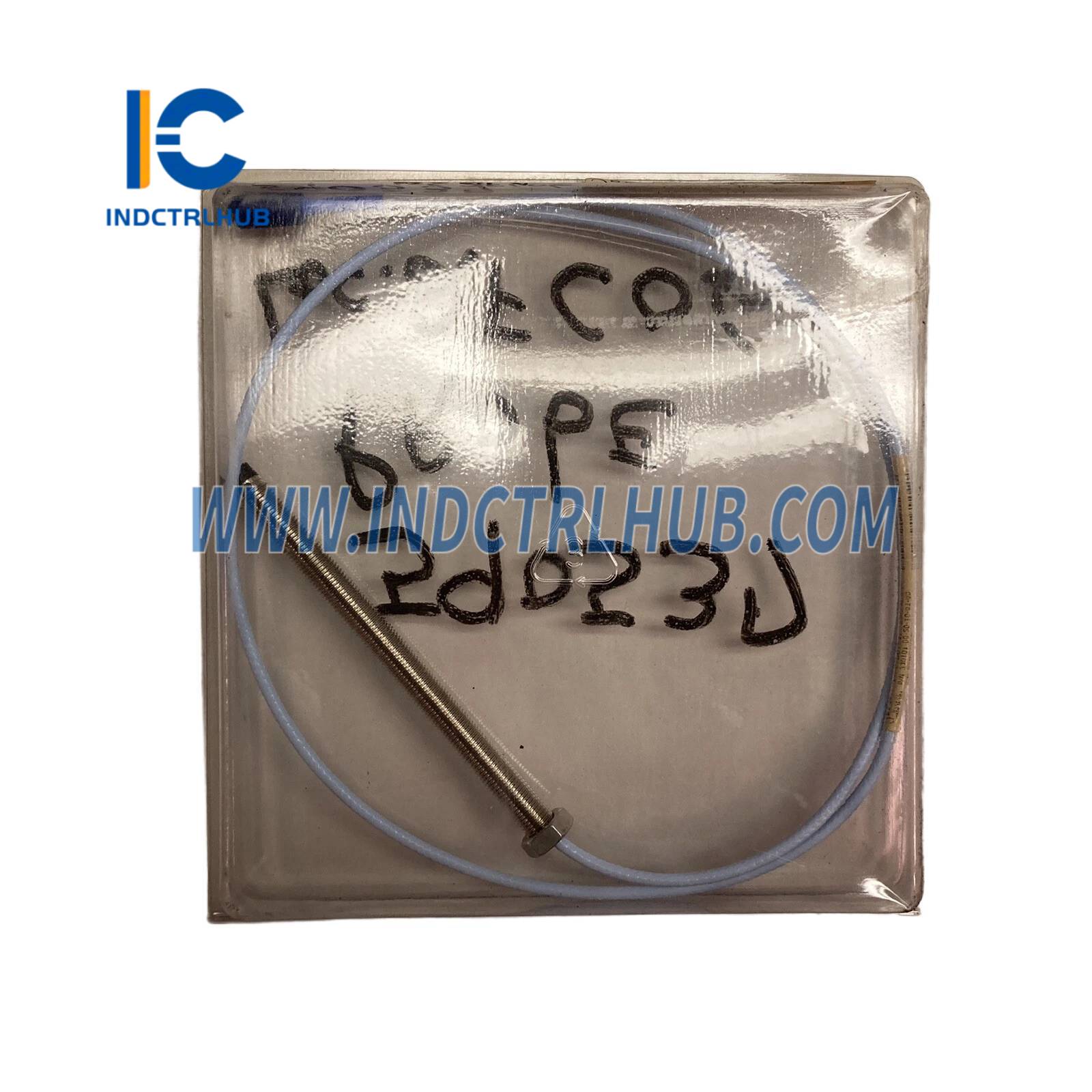

| Product Name | 3300 XL 8 mm Proximity Probe |
| Application | Non-contacting measurement of machine shaft position and vibration in rotating machinery condition monitoring |
| Compatibility | Part of 3300 XL 8 mm Proximity Transducer System, compatible with 3300 XL extension cables and Proximitor Sensors |
| Function | Provides precise eddy current-based proximity sensing for shaft vibration and position monitoring |
Functional Specifications
| Parameter | Details |
|---|---|
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 mm (00) |
| Overall Case Length | 5.0 in (127 mm) (50) |
| Total System Length | 1.0 m (3.3 ft) (10) |

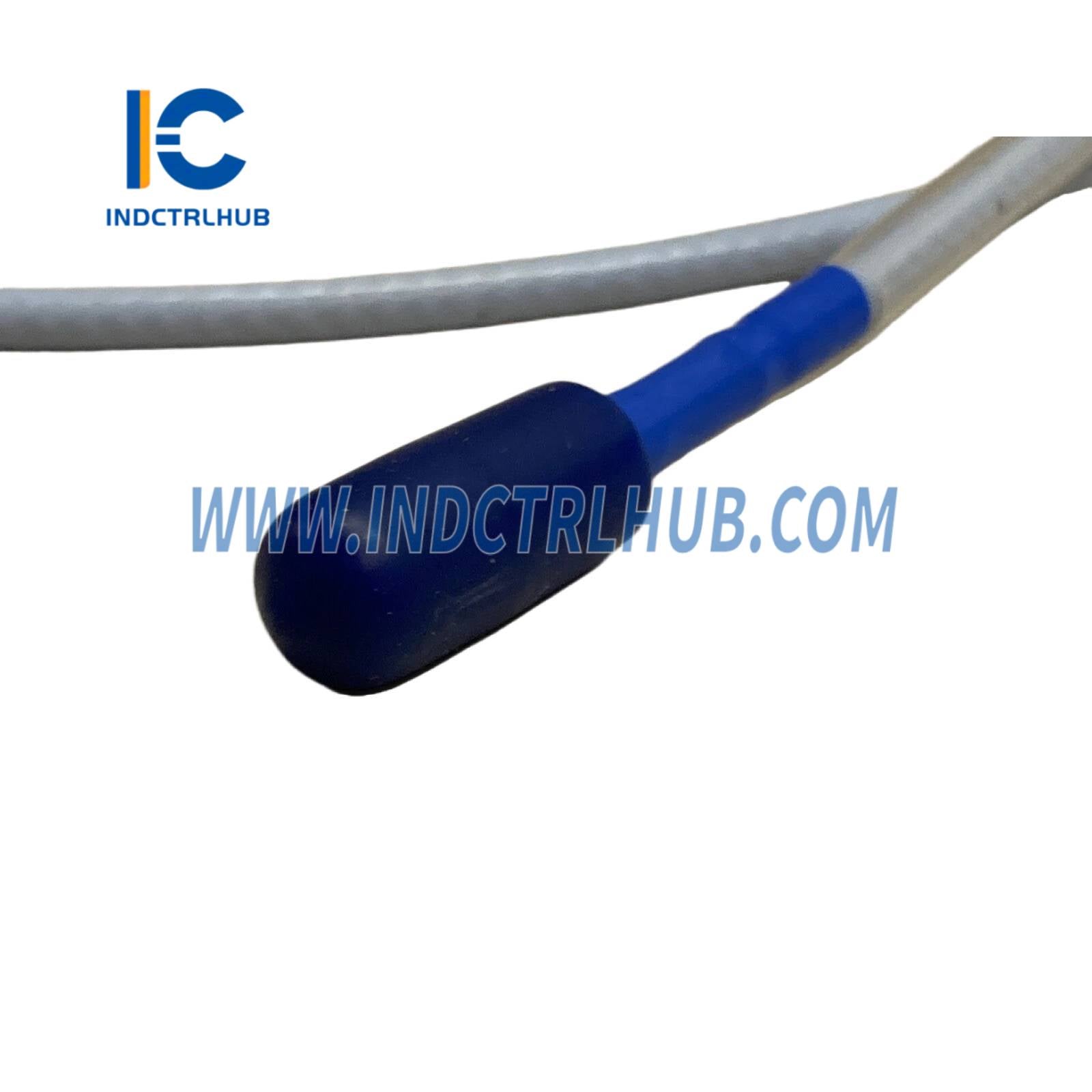

| Connector and Cable Type | Miniature coaxial ClickLoc connector, standard cable (02) |
| Agency Approval Option | Not required (00) |
| Cable Pull Strength | 330 N (75 lbf) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Weight | 0.323 kg |
| Installation | Install per Bently Nevada drawing 141092 |
