Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Bently Nevada (a Baker Hughes business) |
|
Model Number |
330980-71-RU |
|
Series |
3300 XL NSv Proximity Transducer System |
|
Description |

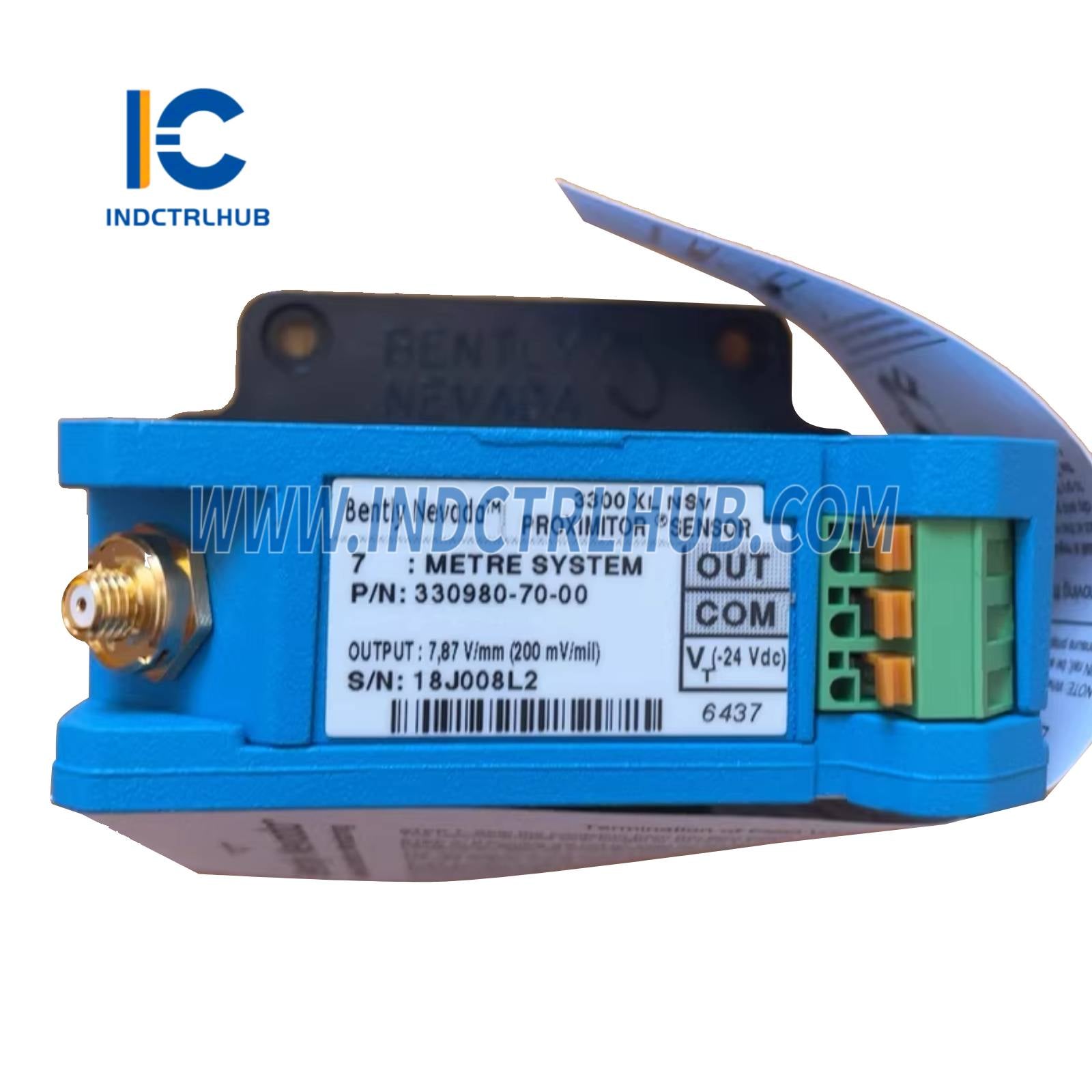

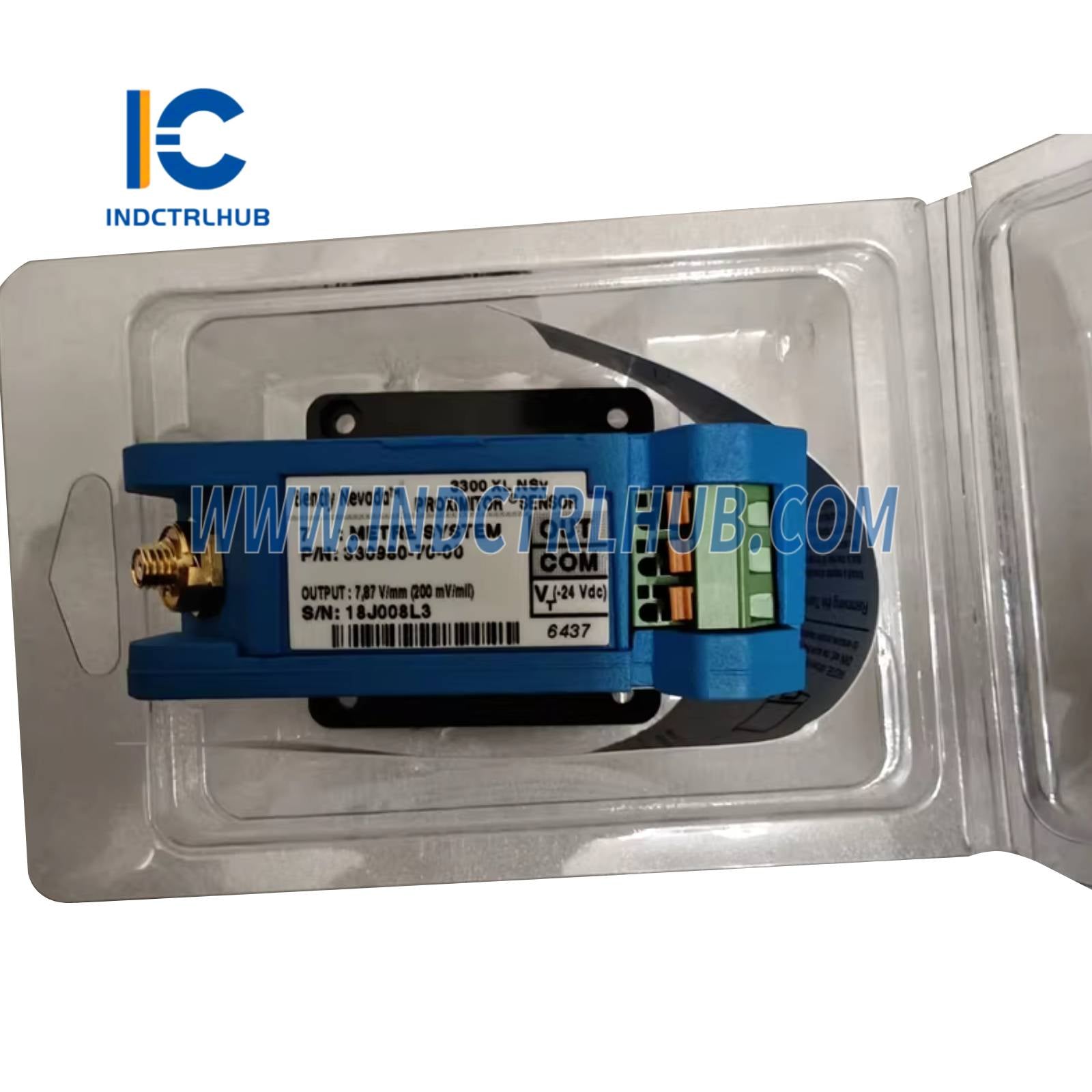

3300 NSv Proximitor Sensor, 7.0 m, DIN mount, agency approved |
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
System Length |
7.0 meters (23.0 feet) |
|
Mounting Option |
DIN mount |
|
Agency Approval |
Multiple approvals |
|
Input |
Accepts one non-contacting 3300 NSv probe and extension cable |
|
Operating Voltage |
-17.5 to -26 VDC (without barriers); -23 to -26 VDC (with barriers) |
|
Current Consumption |
12 mA max |
|
Output Resistance |
50 Ω |
|
Supply Sensitivity |
< 2 mV per volt change in input |
|
Linear Range |
0.25 to 1.75 mm (10 to 70 mils) |
|
Recommended Gap |
1.0 mm (40 mils) |
|
Incremental Scale Factor |
7.87 V/mm (200 mV/mil), +12.5%/-20% |
|
Probe Compatibility |
3300 NSv probes only |
|
Material - Case |
A380 aluminum |
|
Max Altitude |
2000 m |
|
Operating Temperature |
0°C to +45°C (for rated accuracy) |
|
Extension Cable Length |
Compatible with probe length totaling 7 m system length |
|
Environmental Sealing |
Designed for industrial use (connector protectors recommended) |
