Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Bently Nevada (a Baker Hughes business) |
|
Part Number |
330930-065-05-RU |
|
Product Type |

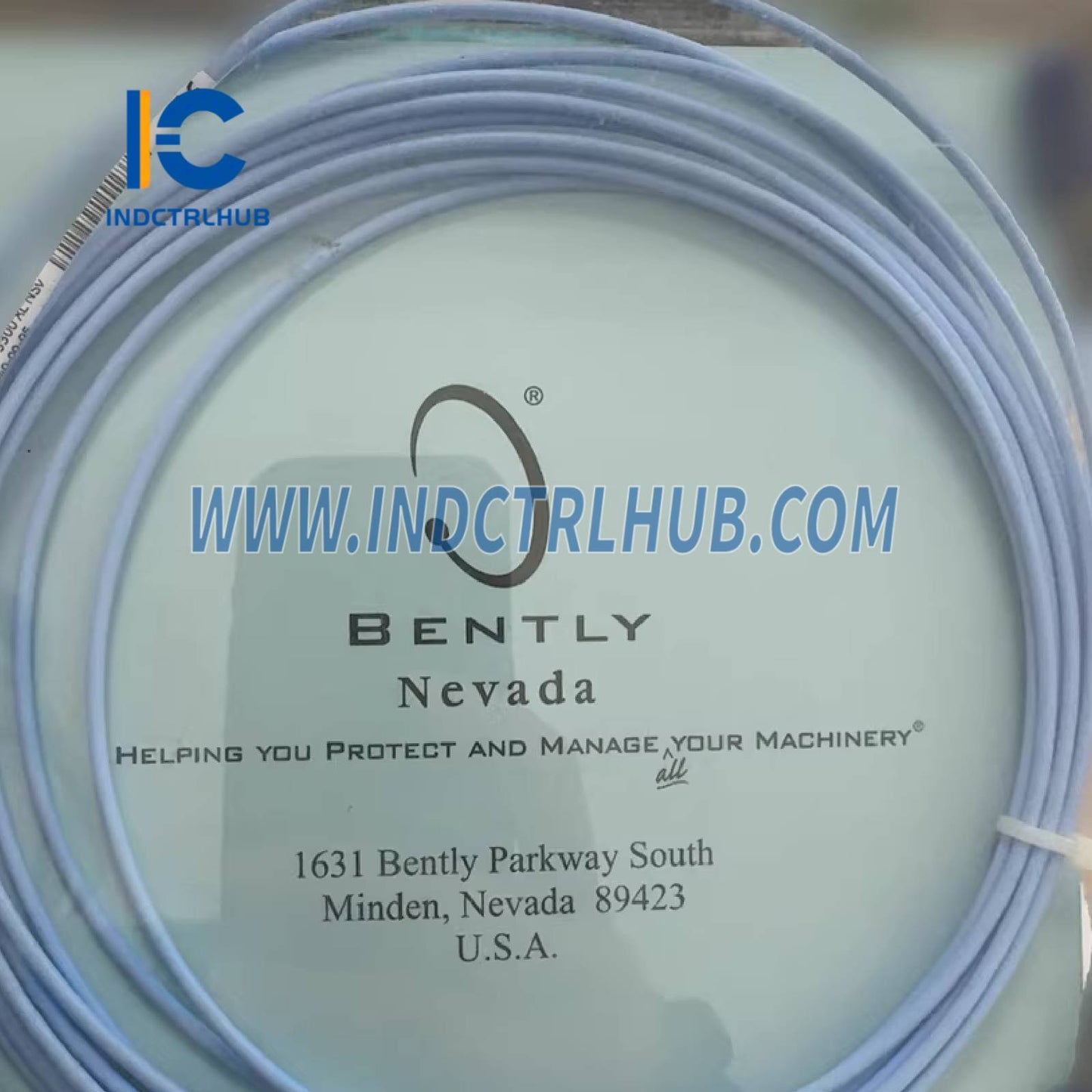

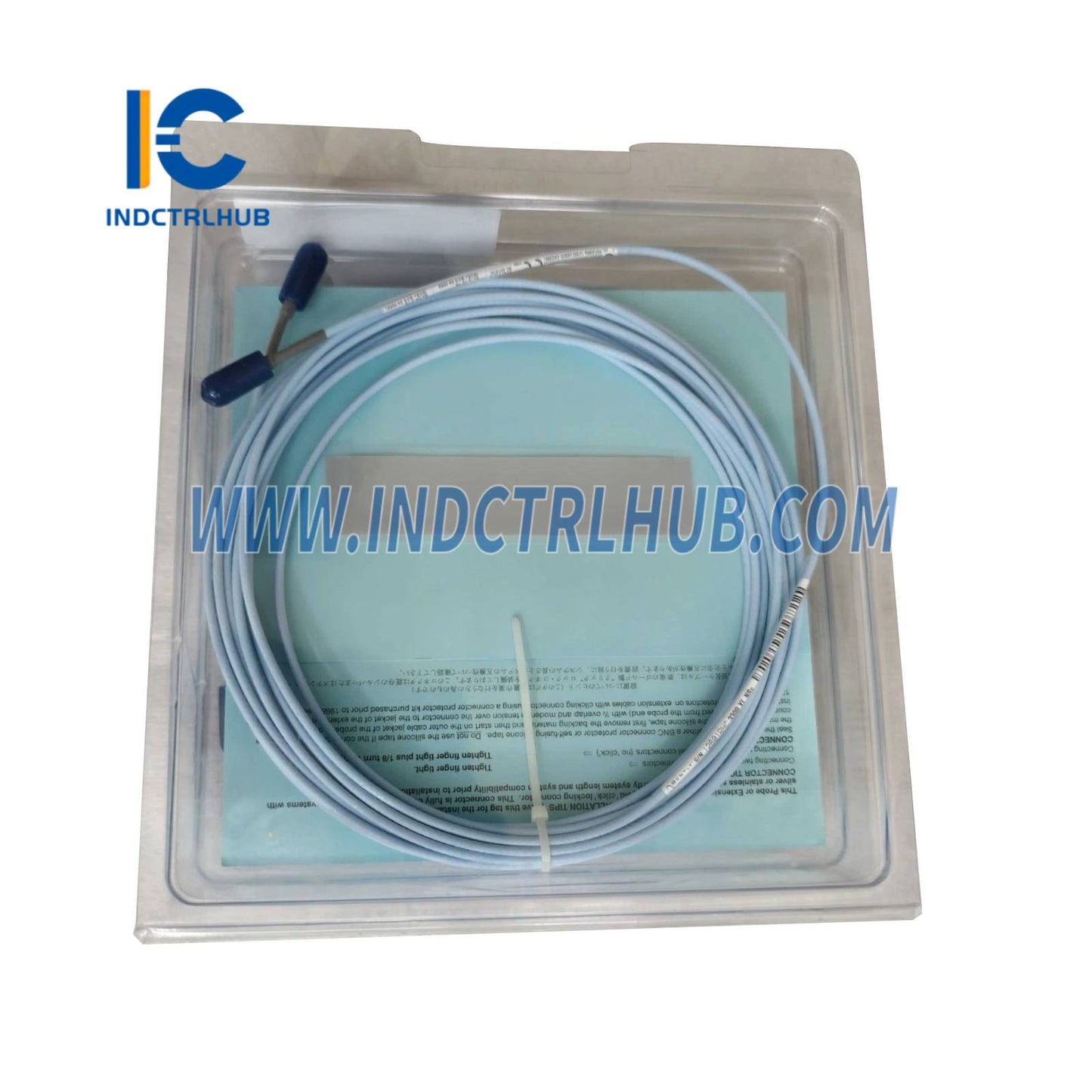

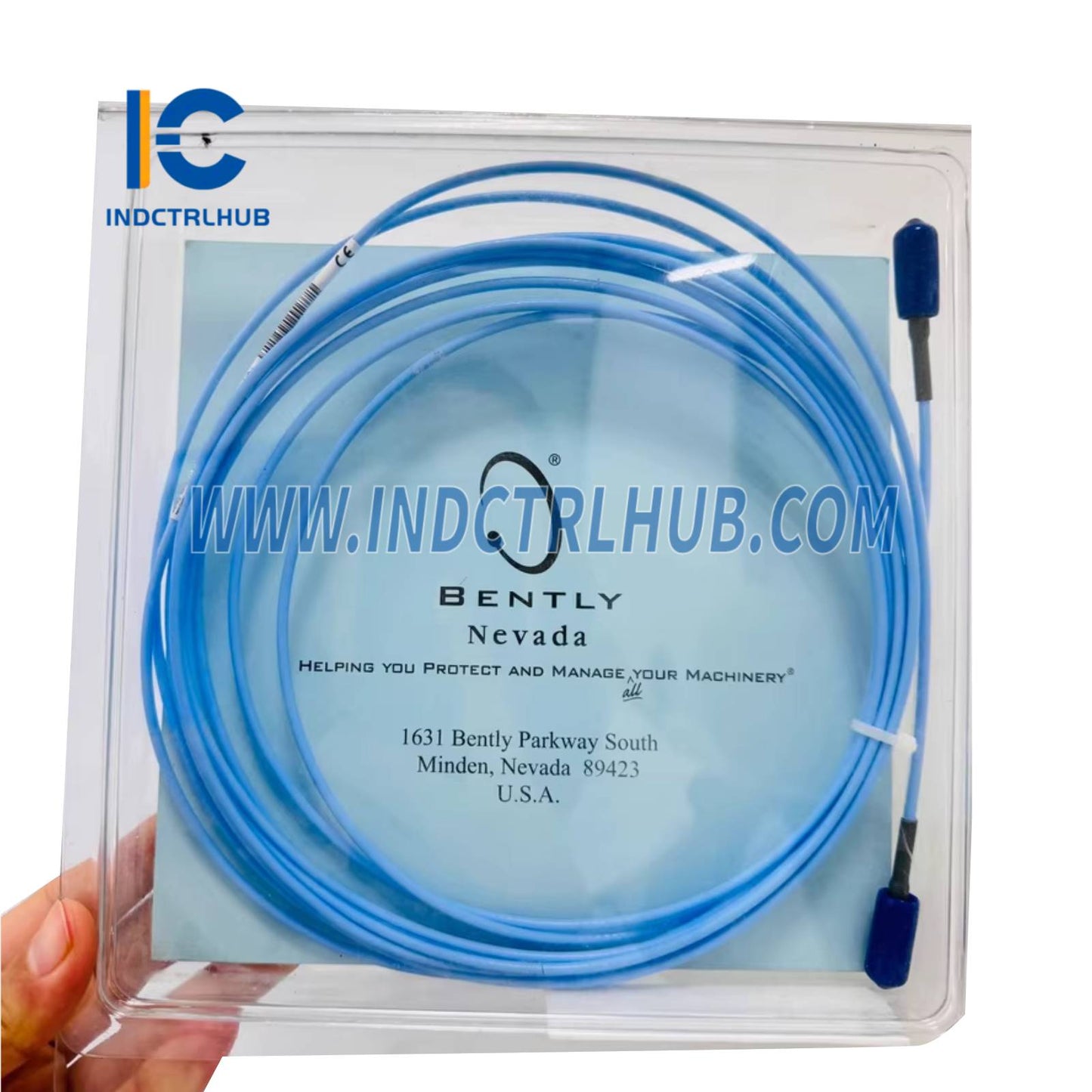

3300 XL NSv Extension Cable |
|
Application |
Used in 3300 XL NSv Proximity Transducer System for connecting probe to sensor |
|
System Compatibility |
3300 XL NSv System – designed for narrow gaps and small shaft targets |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Cable Length (A) |
6.5 meters (denoted by “065”) |
|
Connector/Cable Option (B) |
05 – Stainless steel armor only (no FEP jacket or connector protector) |
|
Agency Approval Option (C) |
RU – Certified for use in Russian markets |
|
Cable Type |
75 Ω coaxial cable |
|
Outer Shielding |
Stainless steel armor (durable mechanical protection) |
|
Jacket |
No FEP jacket (unlike option 04) |
|
Connector Protector |
Not included (option 05 lacks protector) |
|
Environmental Resistance |
Good (via armor), but less than FEP-jacketed versions |
|
Temperature Range (Typical) |
–51°C to +177°C (based on NSv system specs) |
|
Minimum Bend Radius |
25.4 mm (1 inch), applicable for armored cables |
|
Installation Note |
Designed for precise system impedance and signal transmission. Cable length must match system calibration requirement |
