Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Bently Nevada (a Baker Hughes business) |
|
Part Number |
330930-065-04-RU |
|
Product Type |

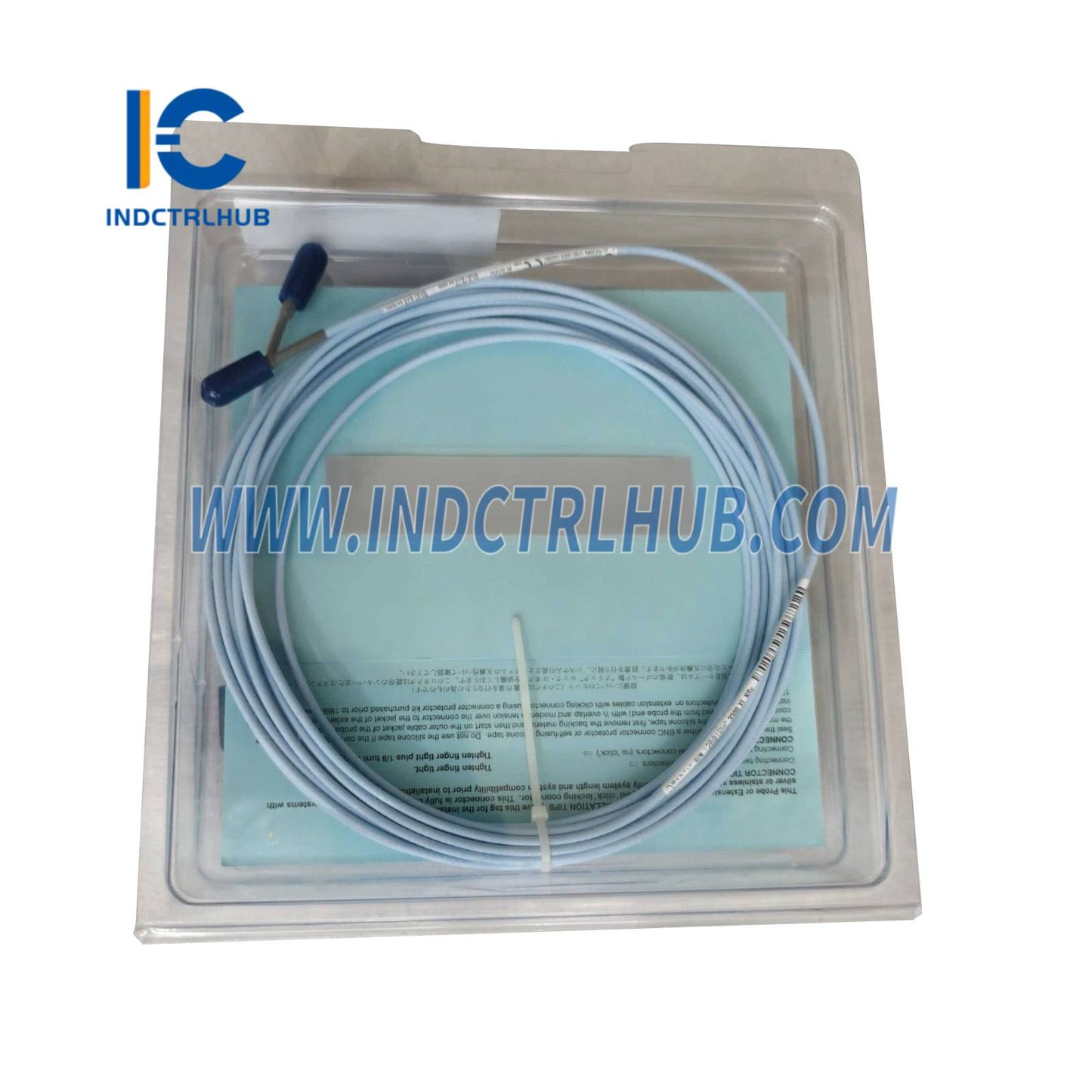

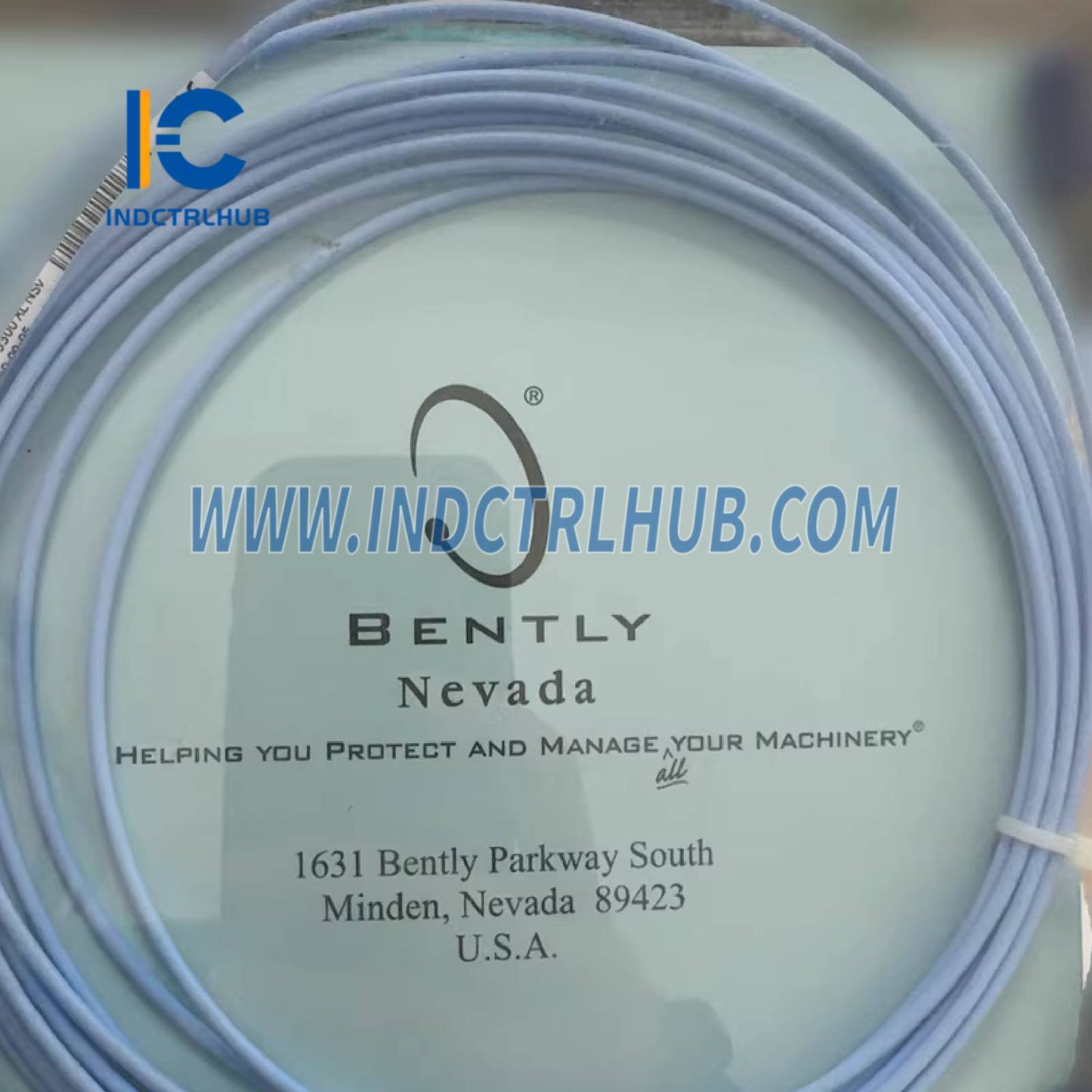

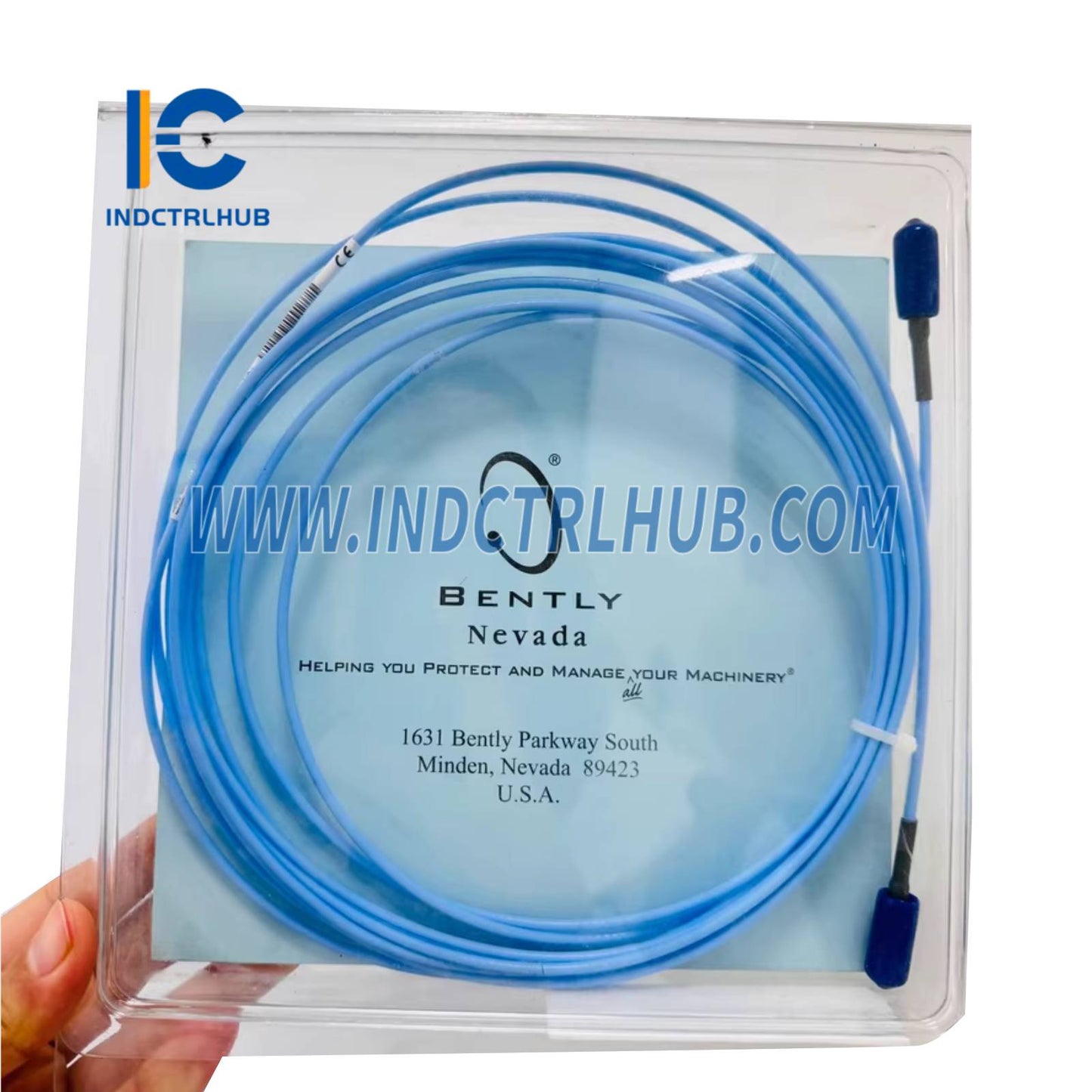

3300 XL NSv Extension Cable |
|
Application |
Used with 3300 XL NSv Proximity Transducer System to connect probe to sensor |
|
System Compatibility |
3300 XL NSv System (optimized for small targets and restricted spaces) |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Cable Length (A) |
6.5 meters (specified by “065”) |
|
Connector and Cable Option (B) |
04: Stainless steel armor, with FEP jacket, and connector protector |
|
Agency Approval Option (C) |
RU: Russian certification |
|
Cable Type |
75 Ω coaxial cable, FEP insulated |
|
Outer Jacket |
FEP (Fluorinated Ethylene Propylene), provides environmental resistance |
|
Armor |
Stainless steel |
|
Connector Protector |
Included (protects from contamination and damage) |
|
Operating Temperature |
Typically -51°C to +177°C (based on 3300 XL NSv system standard range) |
|
Minimum Bend Radius |
25.4 mm (1.0 inch) minimum (for armored cable) |
|
Electrical Characteristics |
Maintains system impedance and signal integrity over distance |
|
Environmental Protection |
Hermetically sealed connectors and ruggedized armor with FEP jacket |
|
Installation Note |
Cable length must match the probe + extension cable total length requirement for proper calibration |
