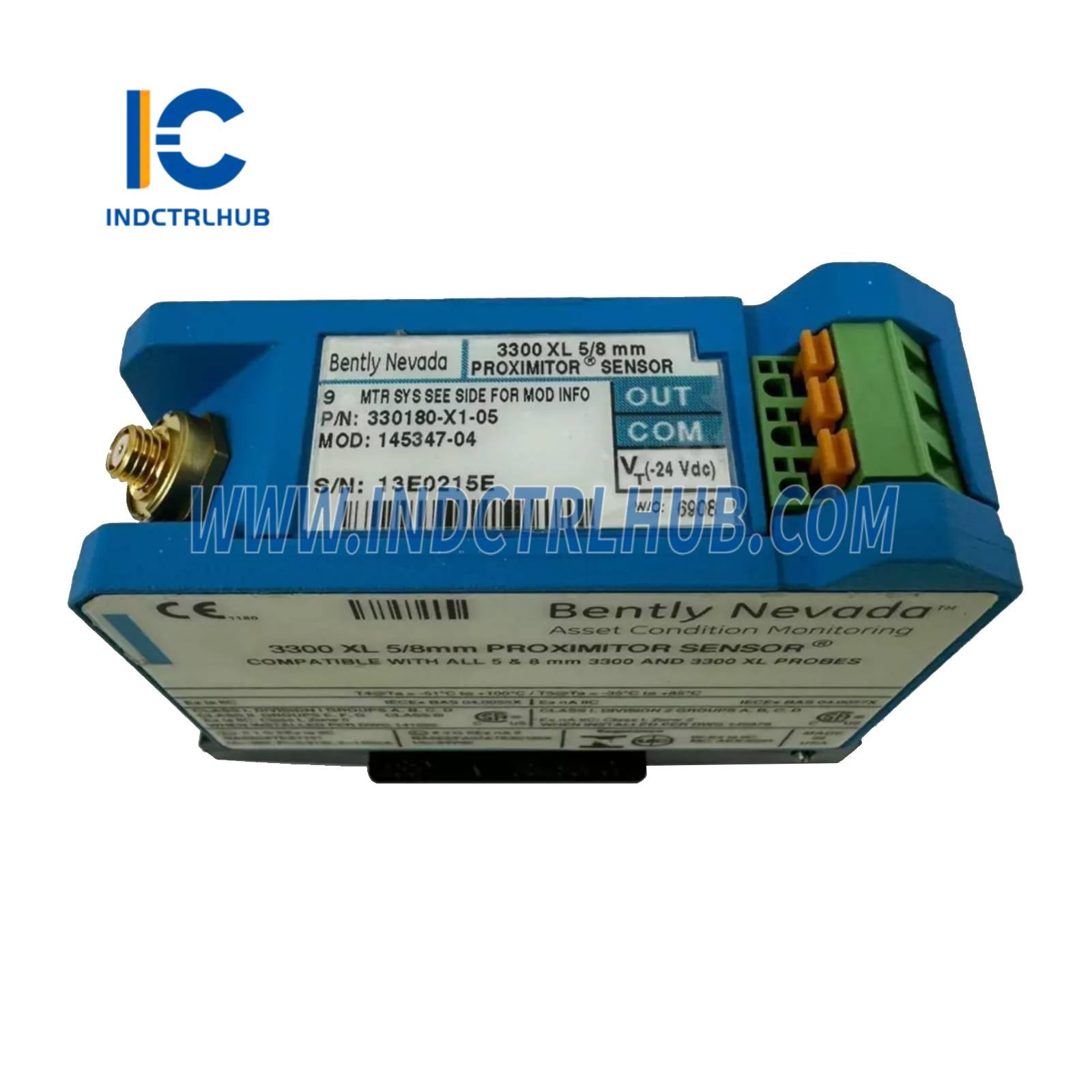

Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Bently Nevada (a Baker Hughes business) |
|
Series |
3300 XL 8 mm Proximity Transducer System |
|
Model/Part Number |
330180-X1-05 MOD 145193-01 |
|
Product Type |

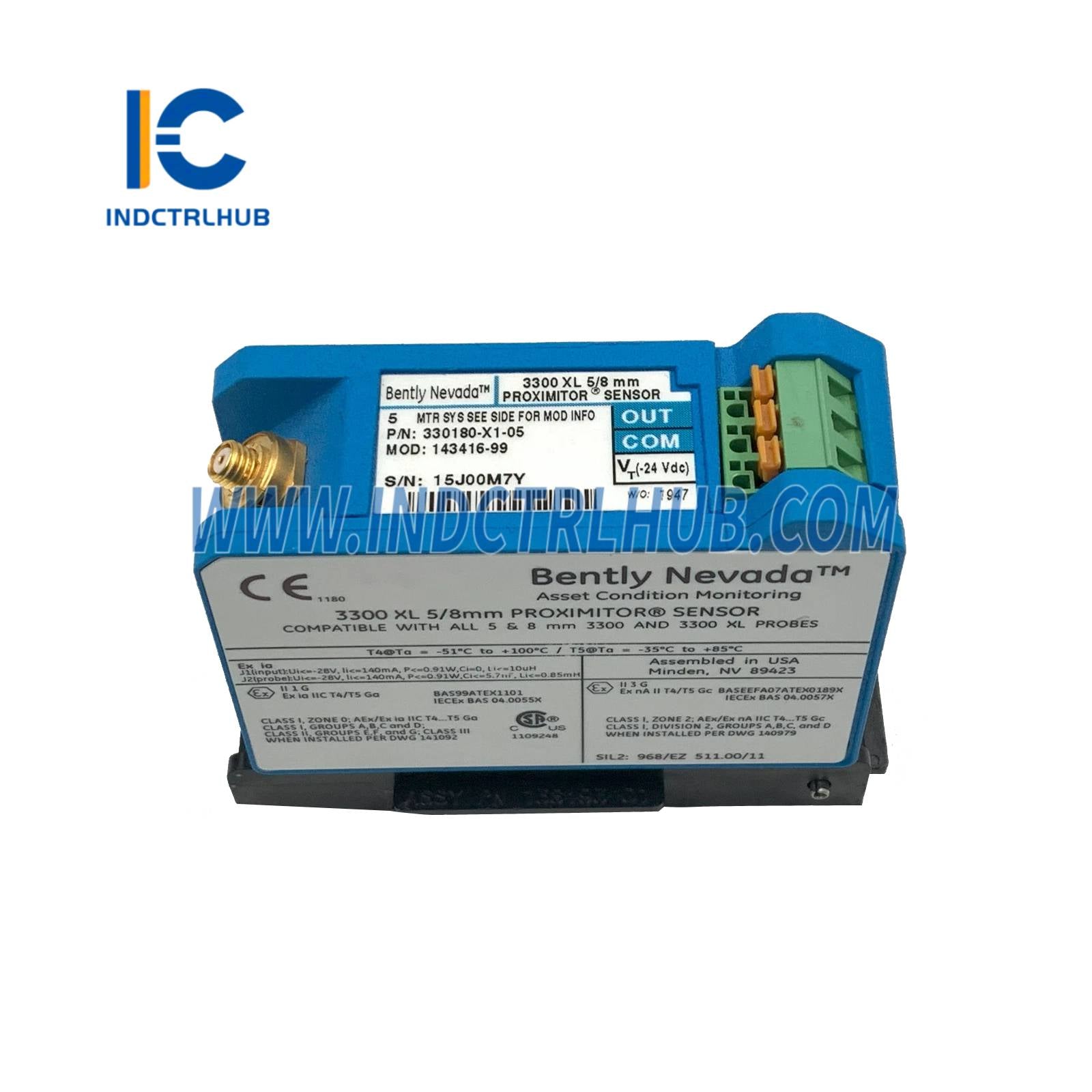

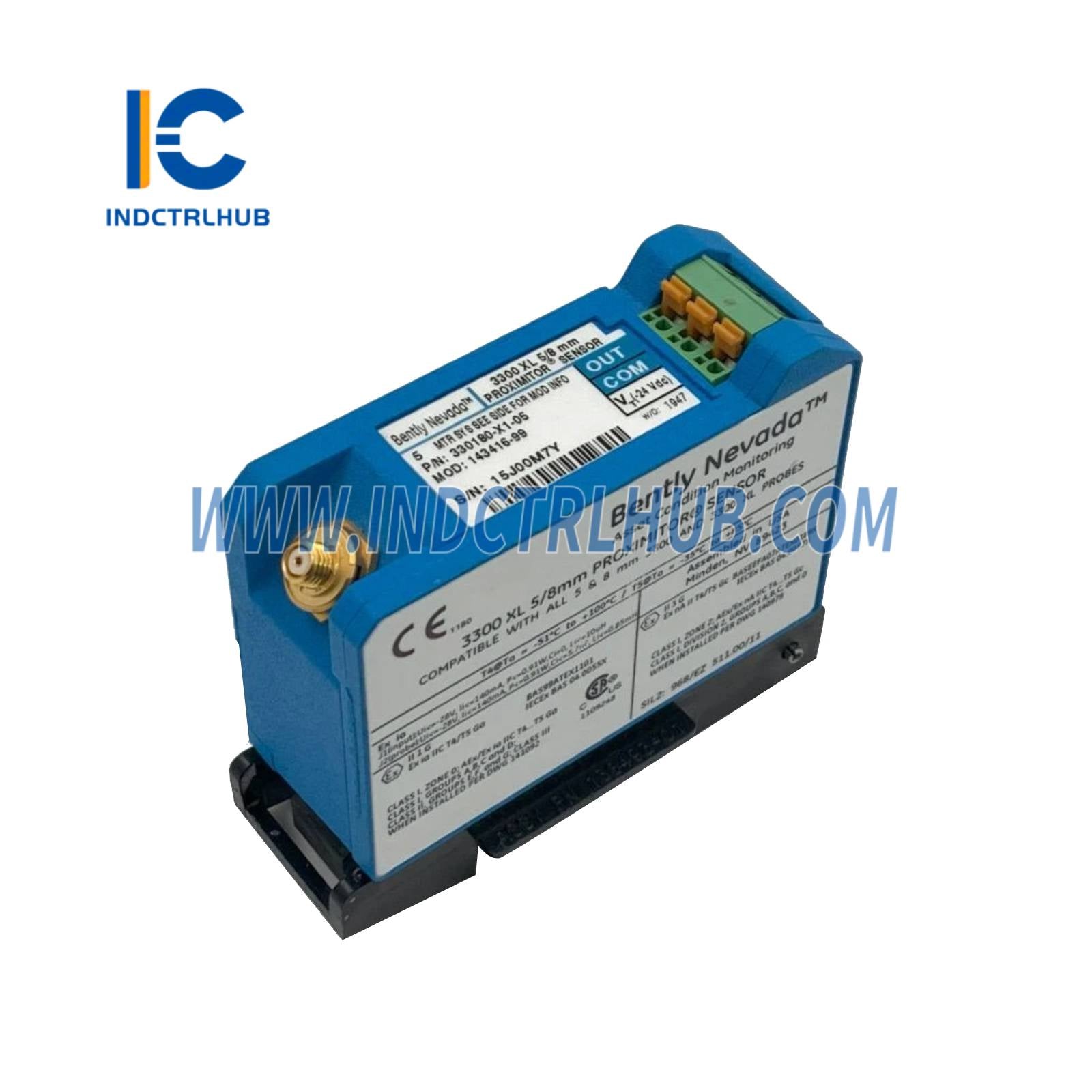

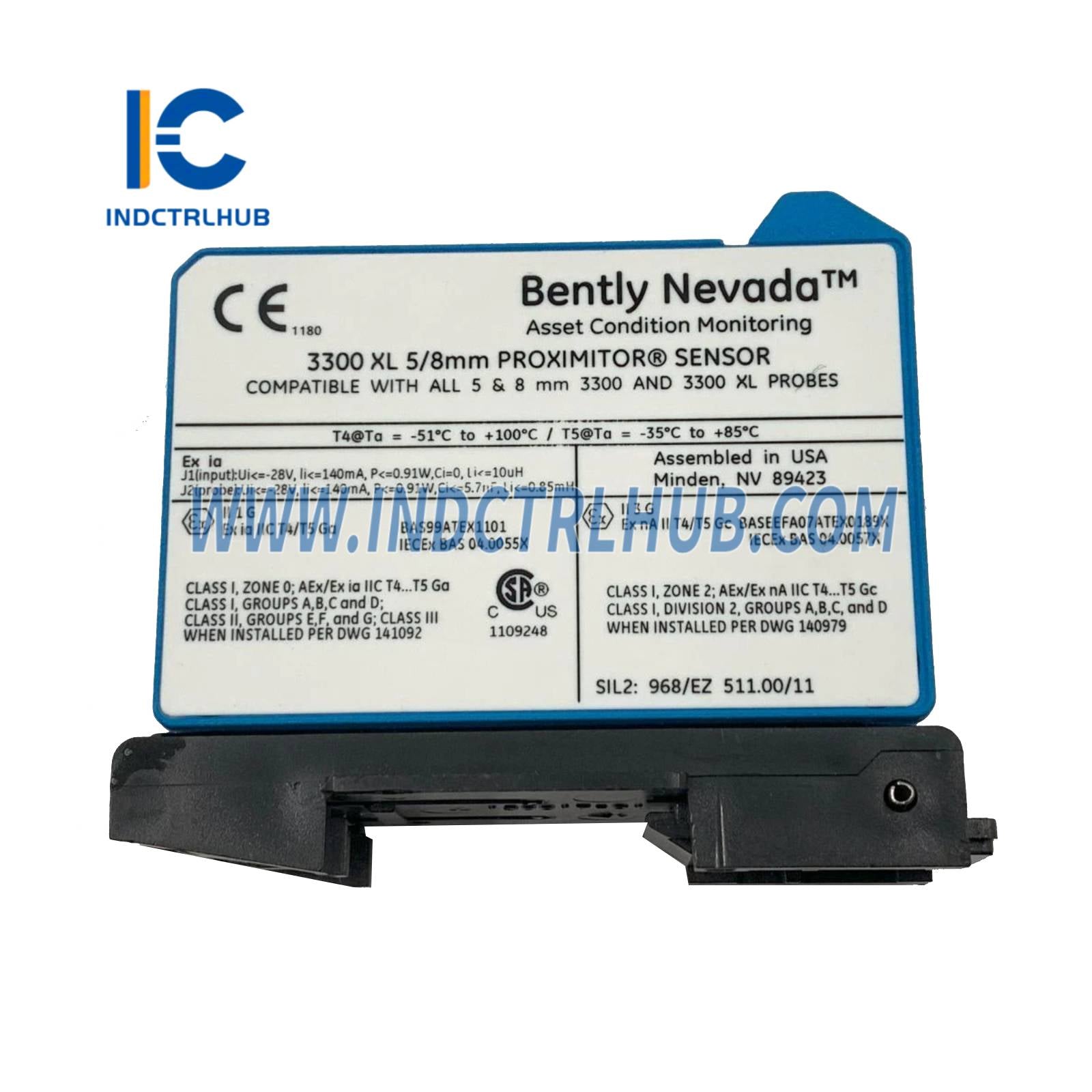

Proximitor Sensor |
Ordering Code Breakdown
|
Segment |
Description |
|---|---|
|
330180 |
3300 XL Proximitor Sensor |
|
X1 |
System length and mounting style (e.g., “X1” indicates DIN mount, 9 m) |
|
05 |
Agency approvals (e.g., 05 = CSA, ATEX, IECEx) |
|
MOD 145193-01 |
Custom modification reference |
Specifications
|
Parameter |
Value |
|---|---|
|
System Length |
9.0 meters (29.5 feet) |
|
Mounting Style |

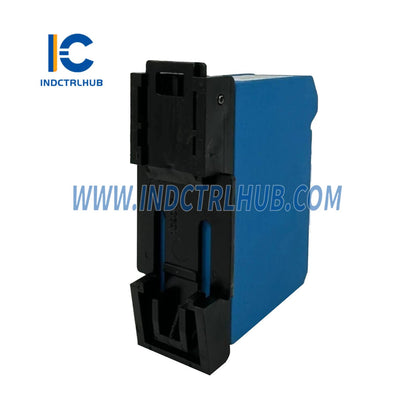

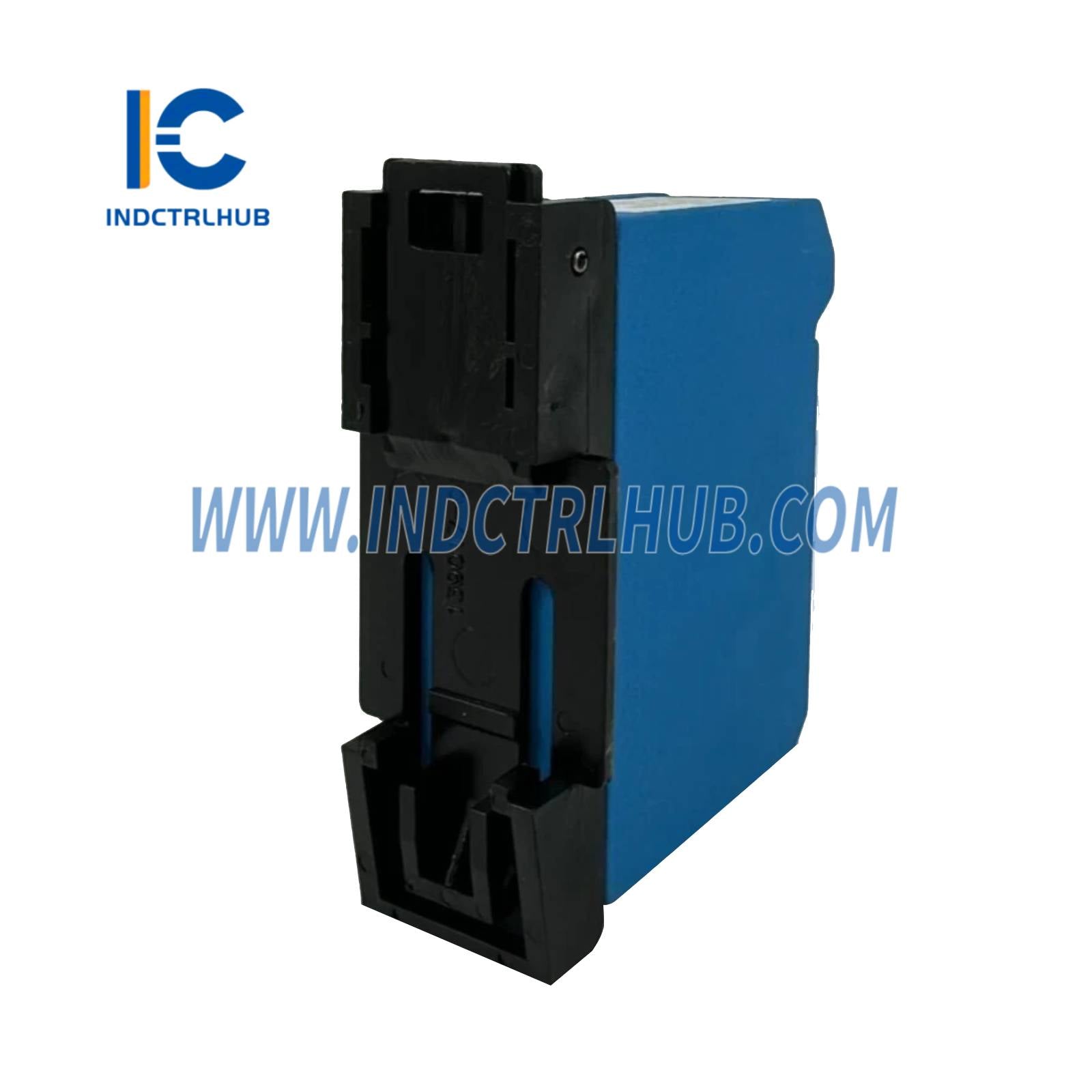

DIN rail mount |
|
Output |
-24 VDC |
|
Output Impedance |
10 kΩ (typical for standard Proximitor sensors) |
|
Operating Temperature |
-35°C to +100°C |
|
Storage Temperature |
-51°C to +177°C |
|
Humidity |
100% non-condensing (hermetically sealed) |
|
Probe Compatibility |
Compatible with 3300 XL 8 mm proximity probes |
|
Extension Cable Compatibility |
Use with 330130 series extension cables (to complete system length) |
|
Enclosure Protection |
IP65 or better (when used in proper housing) |
|
Electrical Isolation |
Case isolated |
|
Certifications |
CSA, ATEX, IECEx approved (Option 05) |
