Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Bently Nevada (a Baker Hughes business) |
|
Model/Part Number |
330180-91-EN |
|
Series |
3300 XL 8 mm Proximity Transducer System |
|
Description |

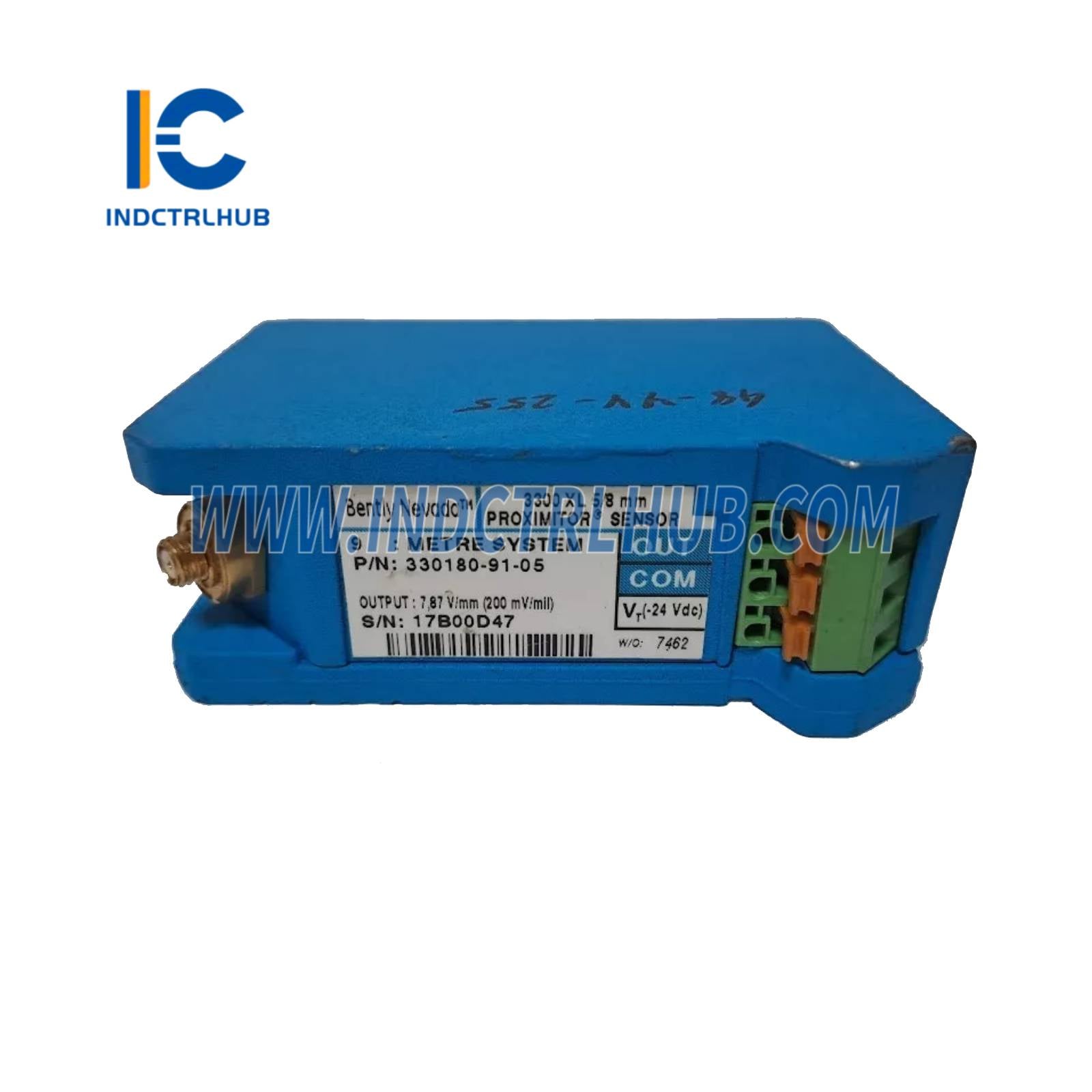

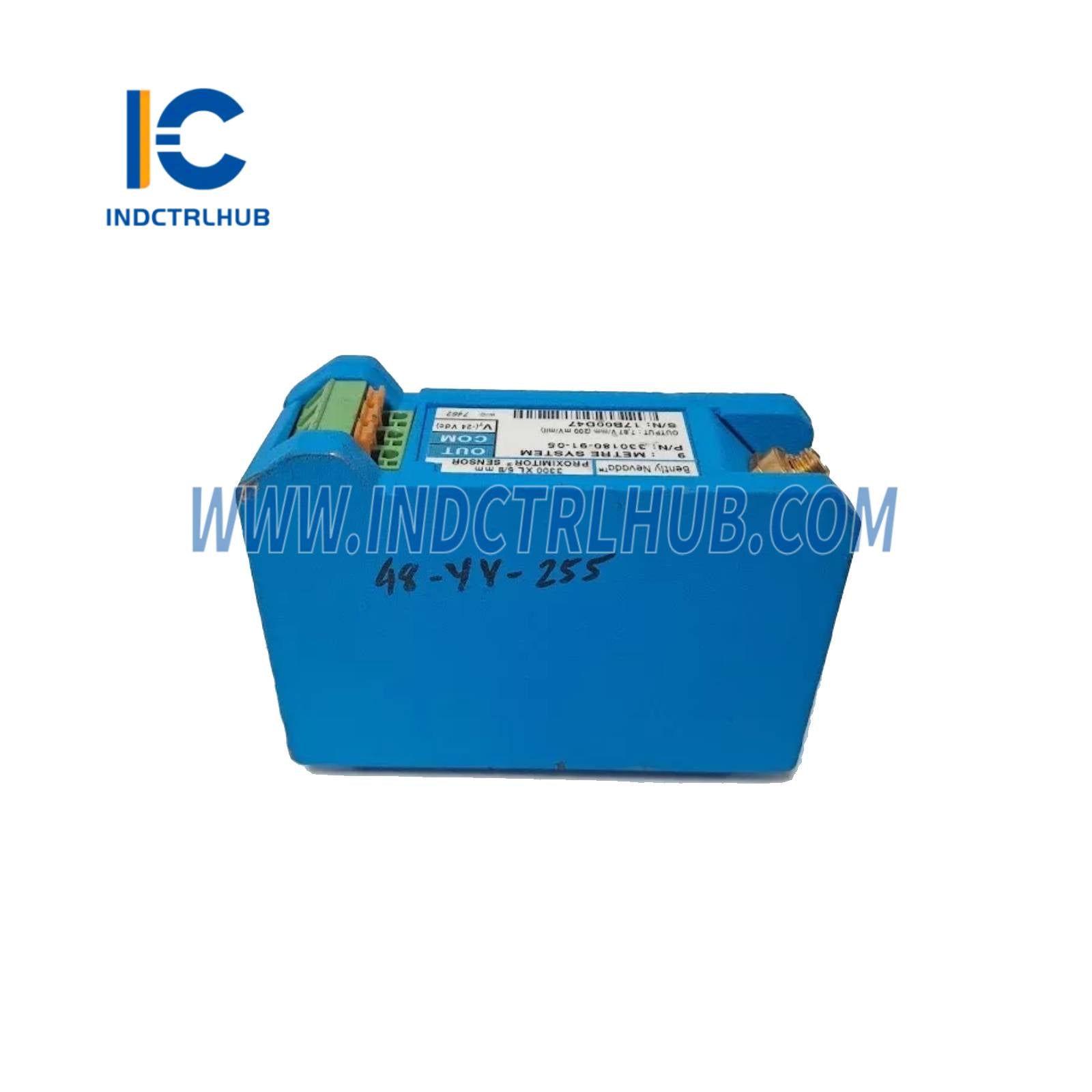

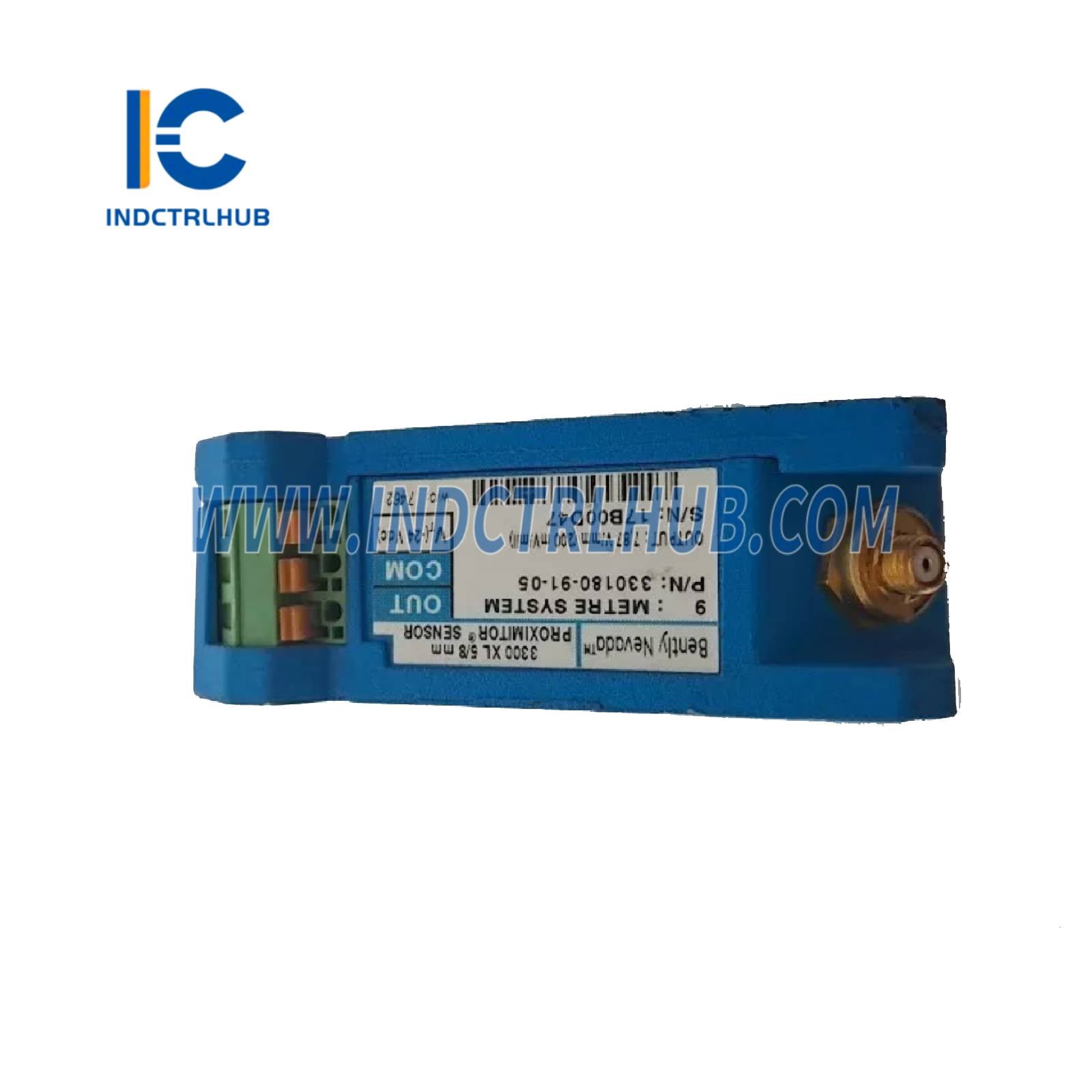

Proximitor Sensor, 9.0 meters, DIN mount, with approvals |
Technical Specifications
|
Specification |
Value |
|---|---|
|
System Length |
9.0 meters (29.5 feet) |
|
Mounting |
DIN rail mount |
|
Compatibility |
Works with 3300 XL 8 mm probe and 3300 XL extension cable |
|
Input |
Accepts one non-contacting 3300 XL 8 mm proximity probe and extension cable |
|
Output Resistance |
50 Ω |
|
Power Requirements |
-17.5 Vdc to -26 Vdc (typical -24 Vdc) |
|
Supply Sensitivity |
< 2 mV output change per volt input change |
|
Linear Range |
0.25 mm to 2.3 mm (10 to 90 mils) |
|
Recommended Gap Voltage |
-9 Vdc (approx. 1.27 mm / 50 mils) |
|
Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) ±6.5% (including interchangeability error) |
|
Deviation from Best Fit Line |
< ±0.038 mm (±1.5 mils) |
|
Frequency Response |
0 to 10 kHz (+0, -3 dB) with up to 305 m (1000 ft) of field wiring |
|
Minimum Target Size |
15.2 mm (0.6 in) diameter |
|
Minimum Shaft Diameter |
50.8 mm (2 in); recommended ≥76.2 mm (3 in) |
|
Operating Temperature Range |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature Range |
-52°C to +105°C (-62°F to +221°F) |
|
Humidity |
≤ 3% change in scale factor at 93% humidity (IEC 68-2-3) |
|
Total System Weight |
0.7 kg (1.5 lb) |
|
Proximitor Sensor Material |
A308 aluminum |
|
Connector Type |
ClickLoc gold-plated brass or beryllium copper, finger-tight installation |
Compliance & Certifications
|
Certification |
Details |
|---|---|
|
EMC |
EN 61000-6-2 / EN 61000-6-4; EMC Directive 2014/30/EU |
|
FCC |
Part 15 compliant |
|
RoHS |
RoHS Directive 2011/65/EU |
|
Maritime |
Complies with ABS, DNV classifications |
|
Functional Safety |
SIL 2 (HFT = 0), SIL 3 (HFT = 1) |
|

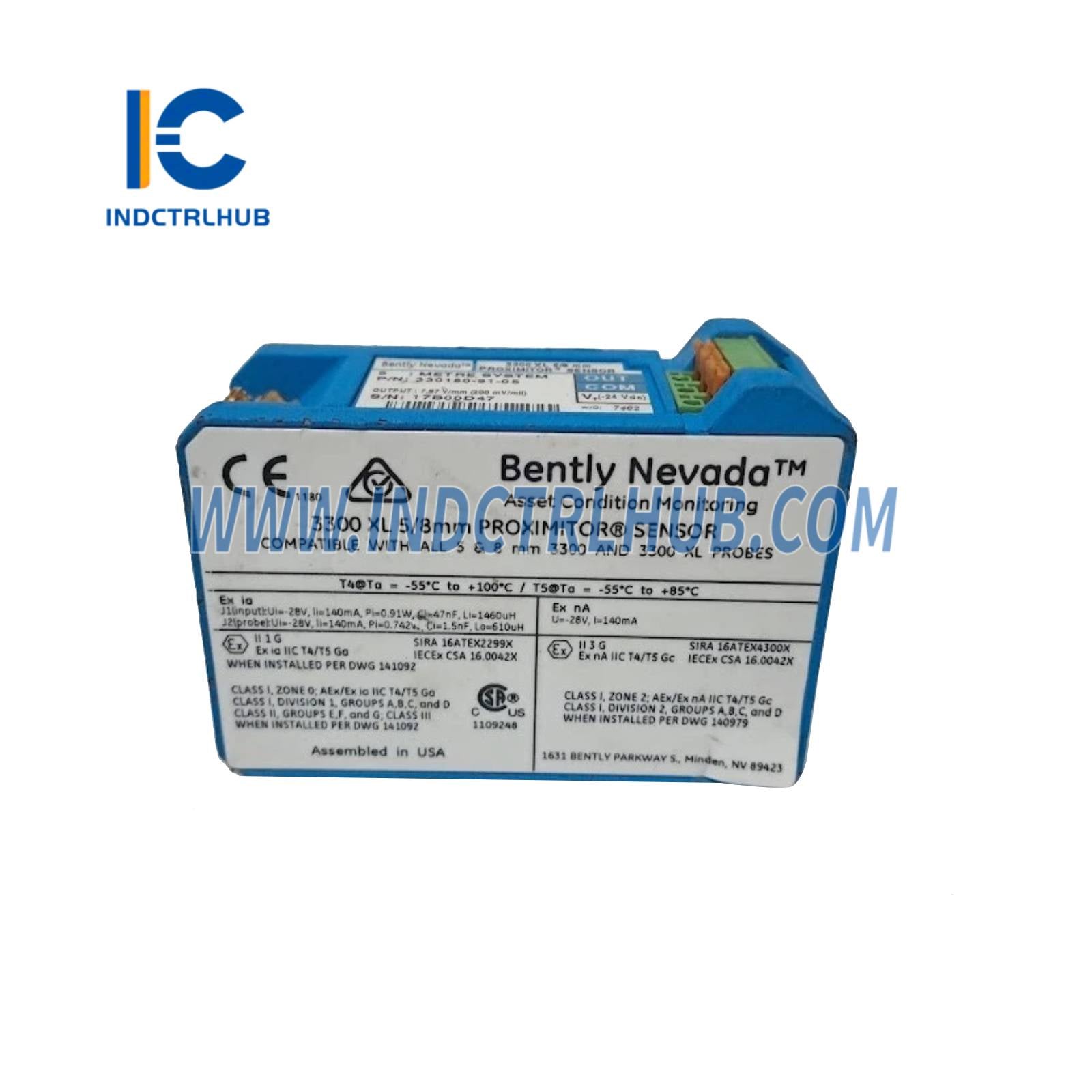

Hazardous Area Approvals |
CSA, ATEX, IECEx; Zone 0/1 and Zone 2 options included (option 05) |
