Bently Nevada 3300 XL 330103-00-07-10-02-05 Proximity Probe

Quantity

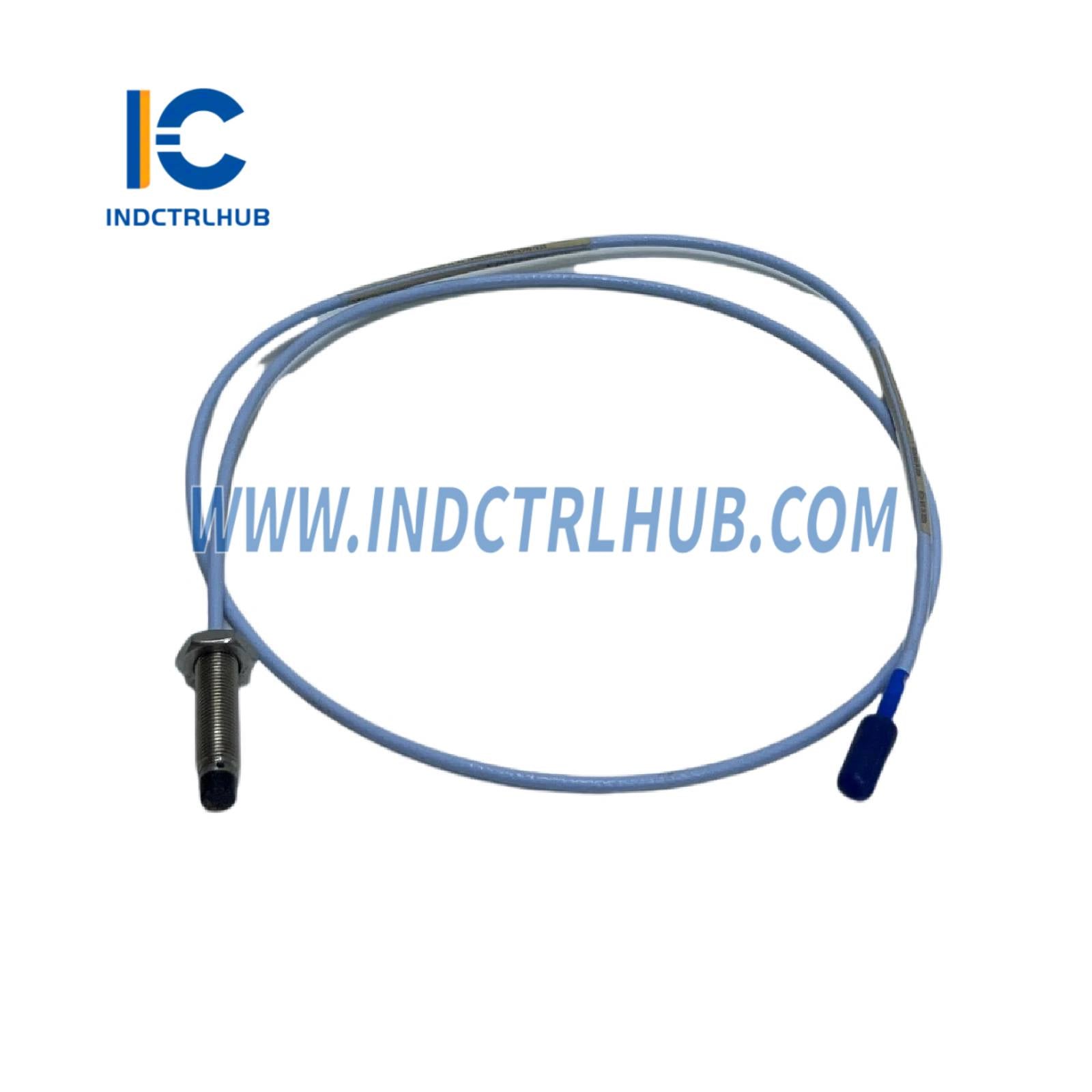

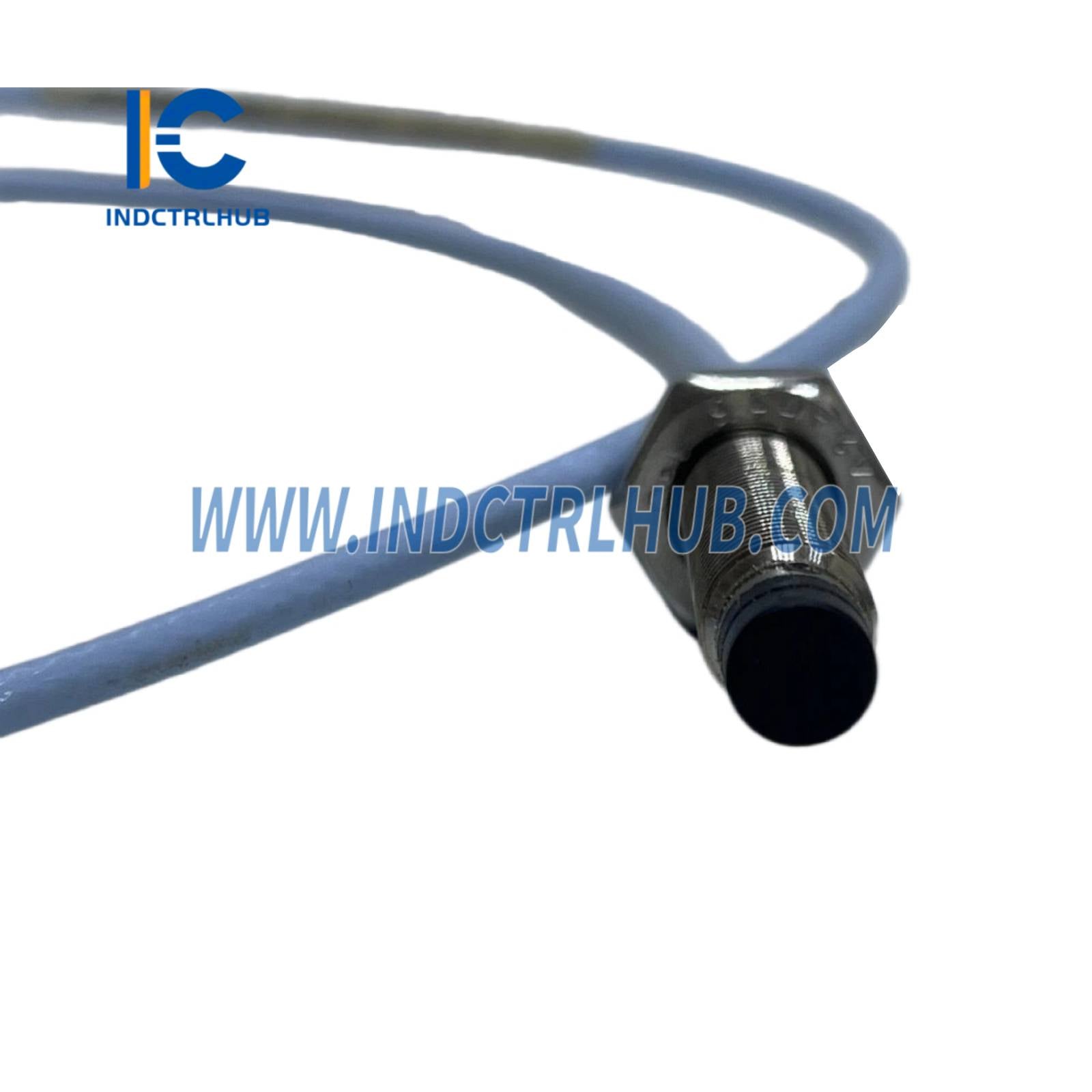

Bently Nevada 330103-00-07-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-07-10-02-05 is an 8 mm Proximity Probe from the 3300 XL Series, designed for non-contact vibration and displacement measurements in machinery condition monitoring. Using eddy current technology, it measures the distance between the probe tip and a conductive surface, ideal for applications such as radial vibration, axial position, tachometer, and Keyphasor signals on fluid-film bearing machines. Compliant with API 670 standards (4th Edition), it is used in critical industrial systems like gas/steam turbines, compressors, and pumps.

Specification	Details
Model	330103-00-07-10-02-05
Series	3300 XL
Type	Proximity Probe (Eddy Current)
Probe Tip Diameter	8 mm
Measurement Range	2 mm (80 mils) linear range, 0.25–2.25 mm (10–90 mils) gap
Average Scale Factor	7.87 V/mm (200 mV/mil)
Unthreaded Length	0 mm (00)
Overall Case Length	70 mm (07)
Total Length	1.0 meter (3.3 feet)

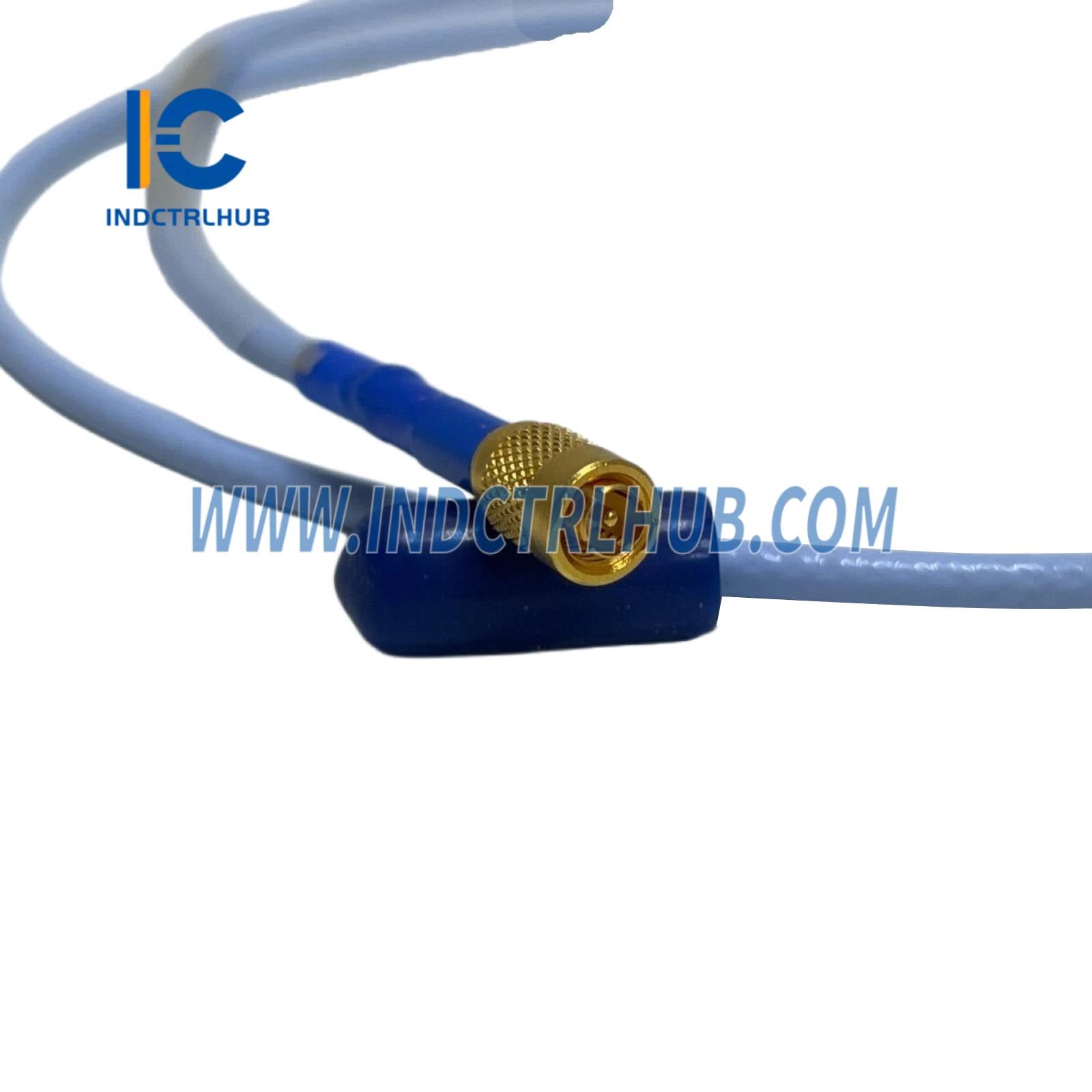

Connector Type	Miniature coaxial ClickLoc, stainless steel
Agency Approvals	Multiple Approvals (CSA, ATEX, CE)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Probe Pressure	Seals differential pressure with Viton O-ring (not pressure-tested)
Operating Temperature	-52°C to +177°C (-62°F to +350°F)
Storage Temperature	-52°C to +177°C (-62°F to +350°F)
Protection Rating	IP65 (estimated, for industrial environments)
Frequency Response	0 Hz (DC) to 10 kHz
Weight	Approximately 0.1 kg (0.22 lbs)
Mounting	Threaded case (M10 x 1 or 3/8-24 UNF options)
System Components	Compatible with 3300 XL 8 mm Proximitor Sensor (e.g., 330180) and extension cables
Interchangeability	Fully interchangeable with 3300 XL 8 mm probes, cables, and Proximitor Sensors without calibration
Applications	Radial vibration, axial position, tachometer, Keyphasor signals

The Bently Nevada 330103-00-07-10-02-05 is an 8 mm Proximity Probe from the 3300 XL Series, designed for non-contact vibration and displacement measurements in machinery condition monitoring. Using eddy current technology, it measures the distance between the probe tip and a conductive surface, ideal for applications such as radial vibration, axial position, tachometer, and Keyphasor signals on fluid-film bearing machines. Compliant with API 670 standards (4th Edition), it is used in critical industrial systems like gas/steam turbines, compressors, and pumps.

Specification	Details
Model	330103-00-07-10-02-05
Series	3300 XL
Type	Proximity Probe (Eddy Current)
Probe Tip Diameter	8 mm
Measurement Range	2 mm (80 mils) linear range, 0.25–2.25 mm (10–90 mils) gap
Average Scale Factor	7.87 V/mm (200 mV/mil)
Unthreaded Length	0 mm (00)
Overall Case Length	70 mm (07)
Total Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc, stainless steel
Agency Approvals	Multiple Approvals (CSA, ATEX, CE)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Probe Pressure	Seals differential pressure with Viton O-ring (not pressure-tested)
Operating Temperature	-52°C to +177°C (-62°F to +350°F)
Storage Temperature	-52°C to +177°C (-62°F to +350°F)
Protection Rating	IP65 (estimated, for industrial environments)
Frequency Response	0 Hz (DC) to 10 kHz
Weight	Approximately 0.1 kg (0.22 lbs)
Mounting	Threaded case (M10 x 1 or 3/8-24 UNF options)
System Components	Compatible with 3300 XL 8 mm Proximitor Sensor (e.g., 330180) and extension cables
Interchangeability	Fully interchangeable with 3300 XL 8 mm probes, cables, and Proximitor Sensors without calibration
Applications	Radial vibration, axial position, tachometer, Keyphasor signals
