🎚️ Bently Nevada 3300/70-01-00 Dual Valve Position Indicator

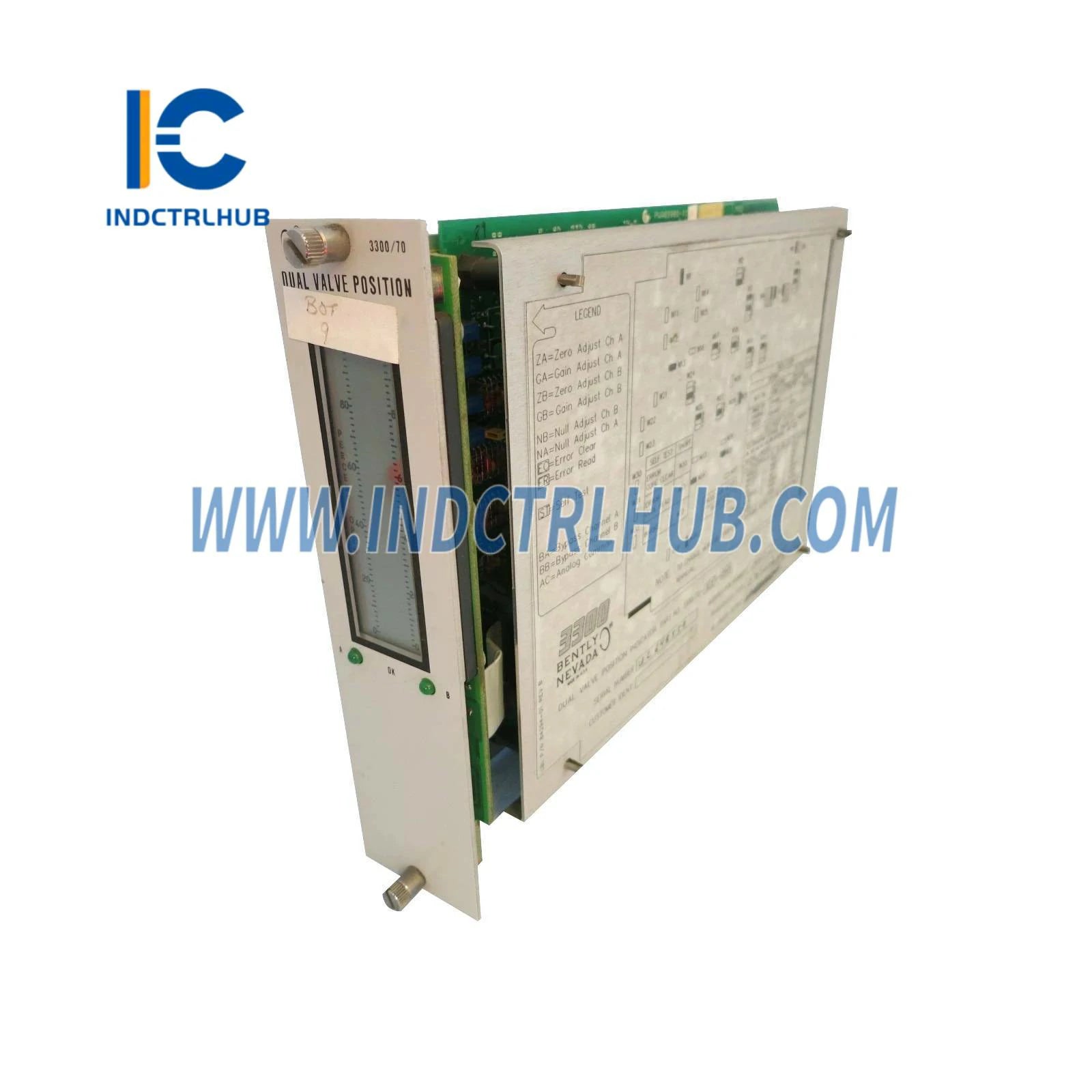

The Bently Nevada 3300/70-01-00 is a precision dual-channel valve position monitoring module engineered for continuous surveillance of critical control and safety valves in turbomachinery and process control applications. This rack-mounted instrument accepts inputs from LVDT (Linear Variable Differential Transformer) or potentiometric position sensors, providing real-time valve stem travel indication with programmable alarm thresholds.

📐 Performance Specifications

Module Designation: 3300/70-01-00

Channel Configuration: Dual Independent Monitoring Channels

Compatible Sensors:

• LVDT position transducers (±5V DC, ±10V DC)
• Potentiometric sensors (0-5kΩ, 0-10kΩ)
• 4-20mA current loop transmitters

Measurement Accuracy: ±0.5% of full scale

Input Impedance: >1MΩ (voltage mode), 250Ω (current mode)

Output Signals: 4-20mA proportional, 0-10V DC buffered

Alarm Relays: 2× SPDT per channel (Alert/Danger setpoints)

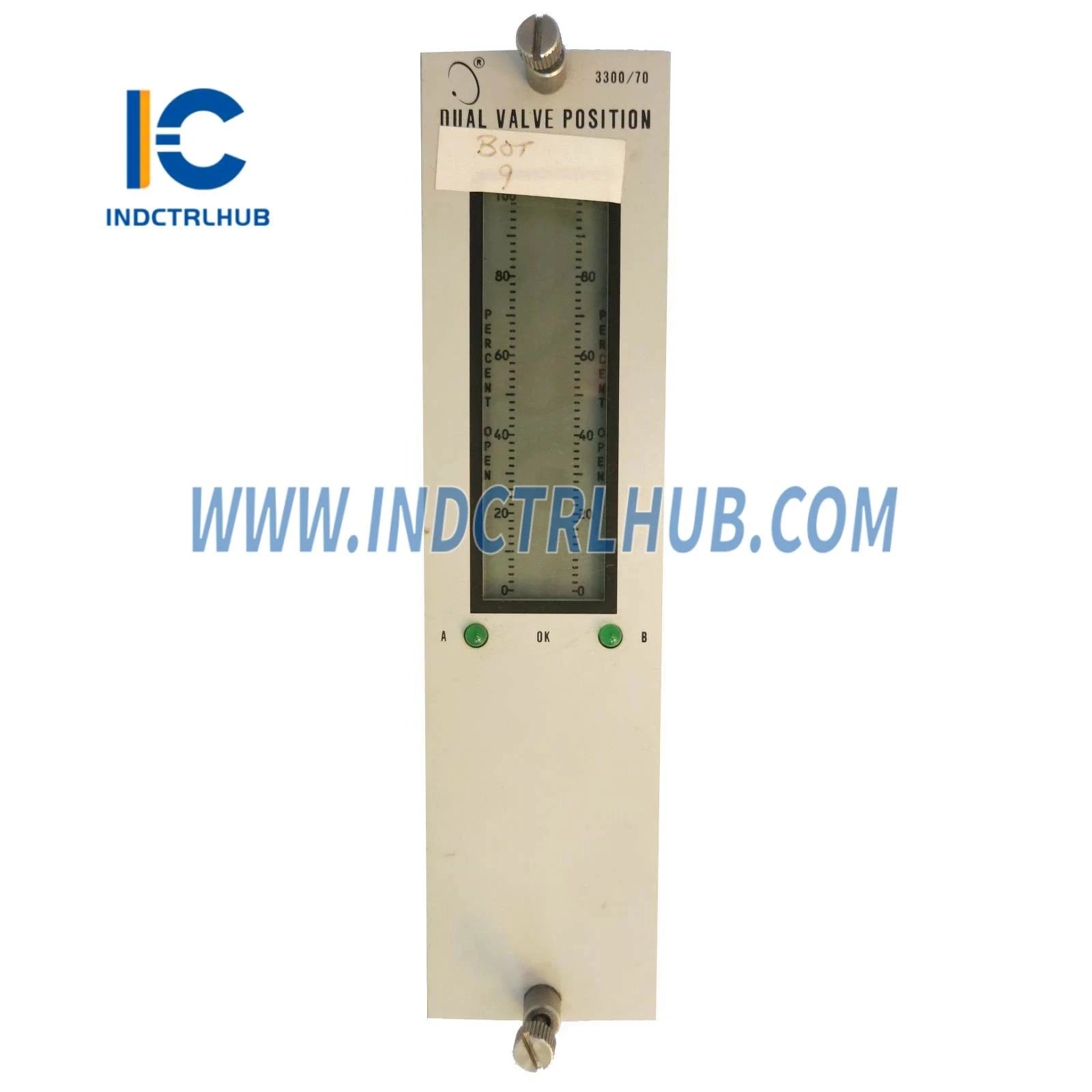

Display: Dual LED bargraph with 20-segment resolution

Update Rate: 100ms per channel

Power Requirements: -24V DC from 3300 rack backplane

Operating Range: -30°C to +65°C ambient

Compliance: API 670, CE, UL 508 listed

🔩 Critical Valve Monitoring Applications

Steam Turbine Control Valves: Tracks governor valve and intercept valve position in power generation turbines (100-1000 MW), detecting valve sticking, slow response, or partial stroking failures that reduce efficiency by 2-5% and risk overspeed trips.

Gas Turbine Fuel Valves: Monitors fuel control valve (FCV) and emergency shutdown valve (ESV) position in aero-derivative and industrial gas turbines, ensuring <100ms closure times during emergency stops to prevent combustor damage and compressor surge.

Compressor Anti-Surge Valves: Continuously verifies anti-surge valve (ASV) position in centrifugal compressors handling natural gas, ethylene, or air, preventing surge cycles that cause bearing failures and rotor damage costing $500K-$2M in repairs.

Safety Instrumented Systems: Provides SIL-rated position feedback for emergency isolation valves (EIV), blowdown valves (BDV), and pressure relief valves (PRV) in refineries and chemical plants, meeting IEC 61511 proof-test requirements.

🛠️ Operational Advantages

Partial Stroke Testing (PST): Enables online valve diagnostics by monitoring position during partial stroke tests, identifying degradation (packing friction, actuator wear, positioner drift) 6-12 months before complete failure without process shutdown.

Valve Signature Analysis: Records valve opening/closing profiles to detect abnormal behavior patterns—slow stroking indicates actuator air leaks, overshoot suggests positioner tuning issues, and hysteresis reveals mechanical binding or linkage wear.

Redundant Monitoring: Dual-channel architecture allows comparison of two independent position sensors on the same valve, triggering alarms when readings diverge by >5%, indicating sensor failure or mechanical problems before safety systems are compromised.

Integration Flexibility: Analog outputs connect to DCS systems (Honeywell, Emerson, Yokogawa), relay contacts interface with PLC safety logic, and RS-485 Modbus option enables SCADA integration for centralized valve health dashboards across multi-unit facilities.

📦 Module Package Contents

• 1× Bently Nevada 3300/70-01-00 Dual Valve Position Monitor
• Sensor wiring terminal blocks and labels
• Configuration guide with setpoint calculation worksheets
• Factory calibration certificate (NIST traceable)

Genuine Bently Nevada product with global service network support. Essential for instrumentation engineers, reliability teams, and SIS specialists managing critical valve assets in API 670-compliant machinery protection systems. Compatible with 3300 series monitoring racks and legacy 3300 XL infrastructure.
