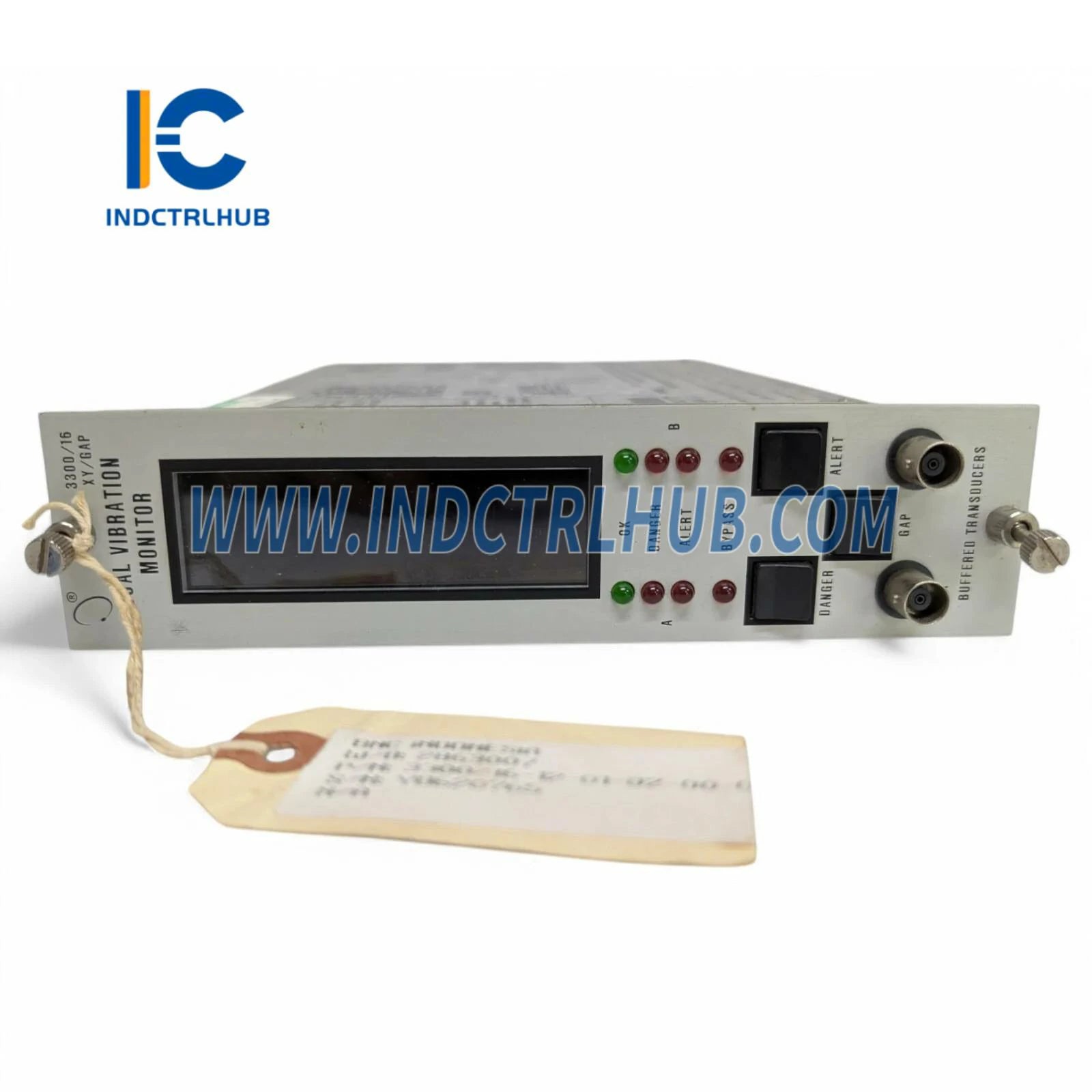

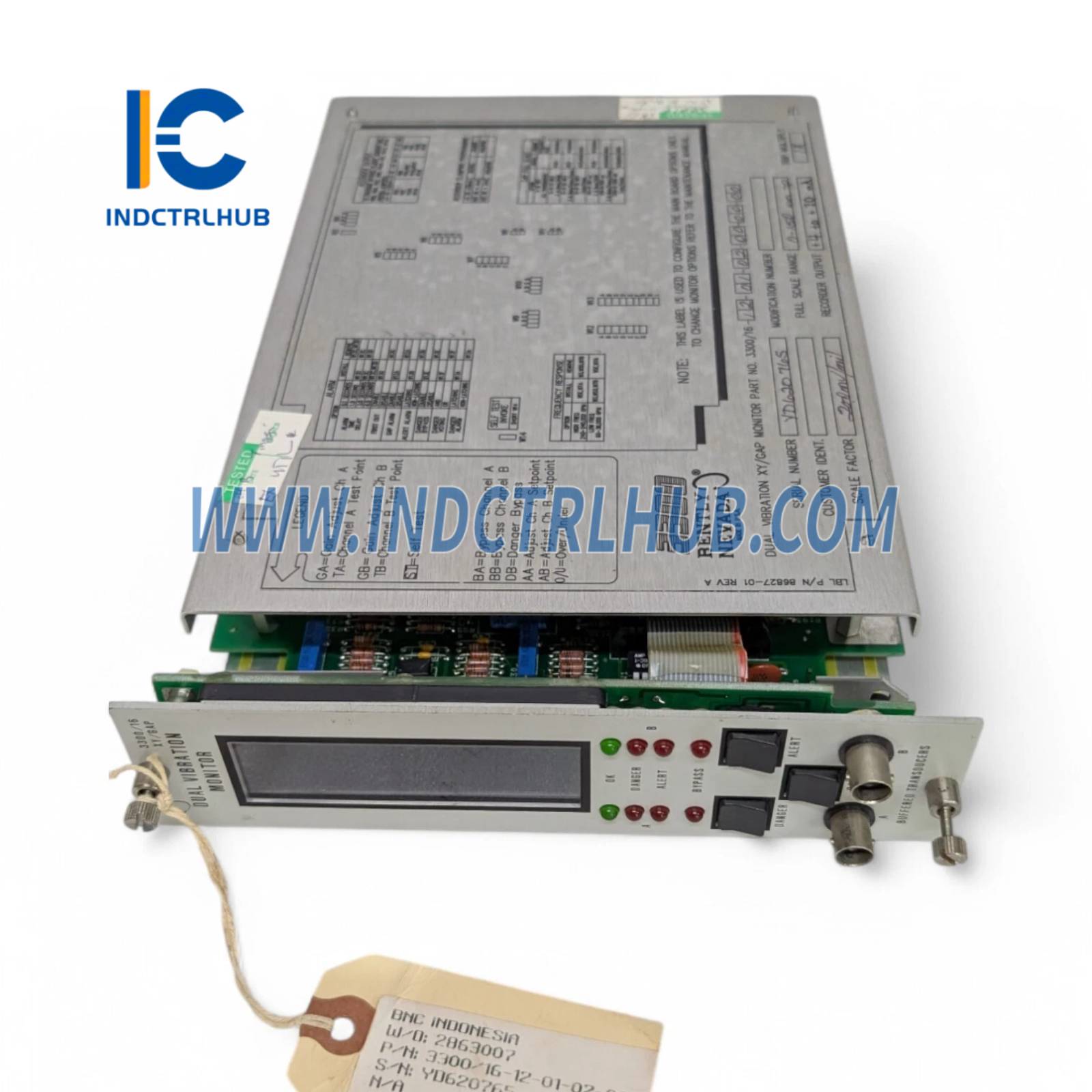

| Signal Inputs |
Accepts one or two proximity probe signals |
| Input Impedance |
10 kΩ |
| Sensitivity |
100 mV/mil (4 V/mm) or 200 mV/mil (8 V/mm) user-programmable |
| Power Consumption |
2 watts (nominal) |
| Signal Conditioning Accuracy at +25°C (+77°F) |
Within ±0.33% of full-scale typical, ±1% maximum, ±2% maximum with 2X Trip Multiply, ±3% maximum with 3X Trip Multiply |
| Frequency Response |
User-programmable for 4 to 4,000 Hz (240 to 240,000 cpm) or 1 to 600 Hz (60 to 36,000 cpm); -3dB nominal |
| Recorder Outputs |
User-programmable for +4 to +20 mA, 0 to -10 Vdc, or +1 to +5 Vdc, proportional to programmed monitor full-scale |
| Output Impedance (Voltage Outputs) |
100 Ω, minimum load resistance is 10 kΩ |
| Voltage Compliance (Current Outputs) |
0 to +12 Vdc range across load, load resistance is 0 to 600 Ω when using +4 to +20 mA option |
| Recorder Accuracy at +25°C (+77°F) |
+4 to +20 mA: ±0.7% of signal, ±0.09 mA offset; +1 to +5 Vdc: ±1.1% of signal, ±10 mV offset; 0 to -10 Vdc: ±1.1% of signal, ±15 mV offset |
| Buffered Transducer Outputs Impedance |
100 Ω |
| Transducer Supply Voltage |
User-programmable for -24 Vdc or -18 Vdc, current limited on individual monitor circuit board |
| Alarm Setpoints Resolution |
Alarms are digitally adjustable from 0 to 100% of full-scale, can be set within LCD resolution (±1.6%) |
| Alarm Setpoints Repeatability |
Once set, alarms are repeatable within ±0.39% of full-scale |
| Gap Alarm Time Delay |
6 seconds |

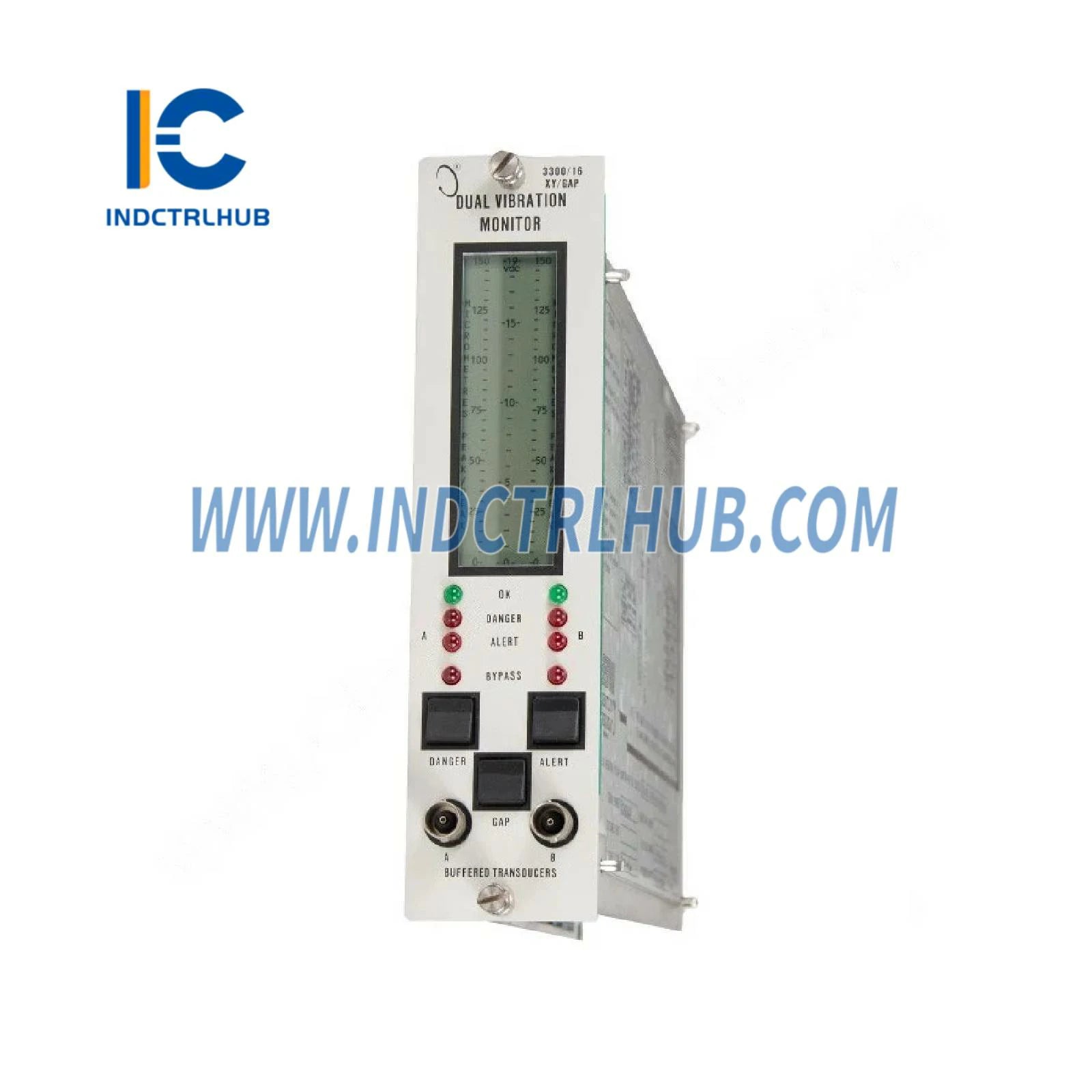

| Display Resolution |
Within ±1.6% of monitor full-scale |
| Display Size |
83 mm (3.25 in), vertical dimension |
| Operating Temperature |
0°C to +65°C (+32°F to +150°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
To 95%, non-condensing |
| Weight |
1 kg (2.2 lbs) |
| Full-scale Range Option (A) |
0-5 mils peak-to-peak (pp) |
| Transducer Input Option (B) |
3300 8 mm, 3300 XL 8mm or 7200 5 mm and 8 mm Proximitor Sensor, 200 mV/mil |
| Alarm Relay Option (C) |
No Relays |
| Agency Approval Option (D) |
Not required |
| Safety Barrier Option (E) |
None |
| Trip Multiply Option (F) |
None |
