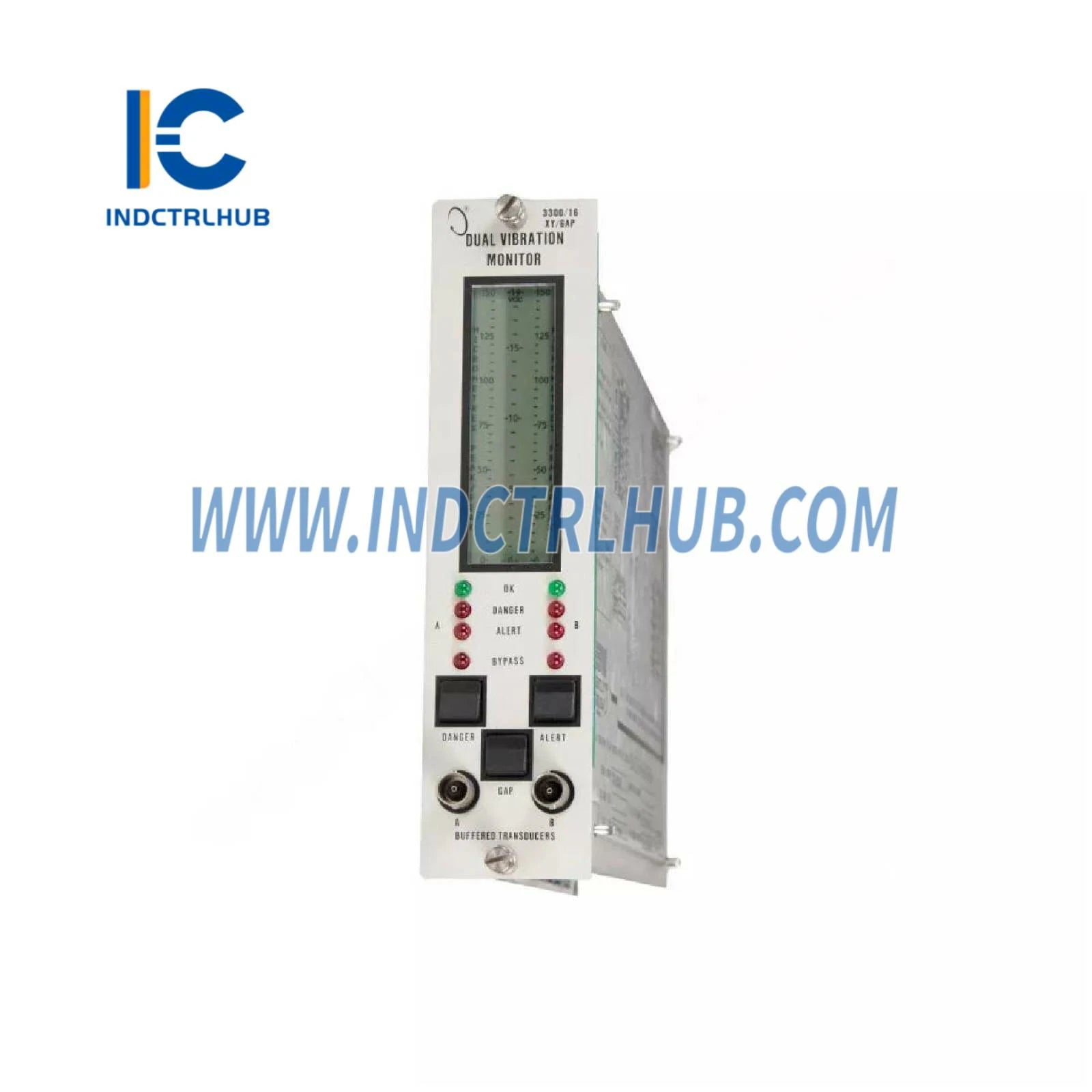

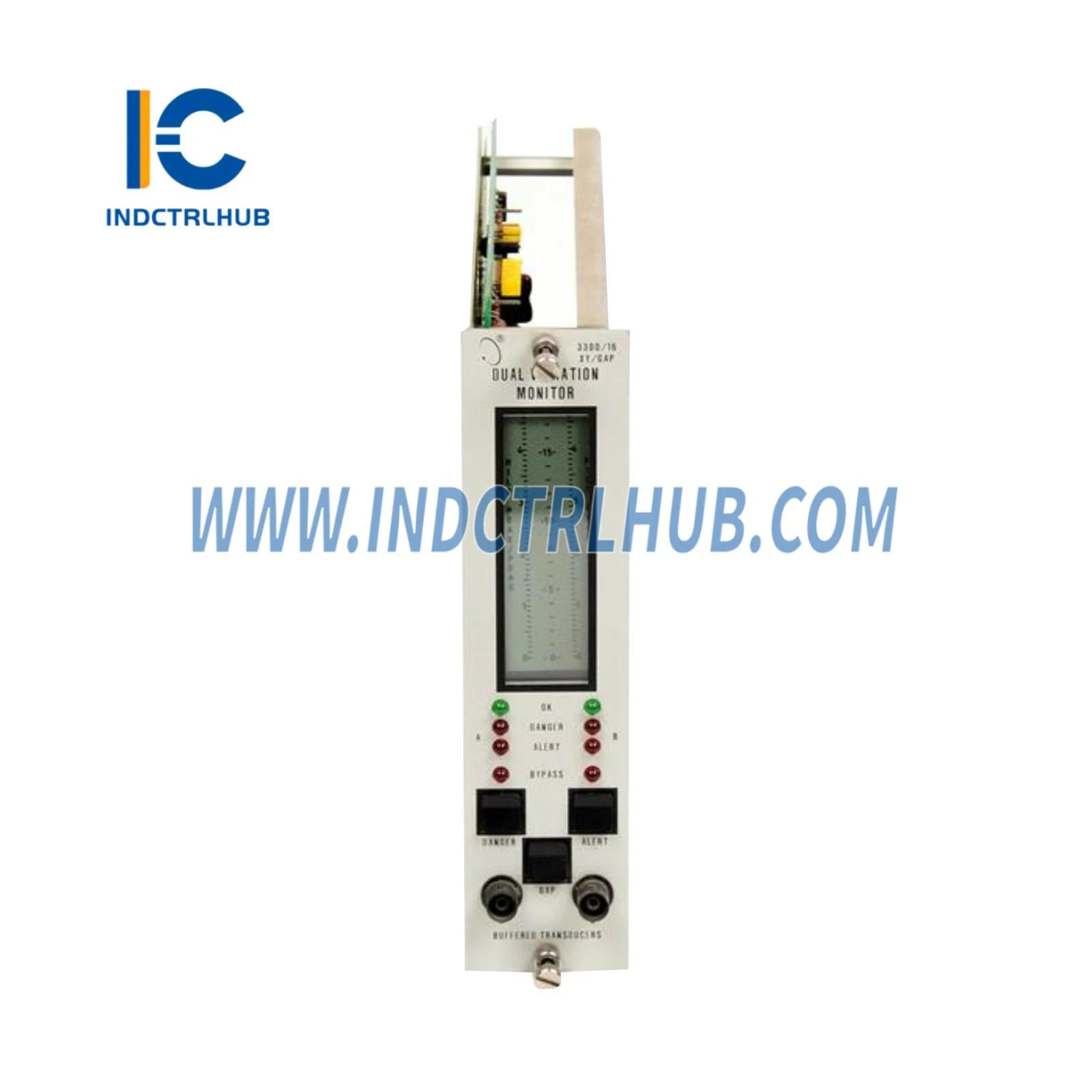

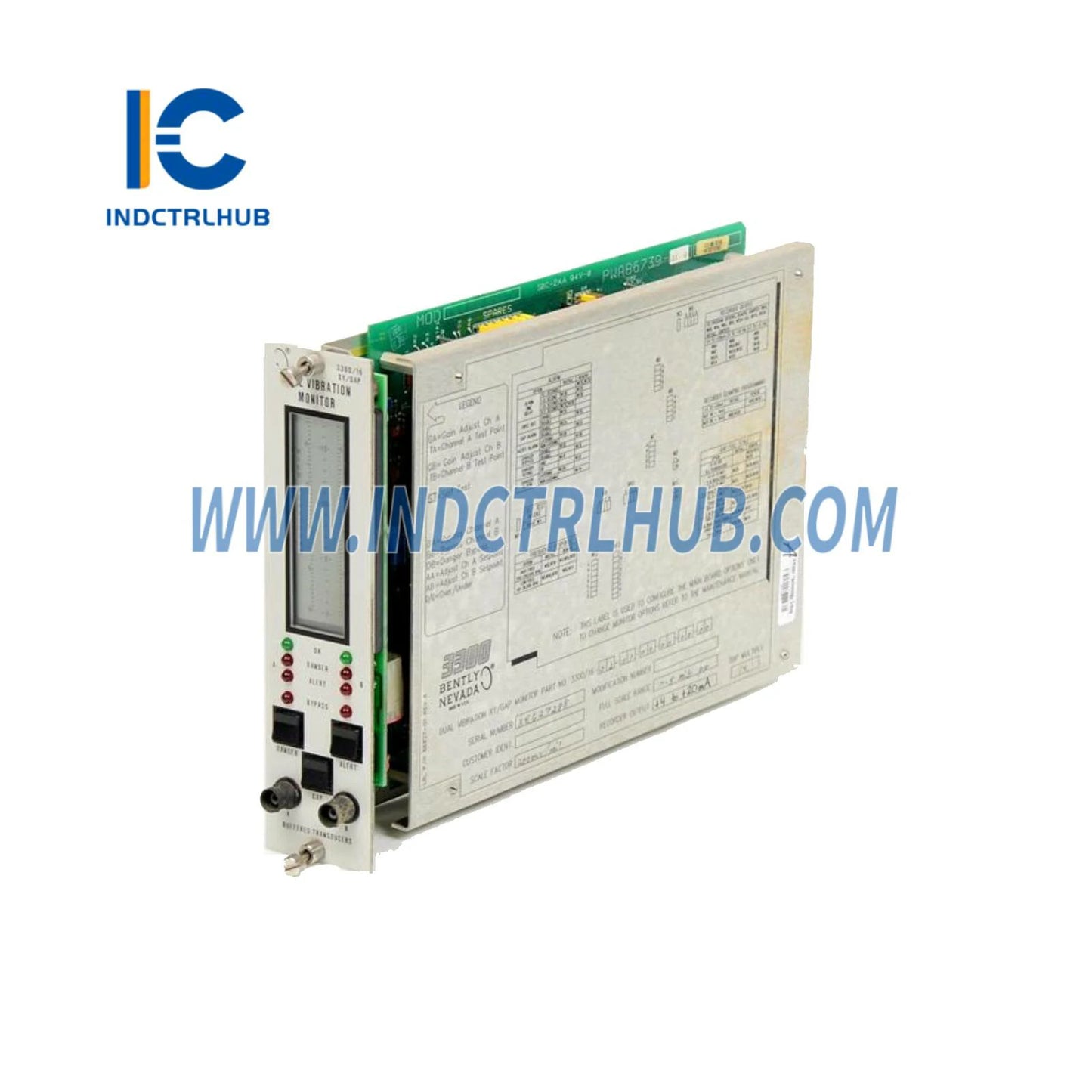

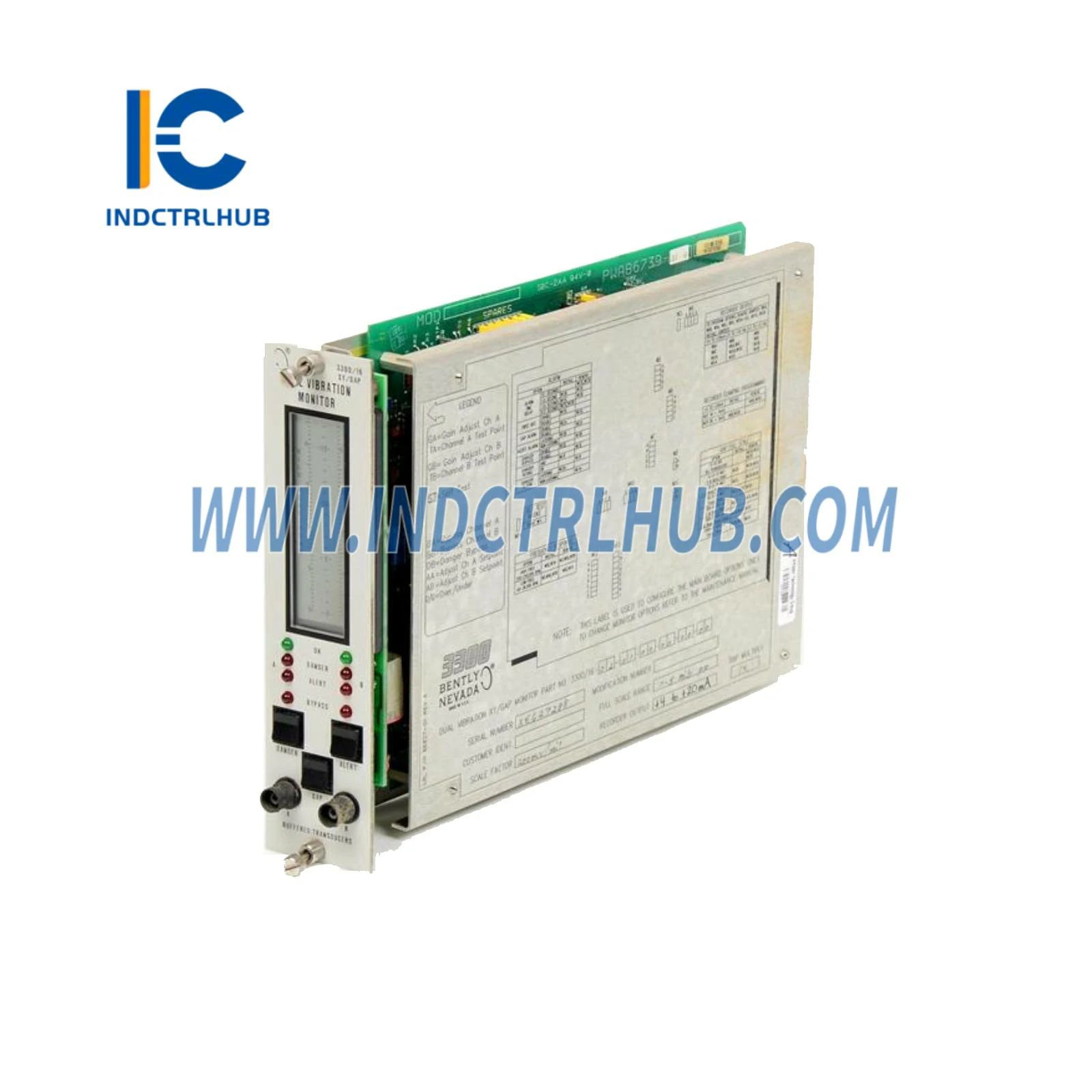

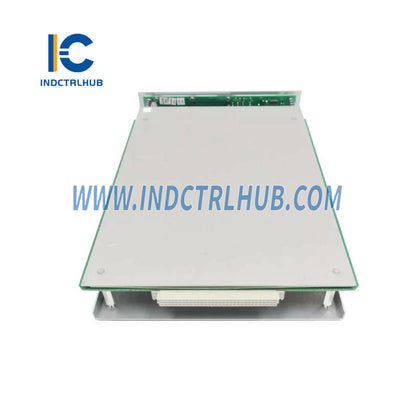

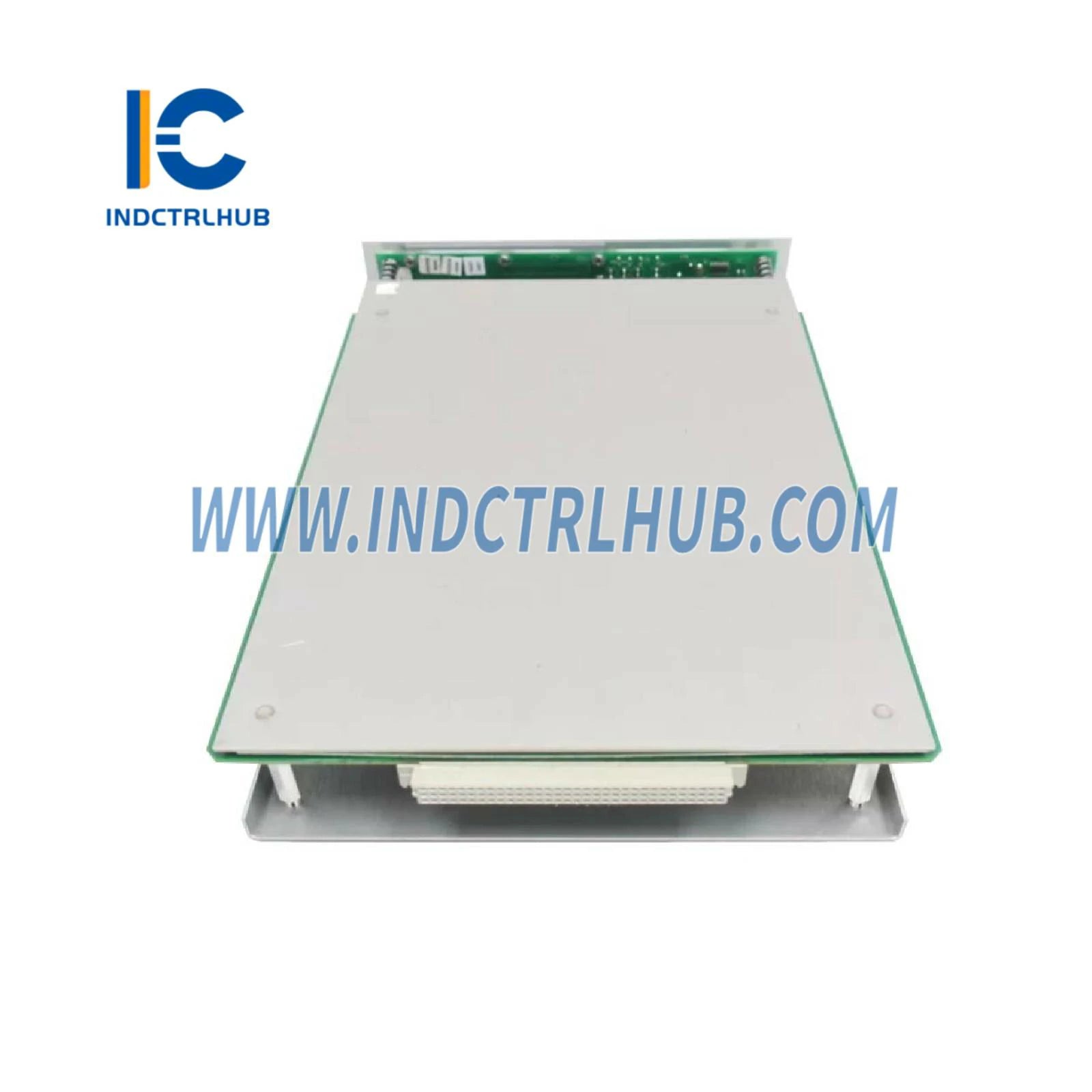

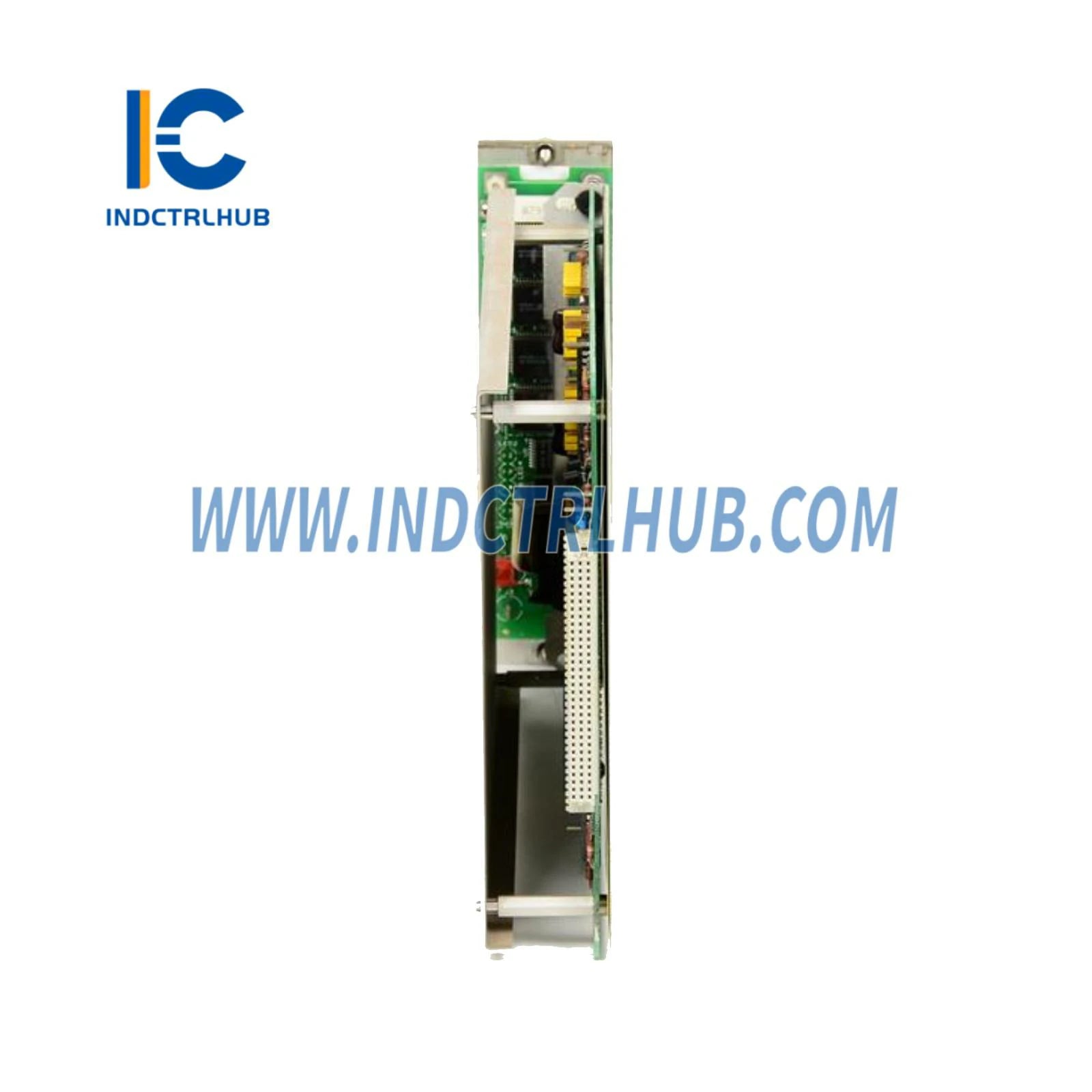

Bently Nevada 3300/16-12-01-01-00-00-02 Dual Vibration Monitor
Product Overview
- The Bently Nevada 3300/16-12-01-01-00-00-02 Dual Vibration Monitor measures and monitors radial vibration and thrust position in rotating machinery
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300 Series |
| Model/Part Number | 3300/16-12-01-01-00-00-02 |
| Model Type | Dual Vibration Monitor |
| Function | Monitors radial vibration and thrust position using proximity probes |
| Processor | Microprocessor-based (specific architecture not publicly detailed) |
| Memory | Non-volatile memory for configuration and alarm setpoints |
| Display | Analog meters (two, one per channel) for vibration/position; LEDs for OK, Alert, Danger, and Bypass |
| Inputs | 2 transducer inputs (works with Bently Nevada proximity probes, like 3300 XL 8 mm, 5 mm, 11 mm) |
| Outputs | 2 analog outputs (4–20 mA, proportional to vibration/position) 2 buffered transducer outputs (for external diagnostics) 4 relay outputs (dry contact, up to 5 A at 250 VAC/24 VDC, for Alert and Danger per channel) |
| Communication Interfaces | Serial interface (RS-232, optional for data logging); connects to 3300 rack backplane for System 1 integration |
| Signal Conditioning | Supplies power to proximity probes (-24 VDC), linearizes, and processes signals for vibration and position |
| Frequency Range | 4 Hz–10 kHz (for vibration monitoring) |
| Accuracy | ±1% of full-scale range (with compatible transducer) |
| Redundancy | Non-redundant |
| Diagnostics | Detects transducer faults, signal integrity issues; provides OK, Alert, and Danger status via LEDs and relays |
| Compatibility | Works with Bently Nevada 3300 Series rack, proximity probes, like 3300 XL 8 mm, 5 mm, 11 mm, and transducer interface modules (136634-0010-01); integrates with System 1 software via 3300 rack interface; limited compatibility with 3500 Series via adapters |
| Power Supply | Receives power via 3300 rack backplane (20–30 VDC, typically 24 VDC) |
| Power Consumption | Approximately 7–10 W |
| Environmental Specifications | Operating Temperature: -30°C to +65°C (-22°F to +149°F) Storage Temperature: -40°C to +85°C (-40°F to +185°F) Relative Humidity: 5% to 95% non-condensing Vibration: Complies with IEC 60068-2-6 Shock: Complies with IEC 60068-2-27 |
| Enclosure | IP20 (installs in 3300 Series rack) |
| Dimensions | Approximately 152 mm (H) x 76 mm (W) x 305 mm (D) |
| Weight | Approximately 1.5–2 kg |
| Mounting | Plugs into 3300 Series rack (slot-specific) |
| Certifications | Meets CE, CSA, ATEX/IECEx Zone 2 (in approved enclosure), marine certifications, such as DNV, ABS |
