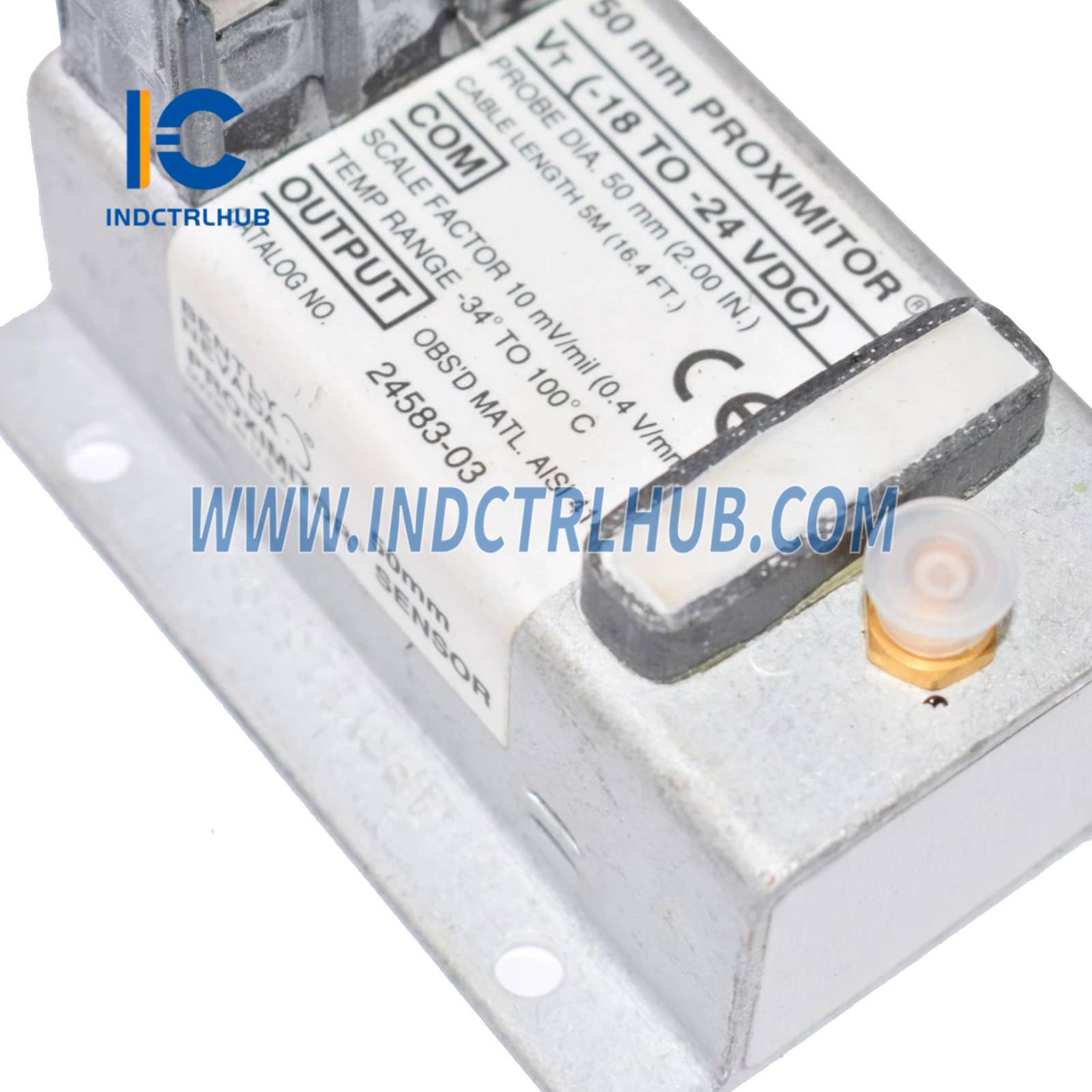

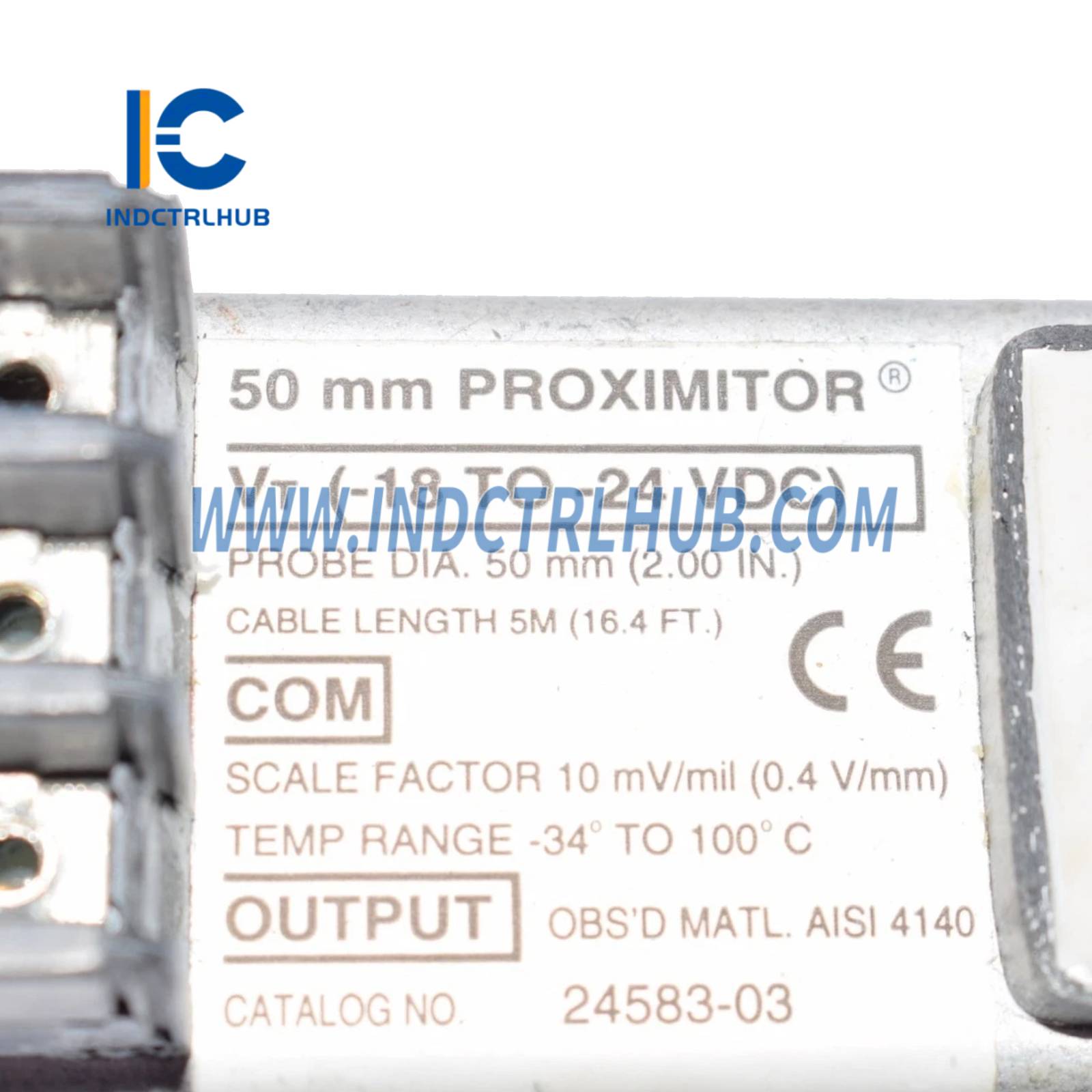

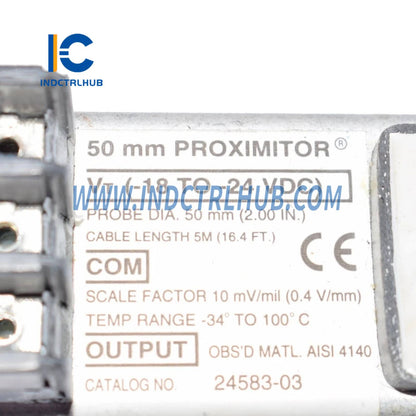

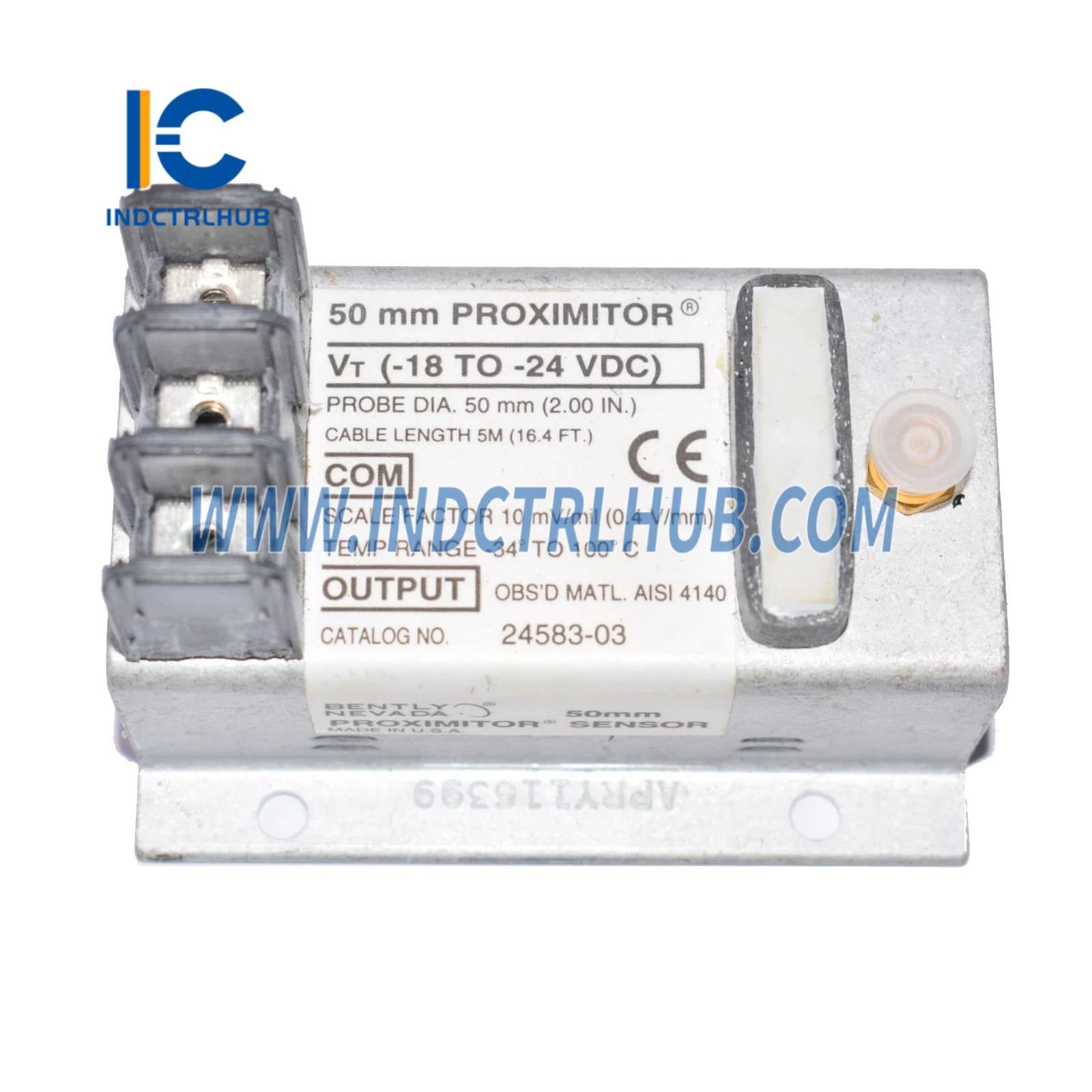

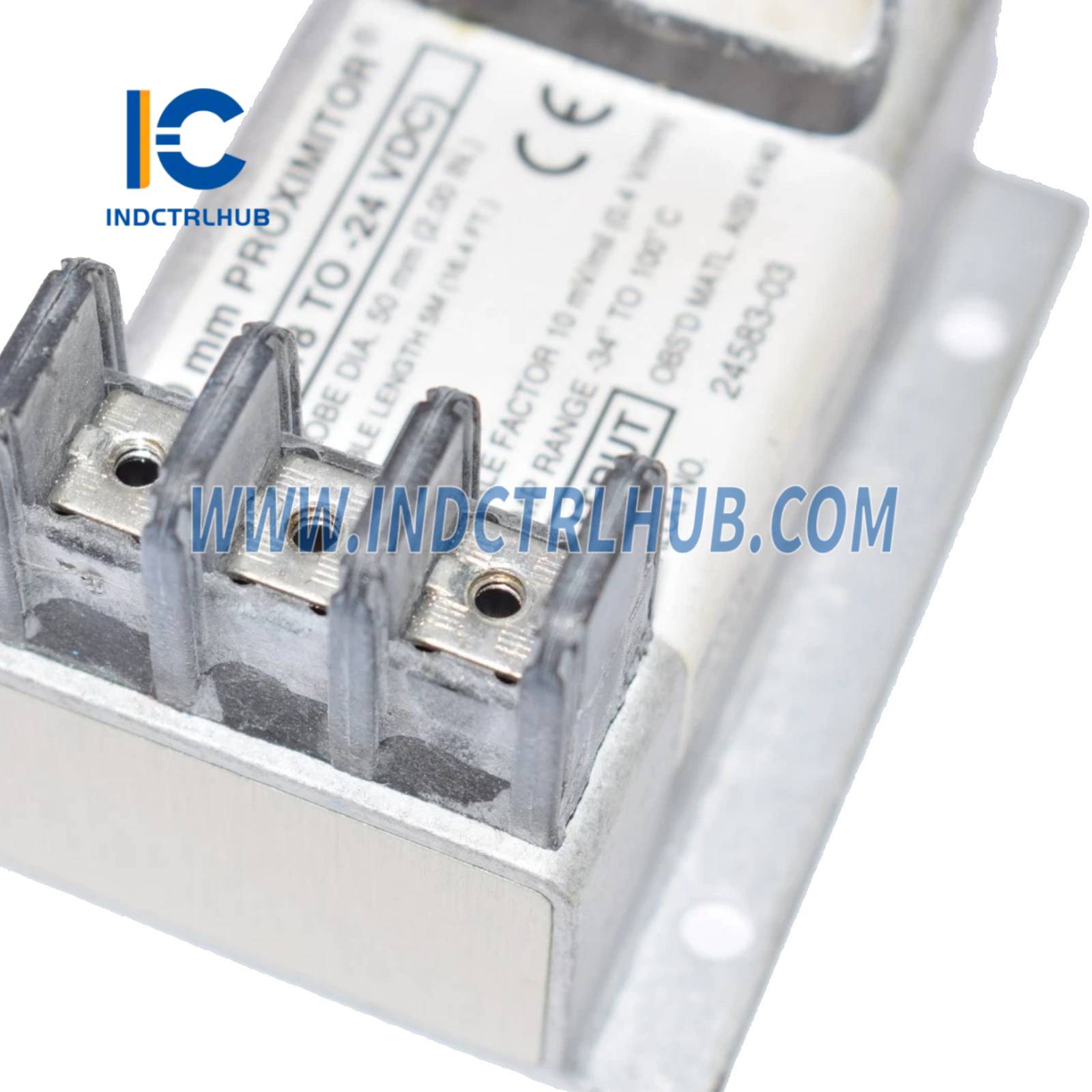

Bently Nevada 24583-03 Proximity Sensor System
Bently Nevada 24583-03 Proximity Sensor System
Manufacturer: Bently Nevada
Product No.: 24583-03
Condition:1000 in stock
Product Type: Proximity Sensors
Product Origin: 0024583-03
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Bently Nevada 24583-03 Proximity Sensor System
The Bently Nevada 24583-03 is a high-precision proximity sensor system designed for continuous vibration and position monitoring in rotating machinery. This industrial-grade sensor delivers reliable shaft displacement measurements in turbines, compressors, and motors, enabling predictive maintenance programs that prevent costly unplanned downtime.
Key Features
- ✅ Non-Contact Measurement – Eddy current technology monitors shaft position without physical contact
- ✅ High Accuracy – Precision measurement for critical machinery protection
- ✅ Wide Frequency Range – DC to 10 kHz response captures slow roll and vibration
- ✅ Industrial Durability – Operates reliably in harsh environments (-40°C to +177°C)
- ✅ API 670 Compliant – Meets industry standards for machinery protection systems
Technical Specifications
| Part Number | 24583-03 |
| System Type | Proximity Sensor System |
| Measurement Type | Eddy current proximity |
| Frequency Response | DC to 10 kHz (-3dB) |
| Operating Temp | -40°C to +177°C (-40°F to +350°F) |
| Certifications | API 670, CE, UL |
| Housing Material | Stainless steel (corrosion resistant) |
| Weight | Approx. 200g |
Industrial Applications
Turbomachinery Monitoring
Monitor journal bearing clearance, thrust position, and rotor vibration in steam turbines, gas turbines, and centrifugal compressors. Detect rubs, unbalance, and bearing wear before catastrophic failure.
Large Motors & Generators
Track rotor position and vibration in electric motors above 1,000 HP. Prevent bearing failures and rotor-to-stator contact in critical power generation equipment.
Process Pumps & Compressors
Measure shaft displacement and vibration in oil & gas applications. API 670 compliance required for machinery protection systems (MPS).
Predictive Maintenance Programs
Enable condition-based maintenance strategies that reduce emergency repairs by 40-60% and extend equipment life by 20-30%.
System Components
A complete proximity measurement system typically includes:
- Proximity Probe: Sensor installed near rotating shaft
- Extension Cable: Connects probe to proximitor
- Proximitor: Signal conditioner that converts probe signal to usable output
- Monitoring System: 3500 rack or ADAPT software for data analysis
Installation Guidelines
Best Practices
- Gap Setting – Install with 1.0-1.5mm (40-60 mils) gap to shaft surface
- Perpendicular Alignment – Probe tip must be perpendicular to shaft (±5° tolerance)
- Target Surface – Ensure smooth, clean shaft surface free of keyways or scratches
- Cable Routing – Avoid sharp bends, keep away from power lines (300mm minimum)
- Grounding – Ground cable shield at proximitor end only (avoid ground loops)
Authenticity Guarantee
⚠️ Counterfeit Sensor Risks
Non-genuine proximity sensors can cause:
- ❌ Inaccurate measurements leading to missed faults
- ❌ Premature failure in high-temperature environments
- ❌ Non-compliance with API 670 standards
- ❌ Voided machinery protection system certifications
✅ Industrial Control Hub Guarantee
- 🔒 100% Genuine Bently Nevada – Factory-sealed packaging
- 📜 Calibration Certificate – Includes sensitivity and linearity data
- 🌍 Authorized Distributor – Verify at Baker Hughes partner portal
- 🛡️ 24-Month Warranty – Manufacturer warranty honored globally
- 📦 Protective Packaging – Anti-static, shock-resistant shipping
Package Contents
- 1× Bently Nevada 24583-03 proximity sensor system
- Installation hardware and mounting accessories
- Product documentation and calibration certificate
Note: Additional components (extension cables, proximitor) may be required depending on system configuration.
Technical Support
- 📧 Application Engineering – Email us for sensor selection and placement guidance
- 📚 Documentation Library – Installation manuals, API 670 guides, calibration procedures
- 🔧 Commissioning Support – Remote assistance for setup and verification
- 🔄 30-Day Returns – Unused sensors in original packaging
FAQ
Q: What is the difference between proximity sensors and accelerometers?
A: Proximity sensors measure shaft displacement (absolute position), while accelerometers measure vibration. Both are complementary for complete machinery monitoring.
Q: Can I use this sensor with non-steel shafts?
A: Sensor requires conductive target material (steel, stainless steel, Inconel). Not compatible with ceramic or composite shafts.
Q: How often should I recalibrate?
A: API 670 recommends recalibration every 5 years or after cable replacement. Annual field verification recommended.
Q: Is this sensor suitable for hazardous areas?
A: Probe itself is passive. Proximitor must be intrinsically safe (IS) rated for hazardous locations.
