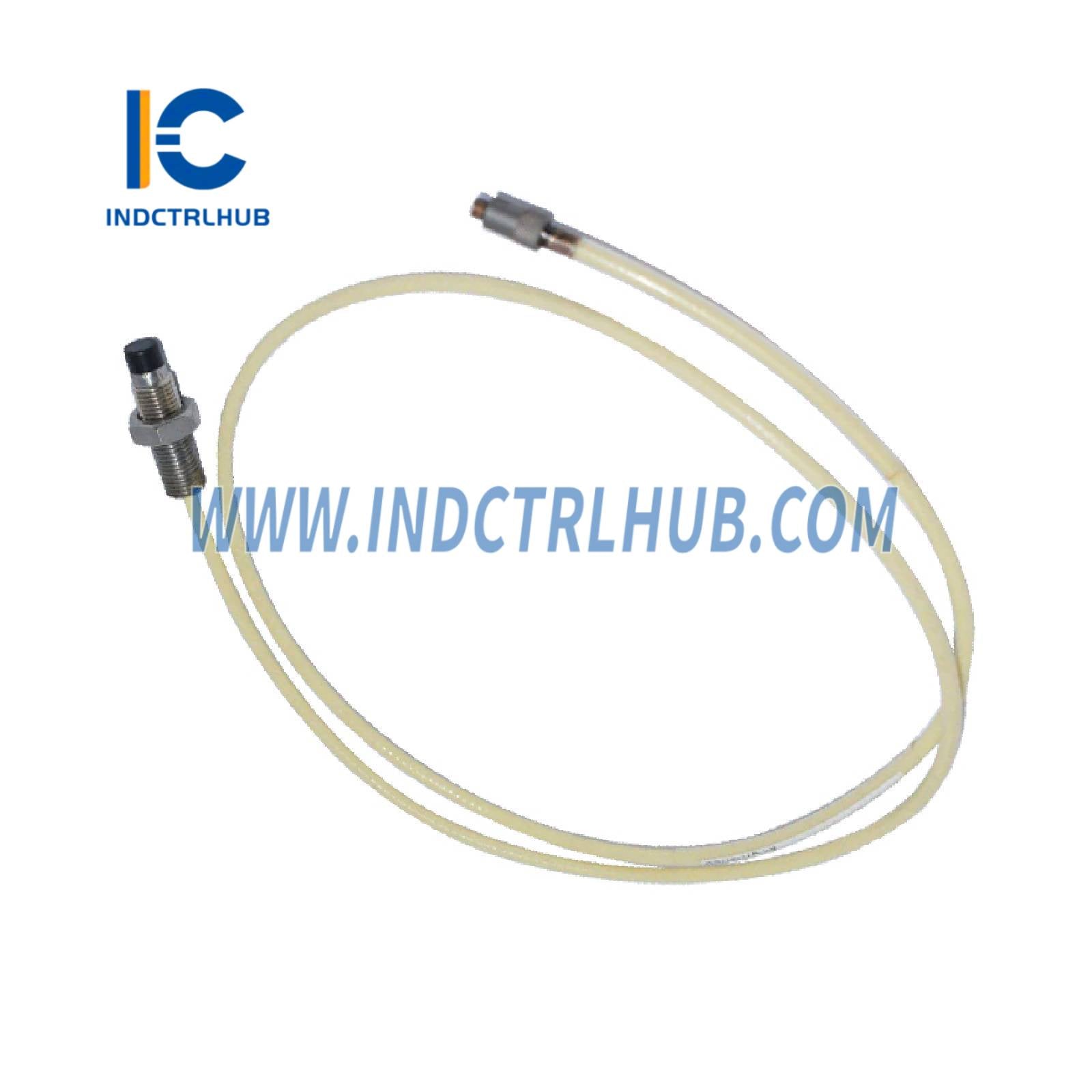

Bently Nevada 21504-00-68-10-02 Proximitor Sensor

Bently Nevada 21504-00-68-10-02 Proximitor Sensor

Engineered for precision machinery monitoring, the Bently Nevada 21504-00-68-10-02 proximitor sensor delivers real-time vibration and displacement data critical for protecting high-value rotating equipment. This industrial-grade transducer converts proximity probe signals into standardized outputs compatible with DCS, PLC, and SCADA systems.

Core Specifications

Model: 21504-00-68-10-02
System: 3300 XL Proximity Transducer
Output Signal: -2 to -18 VDC proportional
Power Supply: -24 VDC ±10%
Frequency Range: 0 to 10 kHz
Scale Factor: 200 mV/mil (7.87 mV/μm)
Operating Temp: -30°C to +65°C
Mounting: DIN rail or panel mount
Certifications: API 670, ISO 20816 compliant

Real-World Problem Solving

Challenge: Unplanned downtime from bearing failures costs manufacturers thousands per hour. Traditional time-based maintenance either wastes resources or misses critical issues.

Solution: The 21504-00-68-10-02 enables condition-based monitoring by continuously measuring shaft position, radial vibration, and axial thrust. Early detection of bearing wear, misalignment, or rotor rubs allows scheduled maintenance before catastrophic failure occurs.

Industry Applications

Power Generation: Steam and gas turbine monitoring, generator bearing surveillance, balance-of-plant rotating equipment
Oil & Gas: Compressor trains, pipeline pumps, offshore platform machinery
Chemical Processing: Reactor agitators, centrifugal separators, high-speed mixers
Mining: Crusher drives, conveyor systems, grinding mills
Manufacturing: Paper machine rolls, printing presses, industrial fans

Integration Benefits

This proximitor seamlessly interfaces with existing Bently Nevada 8mm proximity probes and extension cables. The standardized -2 to -18 VDC output connects directly to most industrial control systems without signal conditioning. Built-in OK/Alert LED indicators provide at-a-glance system health status, while buffered outputs allow parallel connection to multiple monitoring devices.

Why Reliability Engineers Choose This Model

Decades of field-proven performance in the harshest industrial environments. The 21504-00-68-10-02 features solid-state electronics with no moving parts, conformal-coated PCBs for moisture resistance, and industrial-grade connectors rated for 100,000+ mating cycles. Factory calibration with traceable certification ensures measurement accuracy from day one.

Package Includes: Proximitor module, mounting hardware, calibration certificate, and technical documentation.
