Product Description

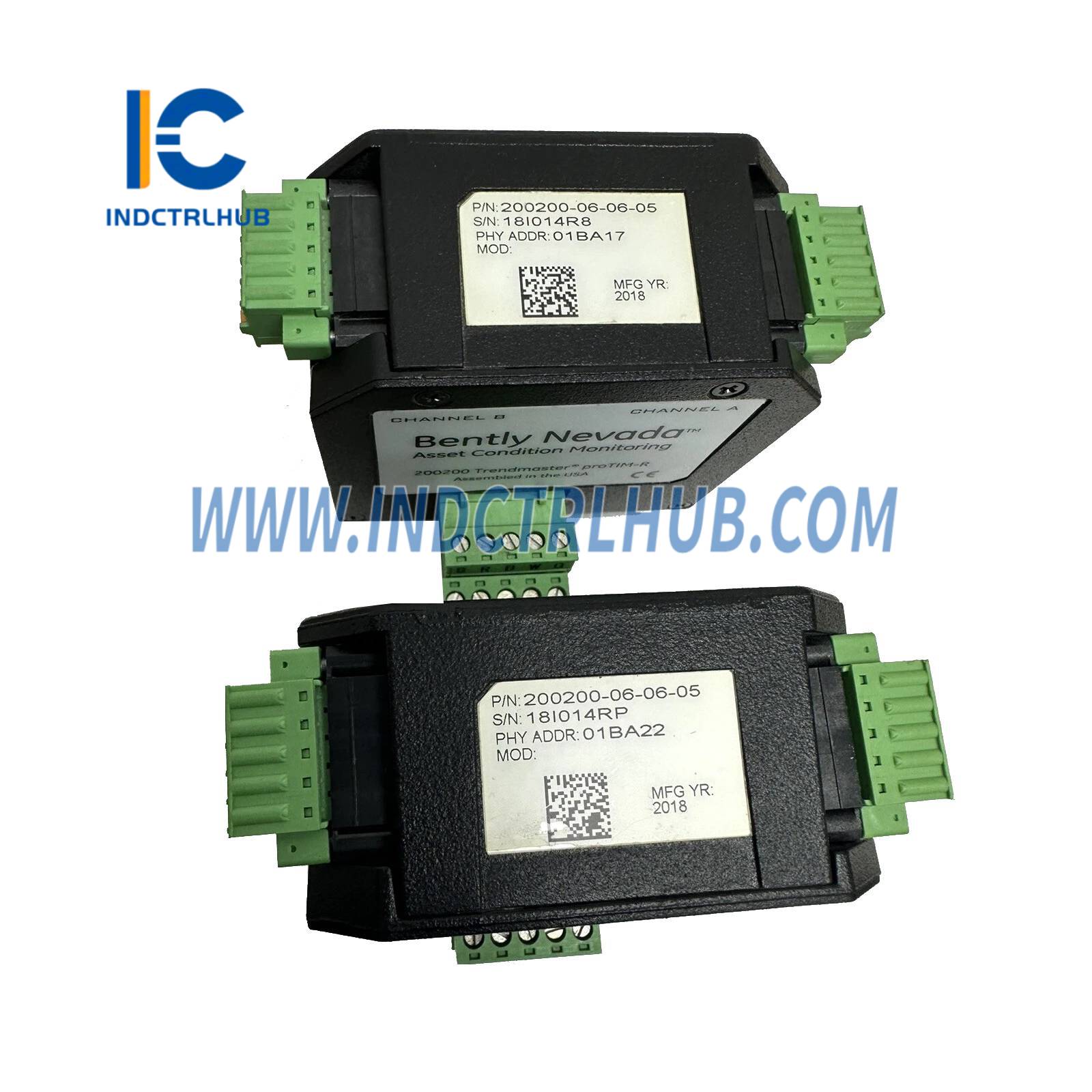

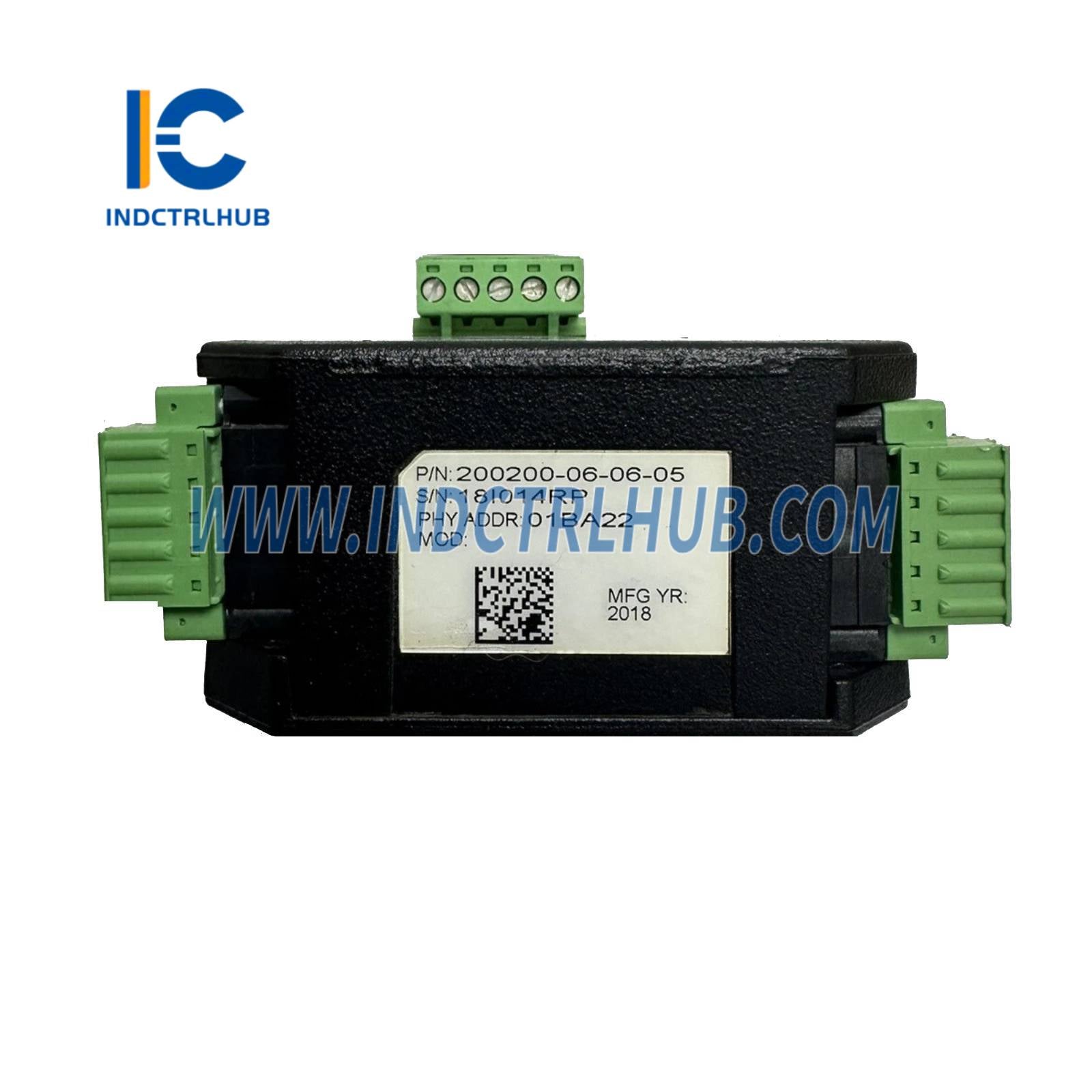

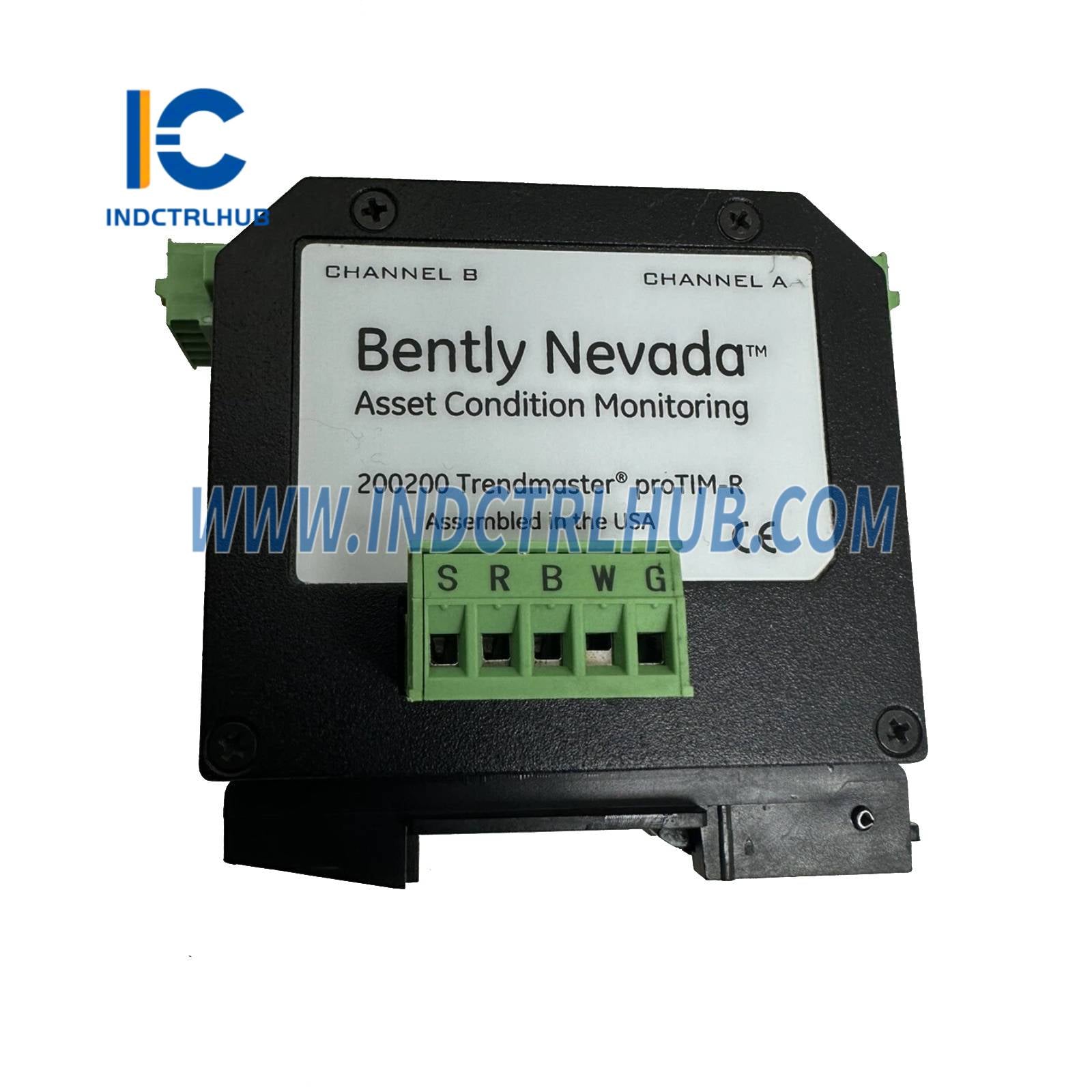

Bently Nevada 200200-06-06-05 Parameters
Product Overview
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Series | Trendmaster |
| Model/Part Number | 200200-06-06-05 |
| Model Type | proTIM-R Module |
| Product Name | Dual-Input proTIM-R Condition Monitoring Module |
| Application | Transducer Interface Module for high-speed data acquisition in machinery condition monitoring systems |
| Compatibility | Trendmaster DSM racks and System 1 software |
| Function | Provides dual input channels for signal conditioning and processing from acceleration enveloping sensors |
Functional Specifications
| Parameter | Details |
|---|---|
| Input Channels | Dual inputs (AA=06, BB=06): A-V with Acceleration Enveloping (AE) channels for integrated velocity units and advanced AE signal conditioning |
| Supported Sensors | Compatible with accelerometers for vibration monitoring |
| Weight | Approximately 545 g (19 oz) |
| Approval | 05 designates multiple international approvals for global compliance |
| Signal Processing | Onboard processing for RMS, peak-peak, velocity integration, and acceleration enveloping |
| Bandwidth | Up to 25.6 kHz |
| Resolution | High-resolution sampling |
| Mounting | DIN-rail mounted |
