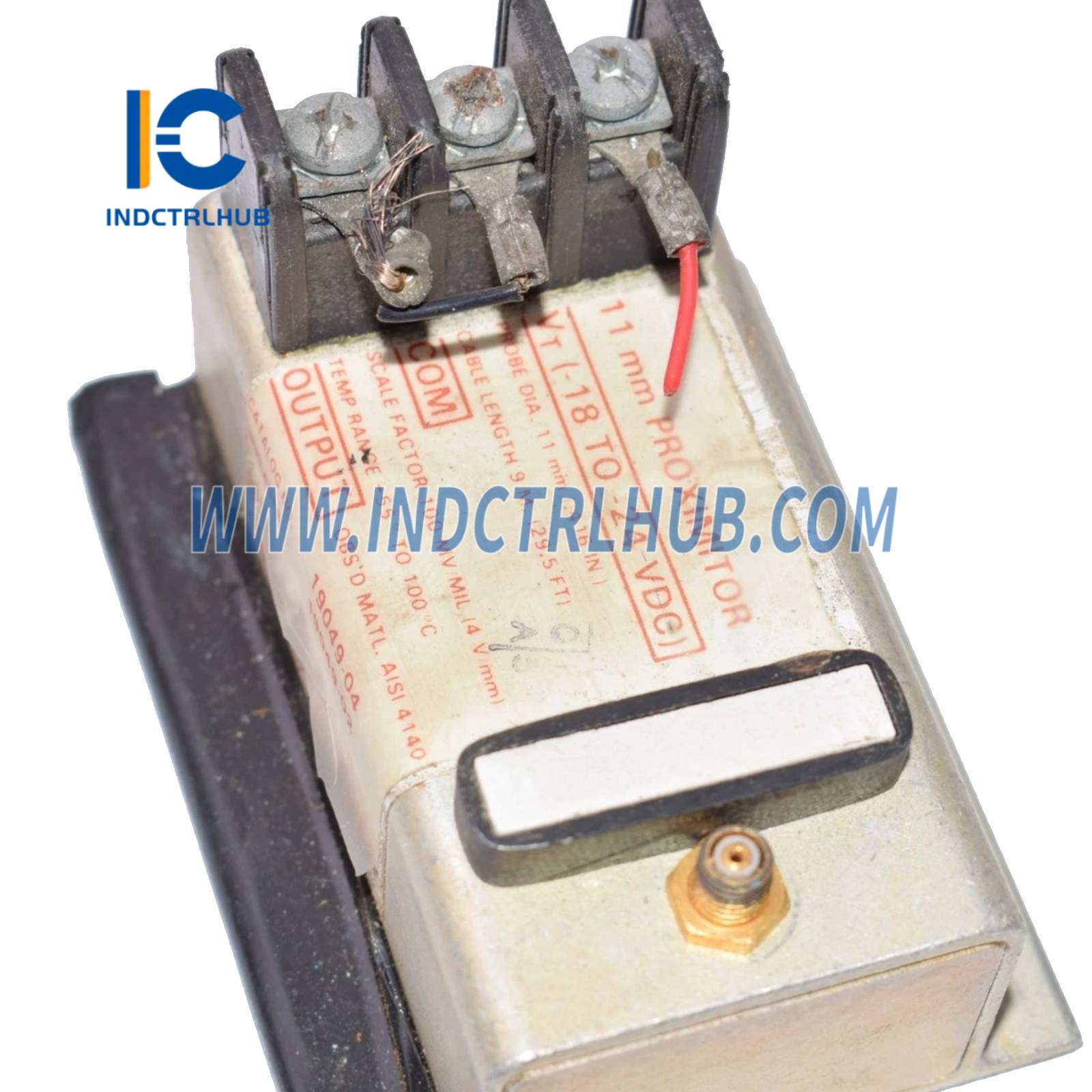

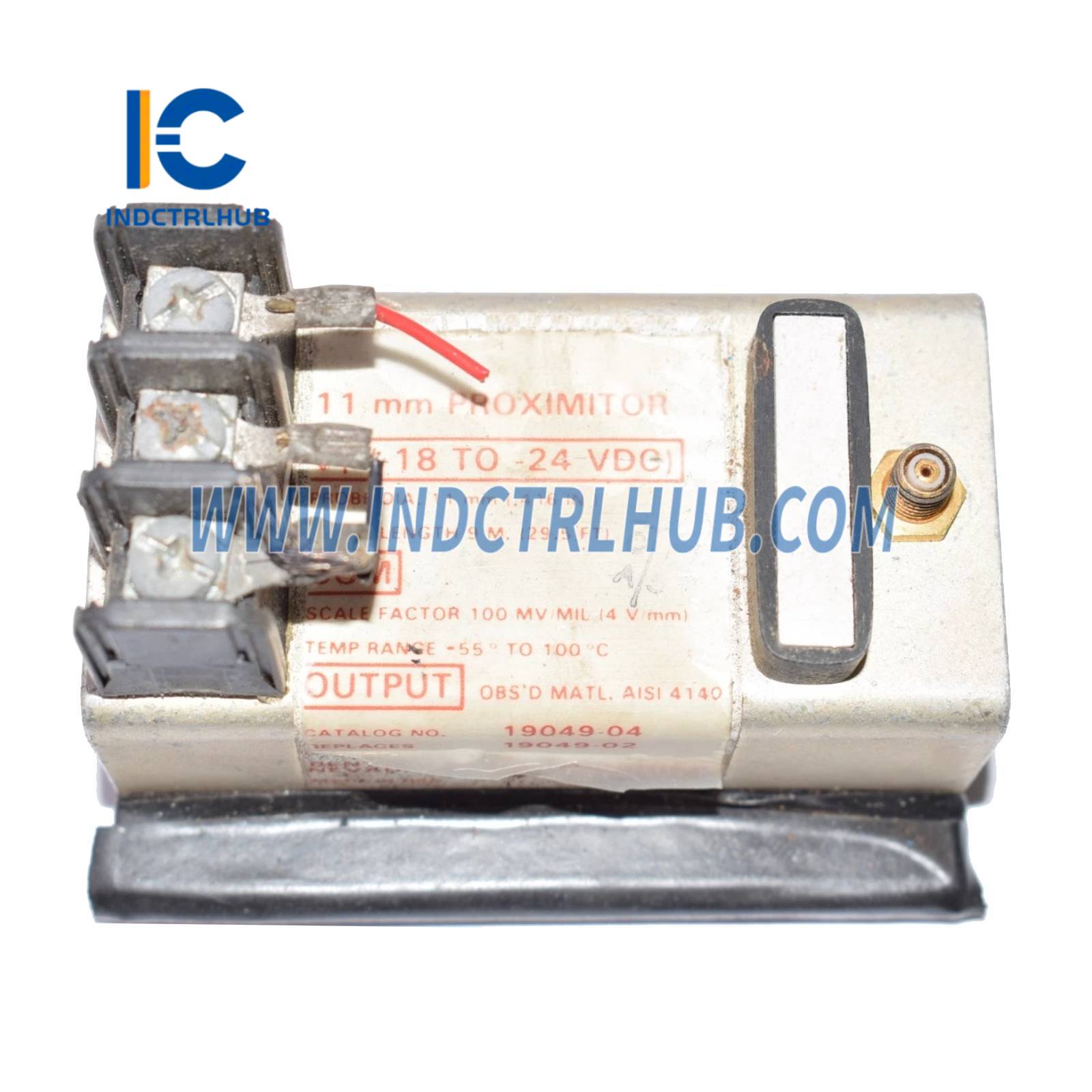

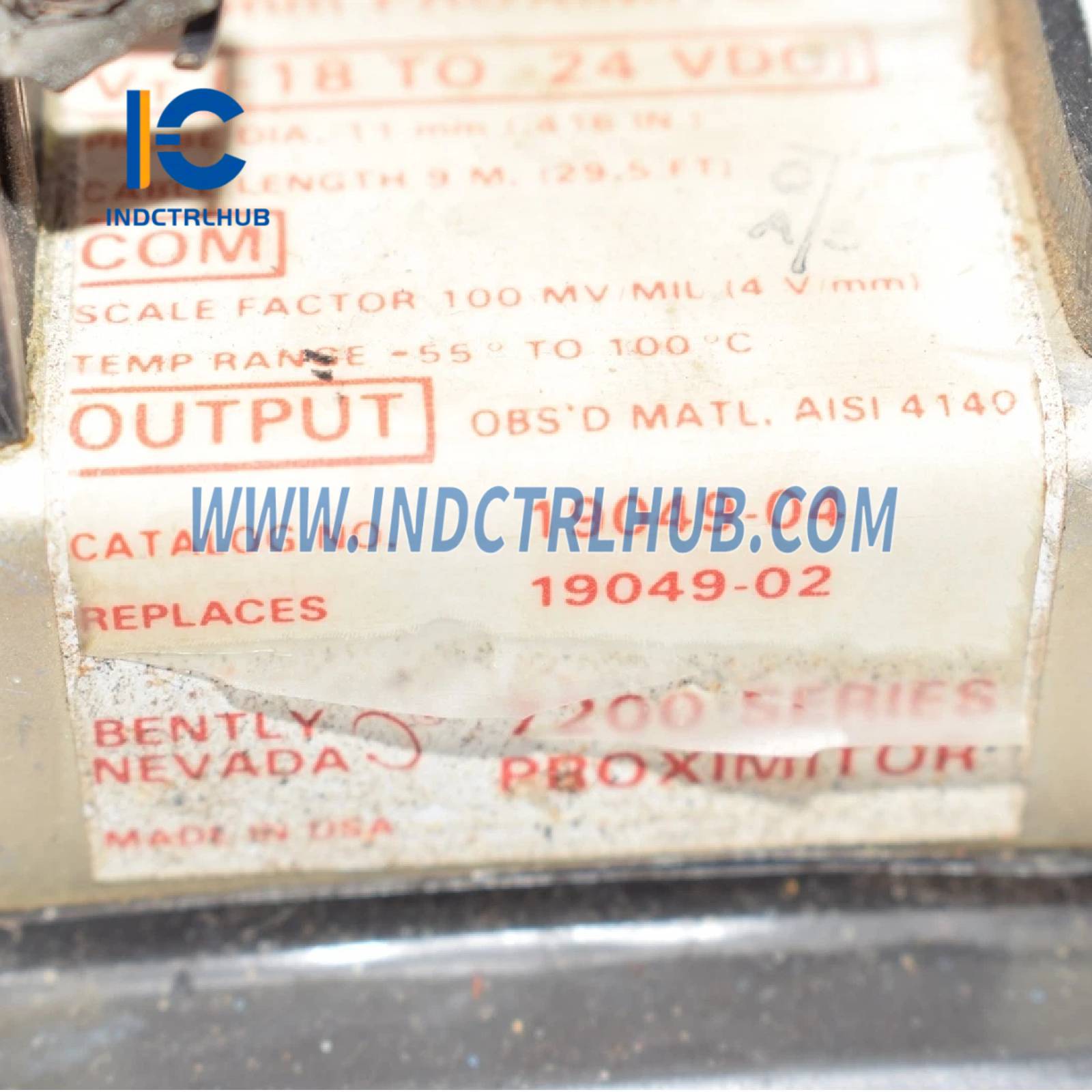

Bently Nevada 19049-04 Proximity Probe Cable
Bently Nevada 19049-04 Proximity Probe Cable
Manufacturer: Bently Nevada
Product No.: 19049-04
Condition:1000 in stock
Product Type: Cables & Connectors
Product Origin: 0019049-04
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Bently Nevada 19049-04 Proximity Probe Extension Cable
The Bently Nevada 19049-04 is a precision-engineered extension cable designed for proximity probe systems in vibration monitoring applications. This high-quality cable ensures reliable signal transmission between proximity probes and Proximitor sensors, maintaining measurement accuracy critical for turbomachinery protection and predictive maintenance programs.
Key Features
- ✅ Signal Integrity – Low-noise coaxial design prevents EMI/RFI interference
- ✅ Industrial Durability – Rugged construction withstands harsh environments
- ✅ Temperature Resistant – Operates reliably from -40°C to +125°C
- ✅ Bently Nevada Quality – Engineered to exact specifications for system compatibility
- ✅ Plug-and-Play – Pre-configured connectors for easy installation
Technical Specifications
| Part Number | 19049-04 |
| Product Type | Proximity Probe Extension Cable |
| Cable Type | Low-noise coaxial cable |
| Connector Type | BNC or proprietary Bently Nevada connectors |
| Shielding | Braided shield with 360° grounding |
| Operating Temp | -40°C to +125°C (-40°F to +257°F) |
| Insulation | High-temperature resistant polymer |
| Bend Radius | Min. 50mm during installation |
| Certifications | CE, UL, CSA |
| Weight | Approx. 200g |
System Compatibility
The 19049-04 cable is designed for use with Bently Nevada vibration monitoring systems:
- Proximity Probes: 3300 XL, 3300 NSv, 7200 series
- Proximitor Sensors: 3300 XL 8mm, 11mm systems
- Monitoring Racks: 3500 series, TDXnet systems
- Applications: Steam turbines, gas turbines, compressors, generators
Industrial Applications
Turbomachinery Monitoring
Extend proximity probe reach in steam turbines, gas turbines, and centrifugal compressors where sensor mounting locations are distant from monitoring equipment.
Power Generation
Connect proximity sensors on generators, turbines, and auxiliary equipment to centralized monitoring systems without signal degradation.
Oil & Gas Processing
Deploy in compressor stations, pump systems, and rotating equipment in harsh refinery and offshore environments.
Retrofit Projects
Add vibration monitoring to existing equipment where cable routing requires extended lengths beyond standard probe cables.
Installation Guidelines
Best Practices
- Cable Routing – Maintain 300mm minimum separation from power lines to prevent EMI
- Bend Radius – Avoid sharp bends (minimum 50mm radius) to prevent shield damage
- Grounding – Ground cable shield at Proximitor end only (avoid ground loops)
- Connector Seating – Ensure connectors are fully seated and locked
- Cable Support – Use supports every 500mm to prevent vibration-induced fatigue
- Testing – Verify signal integrity before commissioning
Troubleshooting
| Problem | Cause | Solution |
|---|---|---|
| Noisy signal | Poor shield grounding | Verify shield connection, check for ground loops |
| Intermittent readings | Loose connector | Re-seat connectors, verify locking mechanism |
| No signal | Cable damage | Inspect for cuts or kinks, test continuity |
| Erratic measurements | EMI interference | Reroute away from power lines, verify shielding |
Authenticity Guarantee
⚠️ Counterfeit Cable Risks
Non-genuine cables can cause:
- ❌ Signal degradation and measurement errors
- ❌ Premature failure in harsh environments
- ❌ System incompatibility issues
- ❌ Voided warranty coverage
✅ Industrial Control Hub Guarantee
- 🔒 100% Genuine Bently Nevada – Factory-sealed packaging
- 📜 Full Traceability – Serial numbers and certificates
- 🌍 Authorized Distributor – Verify at Baker Hughes partner portal
- 🛡️ 24-Month Warranty – Global manufacturer warranty
- 📦 Protective Packaging – Prevents shipping damage
Package Contents
- 1× Bently Nevada 19049-04 extension cable
- Pre-installed connectors (both ends)
- Product documentation
Technical Support
- 📧 Application Assistance – Cable selection and routing guidance
- 📚 Documentation – Installation manuals and wiring diagrams
- 🔧 Installation Support – Remote assistance for system integration
- 🔄 30-Day Returns – Unused cables in original packaging
FAQ
Q: What is the maximum cable length for proximity systems?
A: Consult Bently Nevada documentation for your specific system. Excessive length causes signal attenuation.
Q: Can I use this with non-Bently Nevada sensors?
A: Not recommended. Cable is engineered for Bently Nevada system impedance and specifications.
Q: How do I ground the cable shield?
A: Ground shield at Proximitor end only. Never ground both ends to avoid ground loops.
Q: Can I repair a damaged cable?
A: No. Replace damaged cables immediately to maintain signal integrity and safety.
