Product Description
Product Details
| Manufacturer | Bently Nevada |
|---|---|
| Model/Part Number | 138945-01 |

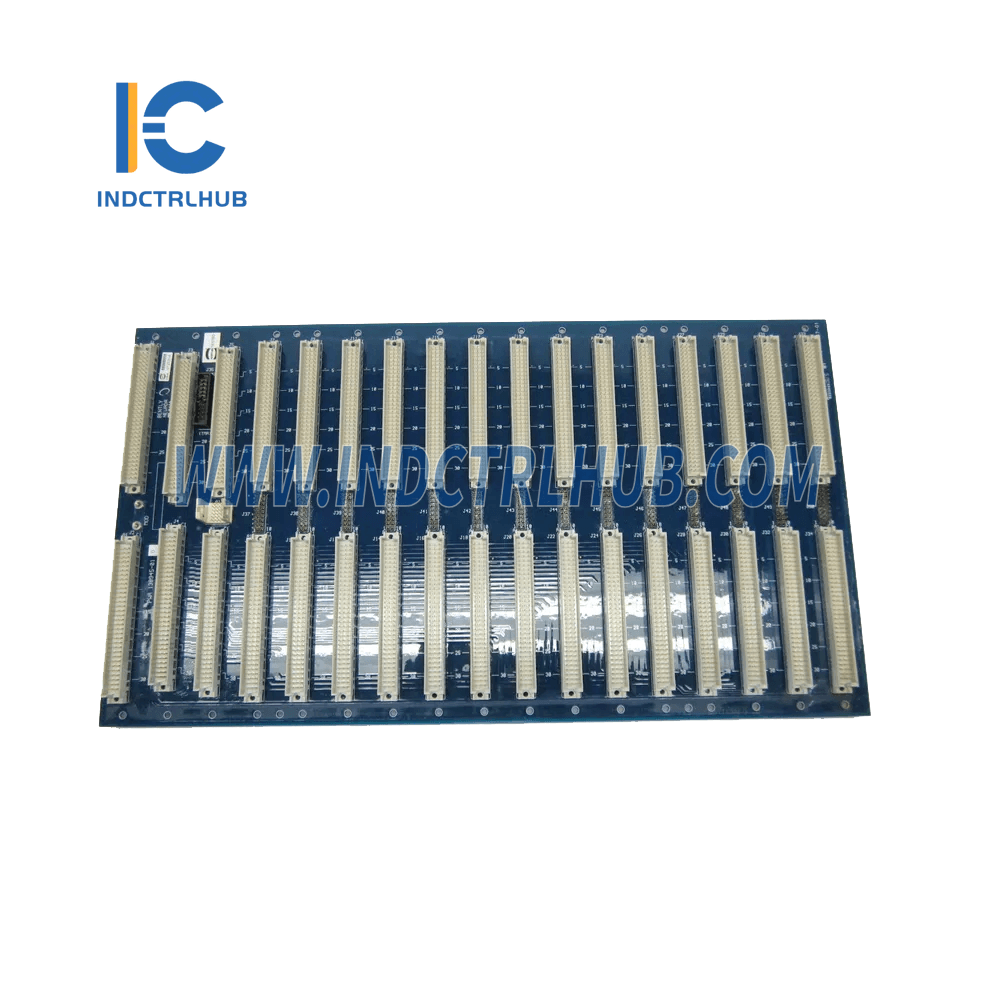

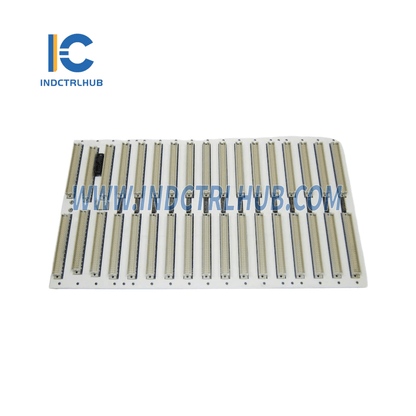

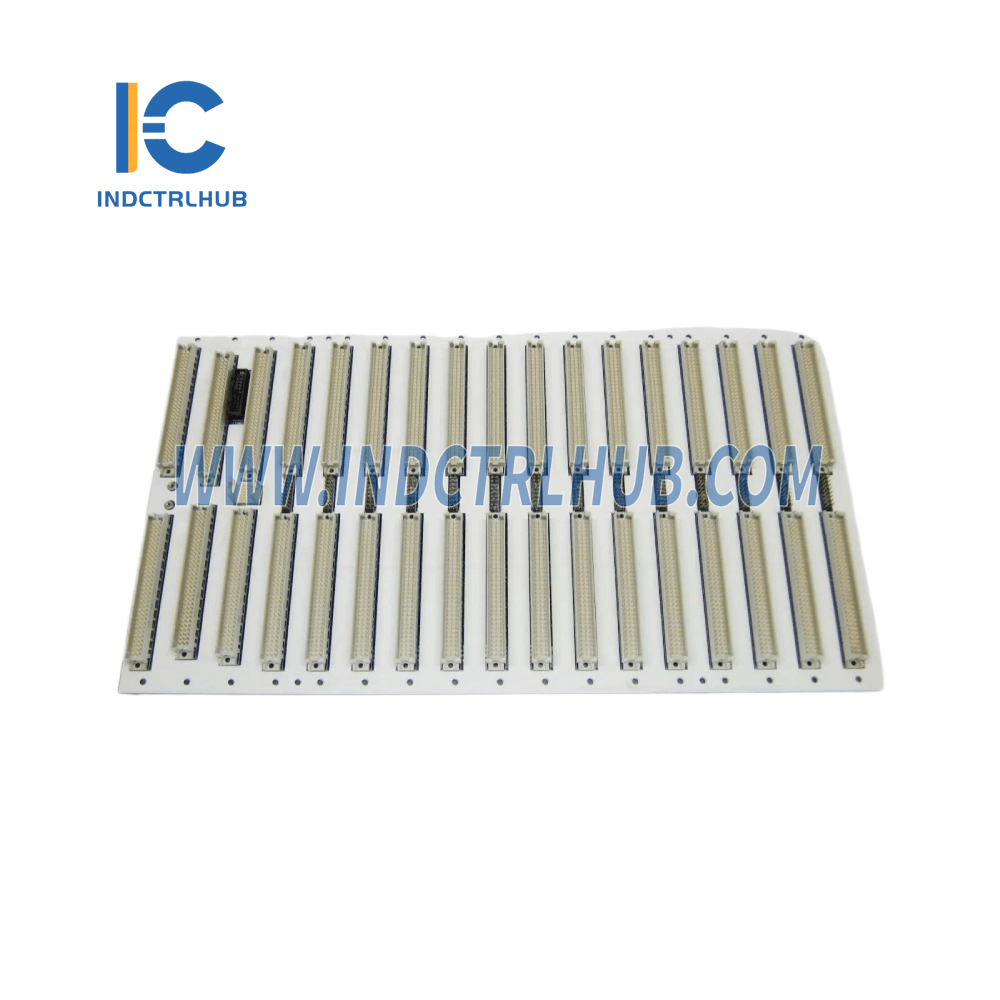

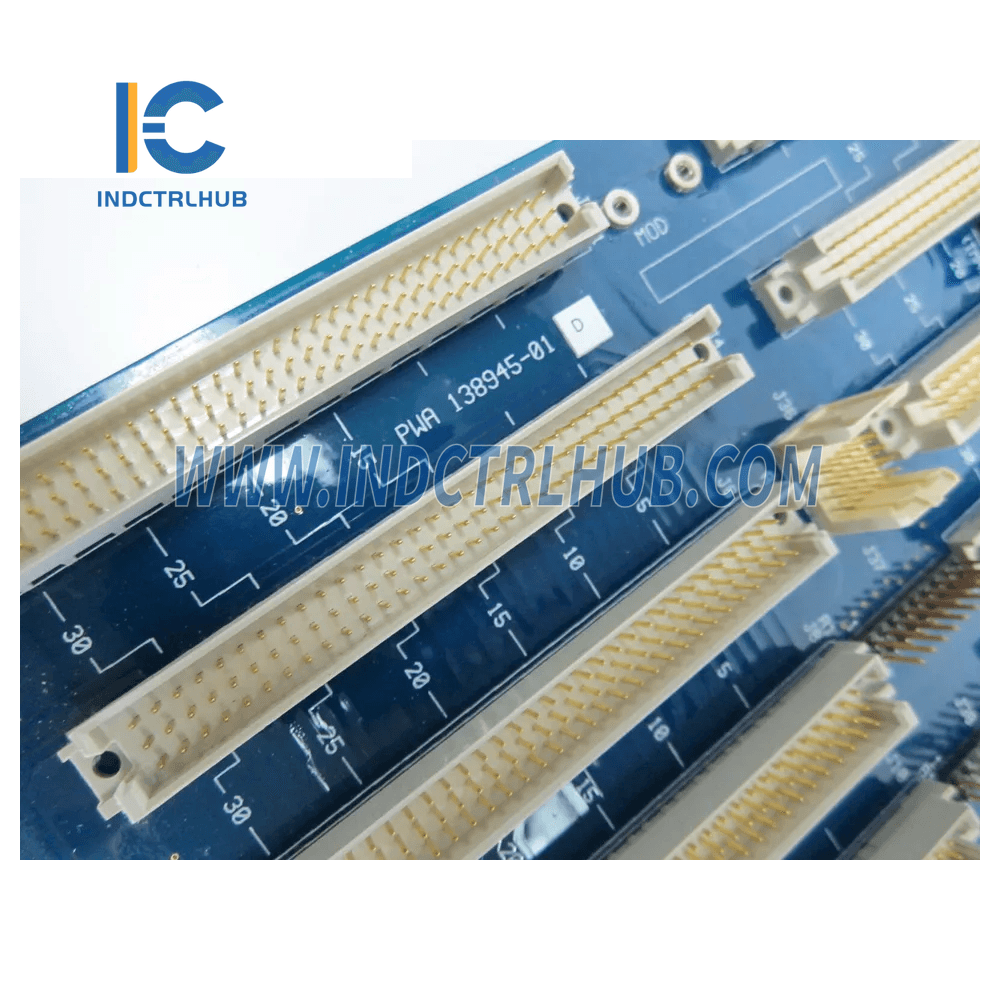

| Description | 3500/05 Standard Backplane System Rack |
Product Description
The 3500/05 Standard Backplane System Rack is a versatile mounting platform for integrating 3500 monitor modules and power supplies. It facilitates close module arrangement for efficient communication and centralized power distribution.
Available Configurations
-
Full-Size Rack:
- 19-inch EIA rack with 14 module slots.
-
Mini-Rack:
- 12-inch rack with 7 module slots.
Mounting Options
-
Panel Mount:
- Secures to rectangular panel cutouts with included clamps.
- Rear access for wiring connections and I/O modules.
-
Rack Mount:
- Mounts on standard 19-inch EIA rails.
- Rear access for wiring connections and I/O modules.
Specifications
| Feature | Details |
|---|---|
| Dimensions | 8.3 cm x 12.7 cm x 4.4 cm |
| Weight | 1.2 kg |
